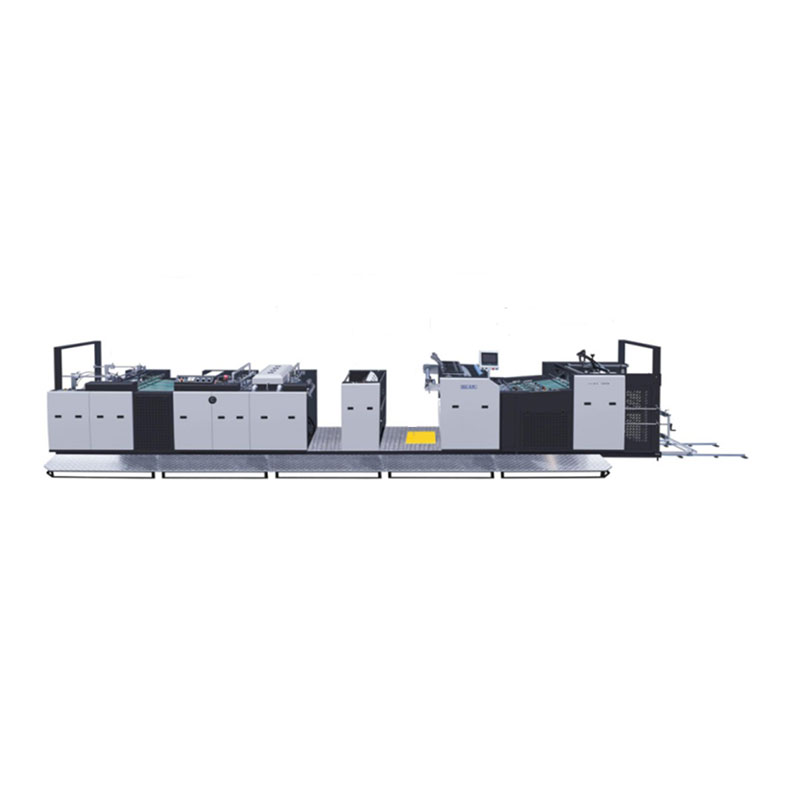

Servo Controlled High Speed Laminator for Albums

NEW STAR, a leading China manufacturer of the Servo Controlled High Speed Laminator for Albums, designs this automatic laminating machine for high-volume album production. Built with a heavy-duty frame, servo-driven feeder, and intelligent PLC control, it ensures consistent film adhesion on coated paper, art paper, and cardboard from 100 to 500 g/m². The dual‑zone heating system reaches operating temperature in under 8 minutes, while the overlap accuracy of ≤±2mm eliminates waste in album manufacturing. Whether you need single‑side or optional double‑side lamination, NEW STAR delivers industrial‑grade reliability.

Key Features

Every Servo Controlled High Speed Laminator for Albums from NEW STAR includes these performance-driven features:

• Servo offset feeder – feeds up to 12,000 sheets/hour with precise sheet separation and double‑sheet detection.
• High‑speed lamination up to 80 m/min – reduces bottleneck in album binding lines.
• Electromagnetic + oil heating rollers – uniform temperature (±2°C) eliminates bubbles and silvering.
• Touchscreen PLC with memory – stores 50 job presets; auto‑adjusts film tension, trimming, and stacking.
• Automatic edge trimming & film lifting – minimizes operator intervention and film waste.

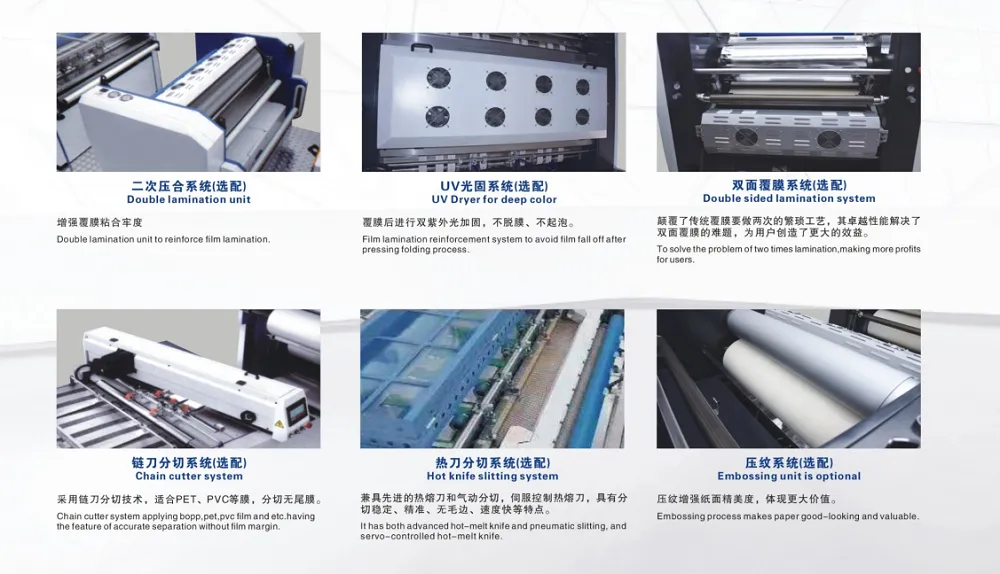

• Optional double‑side laminating unit – processes both sides in one pass for album covers.
• Vibrating stacker or automatic palletizer – keeps finished sheets perfectly aligned.

Technical Parameters

Applications

• Photo albums & wedding books – gloss/matte protection with scratch resistance.
• Hardcover book cases & notebook covers – prevents warping and delamination.
• Luxury rigid boxes & gift packaging – enhances surface finish and durability.
• Brochures, calendar, and art prints – high‑speed lamination for commercial printing.
• Educational books & memory books – long‑lasting film adhesion for frequent handling.

Advantages

• 30% less waste – thanks to servo‑driven registration and real‑time overlap correction.
• Energy saving – electromagnetic heating consumes 20% less power than traditional oil‑only rollers.
• Quick job changeover – tool‑less film loading and preset memory reduce setup to under 2 minutes.
• Low maintenance cost – modular construction, oil‑free vacuum pump, and easy access to drive rollers.
• CE & ISO certified – built to withstand 24/7 industrial environments.

Maintenance Guide

• Daily: Clean heating rollers with a soft cloth; remove film residue from the cutting knife area.
• Weekly: Inspect feeder belts and double‑sheet detector; lubricate chain drives (use high‑temp grease).
• Monthly: Calibrate temperature sensors; check servo motor cooling fans for dust accumulation.
• Quarterly: Examine electrical cabinet connections; clean air filter of the vacuum pump.
• Annually: Replace pressure roller rubber cover if worn; update PLC software via authorized technician.

Why Choose Us

1. 10+ years of post‑press R&D – focused on laminating and box‑making machinery since 2010.
2. 10,000 m² smart factory – with in‑house CNC machining, ISO 9001:2015 certified.
3. Exported to 50+ countries – covering global mainstream printing markets.
4. Custom engineering – adjust feeder height, stacking system, and film compatibility for your album production line.
5. 24/7 spare parts support – 90% of common parts in stock for fast delivery.

FAQ

Q1: What film types are compatible?

A: Thermal BOPP, PET, and pre‑coated film (12–25μm). For the Servo Controlled High Speed Laminator for Albums, we recommend NEW STAR branded film for best lamination results.

Q2: Can it handle paper lighter than 100 g/m²?

A: With optional air‑suction feeder, it can process paper as low as 80 g/m². Feel free to contact us for personalized customization.

Q3: What is the delivery time?

A: 20–30 days after deposit for standard models; 35–45 days for customized double‑side units.

Q4: Do you offer overseas installation service?

A: Yes. We can arrange professional engineers for on‑site installation and operational training (travel and accommodation fees not included).

Q5: What is the warranty period of servo motors?

A: Servo motors enjoy 18 months warranty, and general machine parts are covered for 12 months.

Q6: How to get free lamination sample test?

A: You can send your paper and film samples to our Wenzhou factory. We will provide laminated samples and a testing video report for free.
