SGUV series glazing machine is mainly used to apply oil coating to the surface of various papers (80-600g/m2) to modify the surface of the paper. It can be used for water-based oil and blister oil glazing. The surface of various paper printed products processed by this machine has moisture-proof and wear-resistant effects. The machine has beautiful appearance, stable and reliable performance, simple and convenient operation, and high degree of automation.
| Model | SGUV-800A | SGUV-1200A | SGUV-1200A-L | SGUV-1300A-L |
| Max.Paper Size | 760*1050mm | 1200*1050mm | 1200*1450mm | 1260*1650mm |
| Min.Paper Size | 270*270mm | 300*300mm | 350*300mm | 420*420mm |
| Paper Weight | 250~500g/m2 | 250~500g/m2 | 250~500g/m2 | 250~500g/m2 |
| Paper Weight | 80~500g/m2 | 128~500g/m2 | 128~500g/m2 | 128~500g/m2 |
| Working Speed | 5~100m/min | 5~100m/min | 5~100m/min | 5~100m/min |
| Working Speed (thick paper) | 5~60m/min | 5~60m/min | 5~60m/min | 5~60m/min |
| Power | 25Kw | 30Kw | 30Kw | 35Kw |
| UV Lamp | 2pcsx9.75Kw | 3pcsx9.75Kw | 3pcsx9.75Kw | 3pcsx9.75Kw |
| IR Lamp | 18pcsx1.5Kw | 18pcsx1.5Kw | 18pcsx1.5Kw | 18pcsx1.5Kw |
| Paper feed heigh | 1100 | 1100 | 1100 | 1200 |
| Paper stack height | 1050 | 1050 | 1050 | 1050 |
| Machine Weight | 7500kg | 7500kg | 8000kg | 9000kg |
| Machine Dimension | 9000x2050x2000mm | 9800x2050x2000mm | 12000x2050x2000mm | 13000x2350x2000mm |
1. Intelligent speed co-adjustment, one-button start and stop.

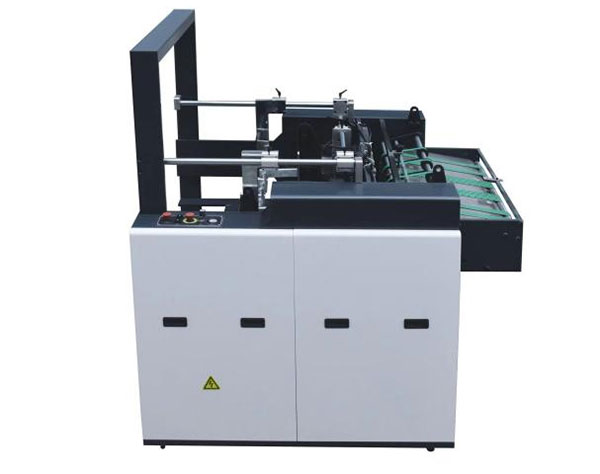

2. High-speed paper feeder, four-suction and four-feed structure for stable paper feeding, upper and lower limit protection of the paper feeder; double or multiple paper feed detection device, stepless frequency conversion paper feeding; feeder paper platform rise protection device; micro switches are installed above the paper platform and the feeder head to prevent the paper from rising too high and hitting the feeder head.
3. Powder remover: can effectively remove paper dust. (Optional) 4. The conveyor plate adopts customized stainless steel corrugated plate.
5. Main machine: three-roller coating (coating roller diameter 185mm). The drum reversing mechanism is adopted to make the coating oil layer uniform, smooth and delicate, saving varnish and meeting the high quality requirements of the product.
6. Infrared light box: The constant temperature IR infrared light box can set the use temperature according to the product requirements. Save energy consumption, quickly dry water-based varnish; high temperature resistant Teflon mesh belt automatic deviation correction protection.

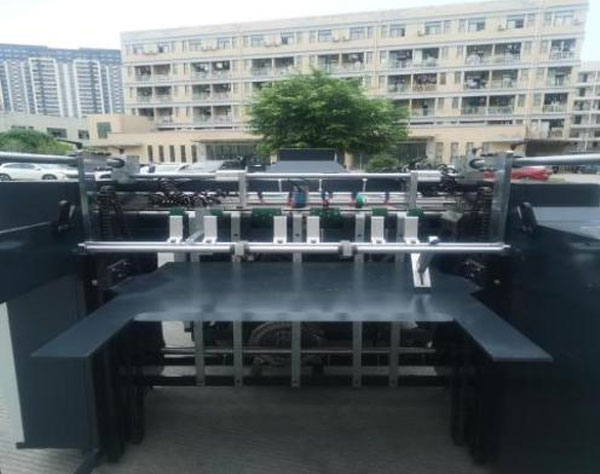

The feeder has four suction and four delivery functions. The conveyor belt feeds the paper, and the conveyor belt can be extended and widened to adjust the gauge freely, making lamination more convenient and less likely to deviate.
Industry-leading air knife improvement technology ensures smooth coating of 80gms paper

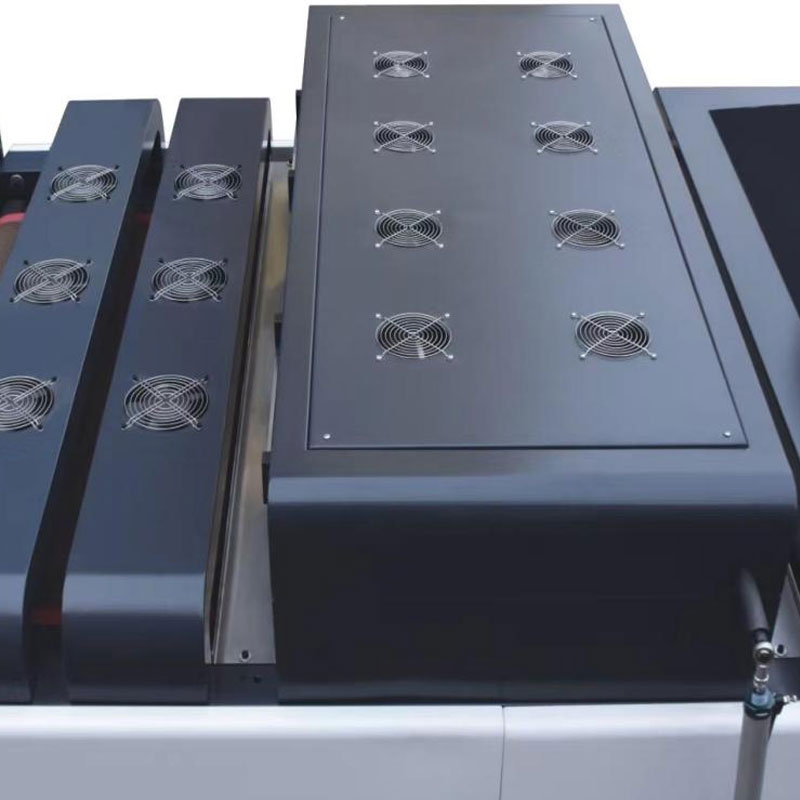

Infrared light box and ultraviolet light box are dual-purpose, and the cooling fan device allows the paper to cool down quickly after drying.
Equipped with an induction electric sensor, when paper is blocked, the front of the paper feeding table will automatically turn over and the feeder will automatically stop
