Automatic high-speed water based coating machine

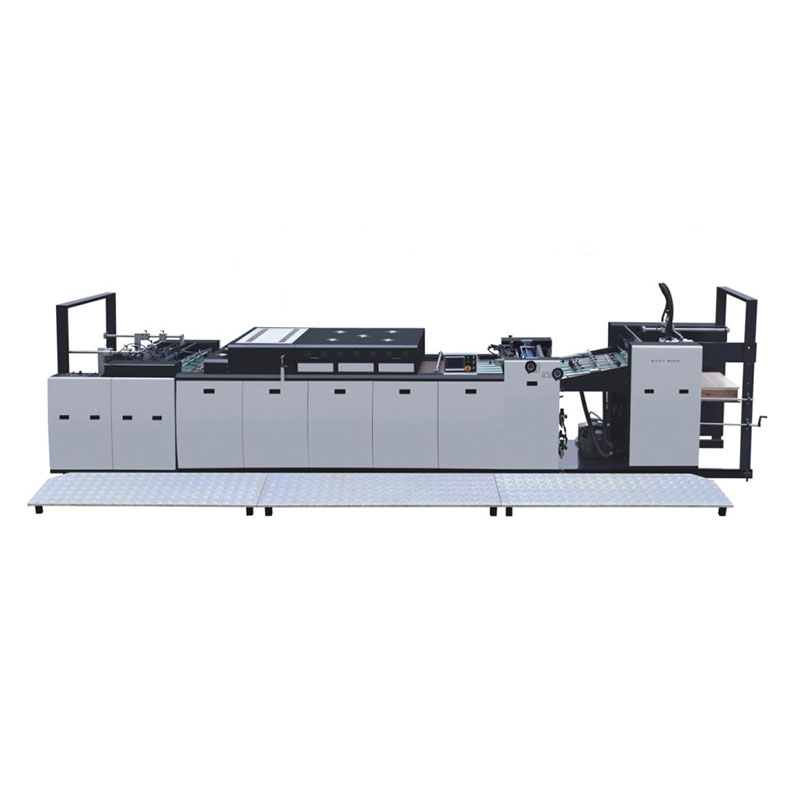

The Automatic high-speed water based coating machine is a practical fully automatic coating machine developed by NEW STAR company, which is suitable for posters, books, brochures, color boxes, color box packaging, handbags, etc. It’s a customized model mainly for water base oil coating, blister coating.

Specification

Features

1. The main machine adopts three-roller coating method, with a gluing roller diameter of 165mm, a metering roller diameter of 110mm and a pressure roller diameter of 138mm to ensure that the surface coating has no lines and no orange peel. The three rollers use large-size bearings to ensure transmission accuracy and increase service life.

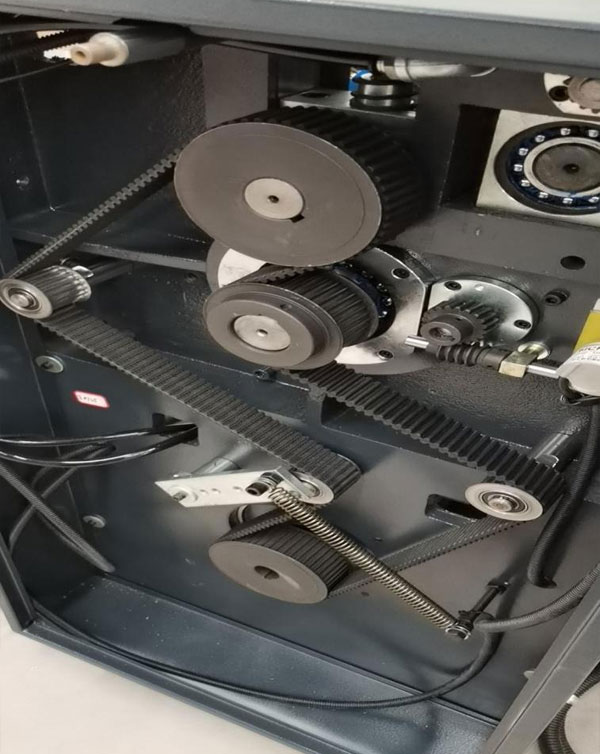

2. The main motor adopts a variable frequency speed regulation motor. Stable performance. The transmission adopts synchronous pulley transmission to ensure that there is no streak phenomenon in the coating and no noise in high-speed operation.
3. The large-size touch screen control operation is simpler and more convenient, with a humanized operation interface, front and rear conveying, one-key acceleration for paper collection, and one-key startup to save operation time.
4. Equipped with an automatic large-scale paper feeder, using Zhejiang Jucheng Feida head, the paper feeding is stable and reliable.
5. Unique bottom roller automatic cleaning system, double oil pan device, the lower roller is immersed in the small oil pan when working, which can effectively clean the lower roller and prevent the oil from drying out during shutdown.

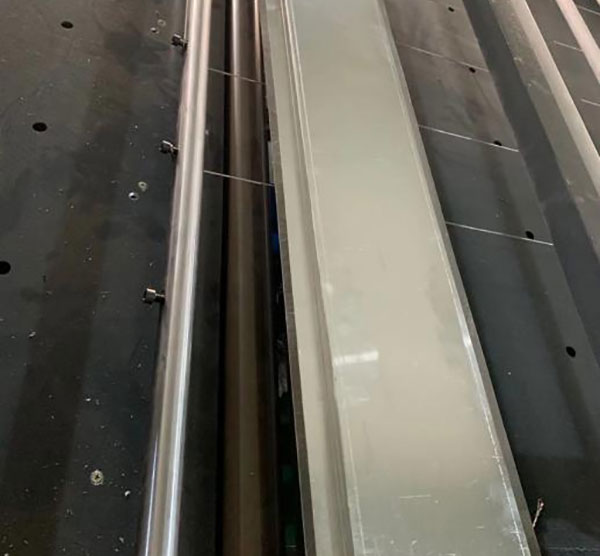

6. The bridge part adopts a suction device to prevent the paper from skewing.
7. Double oil tanks are used for oil supply. Equipped with a stirring pump. Separate the varnish from the matt oil. Reduce the cleaning work when changing the oil.

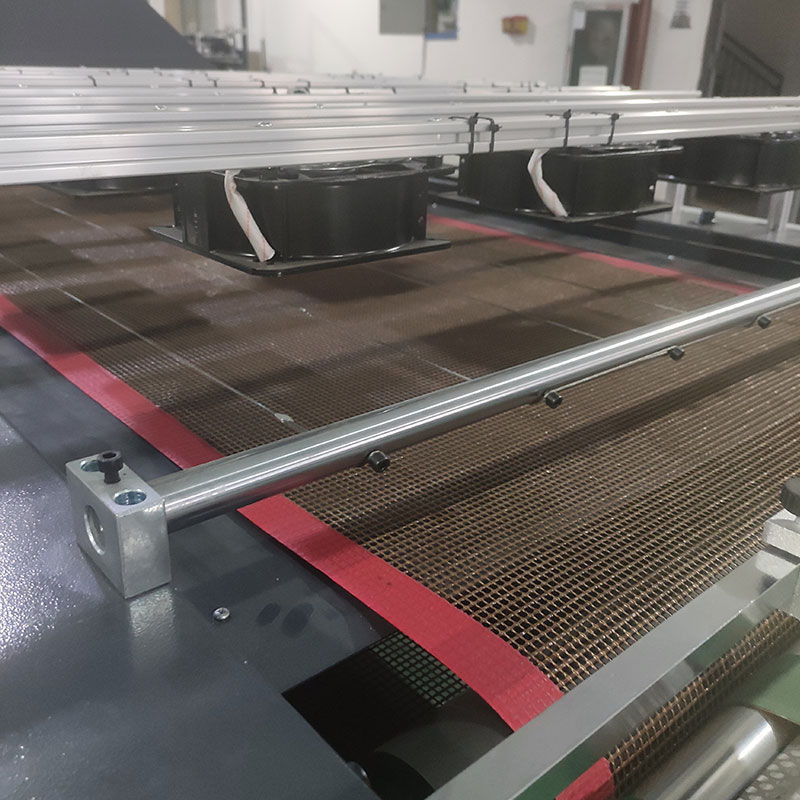

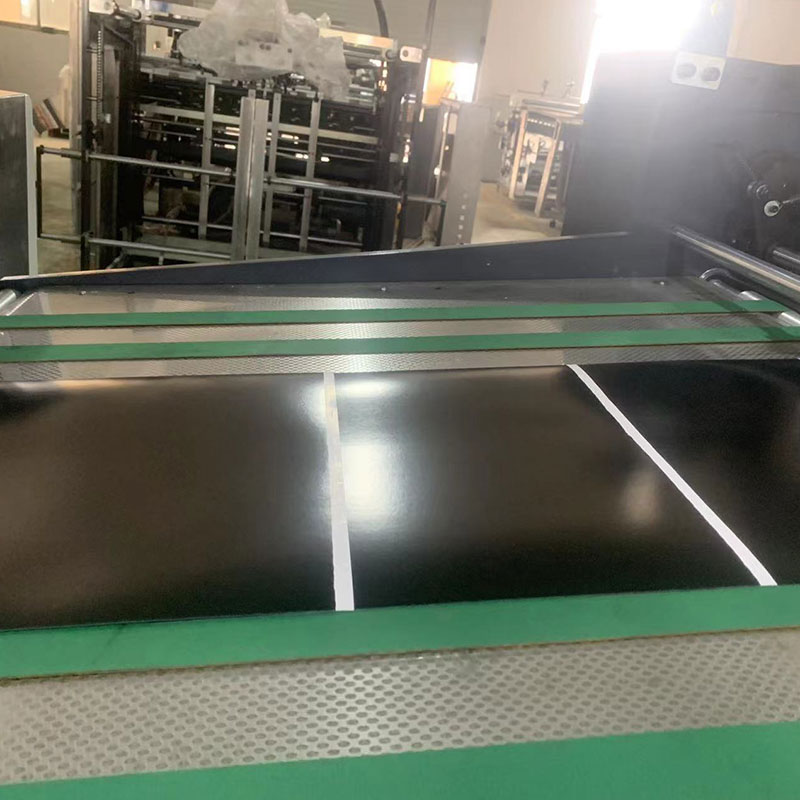

8. The conveyor belt adopts Teflon mesh belt, and the suction system is configured below to make the paper feeding smoother. Equipped with automatic mesh belt deviation correction system

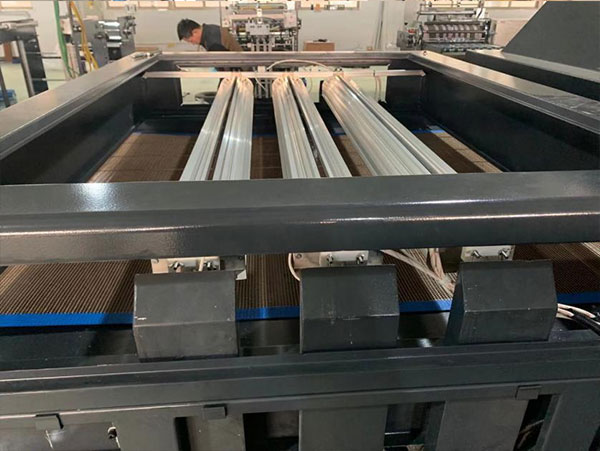

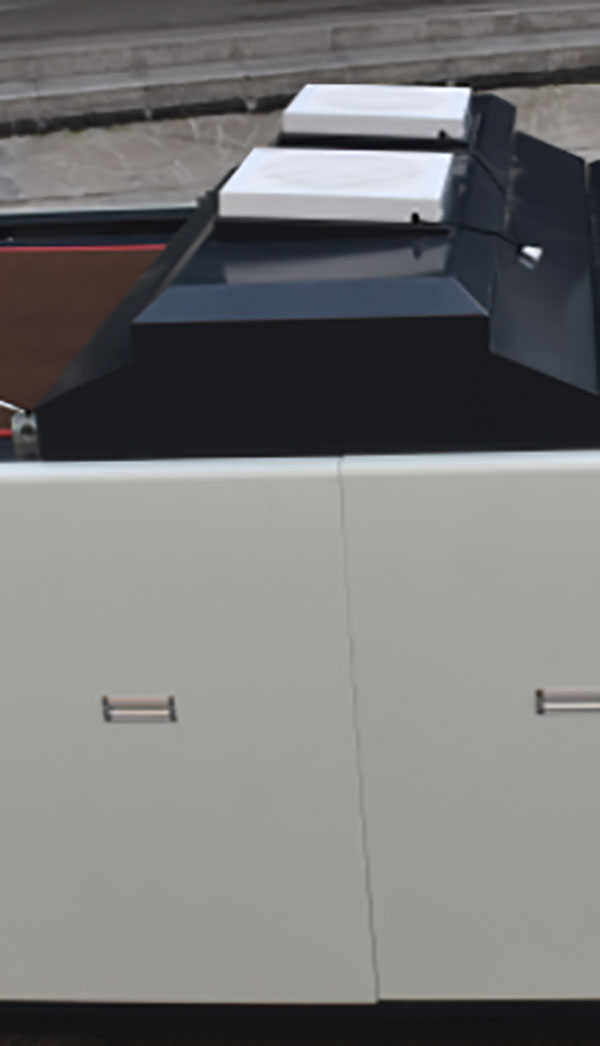

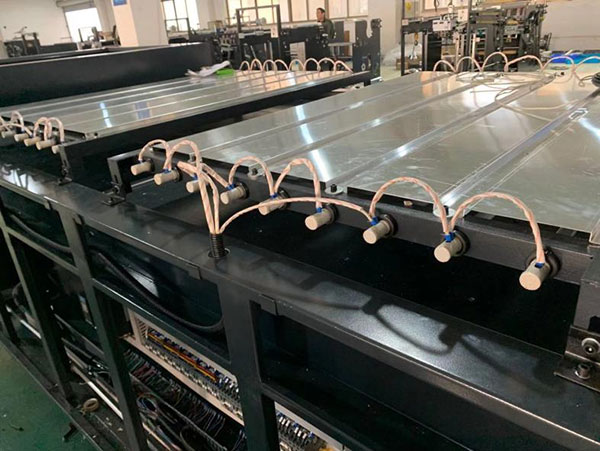

8. Standard configuration 3 UV and 27 IR lamps, the oven is equipped with a temperature probe, constant temperature control, saving electricity, equipped with automatic temperature control system.
9. The paper collection machine operates independently and adopts pneumatic paper beating.

Machine details

Automatic high-speed water based coating machine has a one-key acceleration function. After the main machine accelerates, the oven, paper delivery, feeder, and metering roller will all change according to the speed of the main machine.
The metering roller controls the oil thickness, which can be set on the touch screen.

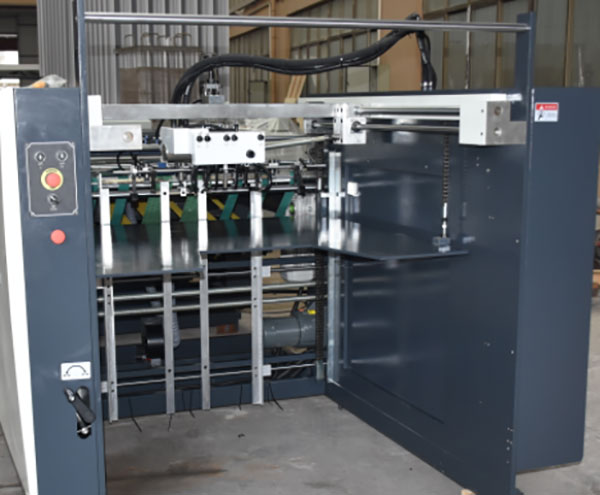

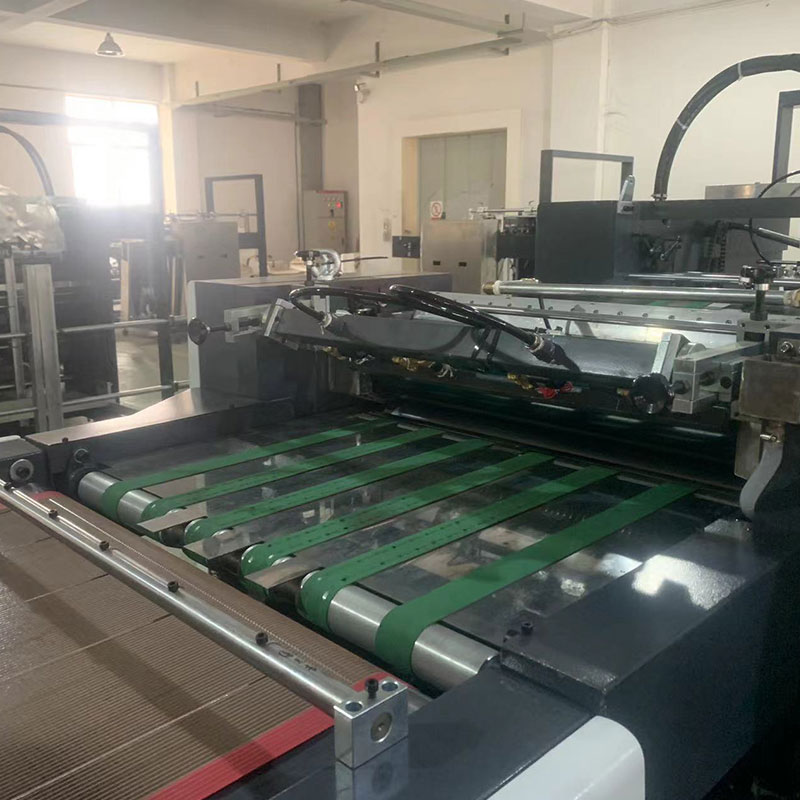

Auto feeding

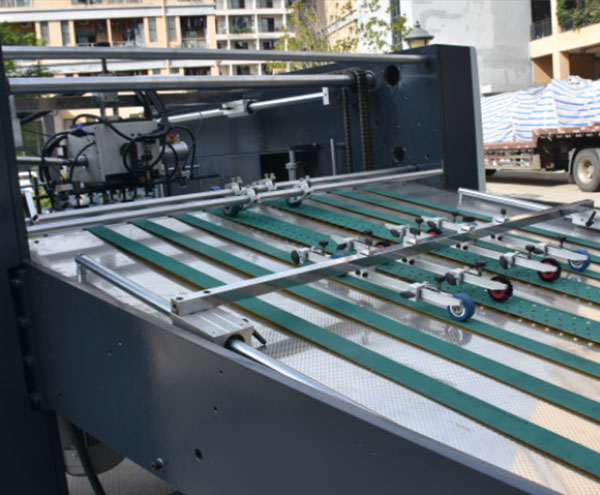

1: Adopt high-speed offset press feeder (12000 sheets/hour) to ensure fast and stable operation
2: Paper photoelectric control, automatic lifting
3: Double protection feeder lifting safety

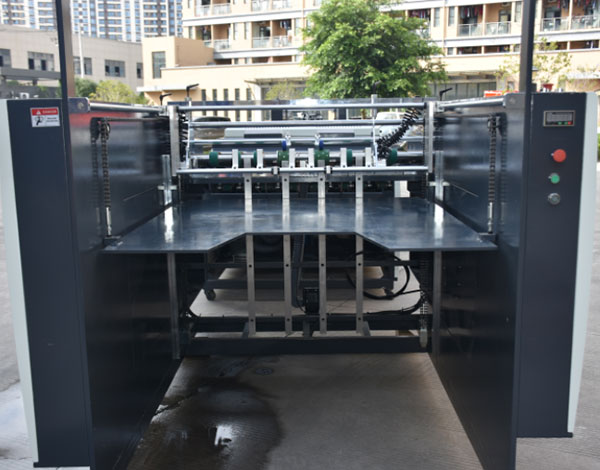

4: Using the latest paper stacker design, the entire tray can be pushed in, and the tray can be pushed in directly after printing, without manual paper sorting. Pre-stacker can also be used. two-way choice. Greatly save paper time and reduce the labor intensity of operators.

Coating section

1: Using cast iron body, strong rigidity and long life

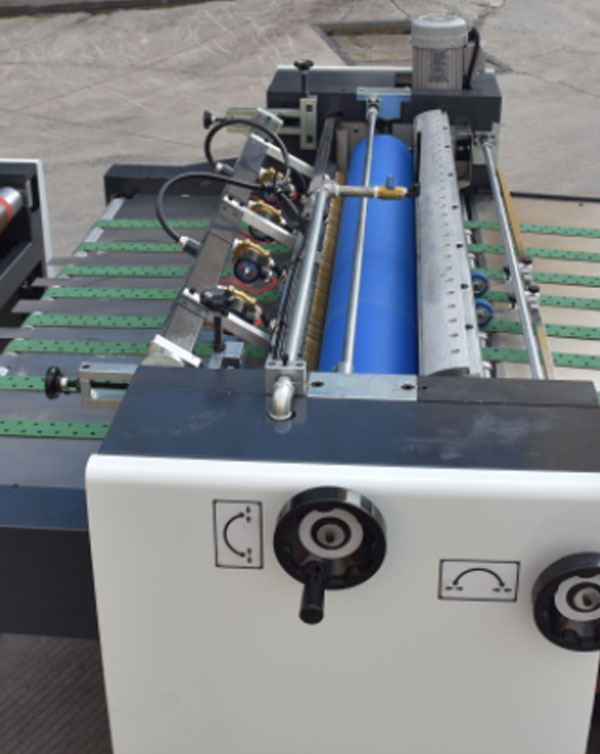

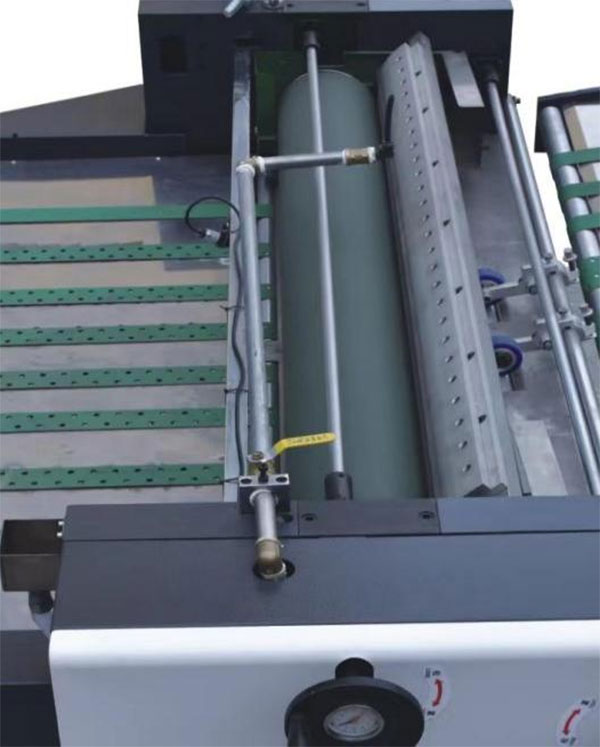

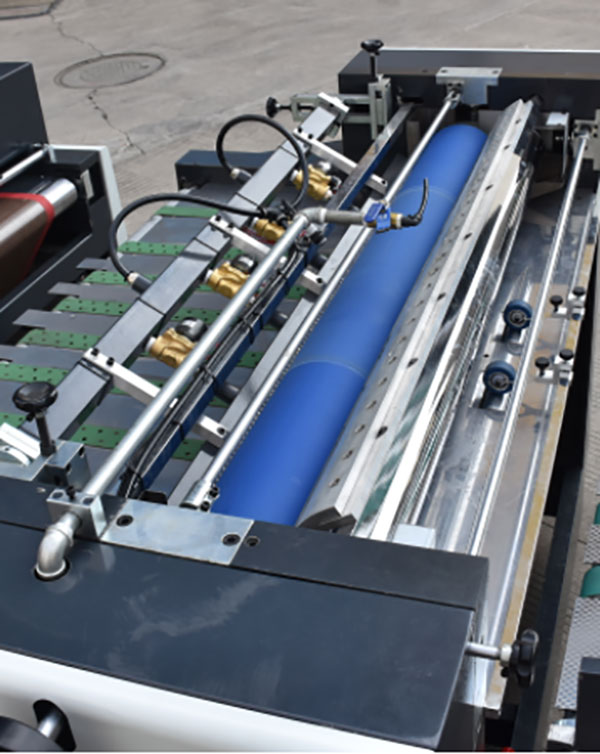

2: Three-roll reverse coating
A. The thickness of the oil can be controlled by adjusting the metering roller speed to save oil
B. A separate frequency converter controls the reversal of the metering roller, which has more frequency converters, motors, reducers and other configurations than the traditional roll-to-roll coating.
C. Iron roller 130MM adopts chrome-plated mirror surface treatment, rubber roller 165MM adopts 60 degree polyurethane rubber roller. The larger the roller, the thicker the rubber, ensuring fine coating and no orange peel.

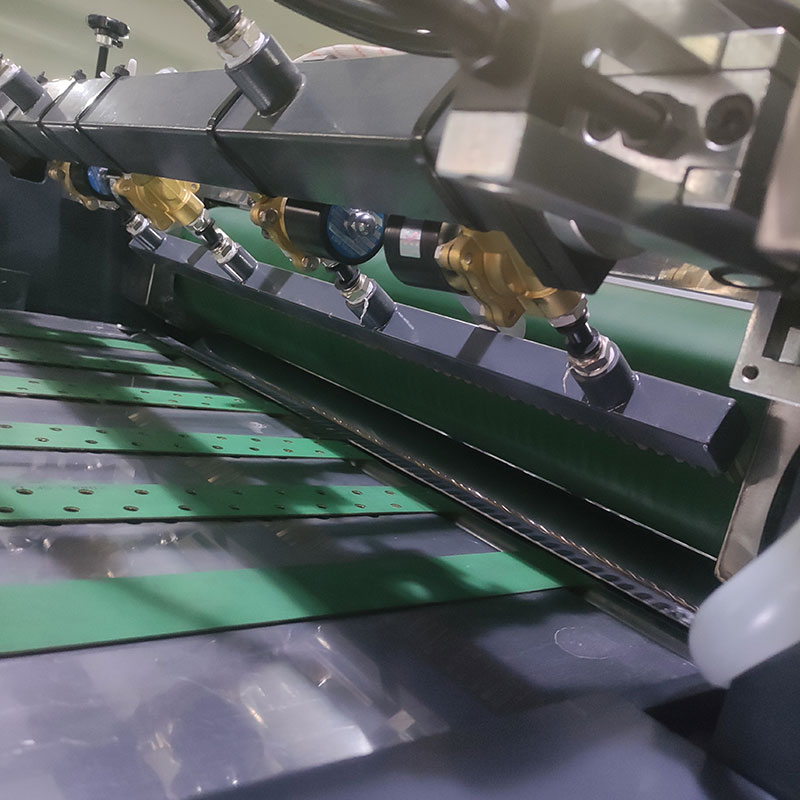

3: Equipped with an air knife, it can make 80G thin paper, the size of the wind, and the time of blowing are controlled by PLC.
4: Automatic stop function for roll paper
5: Automatic counting function
6: The rollers are adjusted synchronously, driven by the synchronous belt to make the coating effect stable and great.
7: Equipped with two oil tanks, UV and IR, and equipped with temperature heating control to ensure that the UV oil is coated between 40-60 degrees
8: The gap between the coating roller and the pressure roller of each machine head is adjustable from 0-50mm.
9: The main rollers adopt 55-diameter shaft heads and heavy-duty bearings, which greatly extend the life of the bearings.
10: The diaphragm pump is used for oil supply, no motor is needed, and the operation is safer.
11: Double scrapers and a unique bottom roller automatic cleaning system, double oil pan device, the lower roller is immersed in the small oil pan when working, which can effectively clean the lower roller and prevent the oil from drying during shutdown

IR Drying System

1: The better the leveling of the oven, the stronger the drying and curing.
2: 18 IR lamps, IR lamps generally have a life of 2 years
3: Emergency stop or overheat protection device, when the emergency stop or the temperature inside exceeds 150 degrees, the protective cover will automatically rise to dissipate heat to prevent fire
4: Equipped with a ventilation system, there is a strong suction device composed of an exhaust fan and a wind box, which can extract ozone, dissipate heat and make the paper not easy to curl in the furnace, but can pass smoothly.
5: Equipped with automatic correction system, (double correction, double over-limit protection). The paper conveying adopts the imported Teflon conveyor belt, which can prevent ultraviolet rays, is strong and durable, does not support the paper, the electric eye detects the Teflon conveyor belt, and the automatic homing correction device
6: The whole process of suction to ensure that the coating products will not float and do not pile up paper. The oven is equipped with iron wire protection to prevent the paper from floating on the paper and cause a fire.

Cooling system

After the paper dries out, it is quickly air-cooled to make the paper dry faster without anti-sticking.

Automatic delivery system

1. Paper photoelectric control, automatic lifting
2. Double protection feeder lifting safety
3. Equipped with pneumatic paper flap function, you can set the number and time of the paper beat to ensure neatness
4. Disorderly paper automatic lowering function

Power dusting device（optional）

1.Adopting the water powder removal method, the powder removal efficiency reaches 75% without damaging the paper. The body is made of high-quality cast iron to ensure accuracy.
The bottom oil head adopts three-roller coating and adopts synchronous belt wheel transmission to improve transmission efficiency and reduce coating lines.
2.Increase the coating effect without scratching the paper
