In the modern packaging industry, efficiency, precision, and material quality are crucial for staying competitive. A Flute Laminating Machine has become an essential asset for manufacturers who aim to enhance the strength and durability of corrugated boards while reducing production time and material waste.

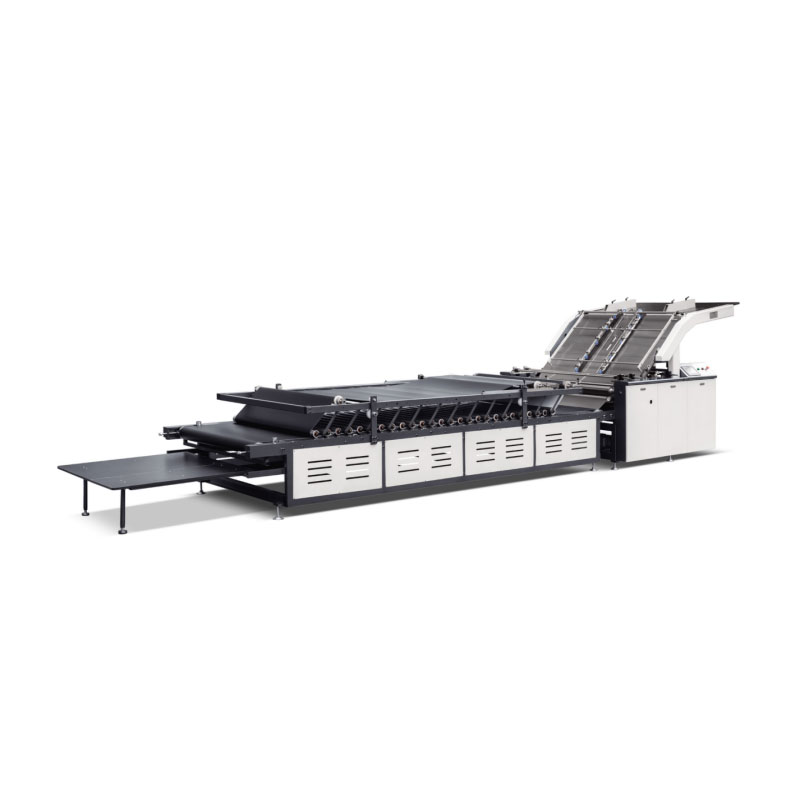

A Flute Laminating Machine is designed to combine multiple layers of corrugated paper, creating a laminated structure that improves rigidity, durability, and surface quality. This process involves bonding the fluted inner layer with one or more linerboards using high-temperature adhesives under controlled pressure. The result is a consistent, high-quality board ideal for boxes, cartons, and protective packaging.
Enhanced Structural Strength: The lamination process ensures that the board can withstand stacking, handling, and shipping pressures without deformation.
Improved Surface Quality: Laminated boards provide a smooth and uniform surface suitable for printing, labeling, and branding.
Increased Production Efficiency: By automating the lamination process, manufacturers can achieve higher output rates with consistent quality.
Material Optimization: Reduces the need for excessive raw materials while maintaining board strength, thus lowering production costs.
The machine operates by feeding pre-processed fluted sheets and liners into a laminating section, where a combination of heat, pressure, and adhesive bonding creates a seamless laminated board. Modern systems use advanced temperature control, precise roller alignment, and automated tension adjustments to maintain high precision and minimize waste.
To help packaging facilities select the most suitable equipment, the key technical specifications of a standard Flute Laminating Machine are summarized below in a clear table format:
| Parameter | Specification | Notes |
| Max Laminating Width | 2500 mm | Suitable for wide boards used in large packaging applications |
| Max Speed | 50 m/min | Adjustable for different material thicknesses and production needs |
| Board Thickness | 3–15 mm | Supports single, double, and triple wall corrugated boards |
| Flute Types | A, B, C, E, F | Compatible with standard corrugated flute types |
| Adhesive Type | Starch or synthetic adhesive | Customizable according to material requirements |
| Heating System | Electric or steam-based | Ensures uniform temperature across laminating rollers |
| Roller Diameter | 400–600 mm | Large diameter rollers for smooth lamination and reduced wrinkles |
| Control System | PLC touch-screen | Allows precise settings, real-time monitoring, and automation |
| Tension Control | Automatic | Ensures consistent bonding without tearing or stretching |
| Power Requirement | 75–120 kW | Varies depending on machine size and production capacity |
| Machine Dimensions | 12–18 m length, 3 m width, 2.5 m height | Installation space consideration for factory layout |
This specification table provides an overview of the critical factors manufacturers consider when choosing a Flute Laminating Machine. Each parameter plays a vital role in ensuring efficiency, production quality, and operational reliability.
Automatic Feeding System: Minimizes manual labor and reduces errors caused by uneven feeding.
Roller Pressure Adjustment: Allows operators to set precise pressure according to board thickness and adhesive type.
Emergency Stop and Safety Mechanisms: Modern machines are equipped with multiple safety devices to protect operators and prevent production downtime.
Modular Design: Enables easy maintenance, replacement of worn components, and future upgrades.
In practical terms, a Flute Laminating Machine optimizes both material use and labor efficiency. Manufacturers in food packaging, electronics, e-commerce, and industrial sectors can significantly benefit from the machine’s precision and speed.
Consistent Product Quality: The automated system ensures each board has uniform lamination, reducing defects and enhancing the visual and structural quality of finished packaging.
Cost Efficiency: By optimizing adhesive usage and material alignment, the machine reduces wastage and lowers production costs per unit.
Versatility: Capable of handling various flute types and board thicknesses, the machine can adapt to different packaging requirements without the need for extensive reconfiguration.
Faster Turnaround: High-speed laminating reduces production cycle time, allowing companies to respond quickly to market demands.
E-commerce Packaging: Sturdy and lightweight laminated boards ensure products reach customers undamaged while reducing shipping costs.
Food Packaging: Moisture-resistant laminated boards maintain product integrity for items such as bakery goods, frozen foods, and beverages.
Electronics Packaging: Shock-absorbent laminated boards protect sensitive devices during transit.
Industrial Goods: Heavy-duty boards reinforced by lamination are suitable for machinery, tools, and other industrial products.
Q1: How do I choose the right Flute Laminating Machine for my production line?
A1: Consider the maximum board width, speed, and thickness your facility requires. Additionally, evaluate the types of flutes you frequently use, the adhesive type compatible with your products, and the level of automation needed. A machine with modular design and advanced PLC controls is ideal for scalable operations.
Q2: What maintenance is required to ensure long-term performance?
A2: Regular cleaning of rollers, inspection of the adhesive system, and calibration of tension controls are essential. Scheduled maintenance every 3–6 months, depending on usage, ensures consistent lamination quality and extends machine lifespan. Lubrication and safety checks should be performed weekly.
Investing in a Flute Laminating Machine is more than just acquiring equipment—it’s about securing reliable production, consistent quality, and long-term efficiency. Newstar machines stand out for their high precision, robust construction, and advanced automation features. Each machine is engineered to maximize output while minimizing labor and material costs.
With years of experience in the packaging machinery industry, Newstar offers a full range of technical support, customization options, and after-sales services. Whether you require single, double, or triple wall lamination, Newstar provides tailored solutions to meet your production needs.
By choosing Newstar, manufacturers gain not only a high-performance Flute Laminating Machine but also a partner committed to enhancing operational efficiency and ensuring packaging quality at every stage. To explore how Newstar can transform your production line, contact us today for detailed specifications, quotes, and a personalized consultation.
