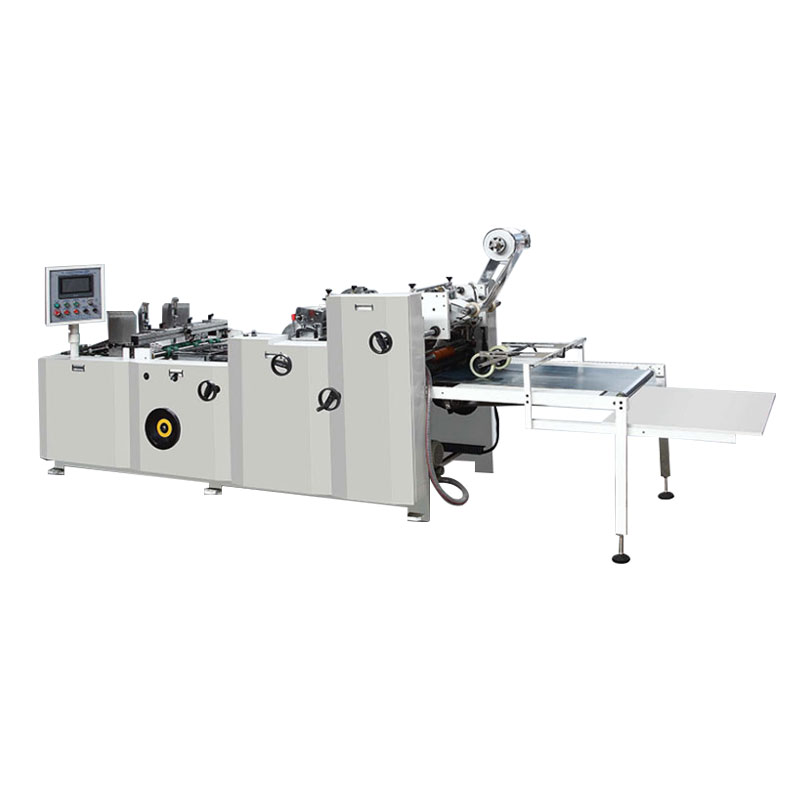

The fully automatic window Patching Machine is a special equipment for pasting films on packaging products such as window boxes and color boxes. It is currently the most advanced model of window pasting machine in China. The perfect humanized design concept makes this machine have the characteristics of high efficiency, high precision, high stability and easy operation.
| Model | TC-650 | TC-1080 |
| Paper Weight | 200 -1000 g/m² | 200 -1000 g/m² |
| Capacity Per hour | 16000 | 10000 |
| Size range of Paper | Min.150(L) x 160(W)mm | Min.150(L) x 220(W)mm |
| Max.560(L) x 650(W)mm | Max.650(L) x 1080(W)mm | |
| Size Range of Window | Min.30(L) x 50(W)mm | Min.30(L) x 50(W)mm |
| Max.300(L) x 350(W)mm | Max.350(L) x 450(W)mm | |
| Film Thickness | 0.04-0.25mm | 0.04-0.25mm |
| Machine Power | 6.4 kw | 7 kw |
| Machine Weight | 1800kg | 2700 kg |
| Machine Size | 4500(L)x1000(W)x1600(H) mm | 5000(L)x2000(W)x1600(H)mm |

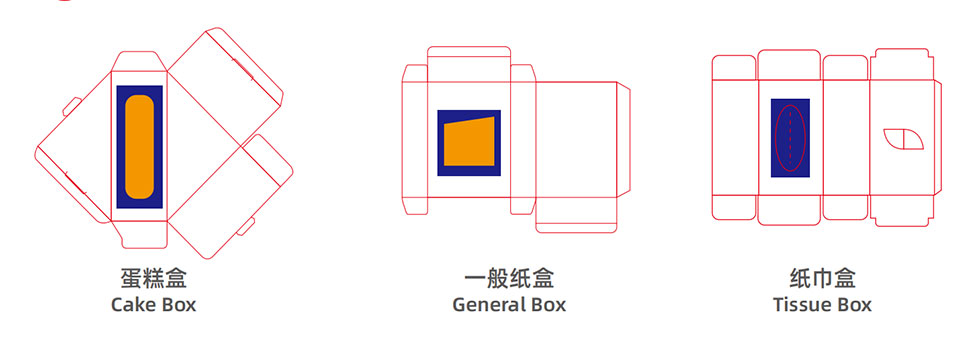

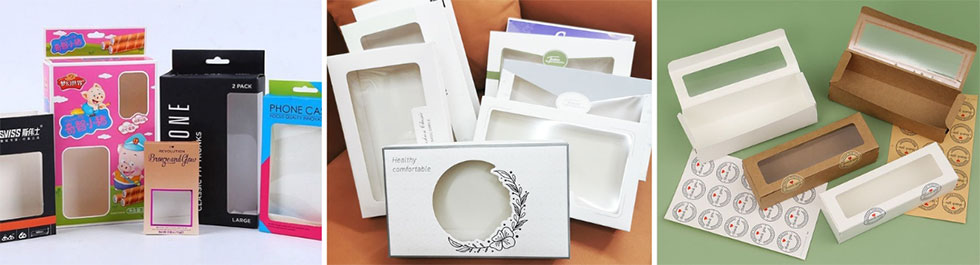

Automatic Window Patching Machine is widely used for patching the window on the liquor box, gift box, tissue box, cosmetic box, toy box and so on.
Automatic Window Patching Machine is suitable for cardboard and corrugated paper. It adopts the bottom paper extraction method with non-stop paper feeding to separate the paper pile into single sheets. After positioning, printing glue on the flexible plate module, stable and accurate film cutting and horizontal cutting, it can realize the film laminating function for windows of tissue boxes, gift boxes, toy boxes, shirt boxes, milk boxes, etc.

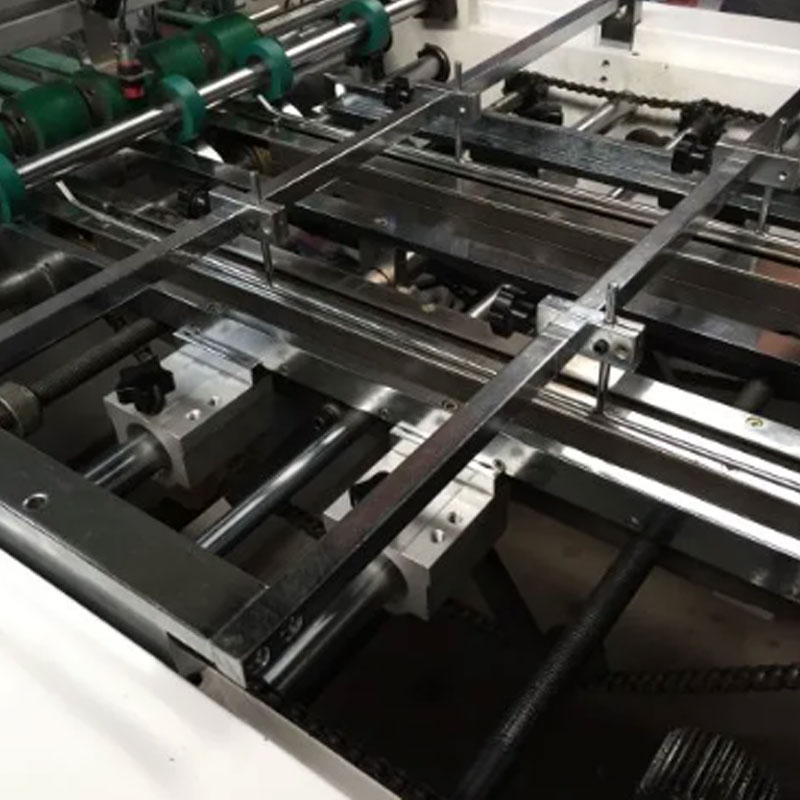

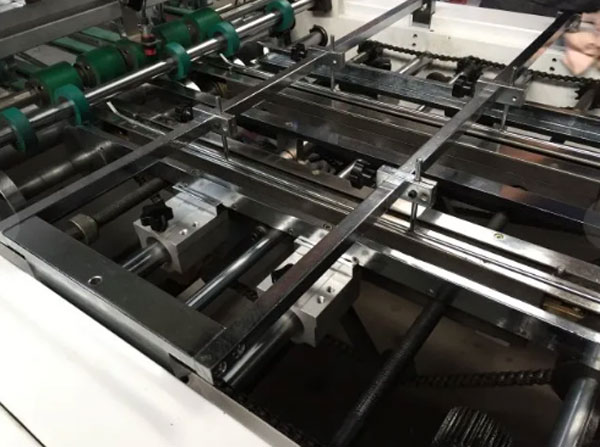

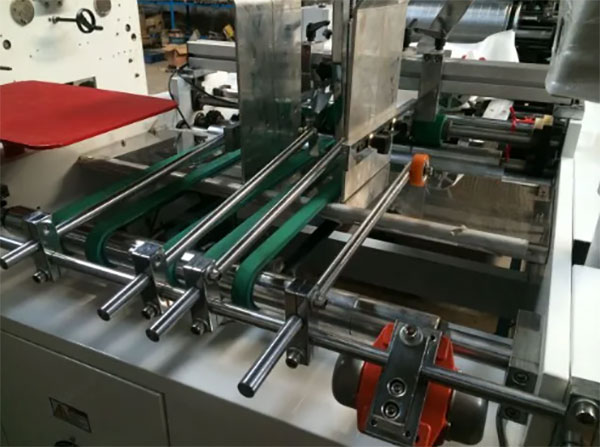

1. Use servo system and sensor system, Setting the paper length automatic.
2. Use good frictional belt with longer life.
3. Drawing out the paper from bottom,
no-stop add papers.
1. Use sensor system, stop gluing when missing paper.
2. Use center-oriented device, can adjust the thickness
of glue.
3. No stopping to adjust the position of glue.
4. Glue holder can be towed out, cleaning easy and
corrosion resistant.

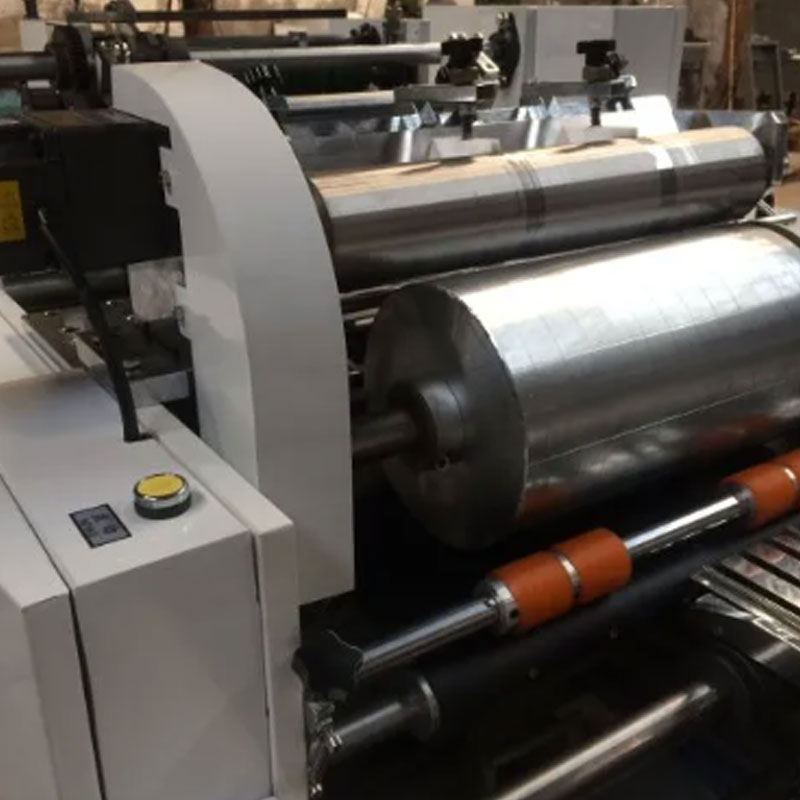

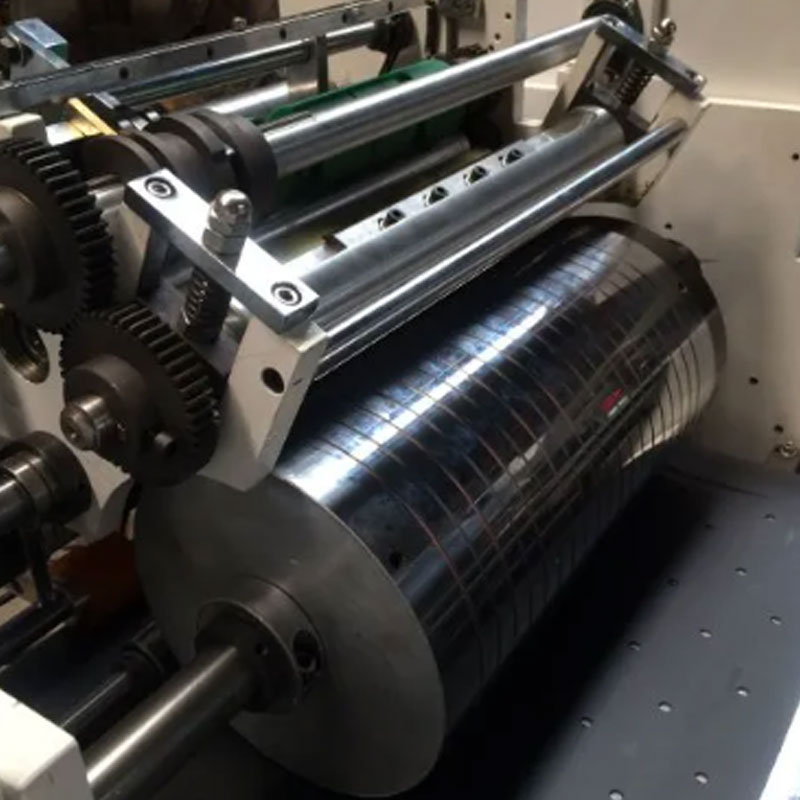

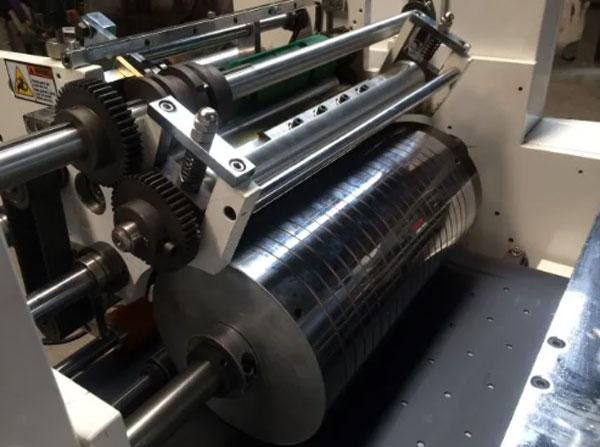

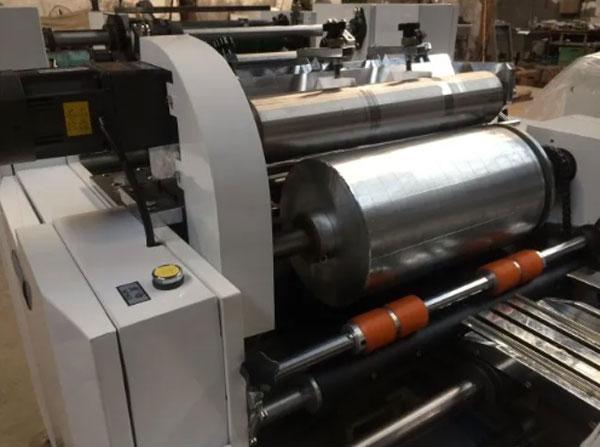

1. Use servo system, No stopping to adjust the length
of the film.
2. Standard with cutting for tissue box function.
3. Patented mechanical structure, No stopping to
adjust the position of the film. The accuracy is ±1mm
Patching double window(tissue box)
Sandwiching structure with
independently adjustable
speed to ensure perfect quality
The whole machine adopts PLC program control. All kinds of electrical parts are from famous imported brand.
