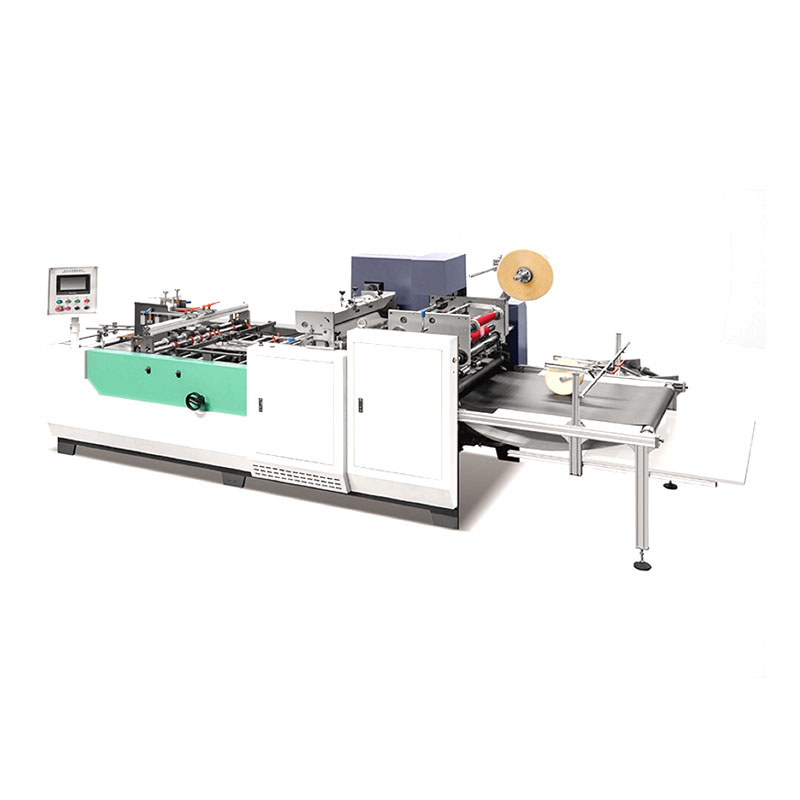

High Capacity Window Patching Machine

High Capacity Window Patching Machine is a special equipment for pasting window color boxes, color boxes and other packaging supplies. It is currently the most advanced model of domestic window pasting machines. The perfect humanized design concept makes this machine have the characteristics of high efficiency, high precision, high stability and easy operation. This machine is suitable for cardboard and corrugated paper. It adopts the bottom paper feeding method without stopping the machine to separate the paper stack individually. After predetermined positioning, flexographic module printing, stable and accurate diaphragm incision and horizontal knife cutting. Achieve the function of sticking film on the windows of tissue boxes, gift boxes, toy boxes, shirt boxes, milk crates, etc.

Specification

Application

Details

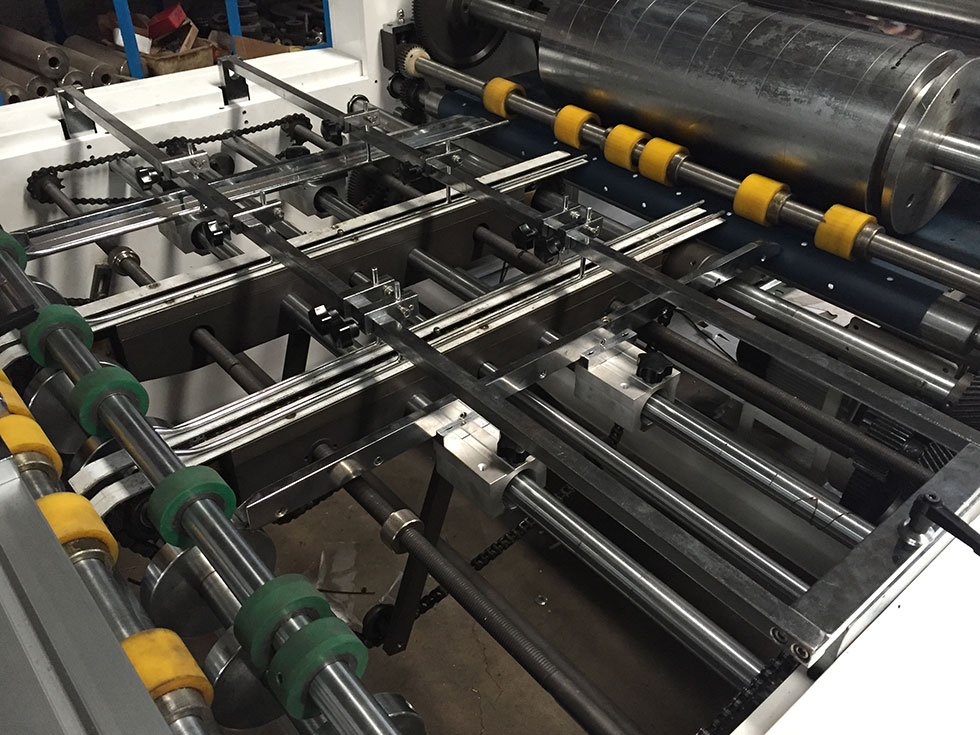

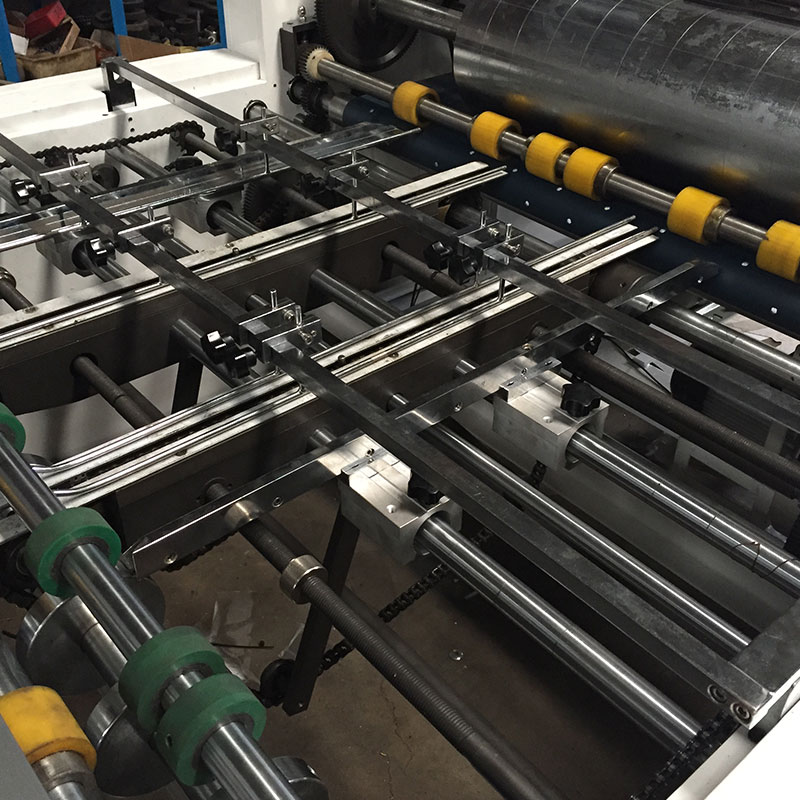

1)The paper feeding part uses a (Polish) paper pumping belt to pump paper at the bottom, which can continuously add paper without stopping the machine; the intermittent belt conveying adopts servo control, and the length of intermittent conveying can be adjusted on the human-machine interface according to the length of the paper; multiple conveying belts They are equipped with gear and rack devices to adjust the left and right position of the belt.

2)The positioning part is corrected with double push gauges to reduce errors. A locking device is installed on the power synchronous wheel, which can adjust the parallelism of the two push gauges according to product requirements, making the parallelism of glue and film more accurate.

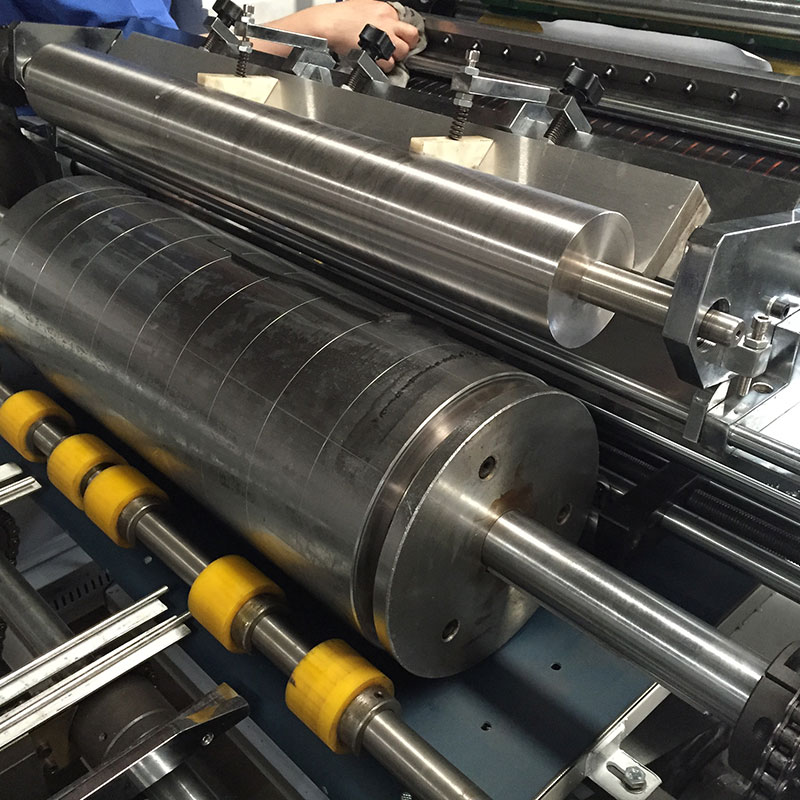

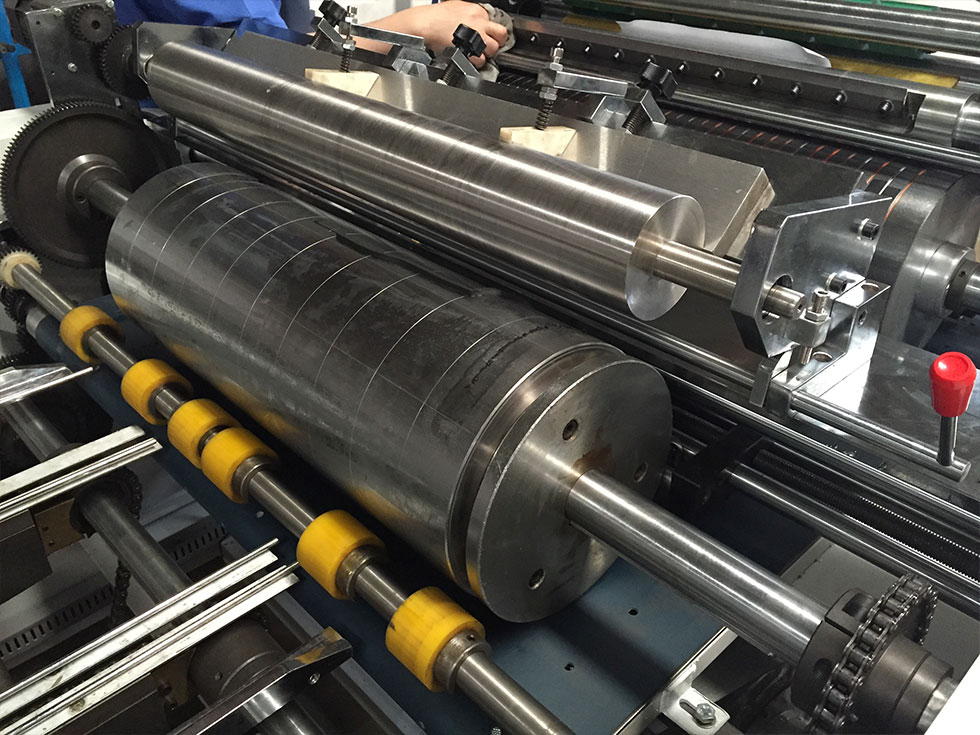

3)The glue brushing part uses double high-hardness steel rollers to drive the glue. The steel roller bracket adopts an eccentric device to quickly adjust the thickness of the glue. Anti-wear nylon blocks are used on the left and right sides to adjust the width of the glue according to the size of the product window. The printing abrasive can Use flexographic printing plate or printing strip printing glue (optional). The front and rear position adjustment is adjusted by a phase regulator, which can adjust the front, rear, left and right positions of the printing rubber without stopping the machine. The roller adopts photoelectric control and will automatically disengage when there is no product or no glue will be printed on the suction belt.

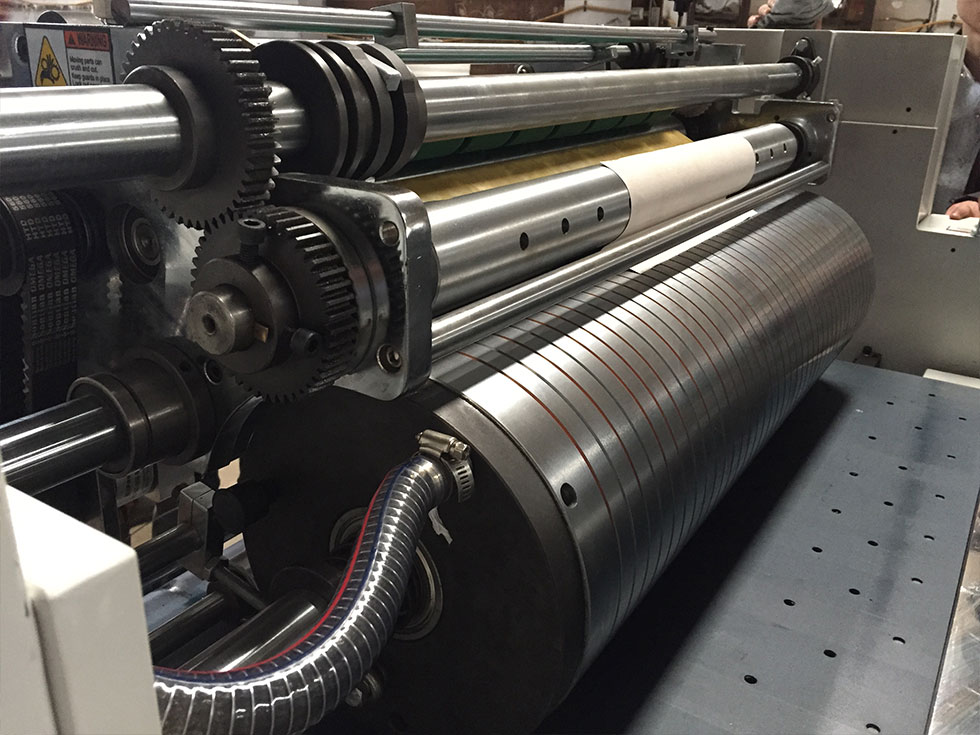

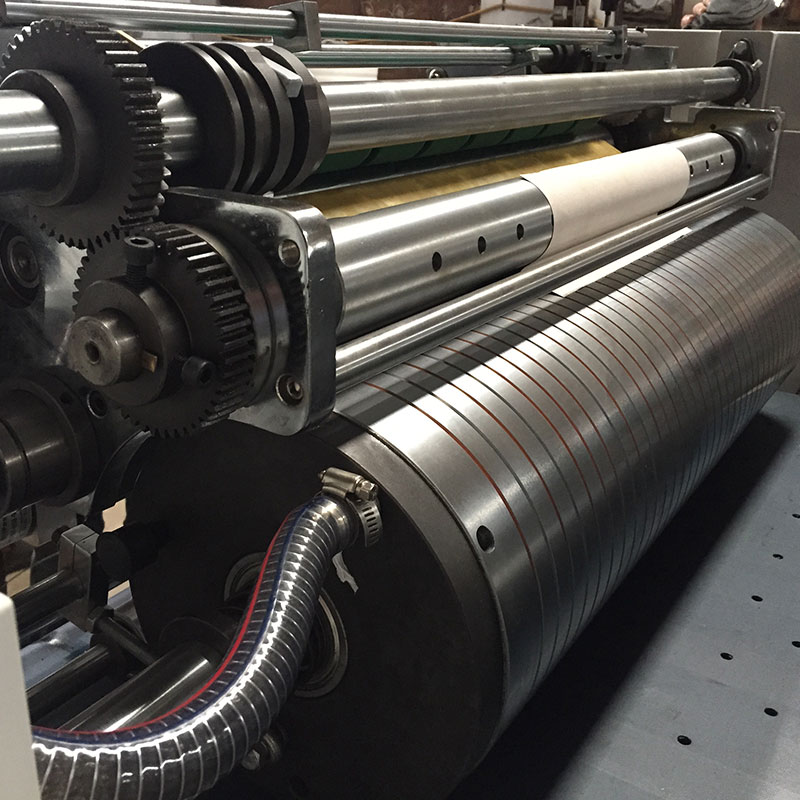

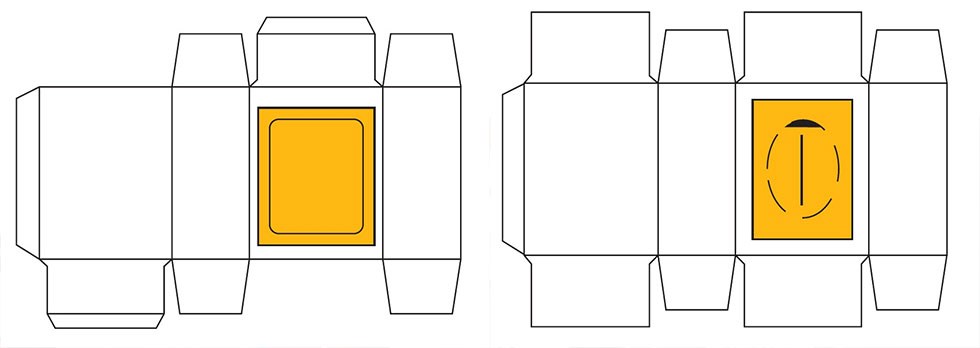

4)The film sticking part adopts a servo speed regulating device, which can ensure that the length of the film can be adjusted without stopping the machine. The roller knife is used to automatically cut the length of the film; the zigzag line of the film is automatically pressed out, and the opening of the film (such as a facial tissue box) is automatically cut; the suction tube roller is used to suck the film onto the carton, and the film can be adjusted front, rear, left, and right without stopping the machine. Location.
