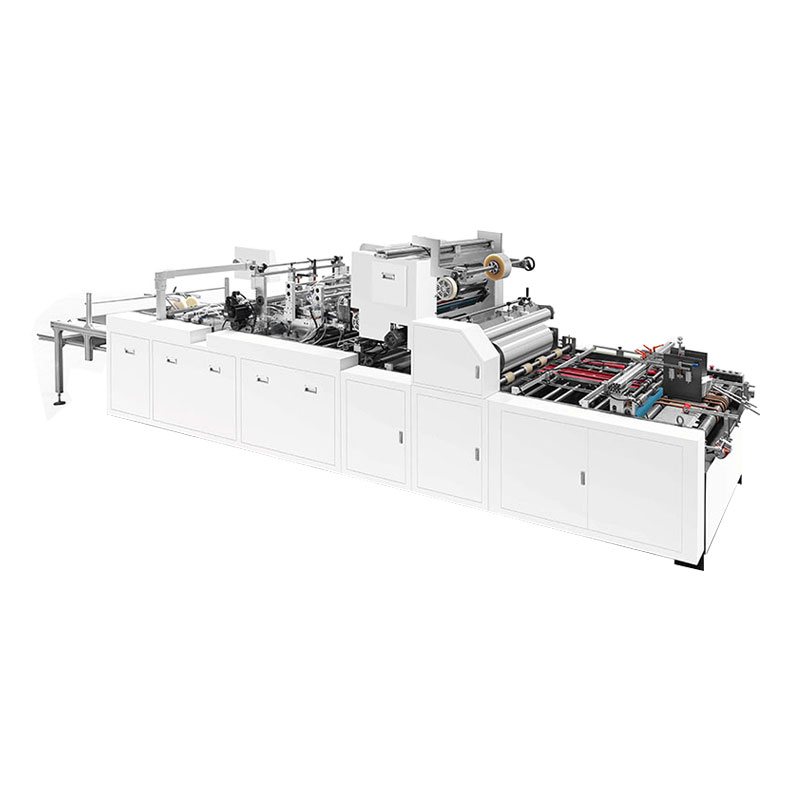

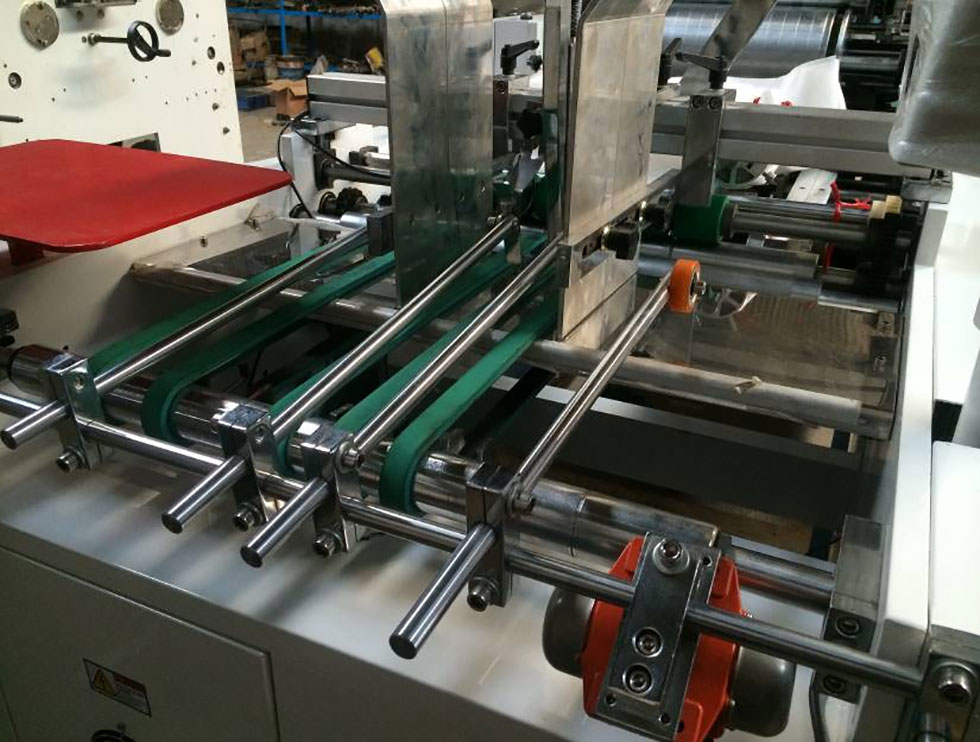

Punching and Creasing Window Patching Machine is widely used for patching the window on the liquor box, gift box, cosmetic box, toy box and so on. It has punching and creasing function, special for corner window. It is the best machine for patching corner window.
This machine can be used for cardboard and corrugated paper. It adopts the bottom paper extraction method of non-stop paper feeding to separate the paper pile by single sheet. After pushing and positioning, flexible plate module printing glue, stable and accurate film cutting and horizontal knife cutting. It realizes the film laminating function on windows of tissue boxes, gift boxes, toy boxes, shirt boxes, milk boxes, etc.
| Model | TC-650A | TC-880A | TC-1080A |
| Paper Weight | 200 -1000 g/m² | 200 -1000 g/m² | 200 -1000 g/m² |
| Capacity Per hour | 7000 | 7000 | 7000 |
| Size range of Paper | Min.150(L) x 170(W)mm | Min.150(L) x 170(W)mm | Min.150(L) x 170(W)mm |
| Max.560(L)x 650(W)mm | Max.650(L) x 880(W)mm | Max.650(L) x 1080(W)mm | |
| Size Range of Window | Min.70(L) x 30(W)mm | Min.70(L) x 30(W)mm | Min.70(L) x 30(W)mm |
| Accuracy | Max.300(L) x 300(W)mm | Max.350(L) x 400(W)mm | Max.350(L) x 500(W)mm |
| ±0.5mm | ±0.5mm | ±0.5mm | |
| Film Thickness | 0.1 - 0.4mm | 0.1 - 0.4mm | 0.1 - 0.4mm |
| Machine Power | 7kw | 8.5kw | 10kw |
| Machine Weight | 3000kg | 3500kg | 3800kg |
| Machine Size | 6800(L)x1400(W)x1850 (H)mm | 6800(L)x1600(W)x1850(H) mm | 6800(L)x1700(W)x1850(H) mm |
Punching and Creasing Window Patching Machine is suitable for automatic film lamination of windows of tissue boxes, cosmetic boxes, gift boxes, clothing boxes, toy boxes and other window boxes. It is also applicable to corrugated paper and special-shaped boxes.
1)The paper feeder is controlled by servo motor, the belt is from Poland. No-stop feeding paper, no overlapping paper or missing paper.

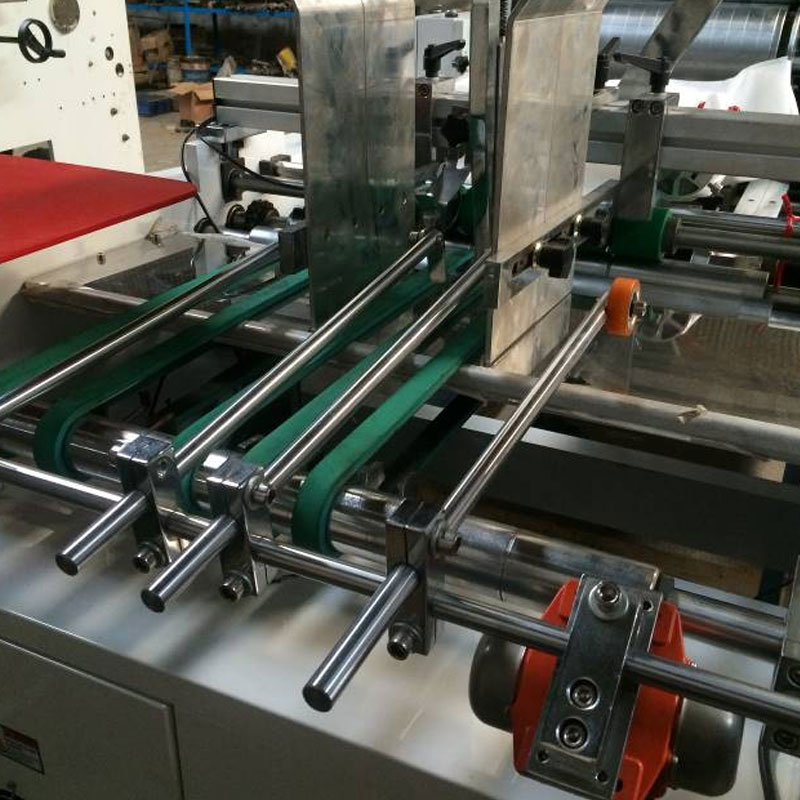

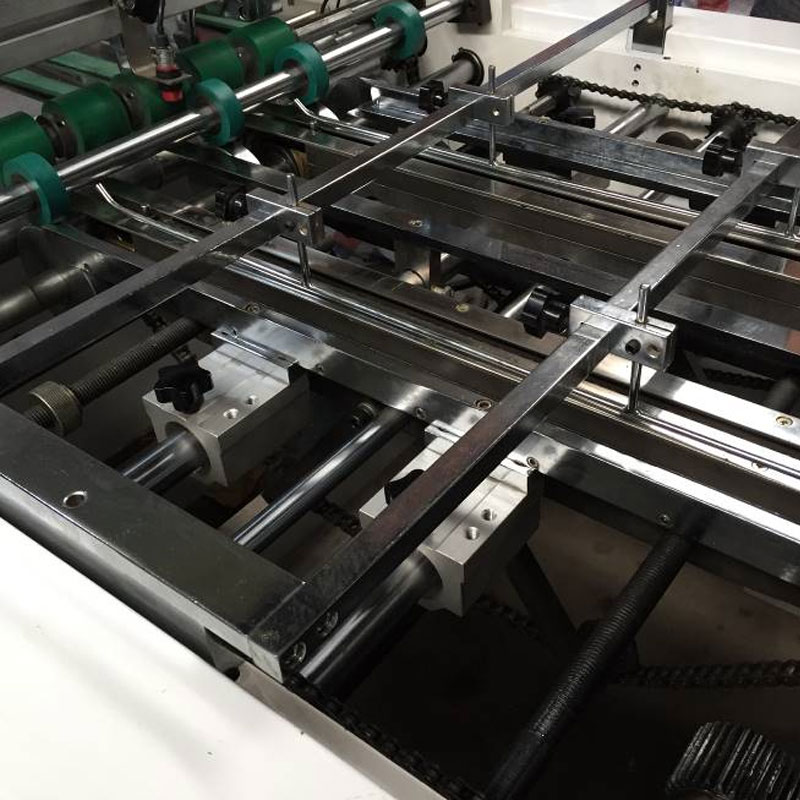

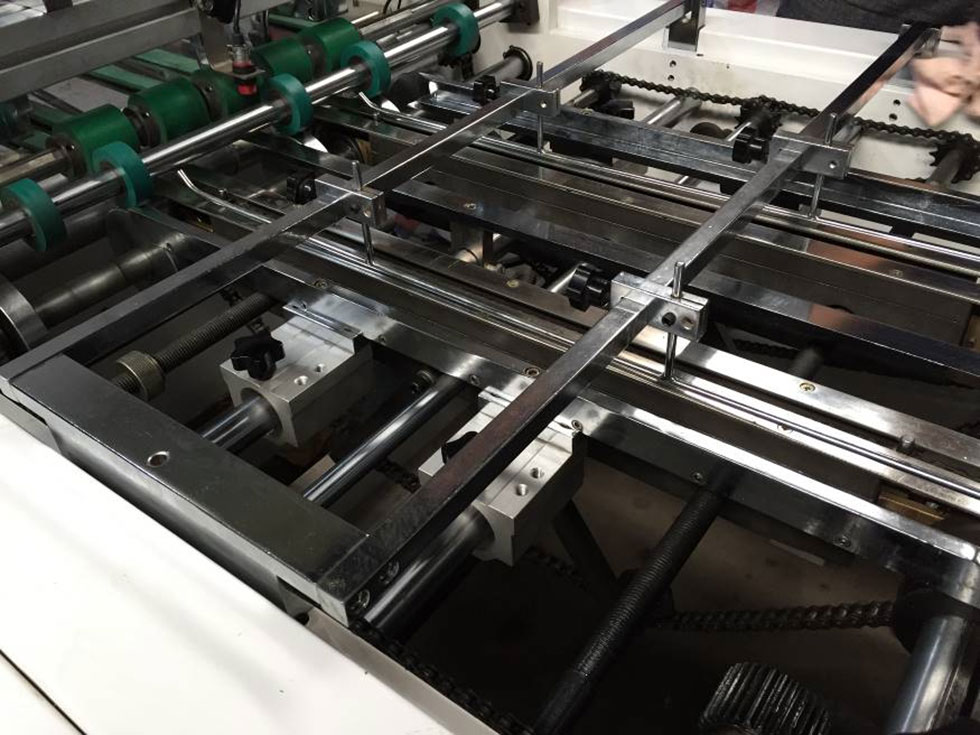

2)The paper moving system adopt pushing chain and air sucking belt. They have positioning function, insure the paper comes same place in same time.

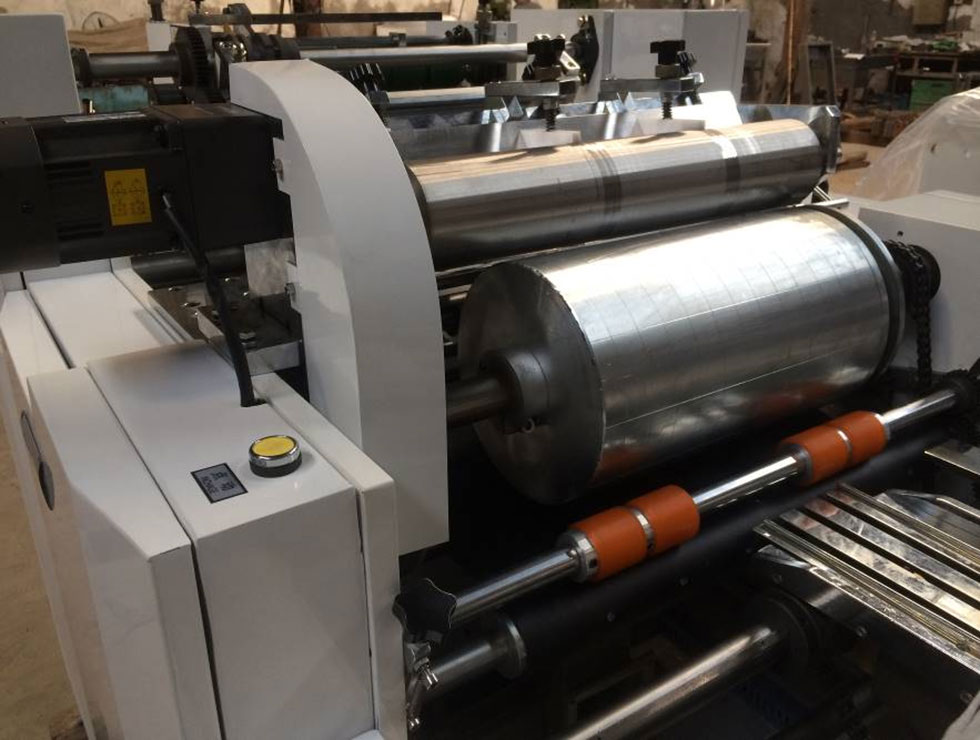

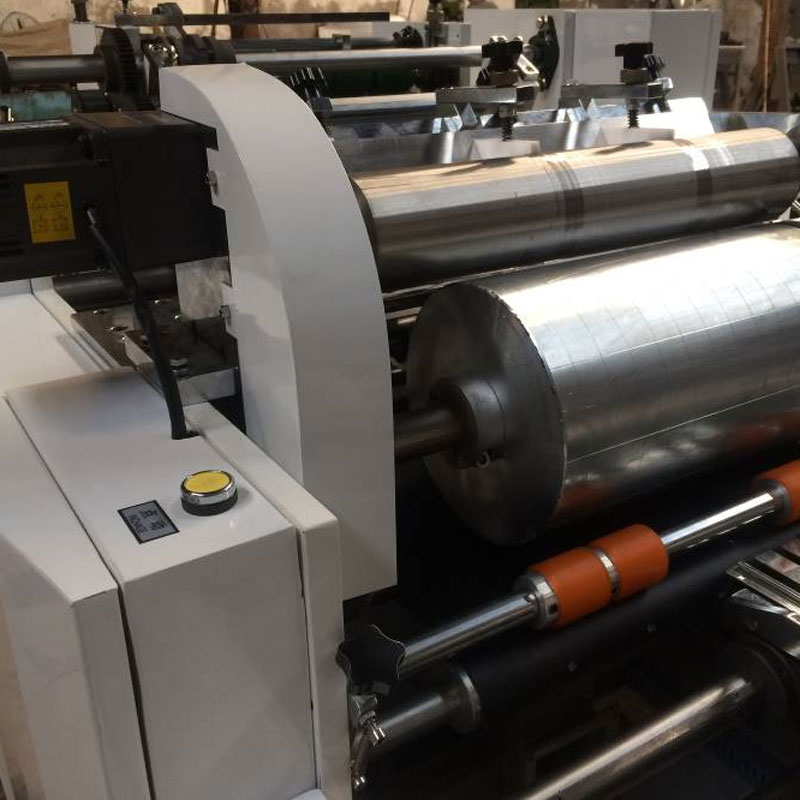

3)Glue part adopt flexo printing technology. We can adjust the place of glue on the paper without any stop. When missing paper, glue part will up in case of the glue leaves on the air sucking belt.

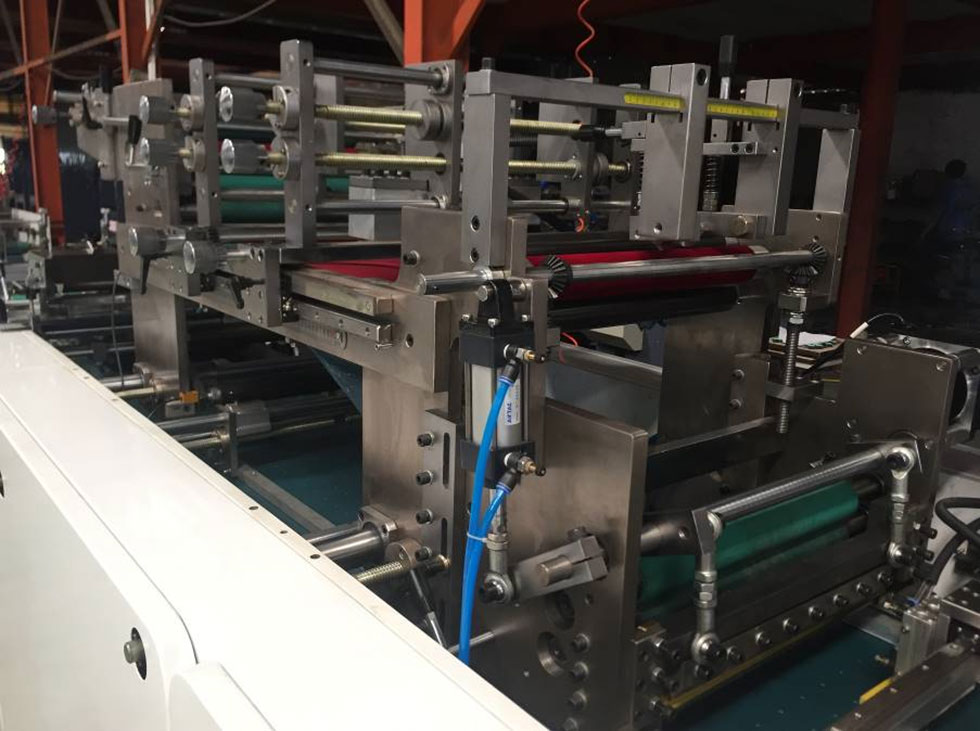

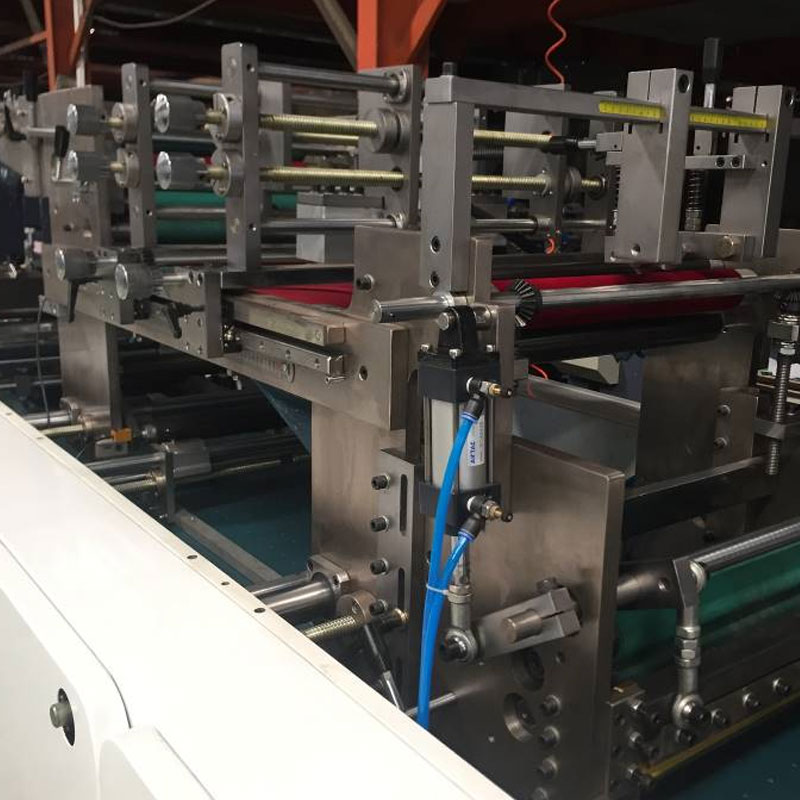

4)Film cutting part adopt our patented technology and design. The film length is controlled by servo motor in PLC. The place of paper is controlled by cylinder. Because of this set of design, the accuracy is ±0.5mm.
1. Film heating system
2. Print register camera sensor function
3. Patching double window(tissue box)
| BRAND | NAME | MODEL | QUANTITY | ORIGINAL |
| OMRON | PLC | CP1E-N30S1DT-D | 1 | JAPAN |
| KINCO | TOUCH SCREEN | MT4414T-V000-K | 1 | CHINA |
| OMRON | ENCODER | E6B2-CWZ6C 1000P/R 2M BY OMS | 1 | JAPAN |
| OMRON | BATTERY | CP1W-BAT01 | 1 | JAPAN |
| OMRON | PROXIMITY SWITCH | E2B-M12KN05-WZ-C1 2M OMS | 1 | JAPAN |
| ZHONCHEN | INVERTER | Z2400-3R7G | 1 | CHINA |
| ZHONCHEN | INVERTER | Z2200-0R75G | 1 | CHINA |
| YASKAWA | SERVO DRIVERS | SGD7S-5R5A00A | 2 | JAPAN |
| YASKAWA | SERVO MOTOR | SGM7J-08AFC6S | 2 | JAPAN |
| INVT | SERVO DRIVERS | SV-DB100-0R4-2-1R | 1 | CHINA |
| INVT | SERVO MOTOR | SV-ML06-0R4G-2-1A0 | 1 | CHINA |
| Zhongda | SPEED REDUCER | 60PLF8K | 1 | CHINA |
| Zhongda | SPEED REDUCER | 80PLF5K | 1 | CHINA |
| OMRON | PHOTOELECTRIC SENSOR | E3Z-D61 2M BY OMC | 1 | JAPAN |
| OMRON | SENSOR | E3FA-DN11 2M BY OMS | 3 | JAPAN |
| Eaton | CIRCUIT BREAKER | PL9-C40/3 | 1 | USA |
| Eaton | CIRCUIT BREAKER | E6-25/2/C | 1 | USA |
| Eaton | CIRCUIT BREAKER | E6-16/1/C | 1 | USA |
| OMRON | ELECTRIC RELAY | MY2N-GS DC24 BY OMZ/C | 7 | JAPAN |
| OMRON | SWITCH | S8FS-C10024 | 1 | JAPAN |
