Understanding Coating Machines: What They Are and Why They Matter
Exploring the Types: Automatic Coating Machine vs. Manual Coating Machine
Technical Parameters and Specifications for Professional Applications
Frequently Asked Questions and Why NEW STAR Is the Trusted Choice
A coating machine is a precision device designed to apply a uniform layer of material—such as film, paint, adhesive, or coating solution—onto a substrate. This process ensures improved product durability, visual appeal, corrosion resistance, and performance consistency. Whether in pharmaceuticals, electronics, packaging, or textiles, coating machines play a vital role in achieving surface enhancement and protection.
In modern production, consistency and accuracy are critical. Manual coating often leads to uneven results, increased waste, and poor product quality. Coating machines solve these issues by standardizing thickness, optimizing material consumption, and minimizing human error. This translates to higher production efficiency, better surface uniformity, and reduced operational costs.
By integrating automation and precision control, coating machines maintain stable speed, pressure, and temperature, ensuring every layer meets the required specifications. This automated control not only enhances accuracy but also increases throughput and product repeatability. In industries like packaging or electronics, even a micron-level difference in coating can affect product functionality, making coating machines indispensable for quality assurance.

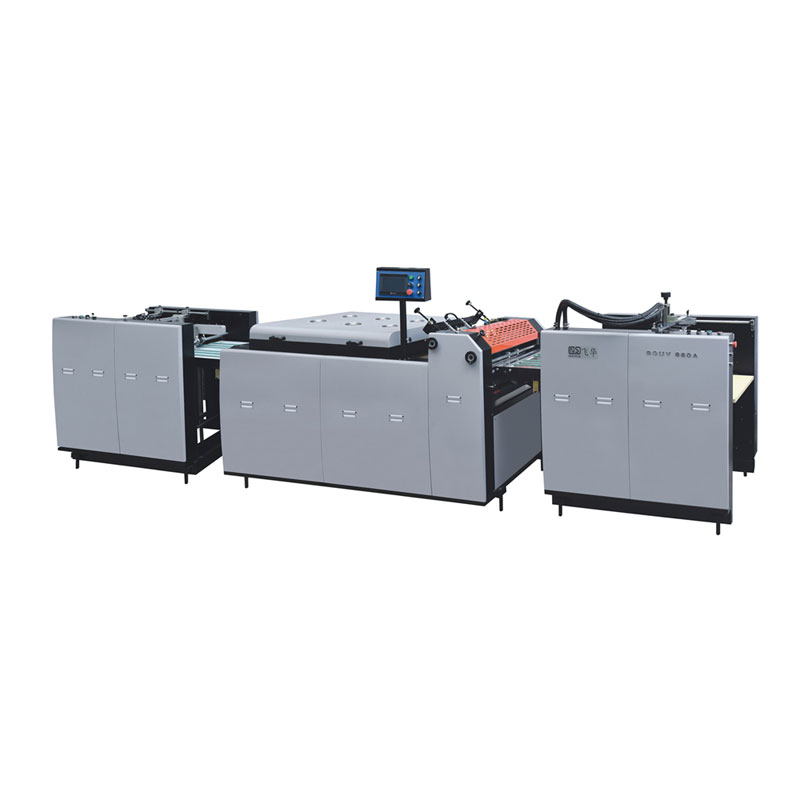

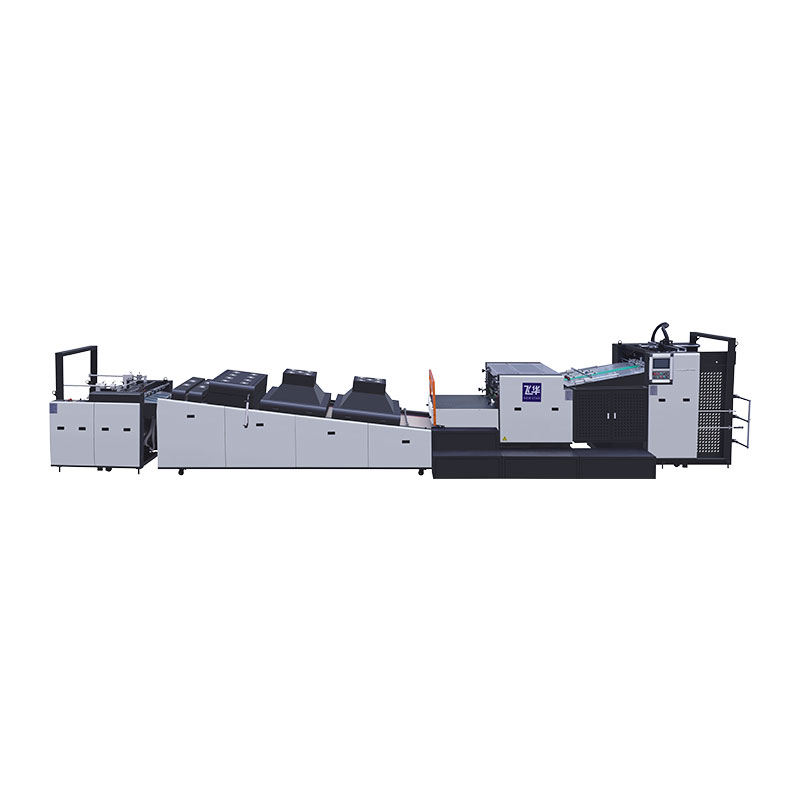

An Automatic Coating Machine is designed for efficiency, repeatability, and speed. It uses programmable control systems (PLC or touchscreen interfaces) to manage coating thickness, tension, and temperature automatically. This ensures consistent coating results across large production batches.
Key Benefits:
Uniform Coating Thickness: Automated feedback systems monitor and adjust in real time.
Reduced Labor Costs: Once set, the process requires minimal human intervention.
High Throughput: Ideal for industries that need to coat large volumes of substrates daily.
Precision Control: Maintains temperature, speed, and pressure consistency across runs.
Applications:
Used widely in pharmaceutical tablet coating, film coating for flexible packaging, photovoltaic panels, and specialty papers.
Technical Specifications – Automatic Coating Machine:
| Parameter | Specification | Description |
|---|---|---|
| Coating Width | 400–1600 mm | Adjustable for various substrate sizes |
| Coating Speed | 0–60 m/min | Variable speed control for precision coating |
| Coating Thickness | 0.005–0.5 mm | High accuracy, digitally controlled |
| Temperature Range | Ambient to 250°C | Controlled heating for uniform drying |
| Power Supply | 380V, 50Hz | Industrial-grade electrical system |
| Control System | PLC + Touchscreen | Real-time parameter adjustment |
| Drive Type | Servo Motor | Smooth and accurate operation |
| Material Compatibility | Film, paper, foil, fabric | Suitable for multi-industry applications |
Because of its stability, speed, and reliability, an automatic coating machine ensures reduced downtime and higher ROI. It’s a strategic investment for manufacturers aiming for scalability, consistent quality, and energy efficiency.

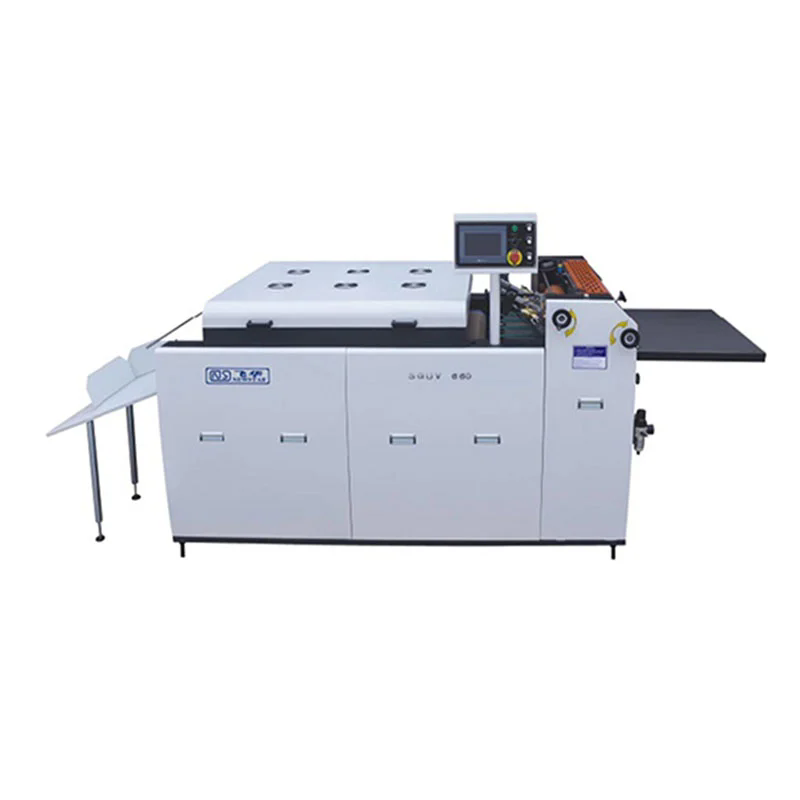

A Manual Coating Machine offers direct human control over the coating process. It is preferred in laboratories, R&D departments, and small-batch production where flexibility and testing accuracy are crucial. Operators can manually adjust coating parameters to test new materials or processes, making it ideal for innovation-driven environments.
Key Benefits:
Cost-Effective for Small Runs: Lower initial investment and maintenance costs.
Flexible Process Control: Operators can fine-tune each run for unique materials.
Compact Design: Suitable for laboratories and limited space environments.
Ease of Maintenance: Simple mechanical structure with low servicing needs.
Applications:
Used in material research, coating sample production, and small-batch specialty manufacturing.
Technical Specifications – Manual Coating Machine:
| Parameter | Specification | Description |
|---|---|---|
| Coating Width | 100–600 mm | Designed for research and small-scale use |
| Coating Speed | 0–10 m/min | Manually adjusted for different materials |
| Coating Thickness | 0.01–1 mm | Adjustable via precision gap control |
| Heating Range | Room Temperature–200°C | Controlled drying temperature |
| Power Supply | 220V, 50Hz | Compatible with laboratory setups |
| Drive System | Manual / Stepper Motor | Operator-controlled coating process |
| Coating Method | Knife-over-roll / Bar Coating | Ideal for testing multiple coating types |
| Material Support | Film, paper, PET, metal foil | Flexible substrate options |
It allows researchers to experiment with coating viscosity, substrate types, and drying parameters. This manual control helps identify the optimal coating formula before scaling up to automatic systems.
Coating machines vary significantly based on industrial needs. Below is a comparison to help identify the best model for specific requirements:
| Feature | Automatic Coating Machine | Manual Coating Machine |
|---|---|---|
| Operation Mode | Automated via PLC | Hand-operated / semi-manual |
| Production Volume | High | Low to Medium |
| Precision Level | ±0.002 mm | ±0.01 mm |
| Energy Efficiency | Optimized through automation | Depends on operator skill |
| Cost Efficiency | High ROI for large-scale use | Affordable for testing |
| Maintenance | Periodic technical check | Simple manual inspection |
| Ideal Use | Mass production | Laboratory testing, prototyping |
Each parameter directly affects coating uniformity, material waste, and final product quality. Selecting the right machine based on coating width, speed, and substrate compatibility ensures optimal performance and longevity. A detailed technical understanding also supports compliance with industry standards and improves repeatability across production lines.
Q1: What materials can be used with a coating machine?
A1: Coating machines support a wide range of materials including paper, film, aluminum foil, PET, and composite substrates. The material choice depends on the coating medium and desired finish quality.
Q2: How do I maintain coating accuracy over long production runs?
A2: For automatic machines, ensure the PLC system is calibrated regularly and sensors are clean. For manual models, maintain consistent speed and blade alignment. Proper cleaning after each batch prevents defects and buildup.
Q3: What is the difference between wet coating and dry coating systems?
A3: Wet coating involves applying liquid solutions followed by drying, while dry coating applies powders or pre-solidified materials directly. The choice depends on the product’s texture, durability, and application area.
With decades of manufacturing expertise and advanced production facilities, NEW STAR delivers coating machines that integrate innovation, stability, and precision. Each unit is engineered with strict quality standards, ensuring long-term durability and performance reliability.
Whether you need an Automatic Coating Machine for high-volume production or a Manual Coating Machine for testing and research, NEW STAR provides customized solutions that match industrial requirements.
Our commitment to continuous R&D ensures every machine is optimized for energy efficiency, user safety, and superior coating results. Trusted by global manufacturers across multiple sectors, NEW STAR has become synonymous with precision coating technology.
For more information, technical consultation, or a detailed quotation — contact us to discover how NEW STAR can enhance your production efficiency and coating quality.
-
