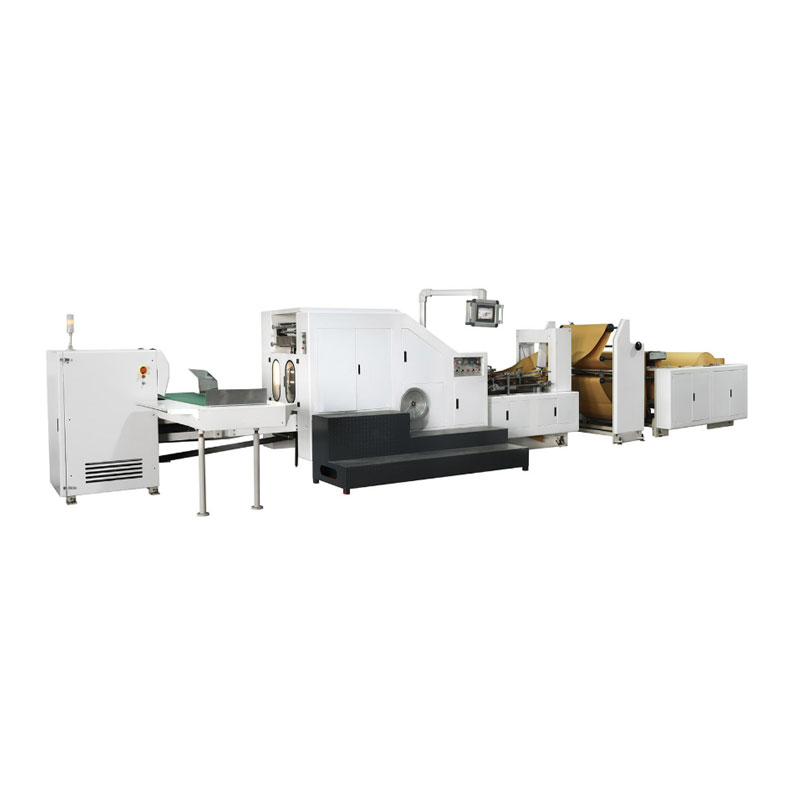

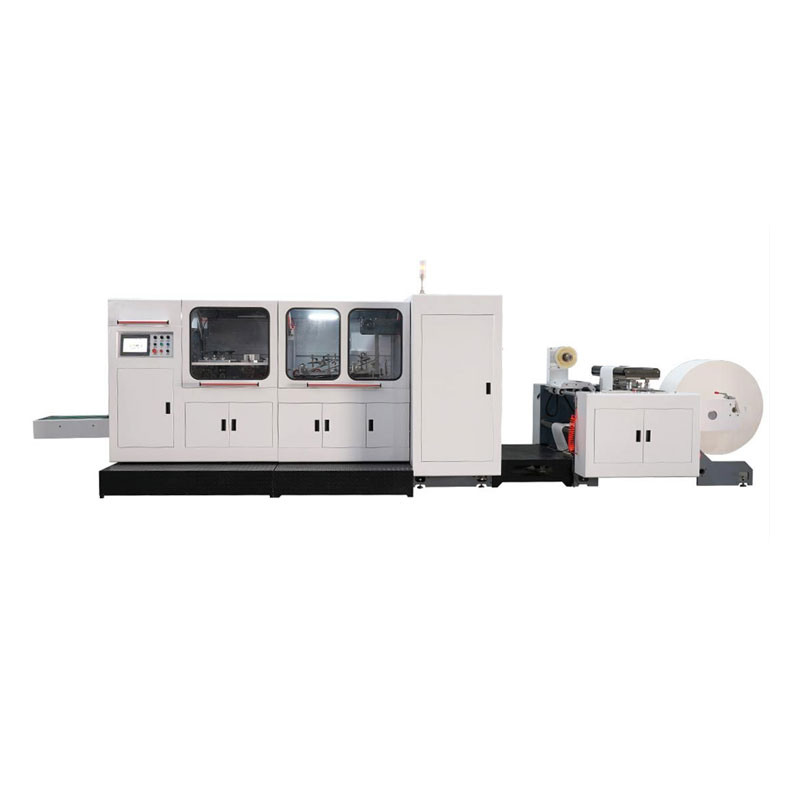

V Bottom Paper Bag Machine

V bottom paper bag machine is pre-punctured, glued, folded, broken, folded, and finished bag output is completed in one go by roll-type original paper or printed roll-type paper such as kraft paper, glossy paper, food coated paper, etc. According to customer needs, the servo bag body pre-pressing line function is added, which makes it easier to seal the items after entering the bag and makes the display appearance more beautiful. This machine is easy to operate and is an ideal equipment for producing various paper bags, bread bags and dried fruit bags.

Main technical parameters

Features

XKJD-330 V bottom paper bag machine is designed to manufacturer sharp bottom paper bag from paper rol, and it is suitable for kraftpaper, ribbed kraft paper, grease -proof paper, coated paper, medico paper & etc.By implementing steps including roll feeding, side gluing, perforating, tube forming, tube cutting of.bottom folding and gluing, finished bag collecting within a fully automatic process, can effectively save laborcosts.lt has advantage of easy operation, high efficiency, more steady,t is an ideal machine for make differentkind of paper bag. snack paper bag, food paper bag. bread paper bag. dry fruit paper bag and eco-friendlypaper bag.

1. Adopting French SCHNEIDER touch screen human-machine interface, the operation functions are clear at a glance and easy to control.
2. Adopting British TRIO motion controller (PC), through integration with optical fiber, it ensures high-speed and stable operation.
3. Adopting Japanese original Yaskawa servo motor with German original SICK photoelectric eye correction, accurately tracking the size of printed bags.
4. Optional window setting (including film unwinding rack and hot melt glue machine), adding the function of perspective window opening, can more intuitively display the goods in the bag.
5. Optional printing unit, no need to increase the rewinding and unwinding of the printing machine, saving process conversion time and machine occupation time, and effectively realizing automated production.

Details

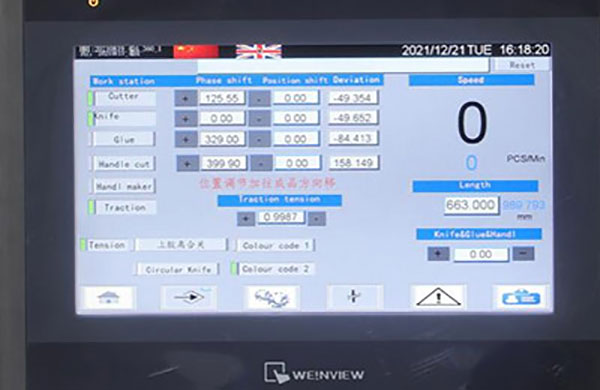

Using touch screen man-machine interface, the operating functions are clear and easy to control.

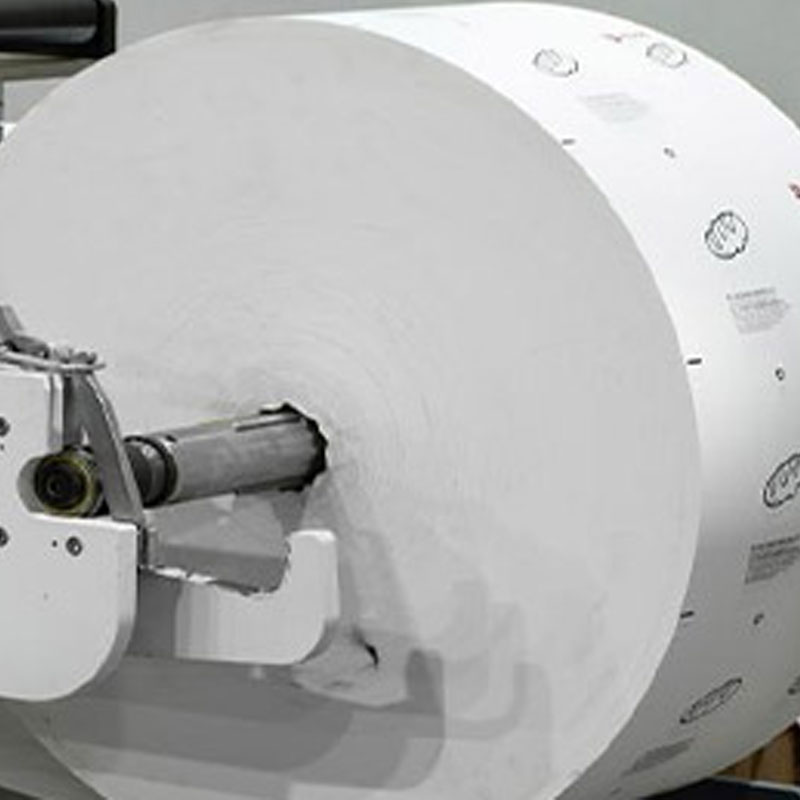

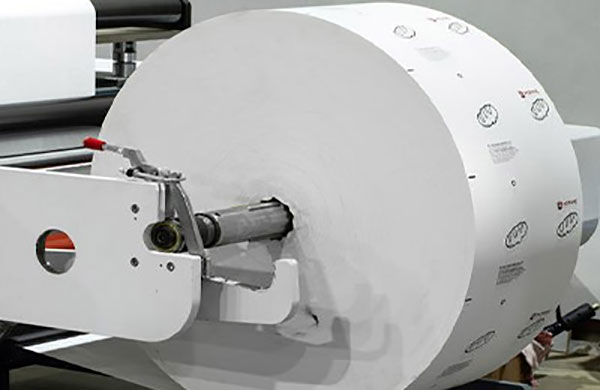

Material loading and unloading adopts hydraulic cylinder lifting structure, and unwinding adopt automatic constant tension control.

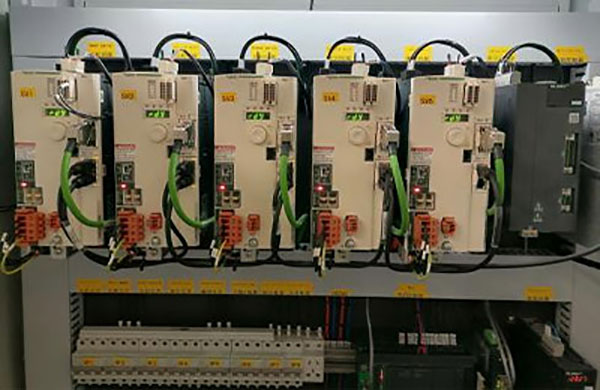

The servo motor is matched with the photoelectric eye correction to accurately track the size of the printed bag.

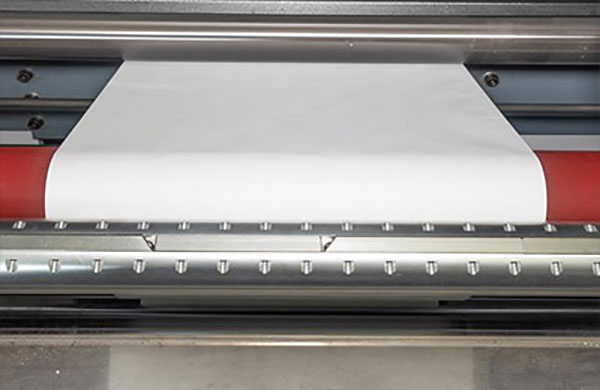

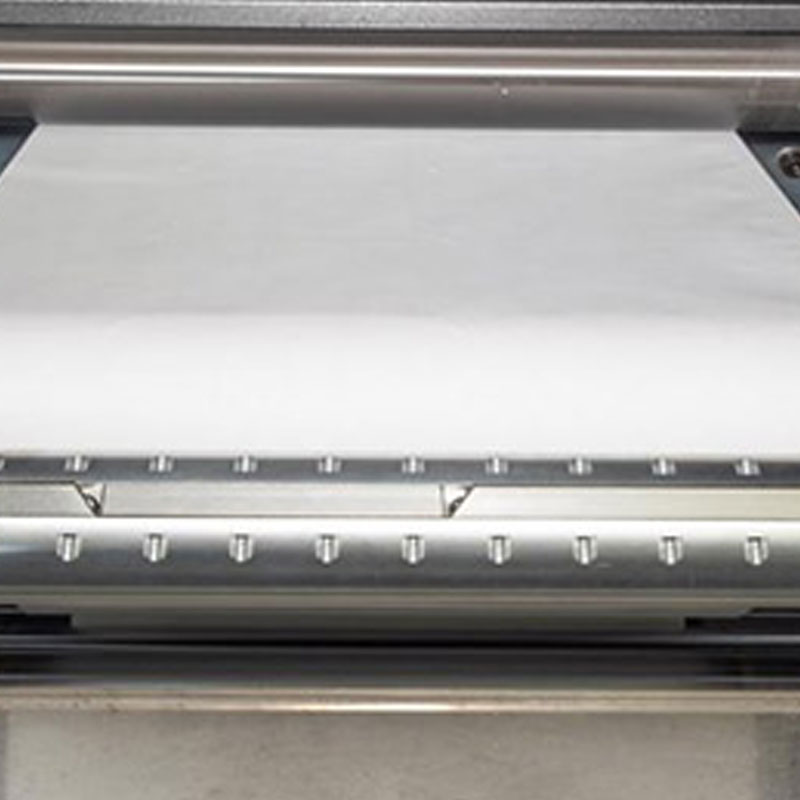

The pre-stabbing part of the paper bag machine is pre-stabbed in advance on the paper, so that the bag mouth is cut off in a dotted line section, and the beveled Angle of the bag mouth is also broken according to the dotted line, and the section of each bag is consistent, and the section of the bag mouth is neat and beautiful.

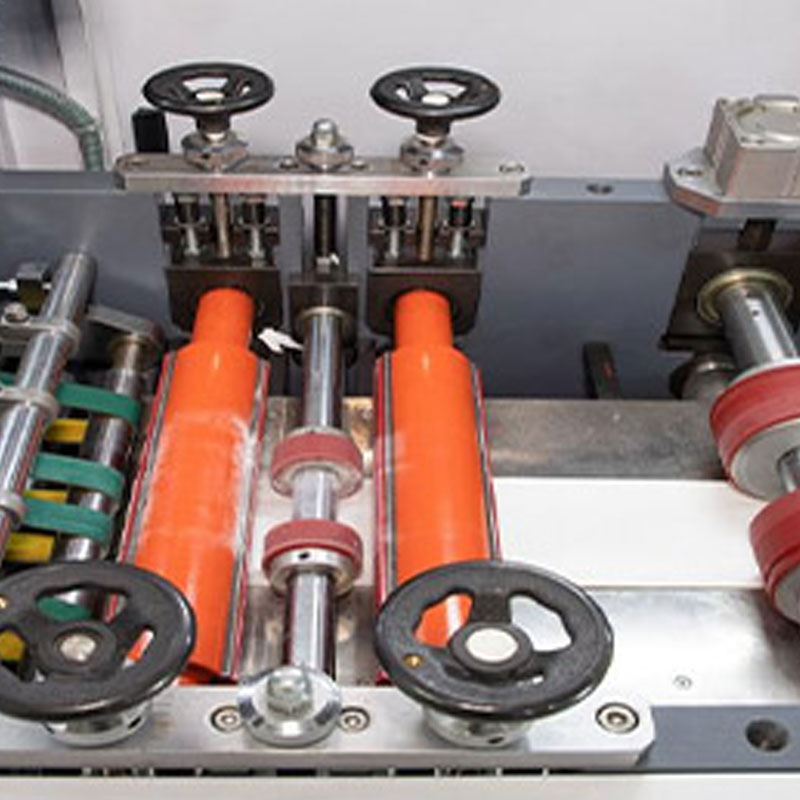

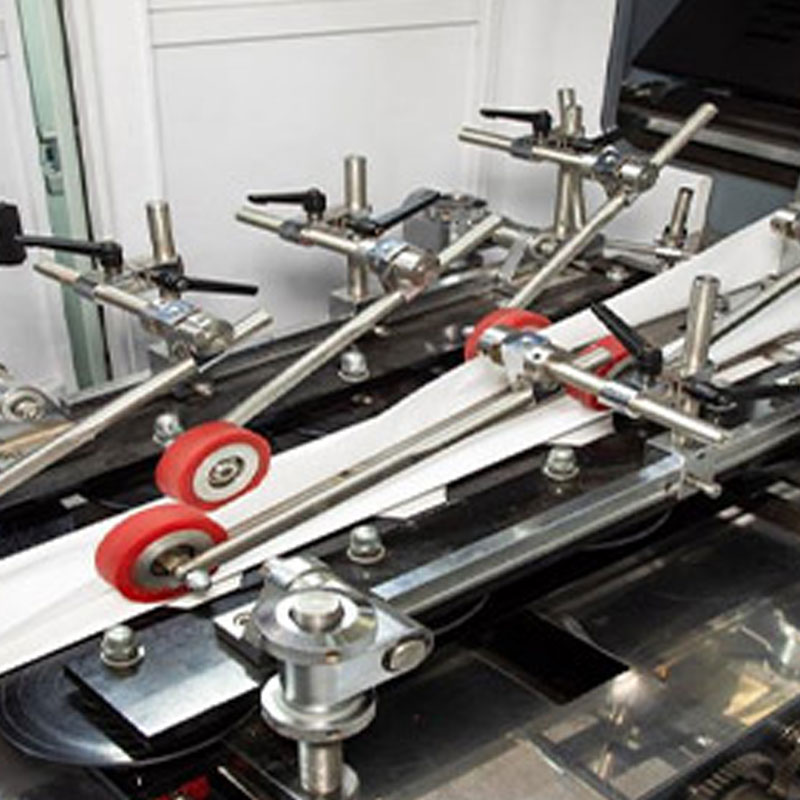

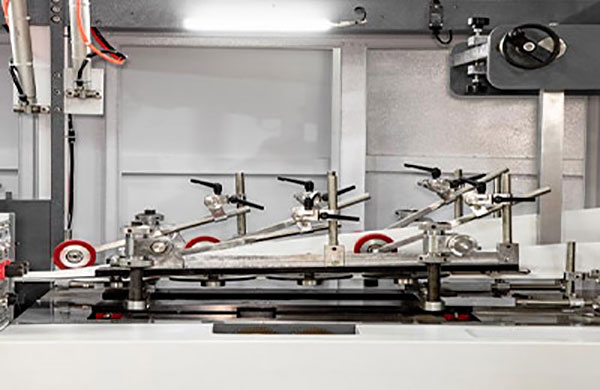

The paper tube forming adopts an integrated tube forming adjustment structure by wheel, more simple, convenient, fast and sable.

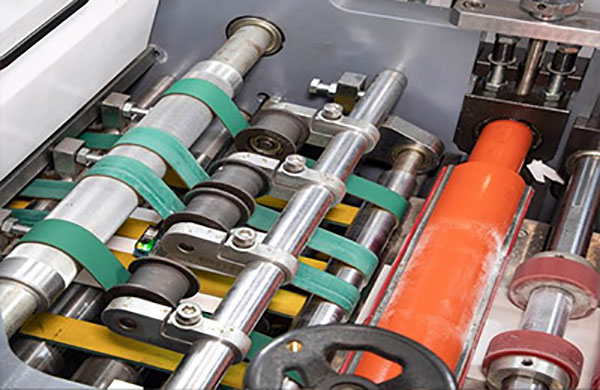

The paper body is opened into an independent paper bag controlled by a servo motor system.

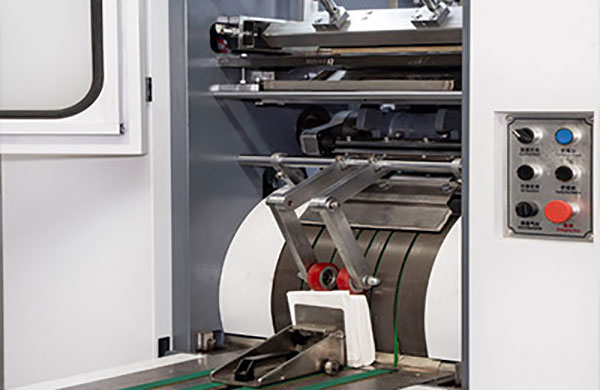

Automatic counting system with counting, sensor system, easy for finished bag packing.

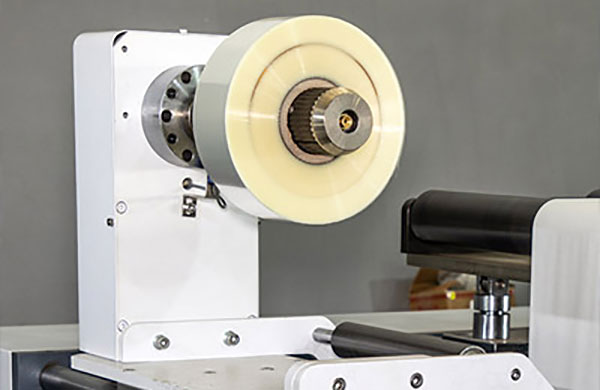

Film attachment device, following the operation of the machine will paste the film to the paper bag.
