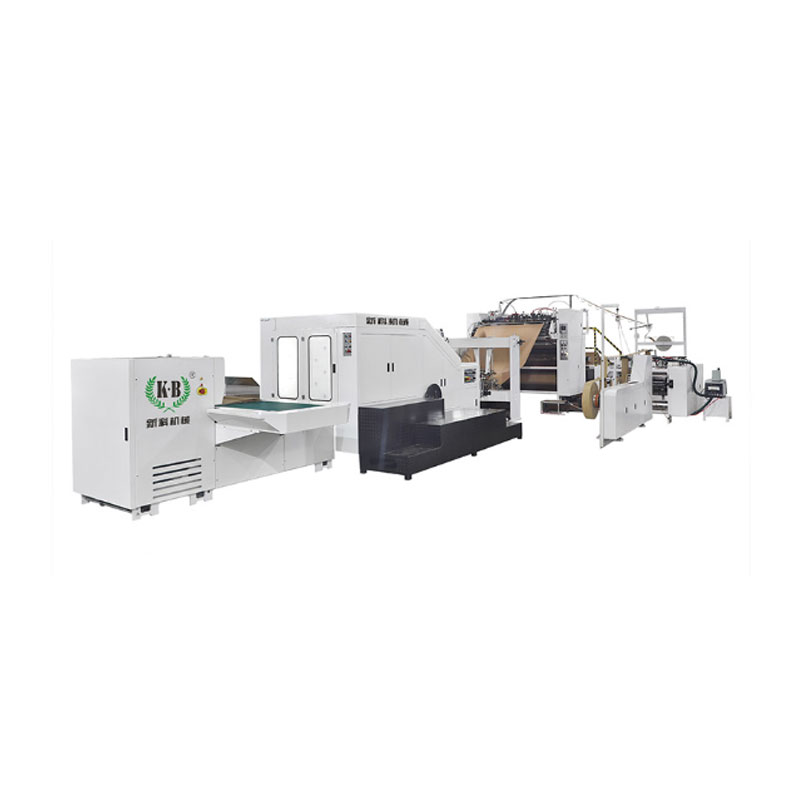

Flat Handle Paper Bag Machine

This Flat handle Paper Bag Machine is designed to manufacture square bottom paper baas with fat-rope handles from paper roll, paper patch roll and flat handle paper roll,and it is an ideal equipment for producing paper handbags fast, By implementing steps including handle making.handle application, tube forming, tube cutting and bottom forming within a fully automatic process,this machine can effectively save labor costs.Distinct flat -rope handle making process and special bag counting function, greatly improve packing efficiency of finished paper bags Thanks to perfect technologies and fast production speed, this machine can produce paper hand bags with high quality in many different forms, which are especially suitable for food and clothing industries.

Feature And Application

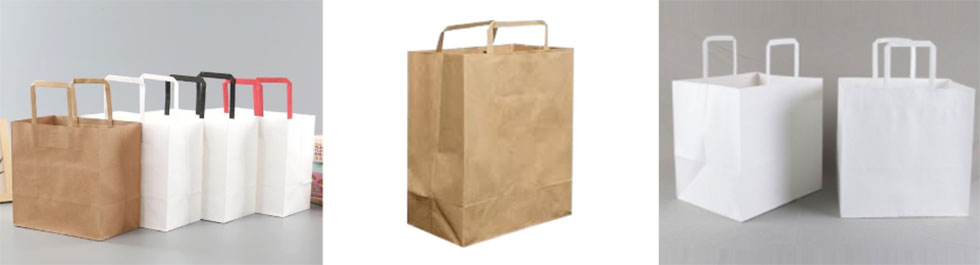

This fully automatic Flat handle Paper Bag Machine is not only economical but also fast, ensuring you can easily meet your production needs. It supports a variety of bag styles, including bread bags, grocery bags and shopping bags.

1.The servo adjustable former automatically adjusts the face width & gusset size, significantly reducing the debugging time.
2.The drum is equipped with a vacuum assist for better control during bag bottom formation.
3.The bag making machine is equipped with a Mitsubishi electric control system and Mitsubishi motion controller (CPU) in order to achieve a high speed and high precision, as well as motion control and a production flow test. With a touch screen display, the operation functions are clear.
4.Equipped with a German BST automatic WEB guiding system, this machine can reduce waste and improve efficiency.
5.It is also equipped with an automatic lubricating oil system.

Details

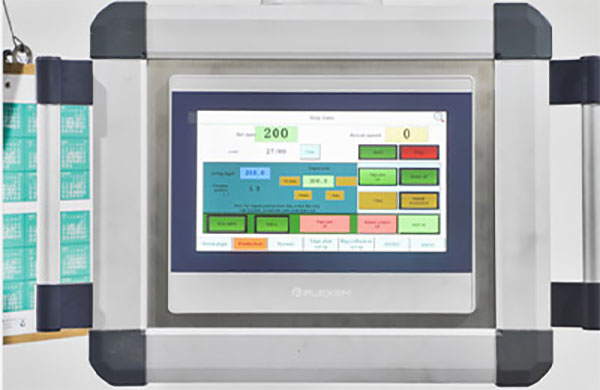

Touch Screen Human-Computer Interface, operate and control easily.

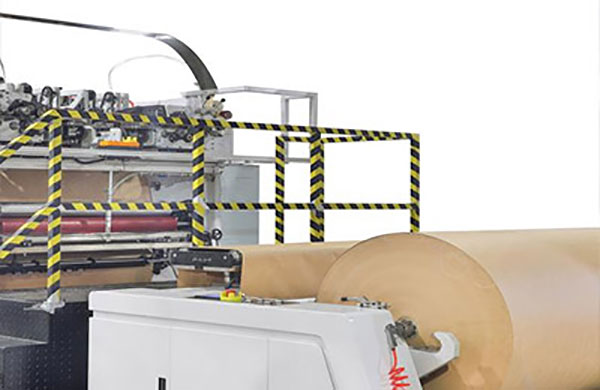

Raw material loading and unloading adopts motor and hydraulic lifting structure , and unwinding adopts automatic constant tension control.

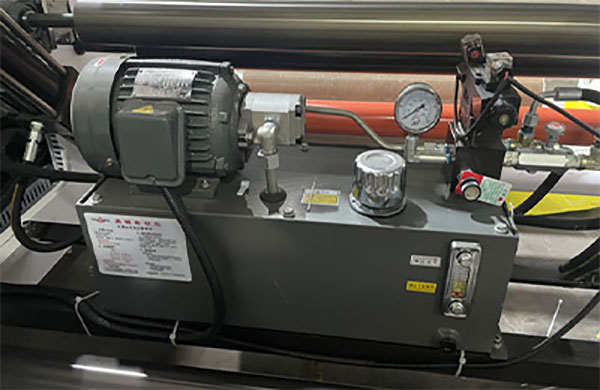

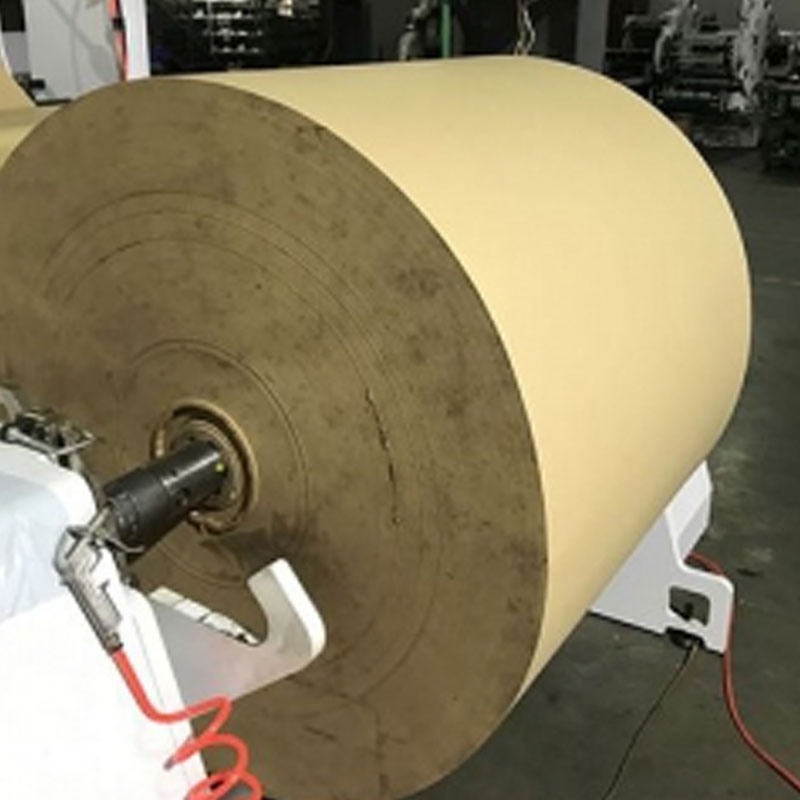

Hydraulic unwinding system,through the hydraulic feeding method,covenient air exchange shaft,automatic fast feeding.

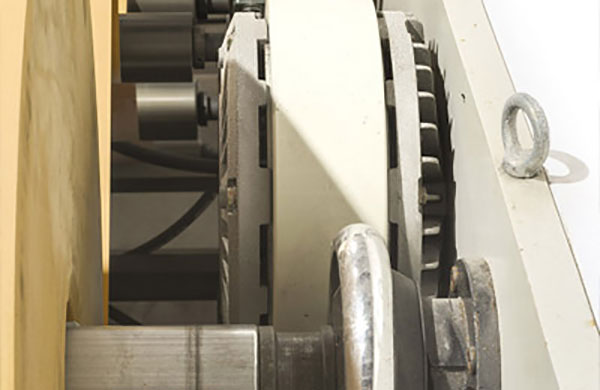

The paper tension adopts magnetic powder brake,make the paper feeding more stable.

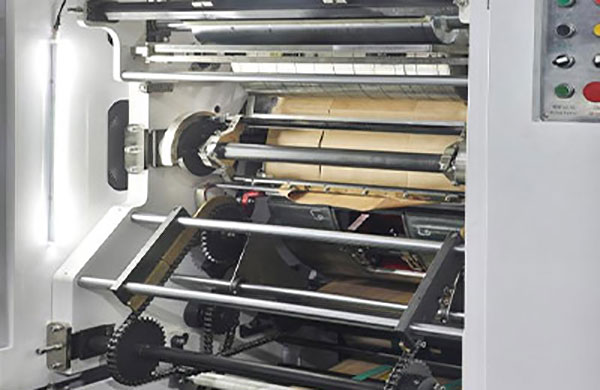

The paper tube forming adopts an integrated tube forming adjustment structure by wheel more simple,convenient,fast and sable.

Raw material correction can reduce the paper roll alignment adjustment time automatic constant tension control.

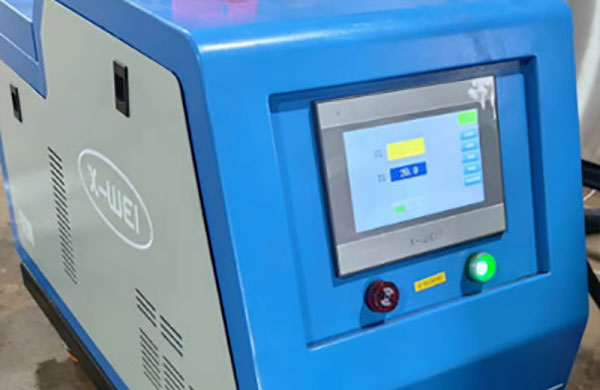

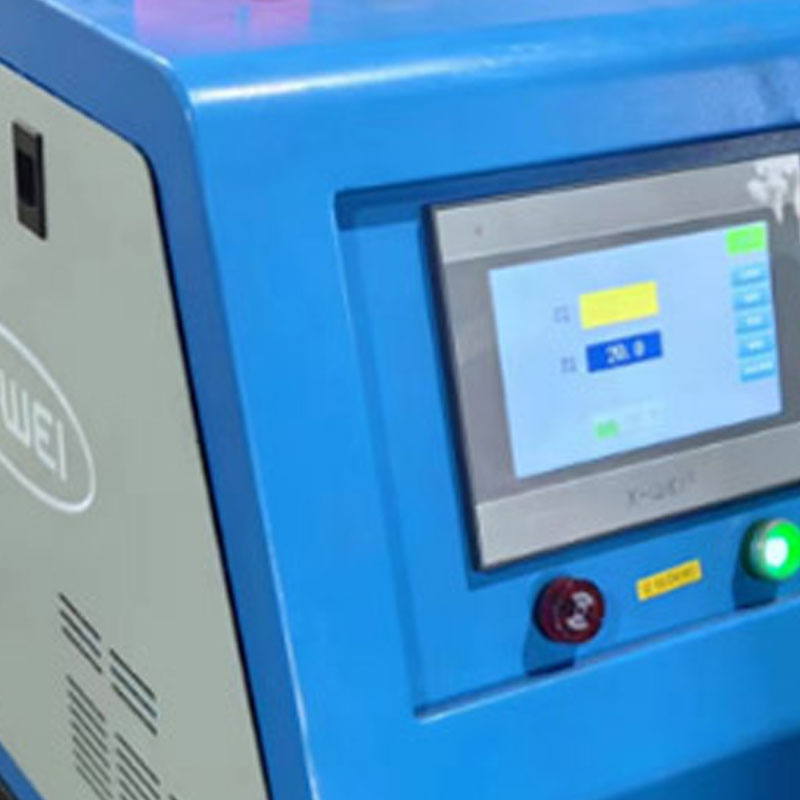

The use of advanced hot melt glue machine technology, so that the spray glue uniform, stop the glue clean and easy to clean.

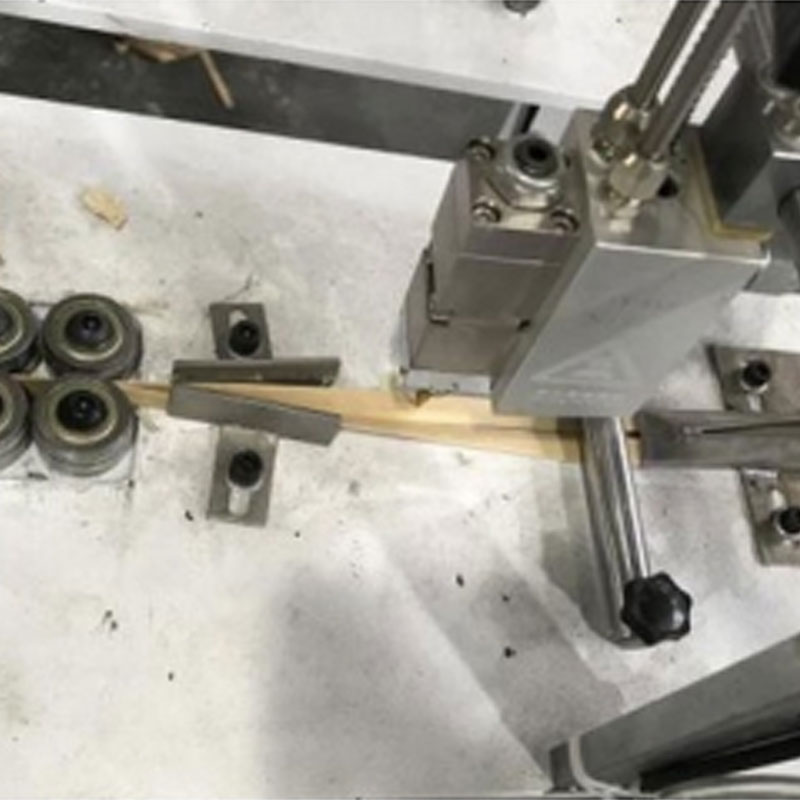

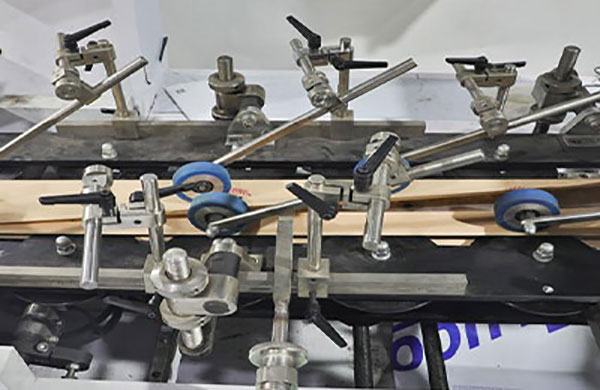

The machine adopts advanced automatic control technology to automatically make paper material into paper bag handle, and transmits it to the paper bag machine handle through the transmission belt.

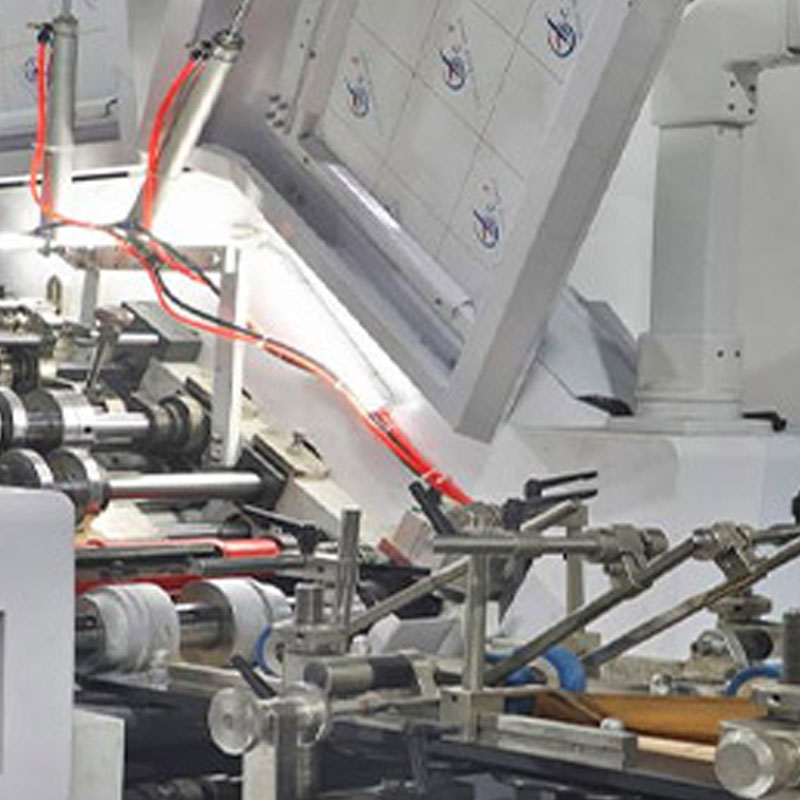

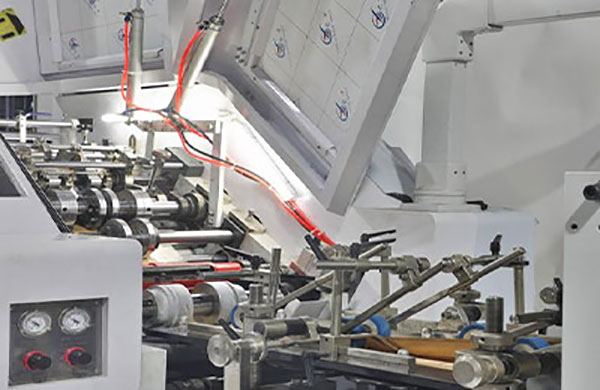

The main machine part of the paper bag machine automatically paints the paper with the hand pull for edge glue, tube forming, cutting

The machine automatically applies glue to the bottom of the paper bag, closes the bottom and folds the bottom to ensure the unified standard of the paper bag bottom.

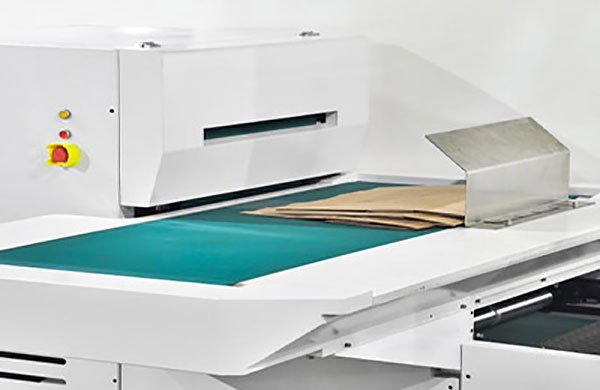

Paper bag machine finished bag part, the machine will automatically count the number of finished paper bags, easy to organize.
