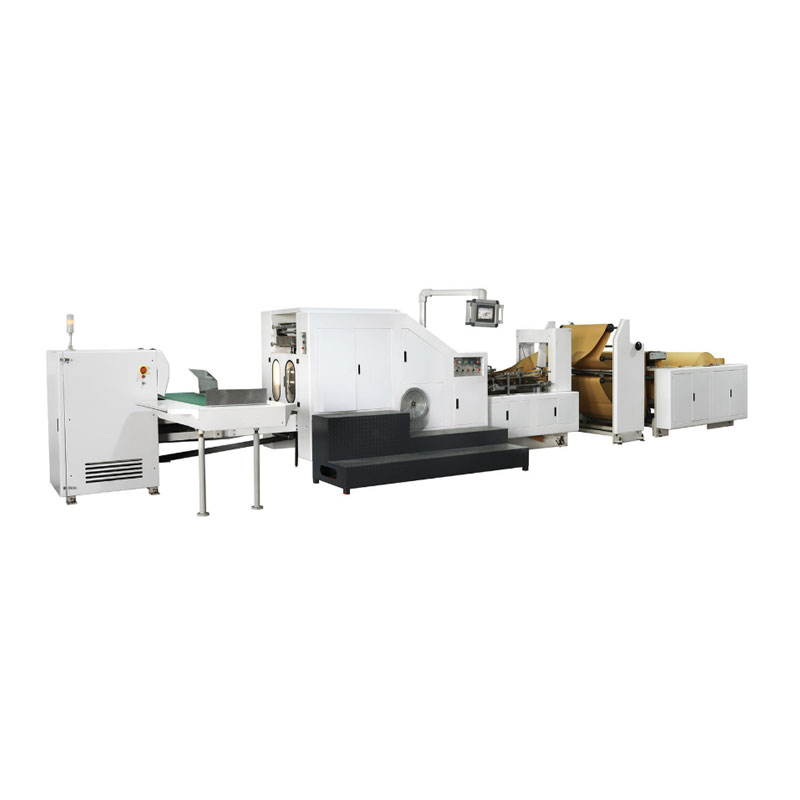

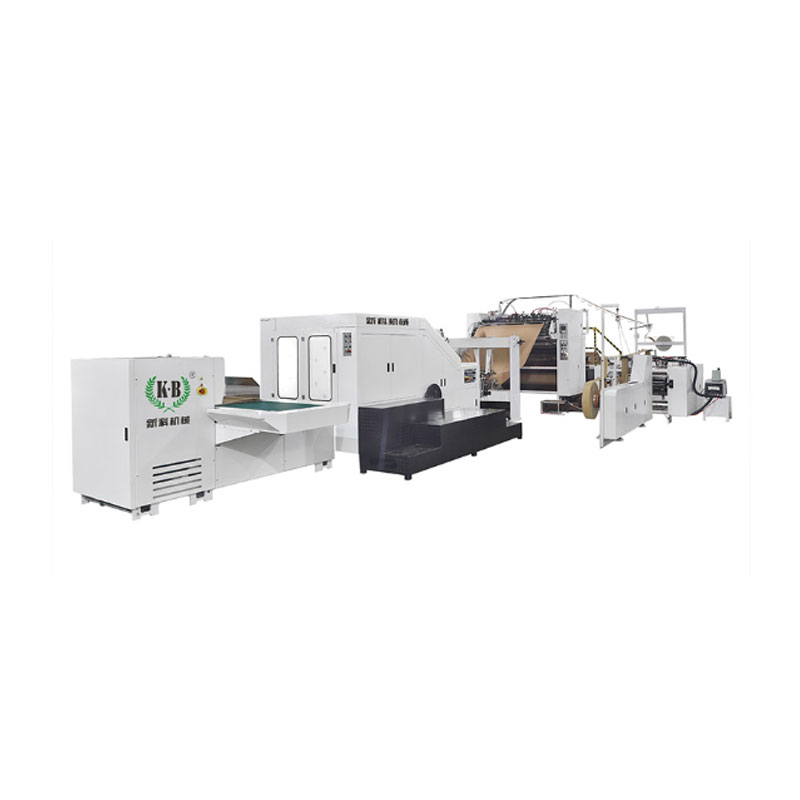

Adjustable Square Bottom Paper Bag Machine

Adjustable square bottom paper bag machine is used to produce environmentally friendly paper bags, food paper bags, shopping paper bags, and various types of portable paper bags made of paper. This machine can make bags from primary color paper or printed roll paper at one time, including gluing the top edge, folding into a tube, cutting the paper tube, bottom creasing, gluing the bottom, forming the bag bottom, and bag output. This machine adopts the original Japanese imported electronic control system, and the servo motor controls the length of the paper bags produced and the collection of the finished products. It has high accuracy, strong stability, simple maintenance, and high-efficiency production. It is an ideal equipment for major printing plants and portable paper bag manufacturers.

Parameter

Product introduction

Adjustable Square bottom paper bag machine uses roller paper, from primary color paper or printed web paper to squarebottom paper bag one times production.The machine can be used in various paperbags with high speed and efficiency. it is an ideal equipment for paper bag production.This machine is composed of roll unwinding (hydraulic feeding, automatic web guide,constant tension), side gluing, printing electric eye tracking, base paper into cylinder,fixed-length traction cutting, bag bottom indentation opening, bag bottom gluing, bagbottom molding, bag sending etc.The whole machine is controlled centrally by PLCtouch screen and servo motor controls the length of paper bag.It can pretend 2 color /4 color printing group, bag surface window lamination deviceand handgrip hole device according to your need.Can be matched with rope twisting, flat rope handlebar machine, rewinding machine,etc., to make the products more competitive and diversified.

Machinet Details

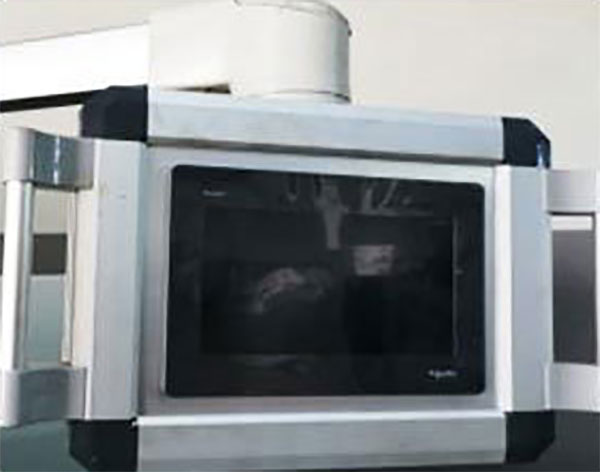

TOUCH SCREEN INTERFACEIS ADOPTED

PC control system with touch screen interface is adopted to displaythe working status in real time.With super precision servo motordrive to ensure the stability of production products.

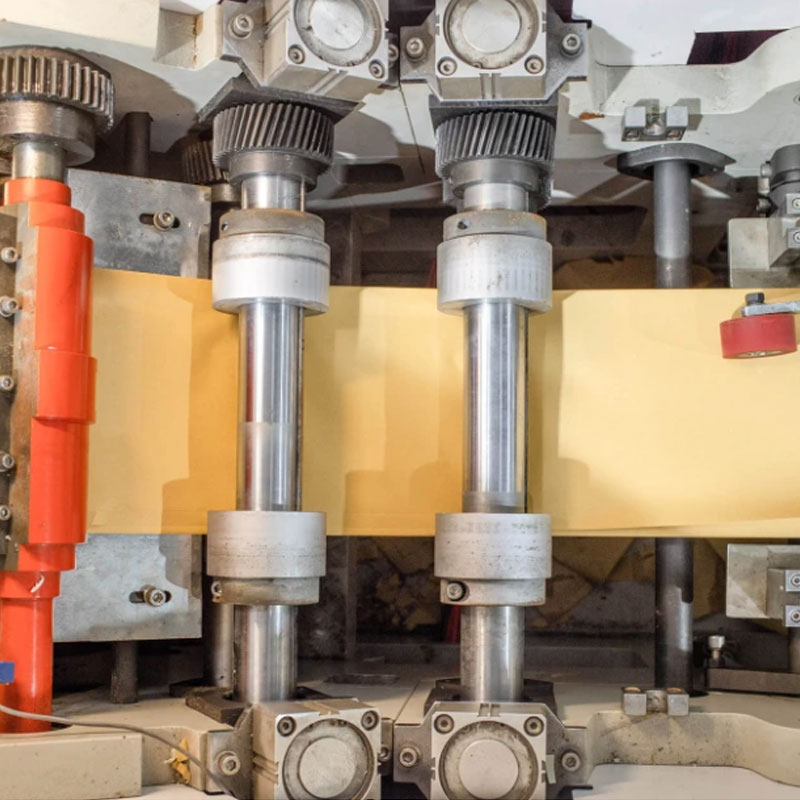

INTEGRAL TUBE ADJUSTMENT STRUCTURE

The integral cylinder adjustment structure improves work efficiencyreduces the scrap rate generated during the adjustment processand saves adjustment time and adjustment stability

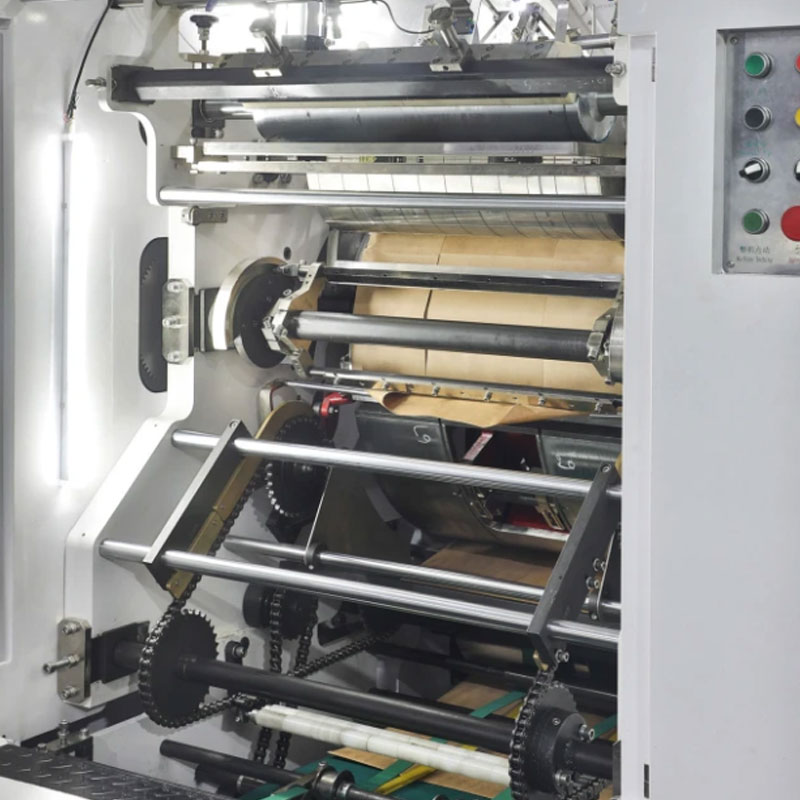

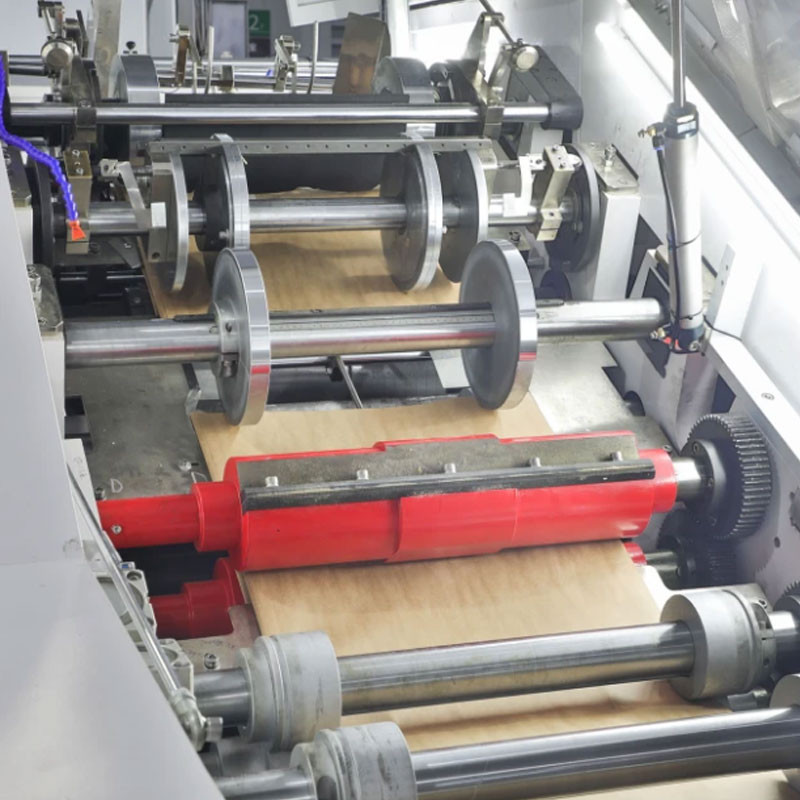

MECHANICALTRANSMISSION COMPACT DESIGN

The compact design of mechanical transfer ensures stable andaccurate material transfer,improves mechanical performance, andproduces paper bags that are more beautiful and tidy.

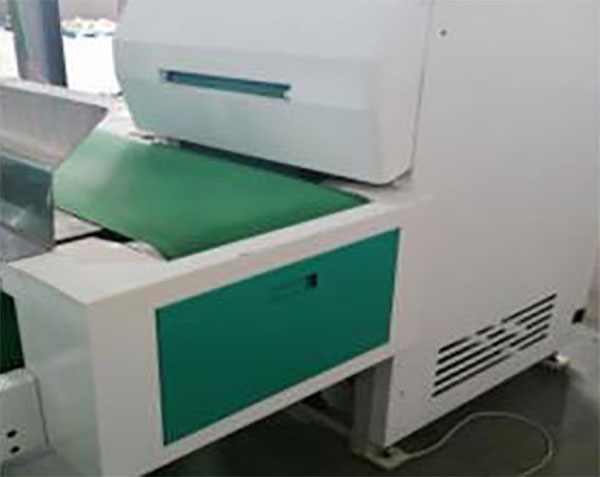

AUTOMATIC POINT MARKING FUNCTION

The point marking function that can be set by the touch screenman-machine interface is conducive to packing and sortingreducing the amount of labor and saving a lot of labor costs.

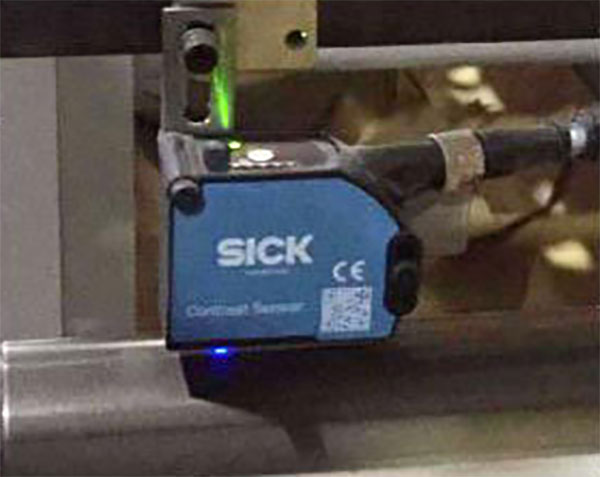

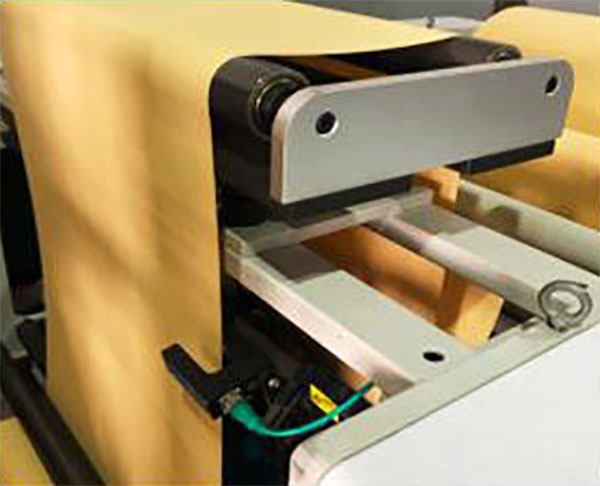

COLOR MARK TRACKING SYSTEM

Automatic matching function of color code, which eliminates theneed to change the paper reel, cut off the paper, need to re-adjustthe cutting position after power failure.Color code error automaticstop,save precious time, reduce the rejection rate.

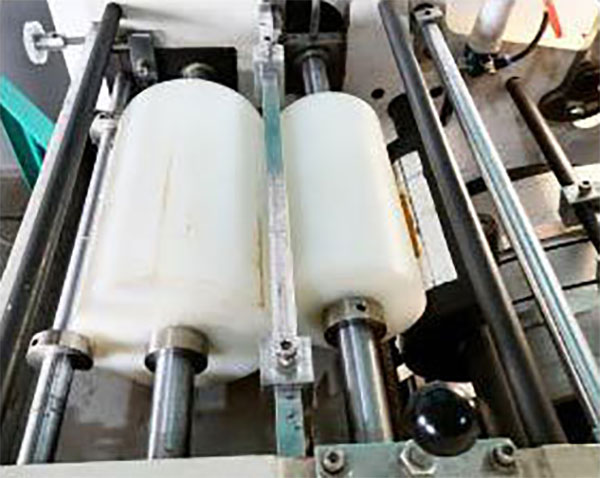

BASEADHESIVE COATED STRUCTURE

The glue can be directly used without the use of glue thickener to improvethe viscosity,effectively improve the use of high viscosity glue at the bottomof the bag fold, glue more uniform.Solve the glue leakage phenomenonwhen the structure of the glue tank stops or operates at low speed

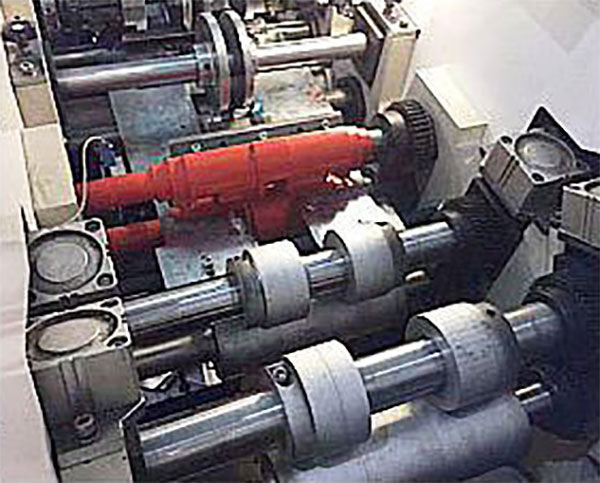

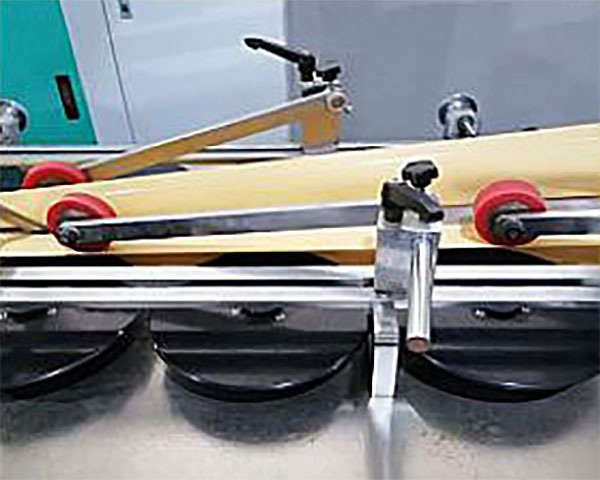

EDGE CORRECTION EXECUTION STRUCTURE

The edge corection system is to ensure the balance of the paper transfer durngthe operation of the machine.Through the left and right swing of the machine,thetwo sides of the paper can be adjusted stably and evenly into the forming link ofthe M side.

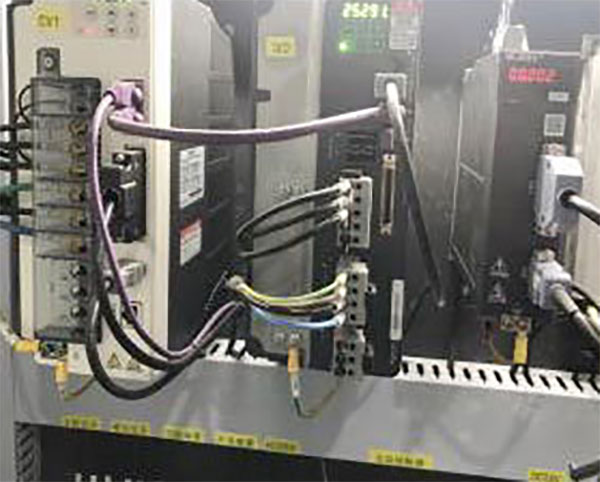

THREE SERVO MOTOR CONTROL DRIVE

Double Big Servo Motor with one common servo motor to ensuremachine driving more automatically,to let folding edge and openbottom more accurate the finished paper bag size more precise.

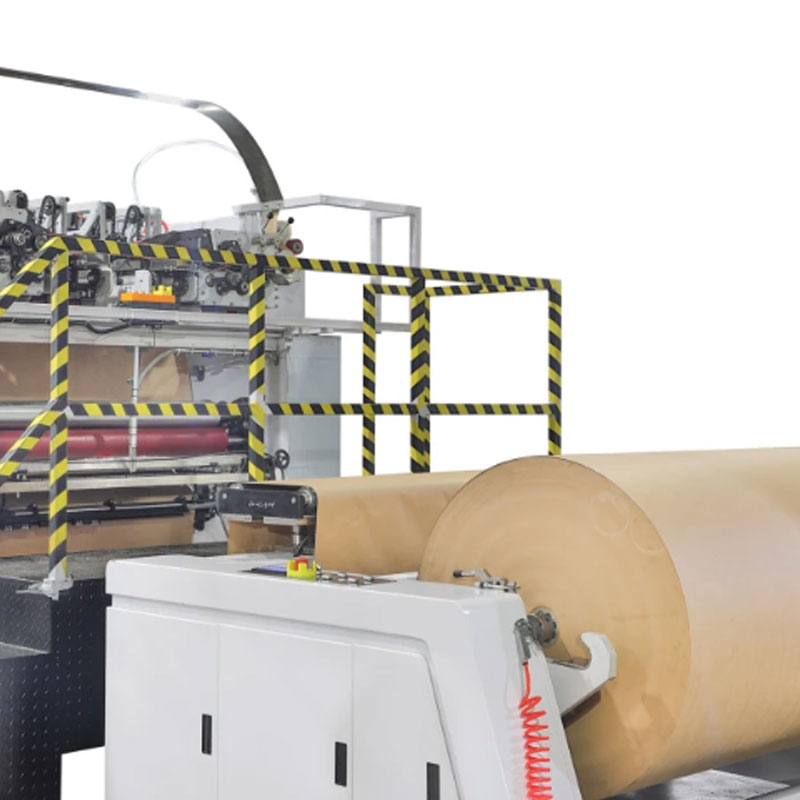

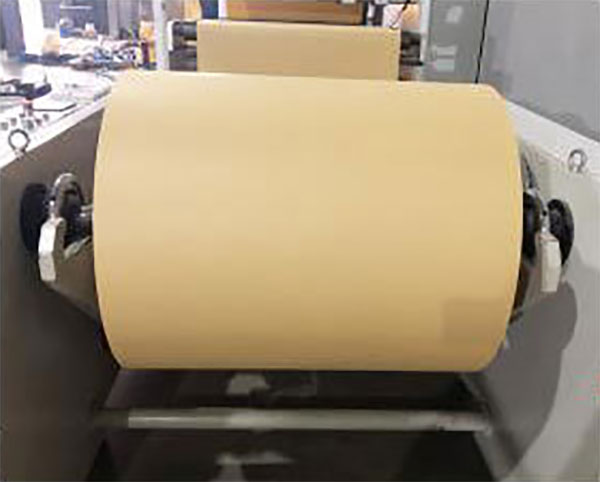

PNEUMATIC AUTO REWINDING PART

Feeding part the max.Feeding part the max.diameter of roll is1.2m.Machine adopt large air cylinders Automatically up ,it runningby hydraulic station.
