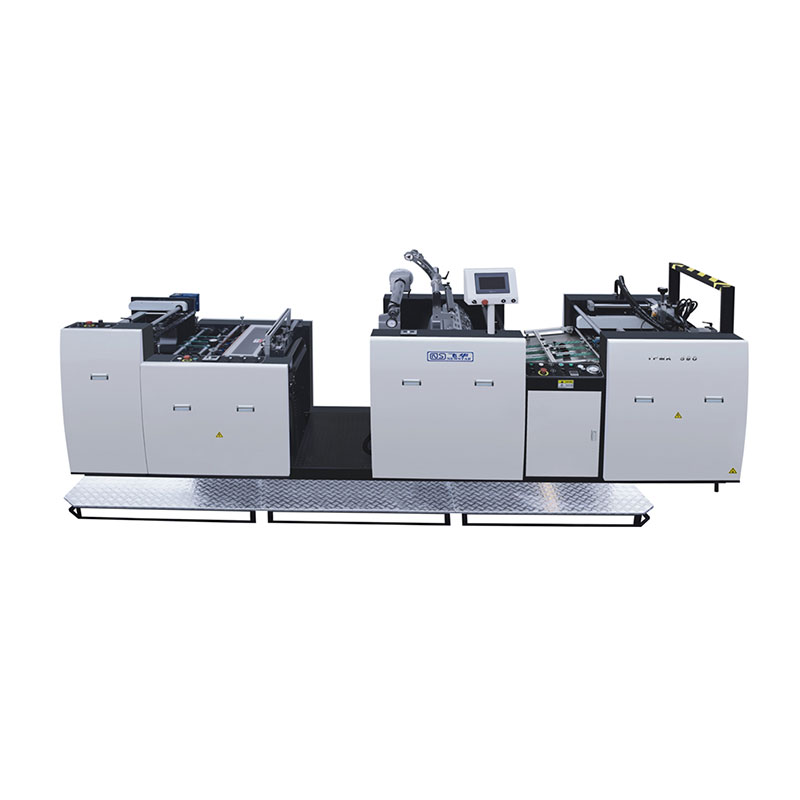

Automatic Pre-Coating Laminating Machine

Automatic pre-coating laminating machine with Chain Knife is a classic product of NEW STAR for many years. It is a new automatic model specially designed for the small size and small batch problems in the market, especially for tags, images, digital printing , commercial printing, books, self-adhesive laminating.

Features

1: Pre-stacker mechanism for paper feeding.
2: Adopt high-speed offset feeder to ensure fast and stable operation
3: High degree of intelligence, the whole machine is controlled by PLC and man-machine, and each part is frequency-converted and servo-linked to ensure speed synchronization and easy for one person to operate.
4: High speed, high efficiency and simple operation

Technical parameters

Machine structure

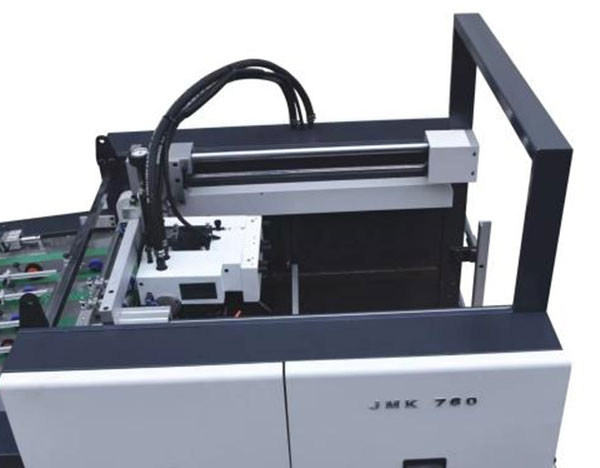

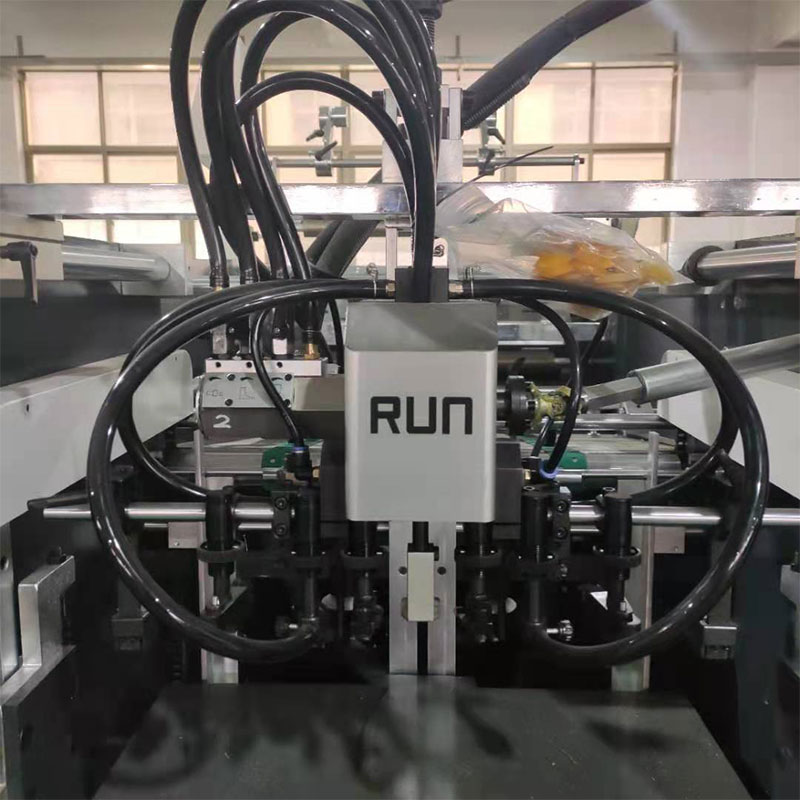

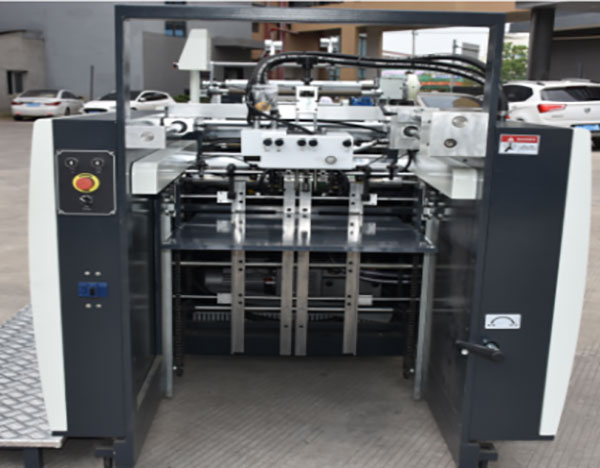

1. Automatic paper feeding system.

The paper feeder is an important part of the laminating machine. The function of the paper feeder is to separate the paper one by one automatically, accurately, steadily and periodically, and continuously send it to the regular positioning position.
The paper feeding method of this machine is continuous paper feeding, which has the advantages of high degree of automation, compact structure, good performance, convenient operation, accurate paper feeding and high precision. The main components of the paper feeder include the paper feeding bridge, the paper feeding head, the stacking table, the lifting system and the transmission system.

(1)Adopt oil-free vacuum pump air suction system;

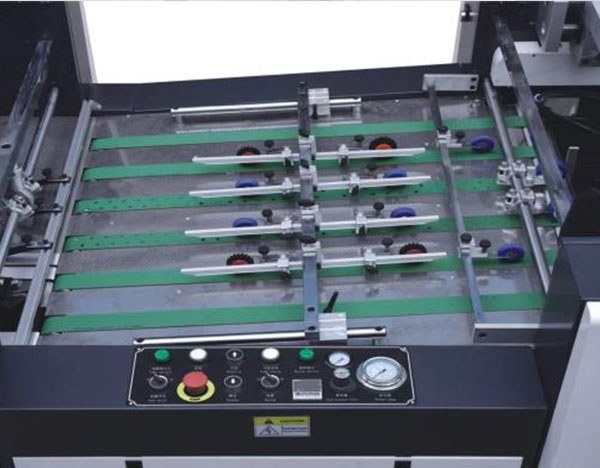

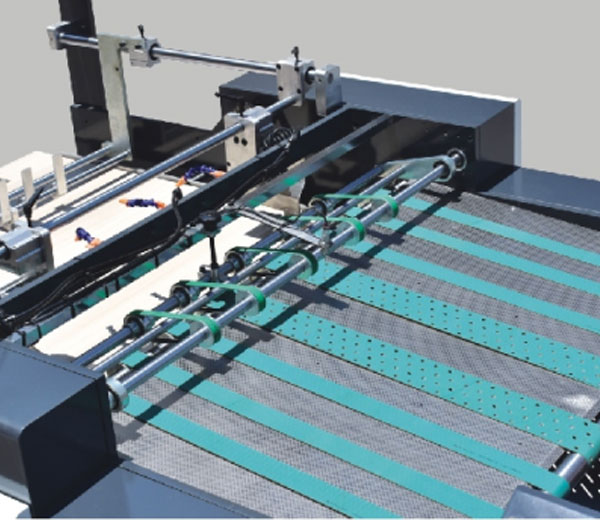

(2)The paper conveying table of the production line is positioned and conveyed by vacuum suction to ensure smooth, neat and stable conveying;
(3)The paper feeding table is equipped with upper and lower limit protection devices; manual rapid lifting;
(4)The paper feeding table has an automatic replenishment paper feeding system;

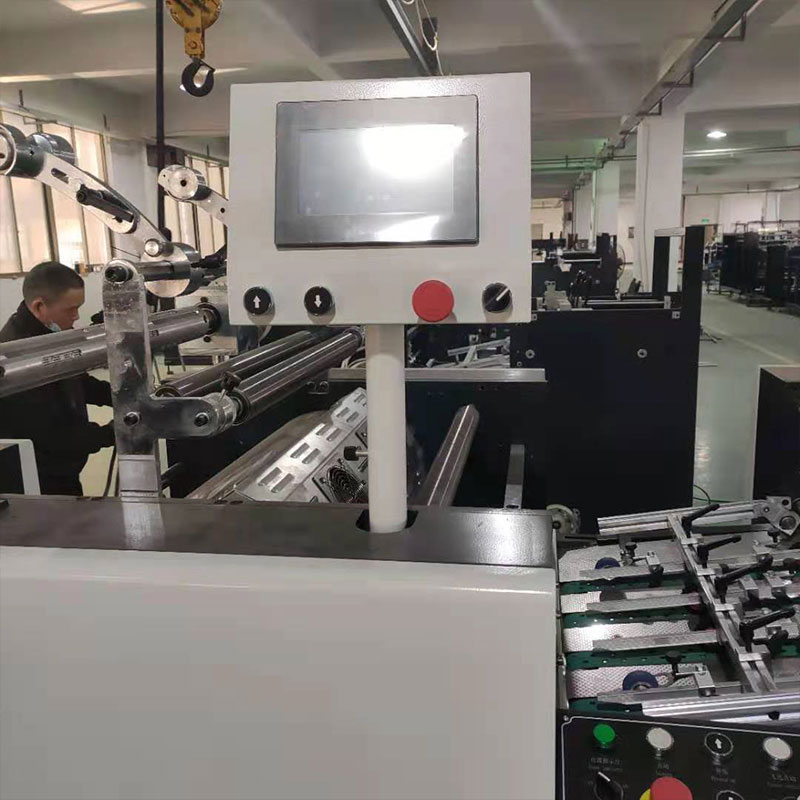

(5)Servo technology, PLC control and human-computer interaction system centralized control. Paper stacking error ± 2mm;

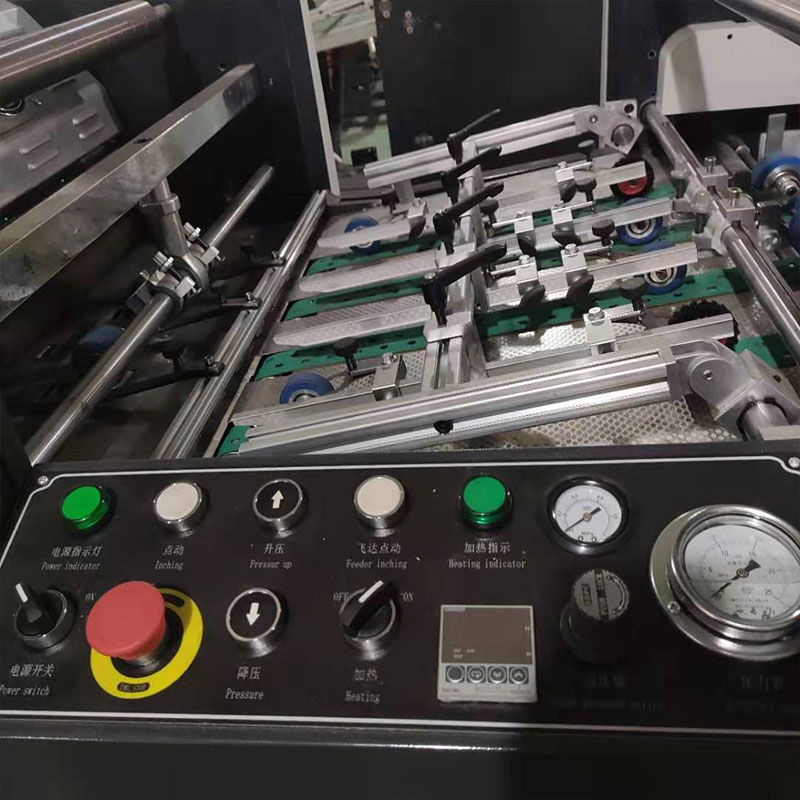

(6)Front gauge and side lay positioning system.

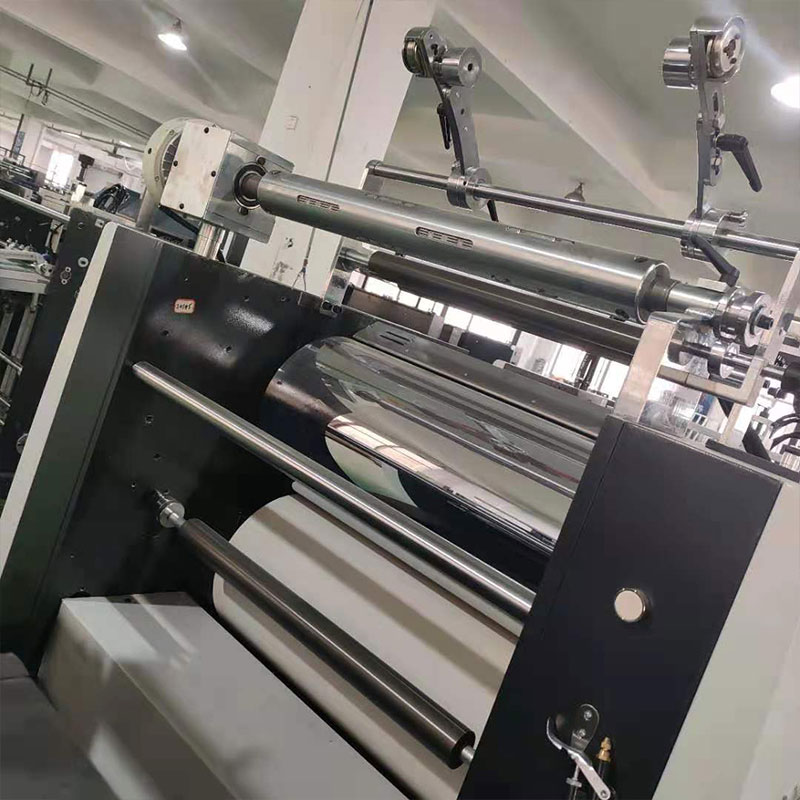

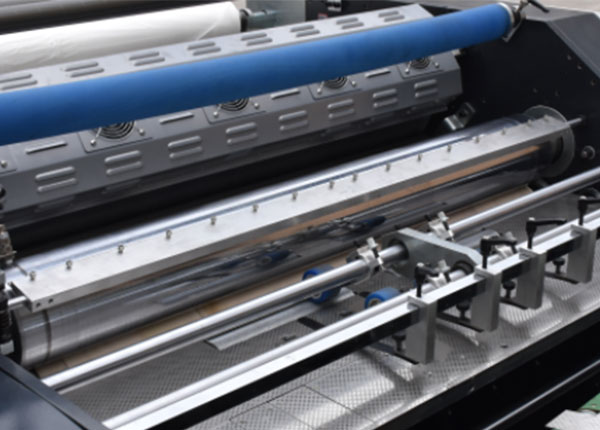

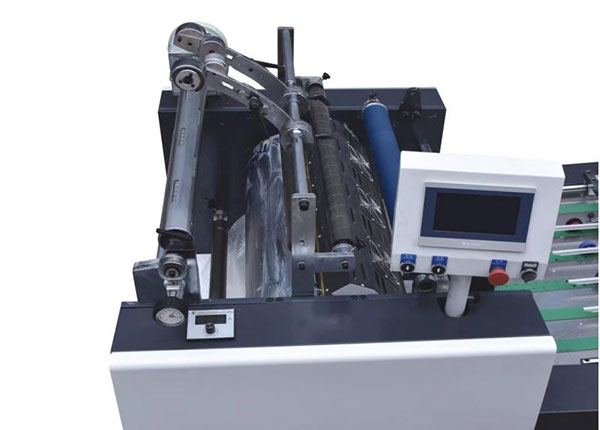

2.Main host

(1)The whole machine adopts high-precision synchronous belt and some imported chain transmission;
(2)320mm composite heating roller, matched with electromagnetic variable power heating system;
(3)300mm imported silicone pressure roller, which has good temperature and pressure resistance and non-stick performance;
(4)Electromagnetic heating
(5)Film straight roller
(6)Temperature meter outside
(7)Automatic hydraulic pressure
(8)Paper lacking and breaking system
(9)Anti-debris magnet safety device, protect the iron roller.

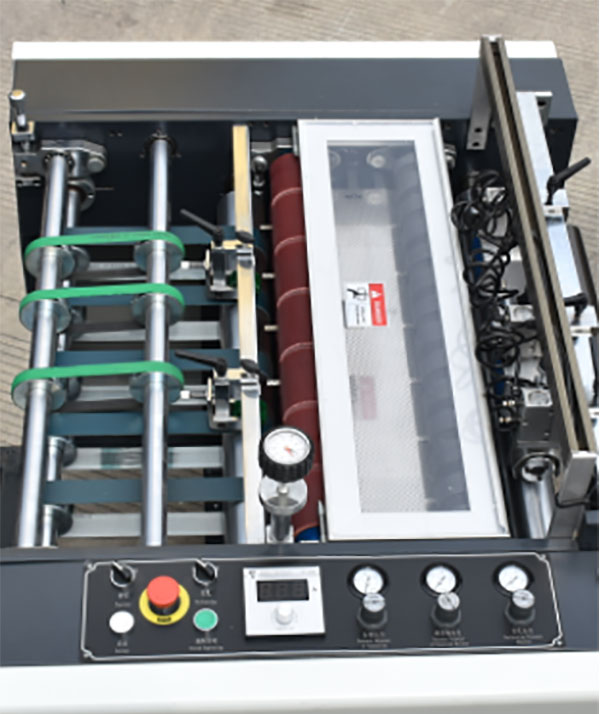

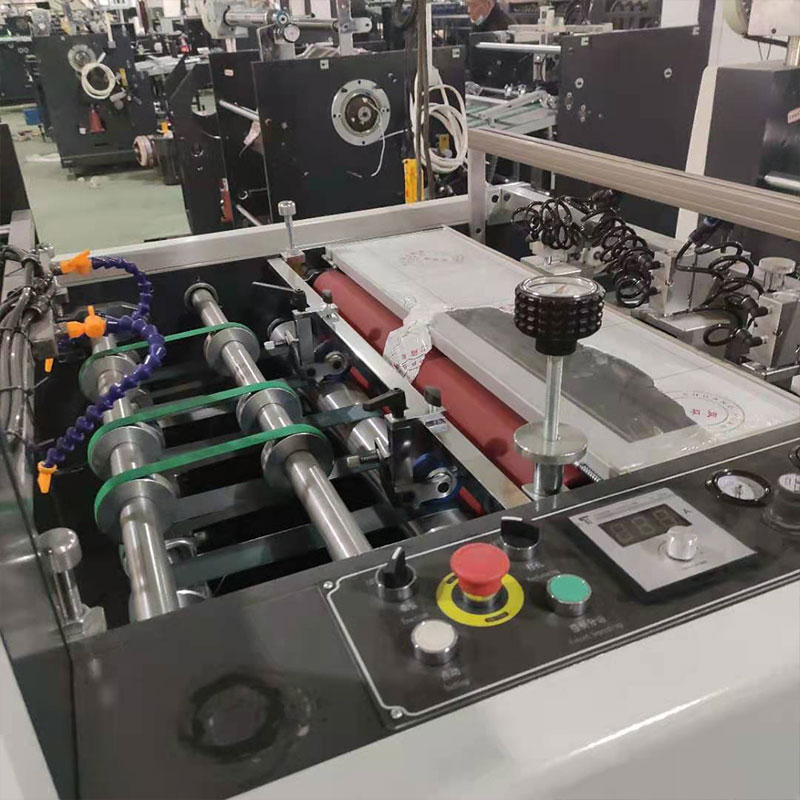

3.Separation system

(1)Back perforating system
(2)Anti-curve system
(3)Pneumatic perforating cutting system
(4)Slot for the separating roller
(5)Adopt the centralized control system of the whole machine to realize precise pneumatic breaking
(6)Magnetic powder clutch control

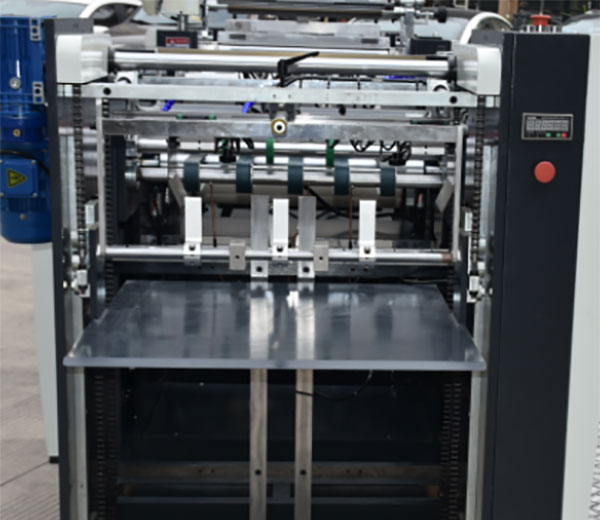

4.Automatic paper stacker

(1)Thin paper corrugated paper delivery system, vacuum suction paper stabilizer device to keep the paper stable;
(2)Manual fast lifting of the receiving table
(3)The upper and lower limit protection devices of the receiving table;
(4)The automatic lowering device of the delivery table, and the paper stop and alarm system at the limit of the delivery;
(5)Automatic paper cumulative counting;
(6)The high-speed pneumatic photoelectric paper-taking system is adopted, and the paper is taken accurately and neatly;

Main components
