Semi-Automatic Flute Laminating Machine

Model:GFM-1300/1450/1650 H

Semi-automatic Flute Laminating Machine, which are the new generation products of NEW STAR with high precision, are developed by our company on basis of referring to the structure of the cardboard to cardboard,cardboard to corrugated board laminator at home and abroad, integrating optical and electrical and air with mechanical. Ask for our best price and enjoy our best service now.

Send Inquiry

Product Description

Semi-automatic Flute Laminating Machine is a new generation of high-precision laminating machine developed by our company based on the original single-station laminating machine, combining the essence of many card-sticking card and card-sticking tile laminating machine structures, integrating optics, electricity, machinery and gas into a perfect combination, adhering to the "people-oriented" design concept.

SPECIFICATION:

Model	GFM-1300 H	GFM-1450 H
Max paper size	1300*1100mm	1450*1100mm
Min paper size	320*320mm	320*320mm
Speed	0-90m/min	0-90m/min
Weight of top paper	200-500g/㎡	200-500g/㎡
Type of bottom paper(Corrugated paper/Paperboard)	A.B.C.E.F（Flute）（Card）≤7mm	A.B.C.E.F（Flute）（Card）≤7mm
Total power	7.8kw/380v	8.5kw/380v
Weight	4.8t	5.3t
Size（LWH）	850019701850mm	850021201850mm

INTRODUCTION

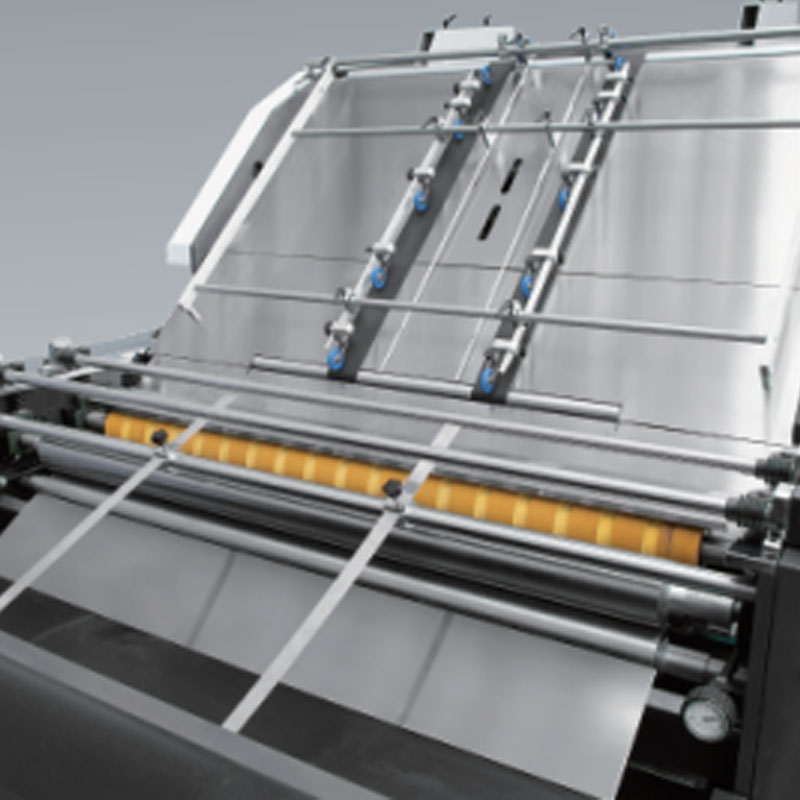

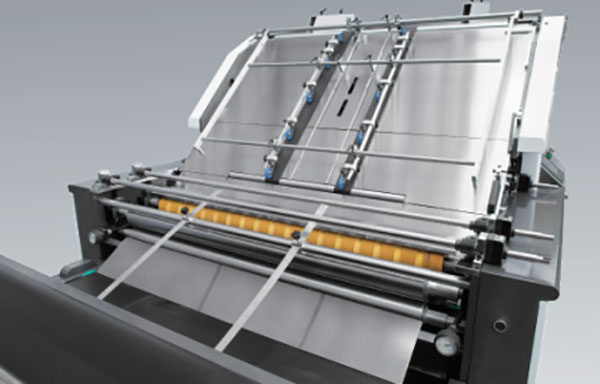

Semi-automatic Flute Laminating Machine uses bottom sheet automatic send by suction device, and top sheet feeding manually. This humanized design makes paper feeding easier and more efficient. It is suitable for color top sheet and corrugated paper laminating, color top sheet and grey cardboard laminating

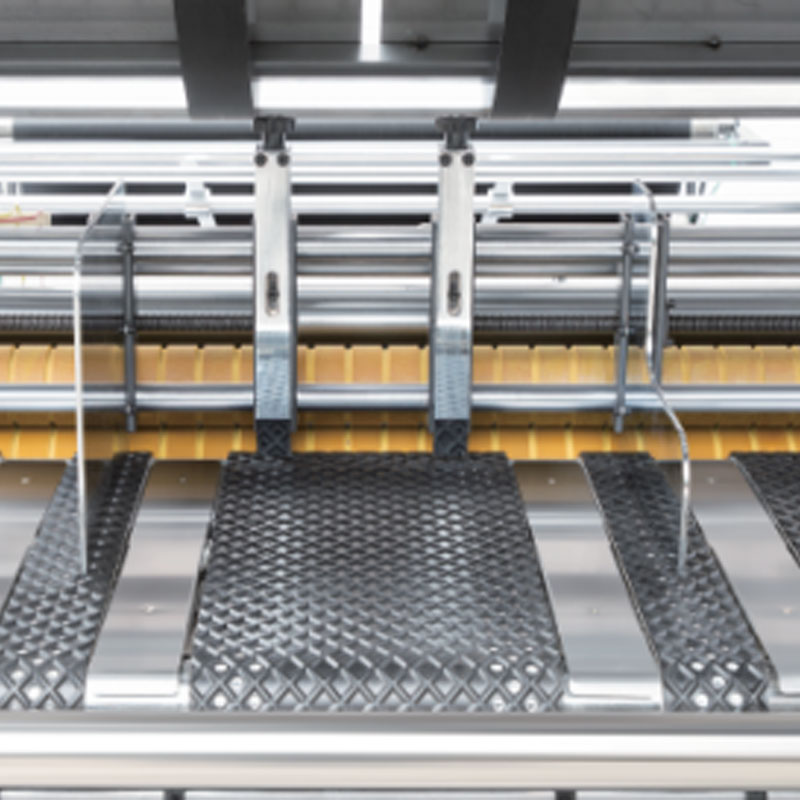

1.Using suction feeding automatic of bottom sheet, according to the main machine operating speed, continuous automatic tracking.
2.The humanized design that manually feeding from the front makes delivery more easier and efficient.m
3.Entire new concept, front gauge registration, position high accuracy, bottom sheet never exceeds the top sheet.

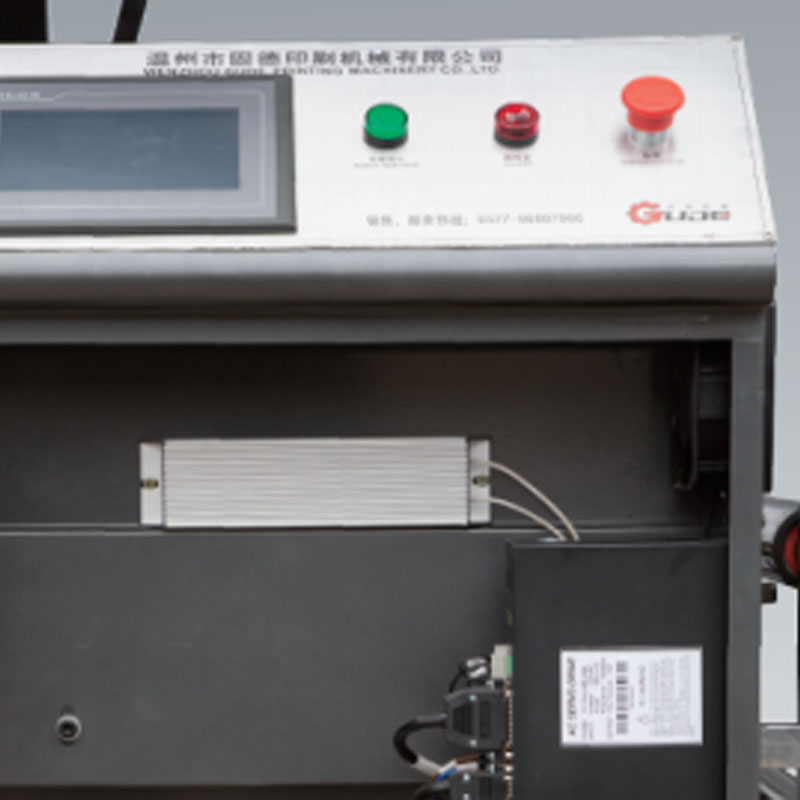

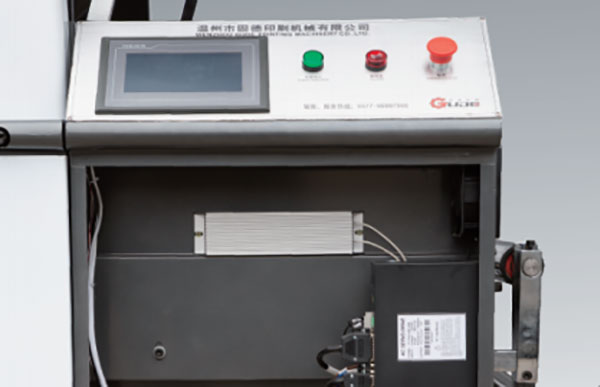

4.Machine uses touch-screen PLC control system, the circuit system is stable,and can automatically display the failure alarm.
5.The automatic replenishment system of glue can be added automatically during glue losses,and recycling with the glue to avoid loss of waste.
6.The scientific design of the metering roller speed to ensure the glue evenly on the same time , to avoid rejection of glue at high speed.

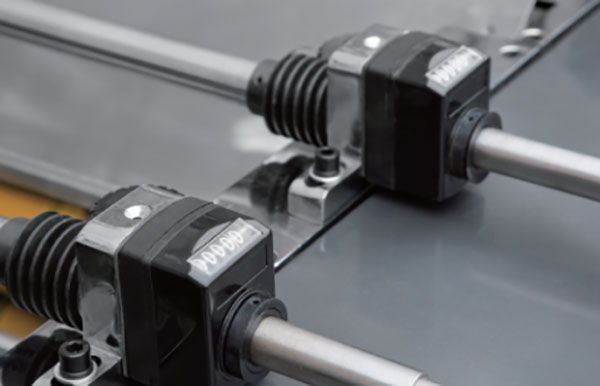

7.Single side adjustment of the pressure roller, and equipped with a pressure gauge, with the record of the data , easy adjustment when change the size of bottom paper.
8.Independent water tank control cycle, ensure the bottom paper back dry and clean, and cleaning glue rollers, glue collecting tank, back glue tank at the same time.
9.Suitable for color top sheet 175-500g and AB/C/D/E/F corrugated paper laminating; Color top sheet 175-500g and gray cardboard paper laminating.
