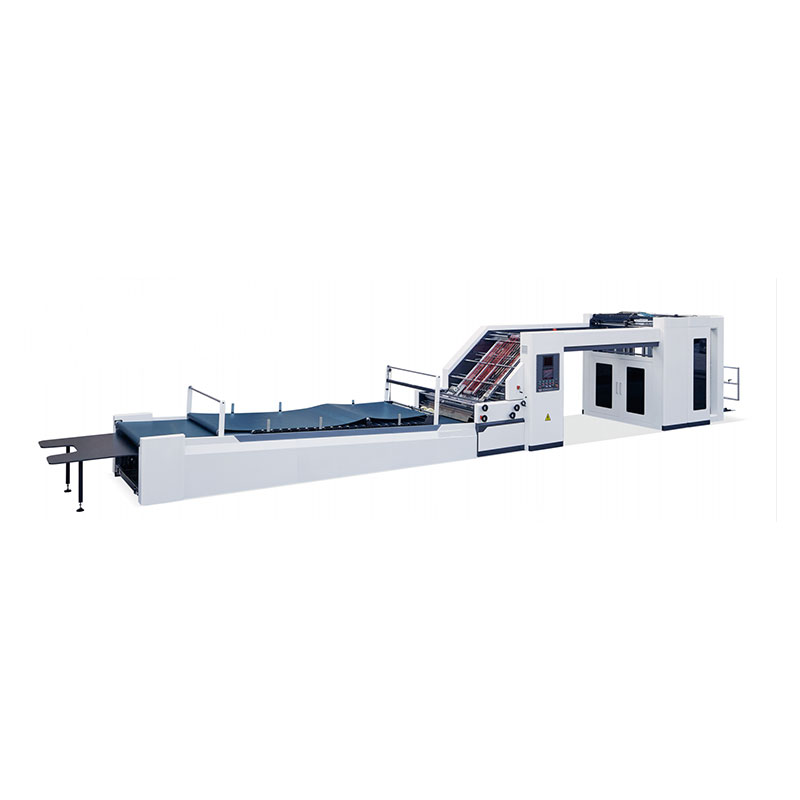

Heavy Duty Servo Flute Laminating Machine adopts the motion control system and servo correction device perfect combination, the use of multiple sets of photoelectric sensor at bottom sheets relative position, control top sheets on both sides of the servo motor to do independent compensation action, so that accurate positioning of top paper and the bottom paper. Servo laminating machine is simple for operation, just enter the paper size, machine can automatically finish adjustment.
| Model | GFM(III)-1450Z | GFM(III)-1650Z |
| Max Sheet Size | 1450×1450mm | 1650×1650mm |
| Min Sheet Size | 380×350mm | 380×350mm |
| Top Sheet Thickness | 120-500g | 120-500g |
| Bottom Sheet Thickness | A/B/C/E/F corrugated paper, 4 ply corrugated paper, cardboard above 300gsm | |
| Fitting Precision | ±1mm | ±1mm |
| Air Consumption | 0.2m³/min | 0.2m³/min |
| Measurement | 15500×2400×2400 | 15700×2600×2400 |
| Machine Power | 22kw | 25kw |
| Glue Application | White glue/Starch glue | White glue/Starch glue |
1.Auto pressure adjustment, auto glue adjustment.200M/MINMAX SPEED 200M/MIN
2.Casting frame, large diameter roller transmission.
3.Cardboard to flute & cardboard tocardboard
4.Top sheet stream feeding with side pulling ball positioning
5.Full servo motor control (0 servo motors)

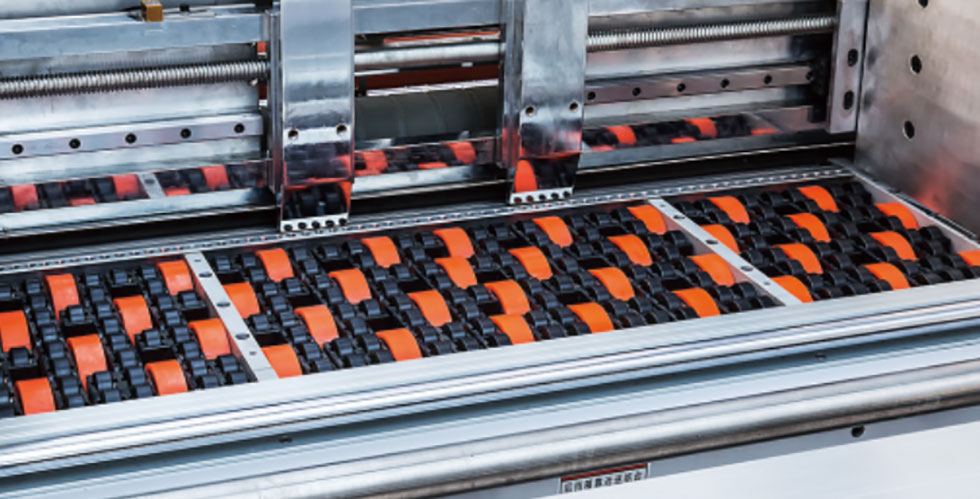

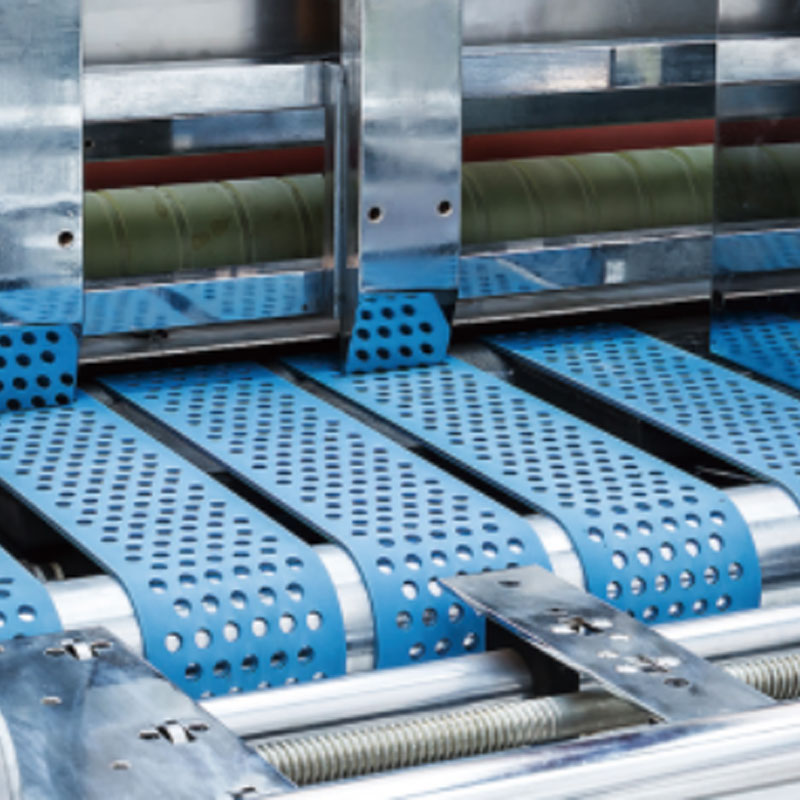

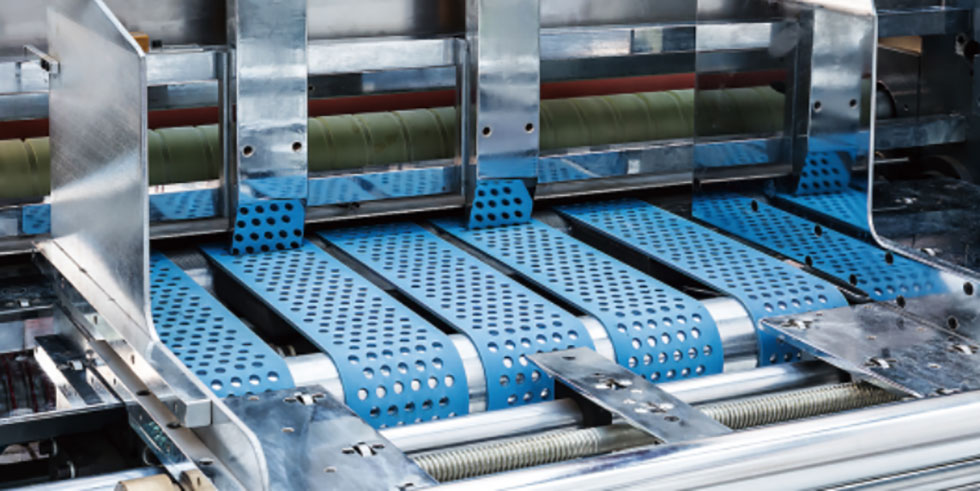

Use imported Servo motor electric controlling system, with Japan NITTAsuction belt to make suction power inverter, and belt cleaned by water rollerPatented technology to ensure corrugate and cardboard goes out smoothlyand simple operation.

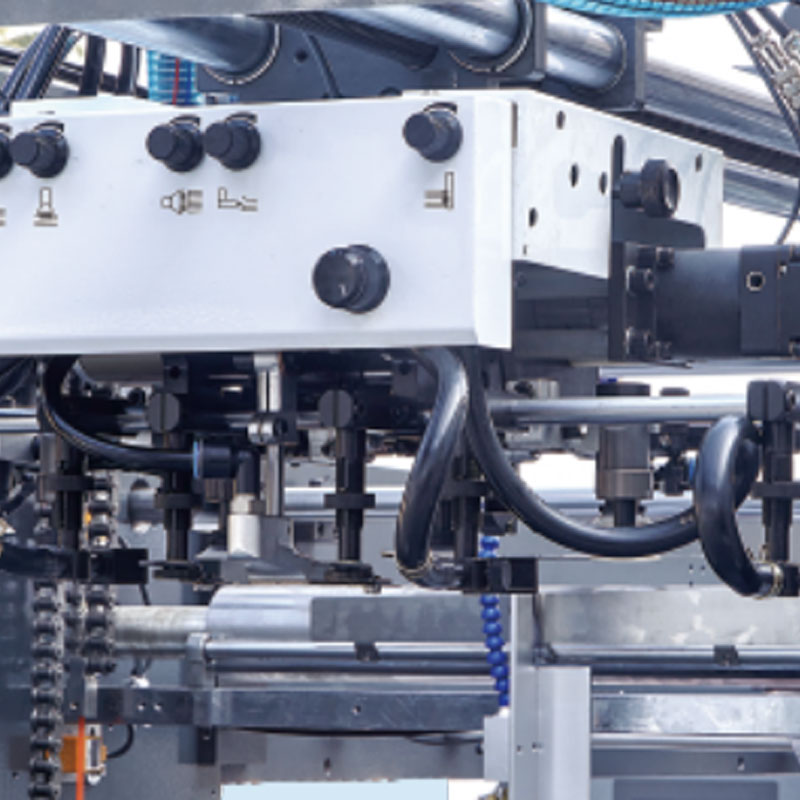

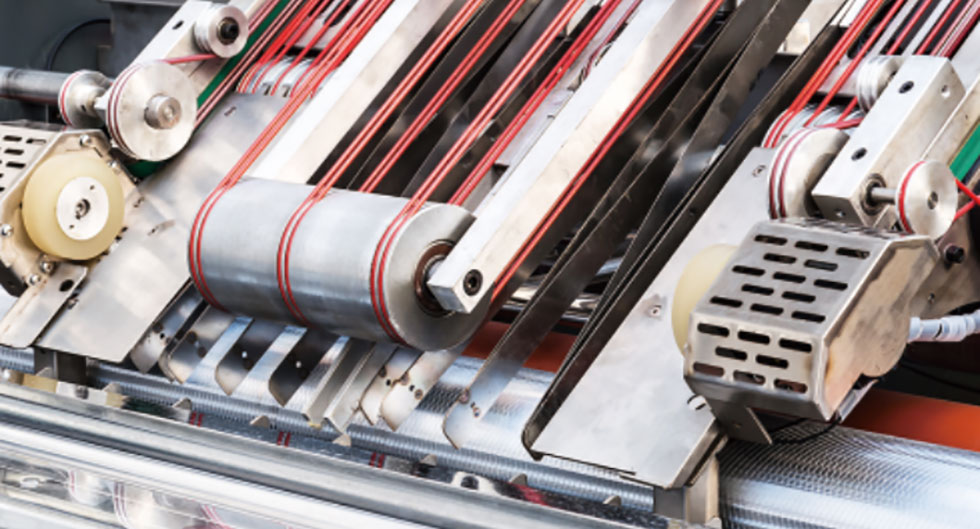

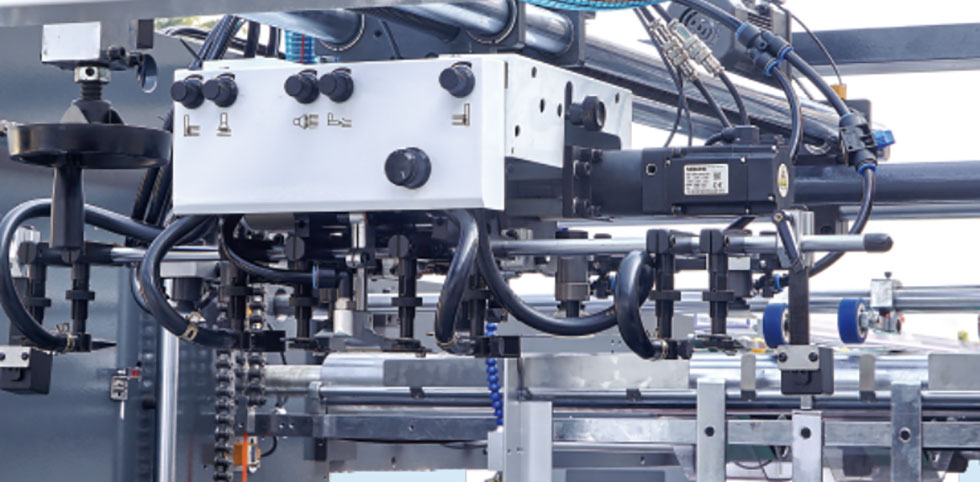

Equipped with high speed auto dedicated feeder, both paper lifting andfeeding nozzle can freely adjust angle to the paper, to ensure that whetherthick or thin paper can be delivered rapidly and smoothly.

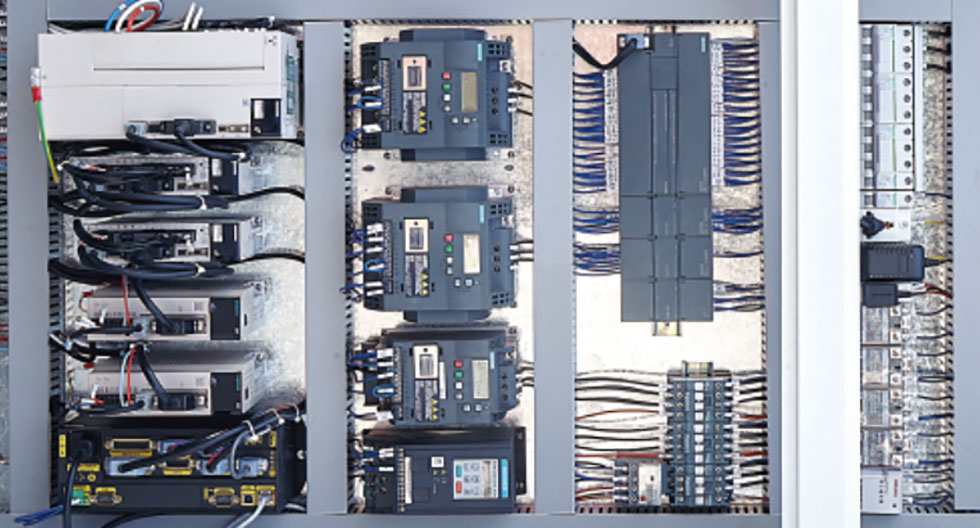

Designed in the accordance with European CE requirement, ensure machinestability, high efficiency and low failure. Using man-machine interface and PLCcombination, display all the information, such as warning, error detect,failures, and operating speed, etc on the screen at a glance.

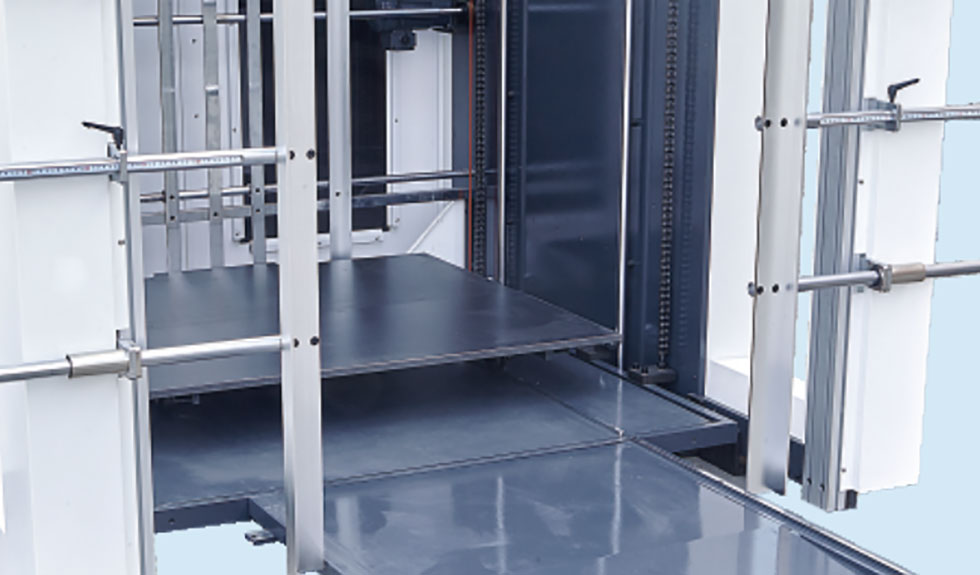

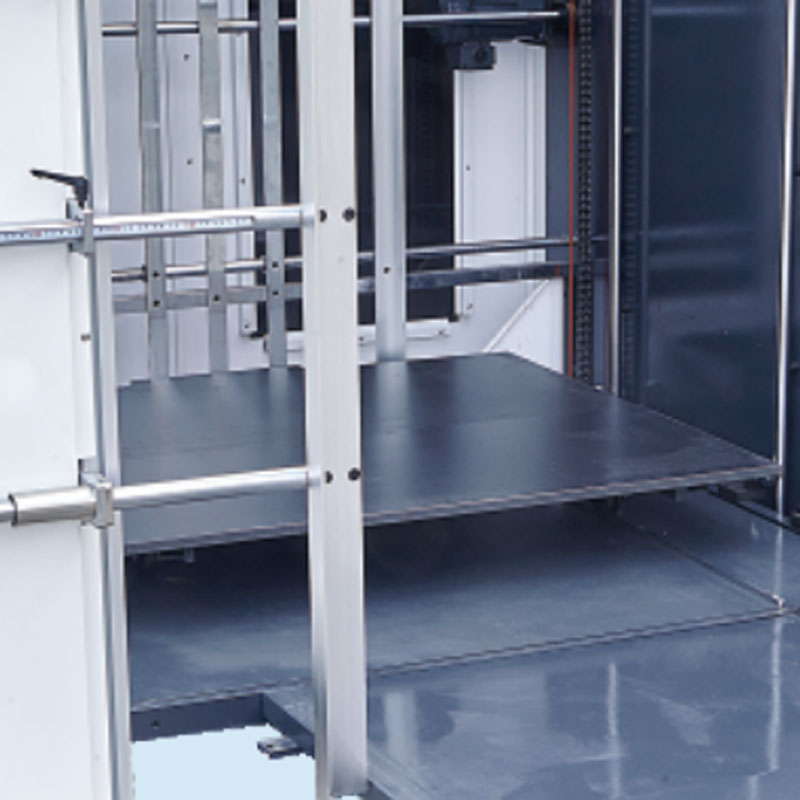

Pre-stack pile of paper under the condition of non-stop, improve efficiency.The special design of the pre stack paper frame, save time and effort.

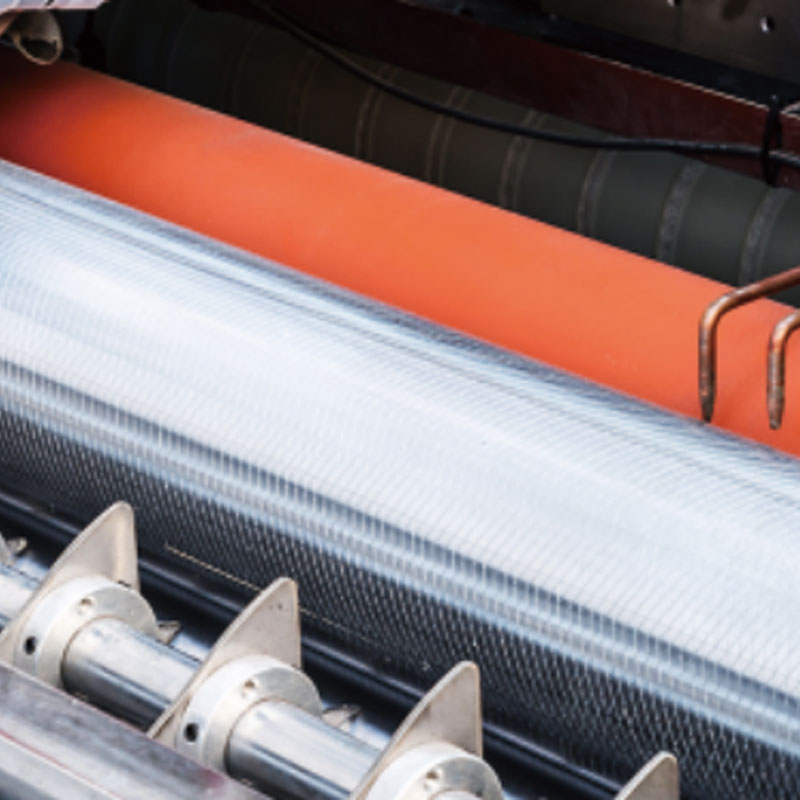

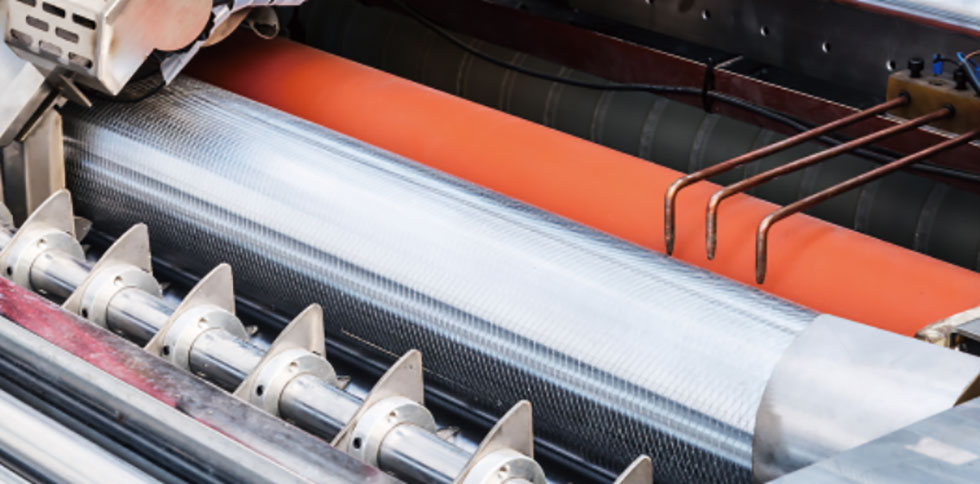

Stainless steel roller, never rust, after narrowly grinding, guaranteed theminimum amount glue coated evenly, Down roller be ceaned by water roller.

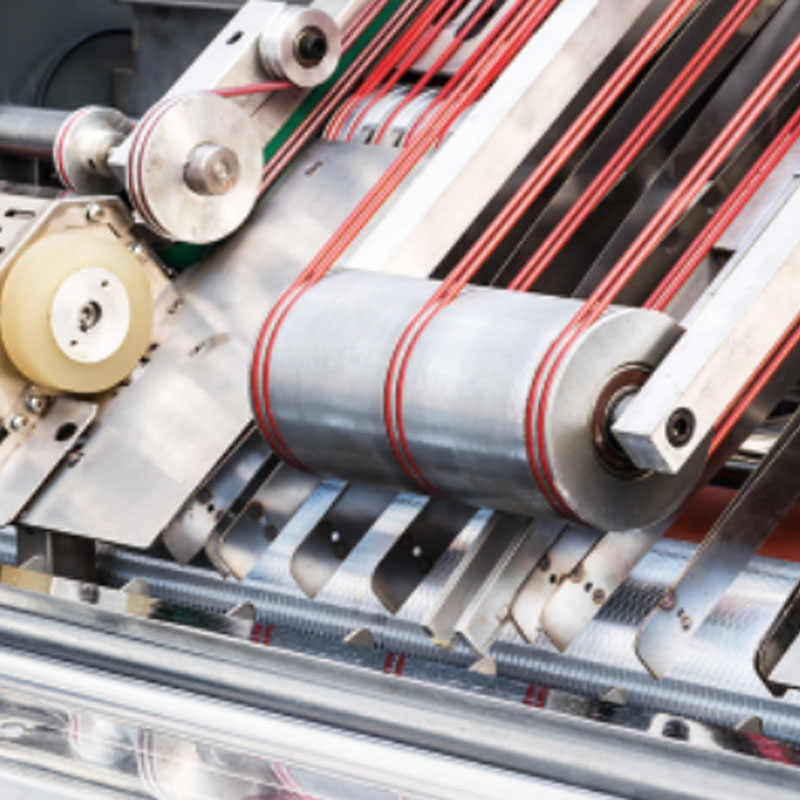

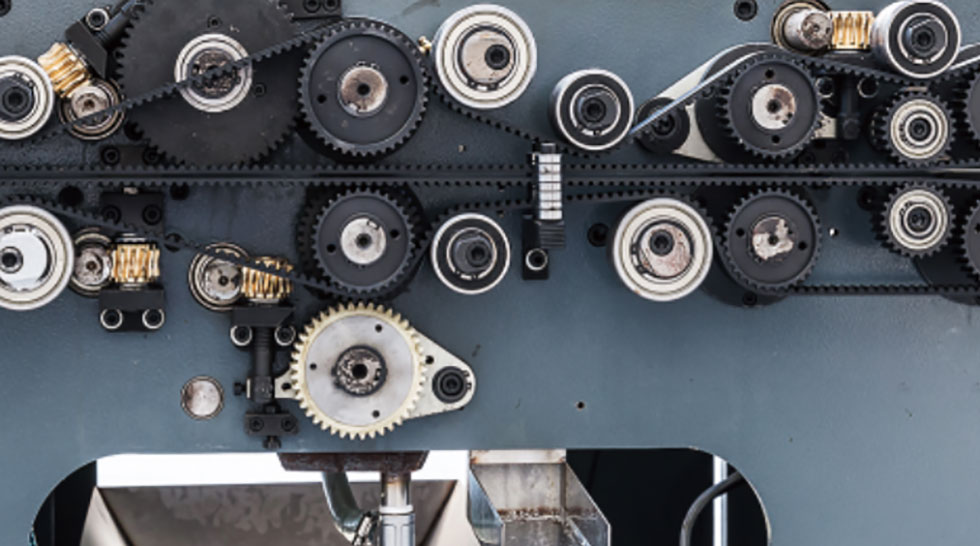

With imported double teeth belt drive and Switzerand ROSTA tension deviceensure the drive accurate, stable and low noisy
The use of multiple sets of photoelectric sensor at bottom sheets relativeposition, control top sheets on both sides of the servo motor to do indepen-dent compensation action, so that accurate positioning of top paper and thebottom paper.
This system is for option, more suitable for large size and thickbottom sheets.
