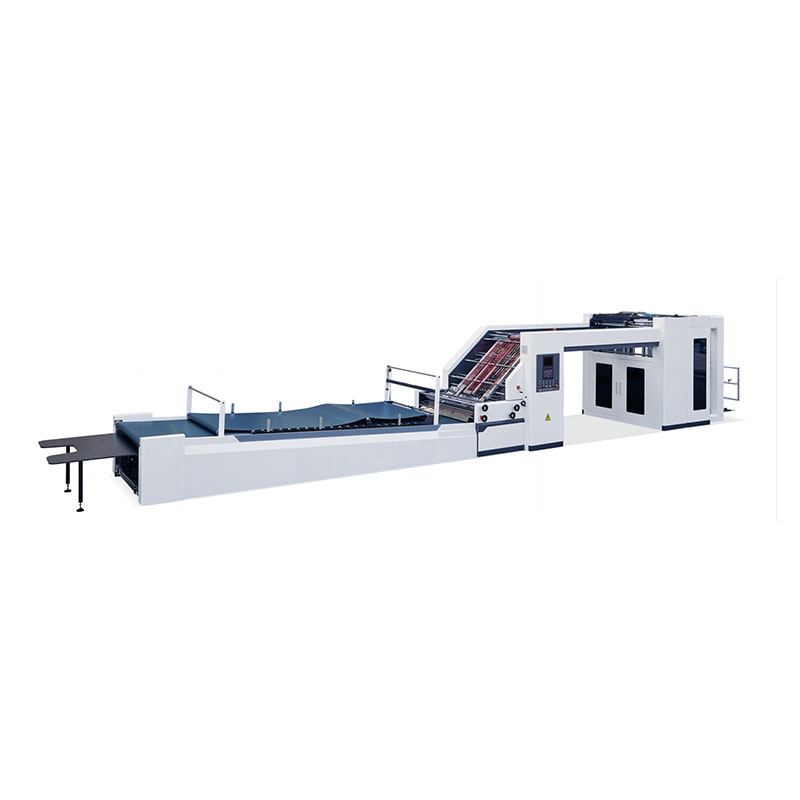

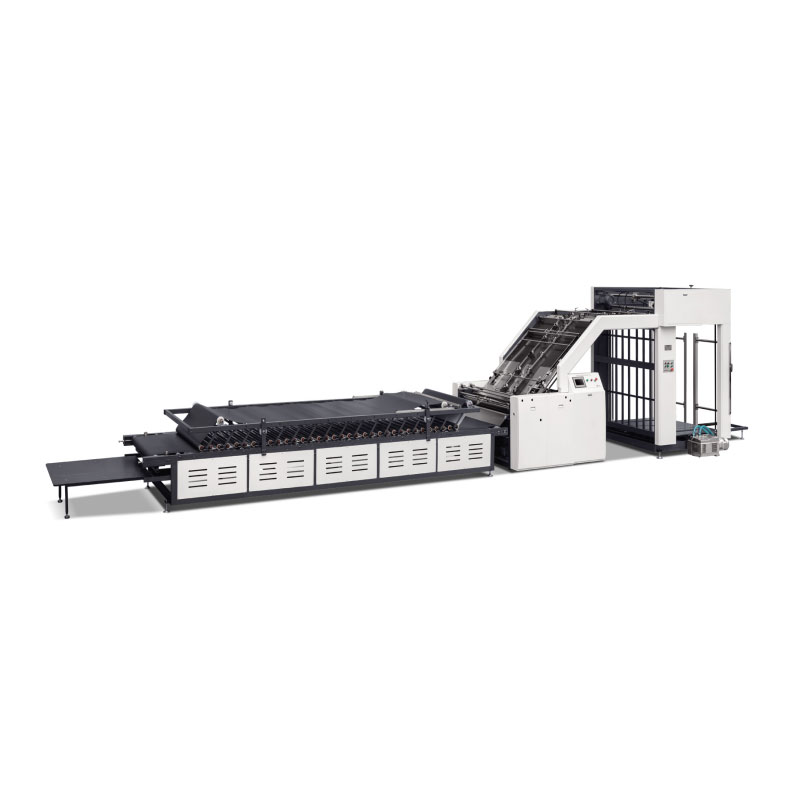

Automatic Flute Laminating Machine is suitable for laminating color printed face paper with corrugated paper. The face paper adopts fish scale type uninterrupted paper feeding, and the unique front positioning method ensures that the bottom paper will never be ahead. It is simple to operate and easy to maintain.
| Model | GFM(I)-1300 Z | GFM(I)-1450 Z | GFM(I)-1650 Z |
| Max paper size | 1300*1100mm | 1450*1100mm | 1650*1100mm |
| Min paper size | 400*400mm | 400*400mm | 400*400mm |
| Precision | ±1mm | ±1mm | ±1mm |
| Speed | 6000sheets/h | 6000sheets/h | 6000sheets/h |
| Weight of top paper | 200-500g/㎡ | 200-500g/㎡ | 200-500g/㎡ |
| Type of bottom paper(Corrugated paper/Paperboard) | A.B.C.D.E≤7mm | A.B.C.D.E≤7mm | A.B.C.D.E≤7mm |
| Total power | 15kw/380v | 15kw/380v | 15kw/380v |
| Weight | 7t | 8t | 9t |
| Size（L*W*H） | 14.2*2.22*2.68m | 14.2*2.37*2.68m | 14.2*2.62*2.68m |
Automatic Flute Laminating Machine application range: paper packaging, cigarette packaging, wine packaging, medicine packaging, cosmetic packaging, clothing and shoes packaging, toy packaging, corrugated paper boxes, lunch boxes, fine color boxes.
1.Advanced automatic tracking technology, according to the size of the paper automatically adjust the relevant parameters, so that the machine is always running in the best condition
2.Unique front gauge positioning system, accuracy and the bottom paper never exceed; top paper exceed adjustable
3.Equipped with high precision high speed automatic feeder, strengthening type paper feeding device, feeding smoothly.
4.Bottom paper using suction automatic feeding, can adjust wind strength in the touch screen, and is equipped with a belt humidifying function.
5.Standby stack table can pile paper under non-stop situation, along the rail into the elevator, high working efficiency
6.lmported electrical components, to ensure the stability of the circuit system. PLC tracking technology, automatic fault alarm;
7.Fully automatic glue supplementary system, can automatically replenish the loss of the amount of glue, and cooperated with the glue recycling
8.Independent water tank control cycle, ensure the bottom paper back dry, at the same time cleaning up roller, glue receive tank and back glue tank;
9.Single side adjustment of the roller pressure, and equipped with a dial gauge, the replacement of the bottom paper one.step-to-reach.

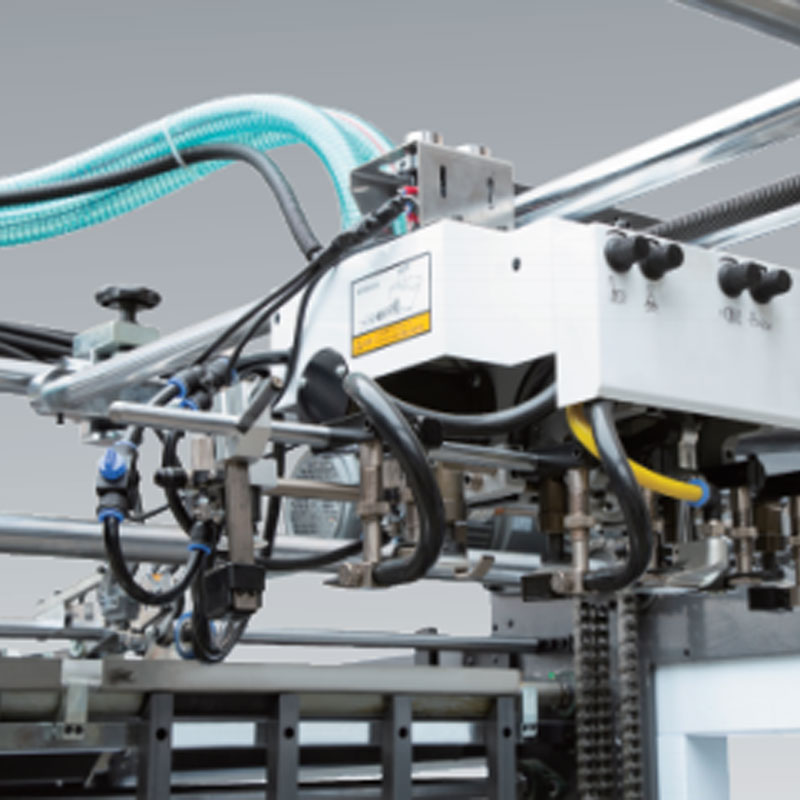

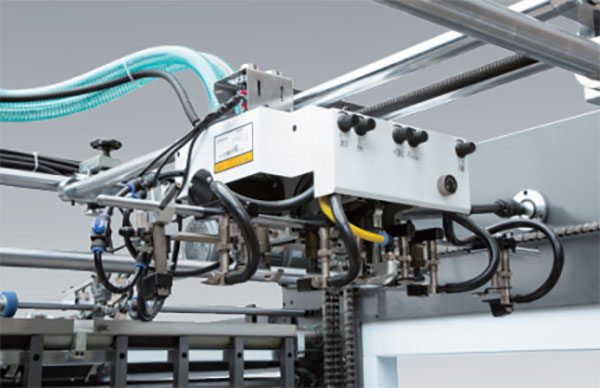

Four-sucking,four-feeding,strengthened feeder

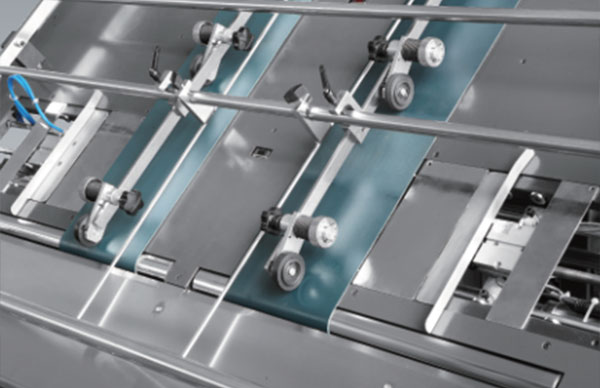

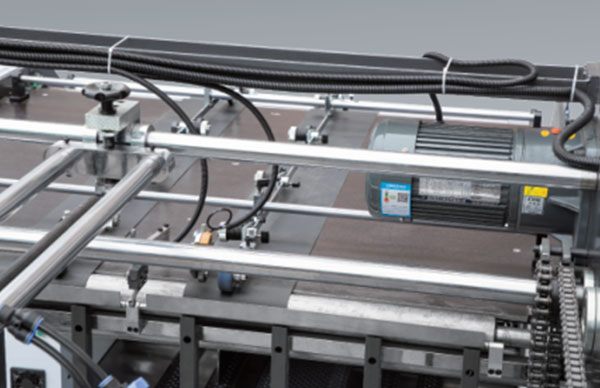

Imported speed-reducing motor,paper limit device

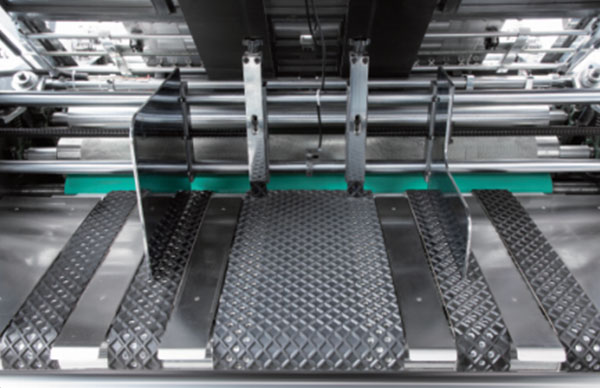

Paper baffle CAM mechanism

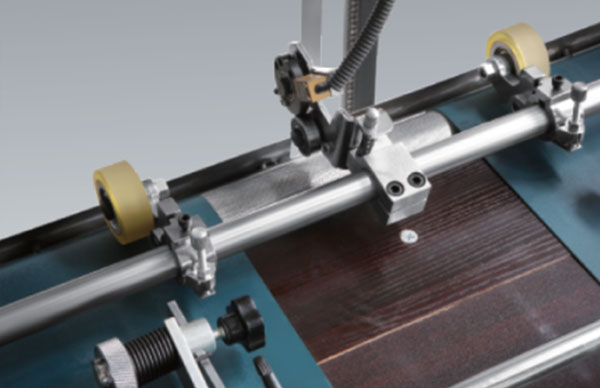

Pneumatic correction mechanism for the top sheet

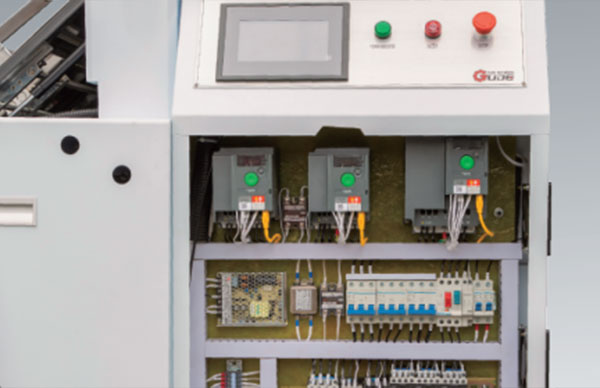

PLC touch screen, Schneider electrical
Suction system
