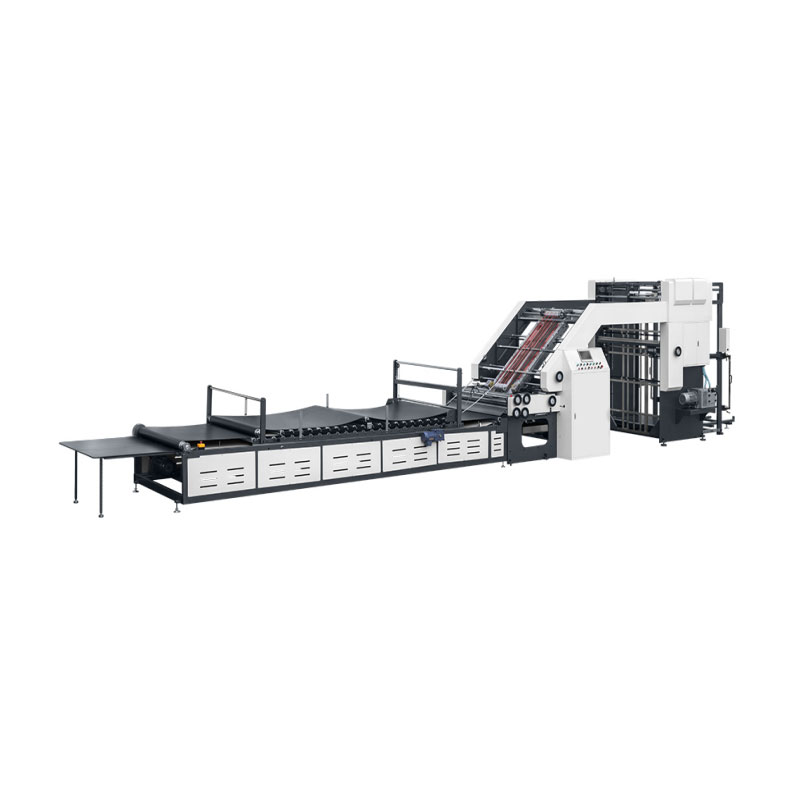

Automatic Servo Flute Laminating Machine adopts the servo compensation system and motion control system, optimized design, use of multiple sets of photoelectric sensor at bottom paper relative position, control top paper on both sides of the servo motor to tracking speed, independently compensation, so that accurate positioning of top paper and the bottom paper. We uphold the “people oriented” design concept, simple operation, just input the paper size, machine can automatically finish adjustment
| Model | GFM(III)-1450 Z | GFM(III)-1650 Z |
| Max paper size | 1450*1450mm | 1650*1450mm |
| Min paper size | 400*380mm | 400*380mm |
| Precision | ±1.5mm | ±1.5mm |
| Speed | <150m/min | <150m/min |
| Weight of top paper | 180-500g/㎡ | 180-500g/㎡ |
| Type of bottom paper(Corrugated paper/Paperboard) | A.B.C.E.F ..（Corrugated paper.Paperboard.Grey paper） | A.B.C.E.F ..（Corrugated paper.Paperboard.Grey paper） |
| Total power | 22kw/380v | 25kw/380v |
| Weight | 8.5t | 9.5t |
| Size（L*W*H） | 13*2.4*2.4m | 13.5*2.6*2.4m |
Automatic Servo Flute Laminating Machine application range: paper packaging, cigarette packaging, wine packaging, medicine packaging, cosmetic packaging, clothing and shoes packaging, toy packaging, corrugated paper boxes, lunch boxes, fine color boxes.
1.Maximum speed 12,000 sheets per hour
2.One-touch machine adjustment in 20 seconds
3.Both card mounting and tile mounting
4.Servo tracking compensation positioning
5.Full-process paper positioning correction

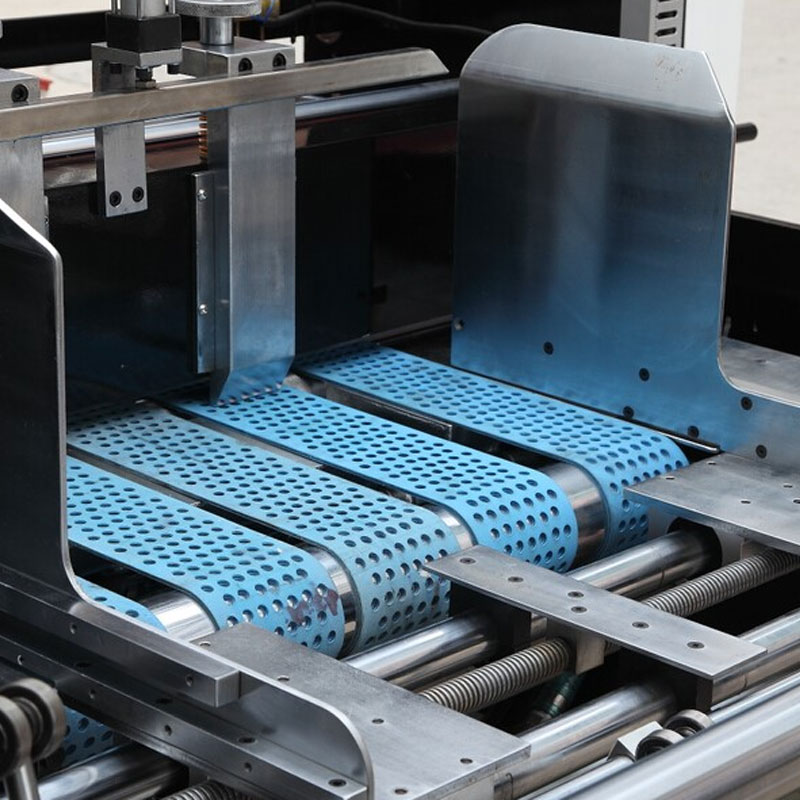

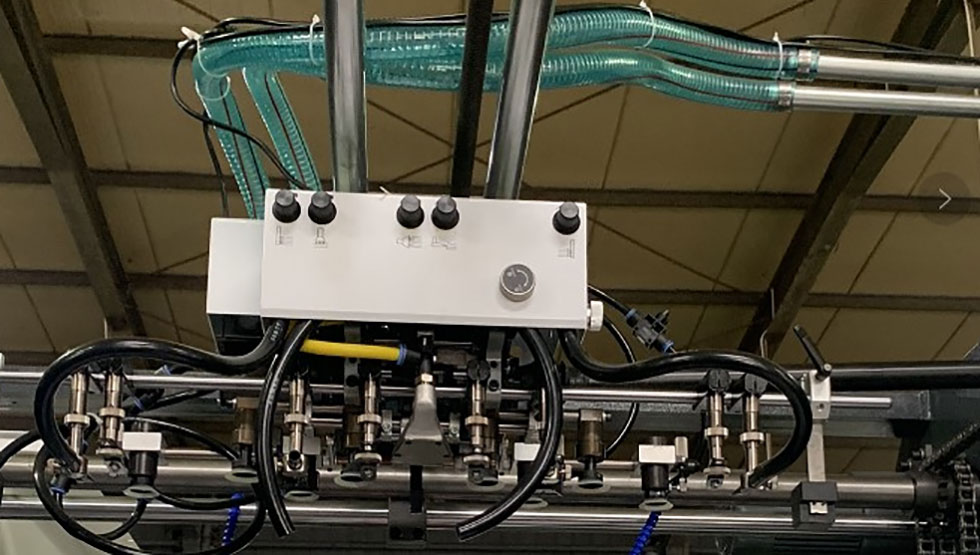

Equipped with high speed dedicated feeder of four-sucking and four-feeding, both paper lifting and feeding nozzle can adjust angle to the paper, to ensure that whether paper is tilted left or right can be delivered rapidly and smoothly.

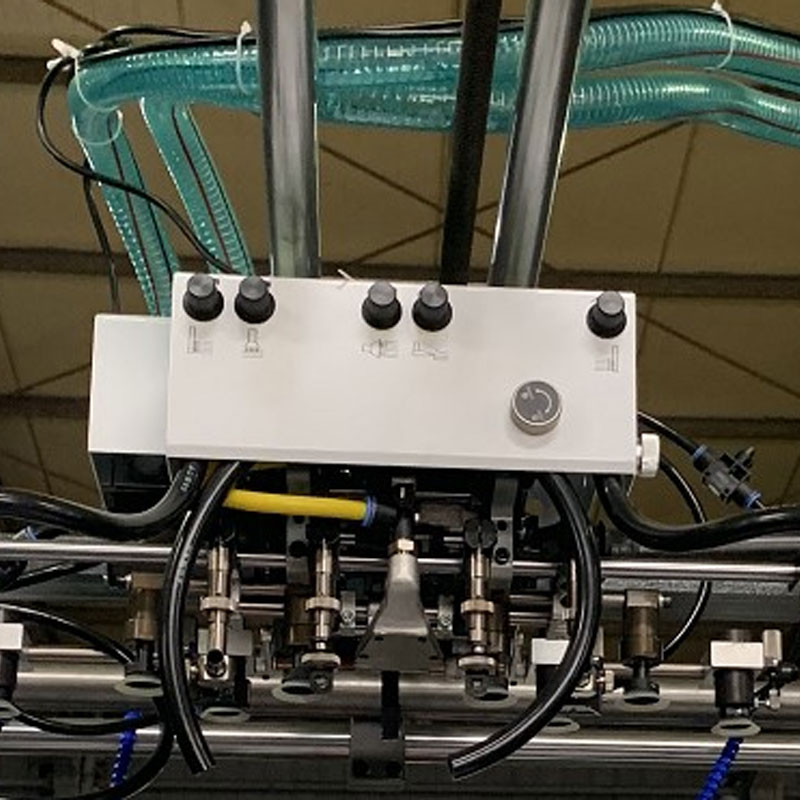

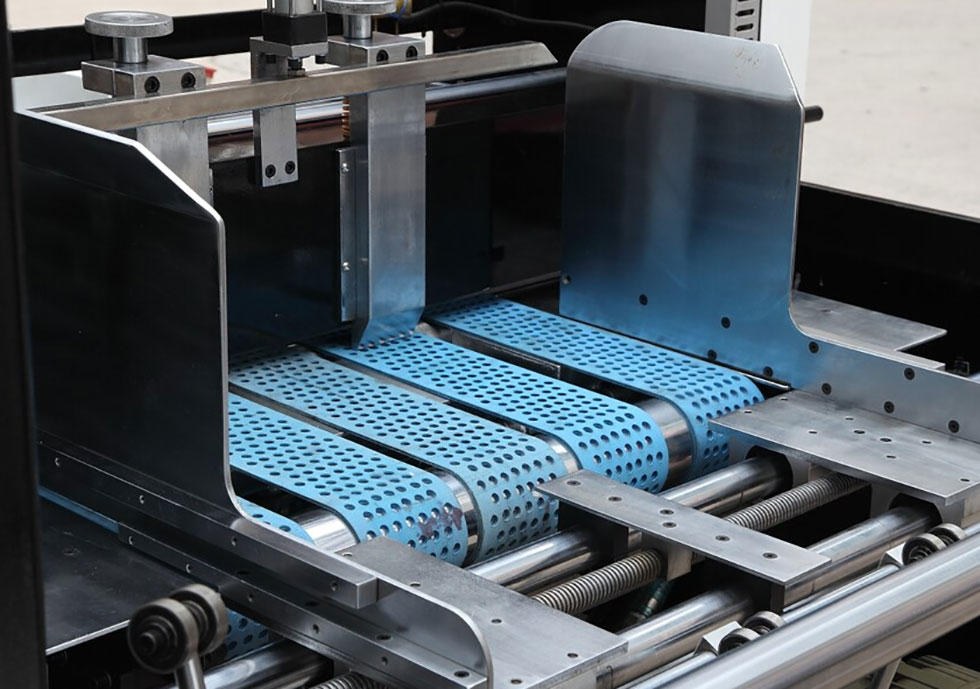

Use servo motor control system, adjustable suction power, to ensure corrugated paper and cardboard goes out smoothly and simple operation.

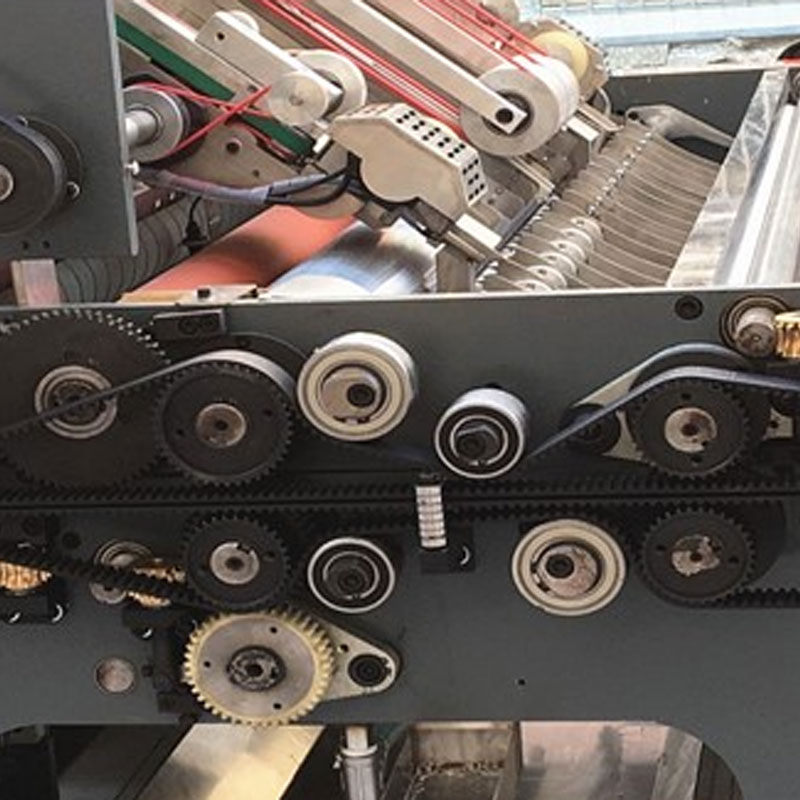

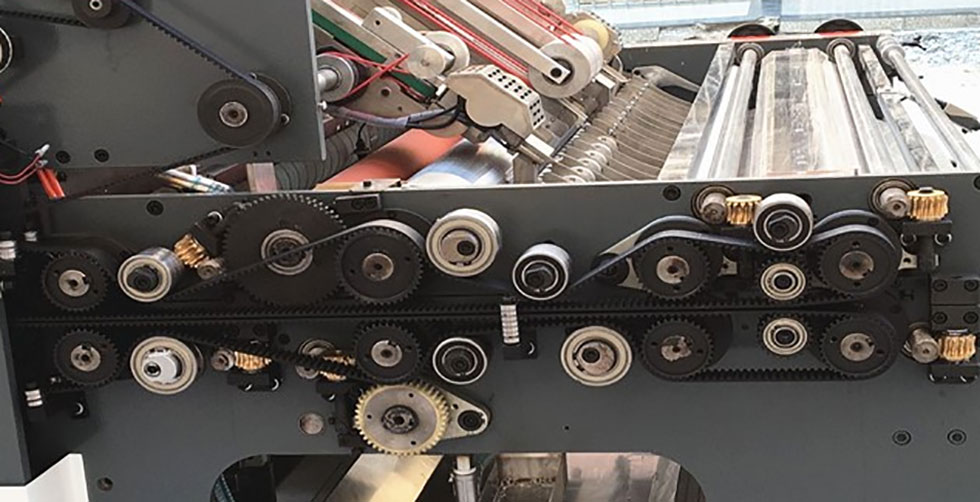

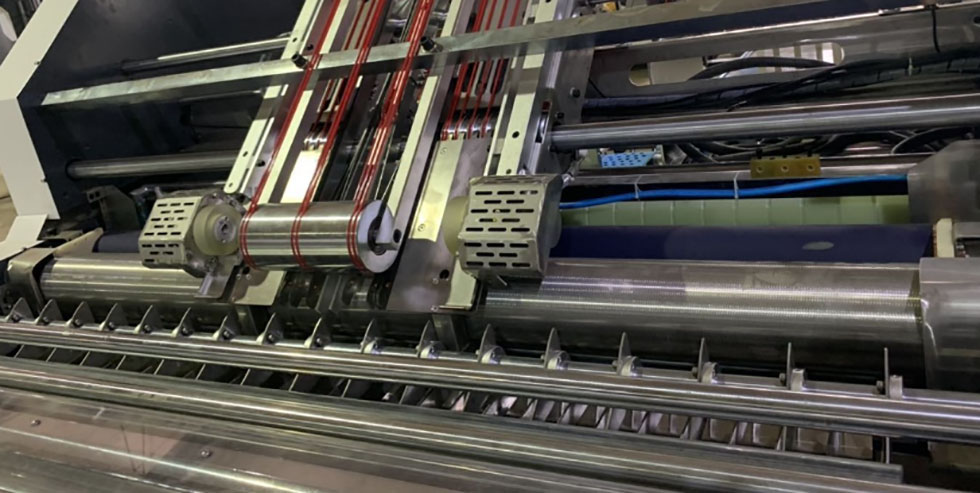

With imported double teeth belt drive and dedicated tension device ensure the drive stable and low noisy.

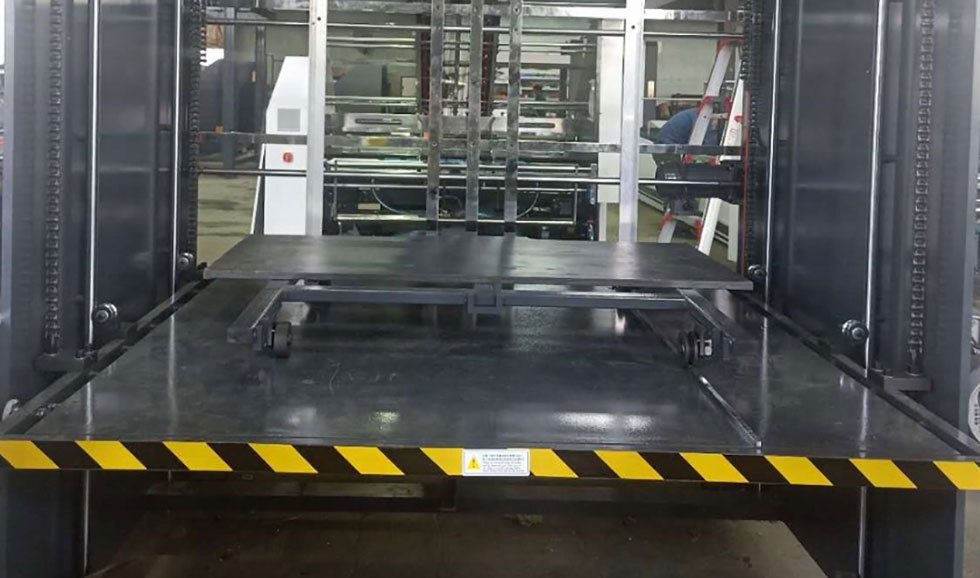

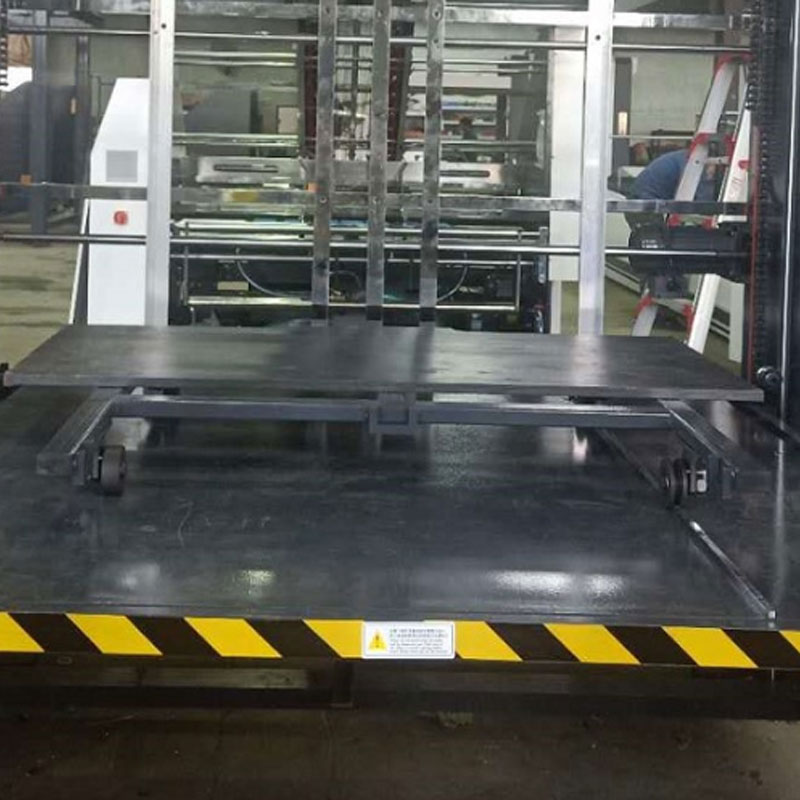

Pre-stack pile of paper under the condition of non-stop, improve efficiency. The special design of pre-stack paper frame, convenient and efficient.

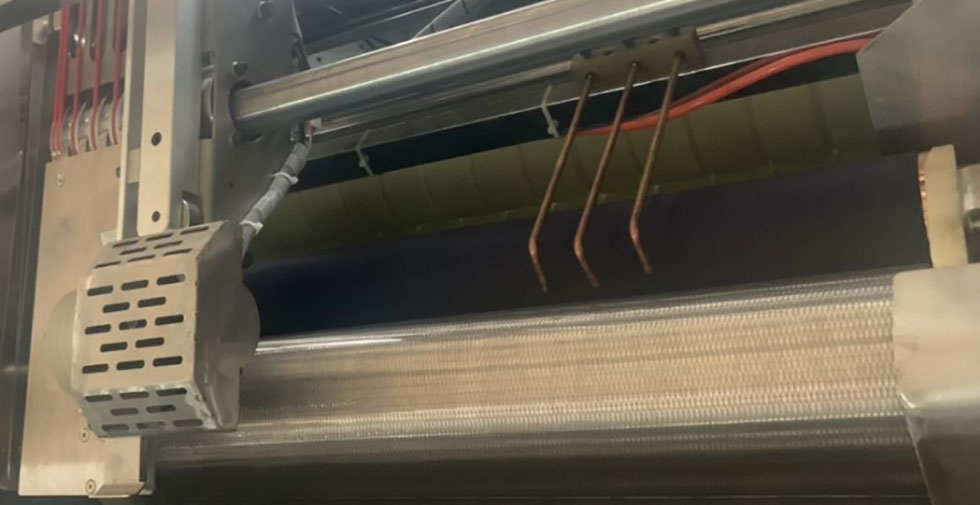

The special design of roller, after narrowly grinding, guaranteed the glue coated evenly. Down roller be cleaned by water roller.

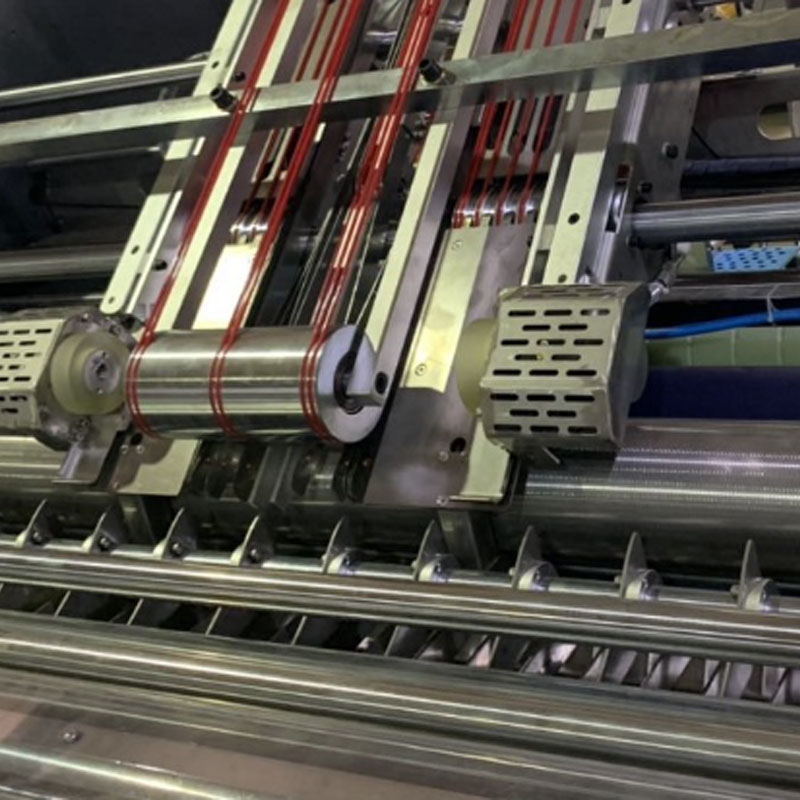

Use multiple sets of photoelectric sensor at bottom paper relative position, control top paper on both sides of the servo motor to do independent compensation action, so that accurate positioning of top paper and the bottom paper.

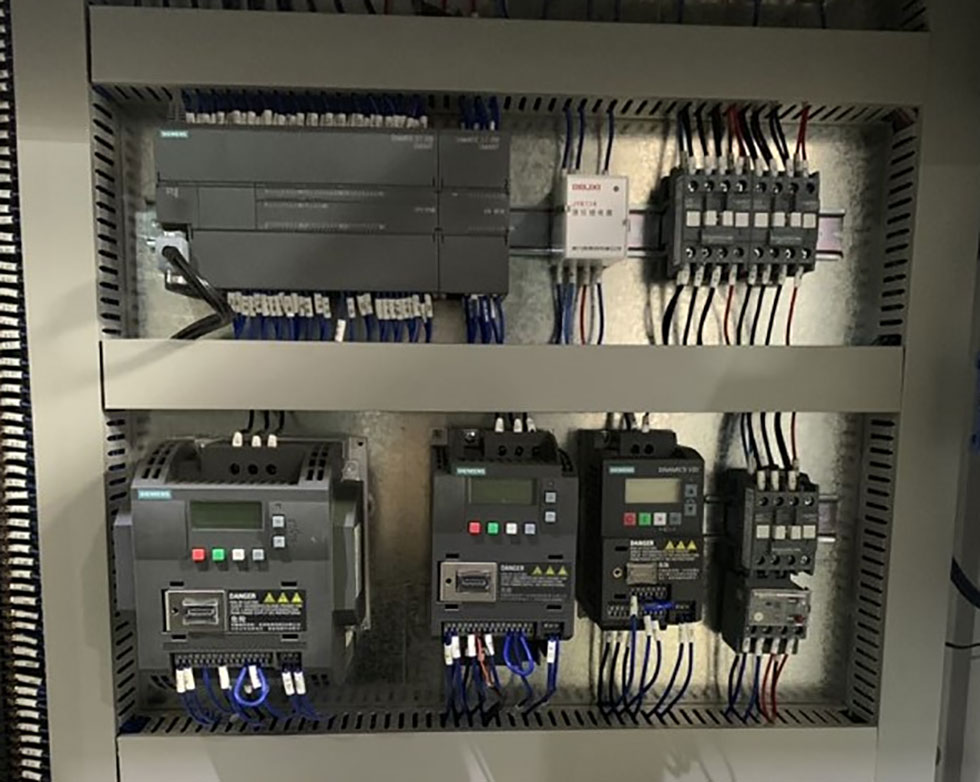

Use man-machine interface and PLC combination, display all the information, such as parameter setting, operating speed, fault detection and warning, etc on the screen . That ensure the machine stability and efficiency.
| Part | Origin | Brand |
| Motion Controller | Shenzhen | Zmotion |
| AC Servo Driver | Japan | YASKAWAN |
| Servo Motor | Japan | YASKAWA |
| Frequency Converter | France | Schneider |
| PLC | Germany | SIEMENS |
| Main Motor | Taiwan | TECO |
| Synchronous Belt | USA | GATES |
| Bearing | Japan | NSK |
| Suction Belt | Japan | NITTA |
| Contactor | France | Schneider |
| Solenoid Valve | USA | MAC |
| Push Button | France | Schneider |
| Low Voltage | France | Schneider |
| Spring | Japan | DAIDO |
