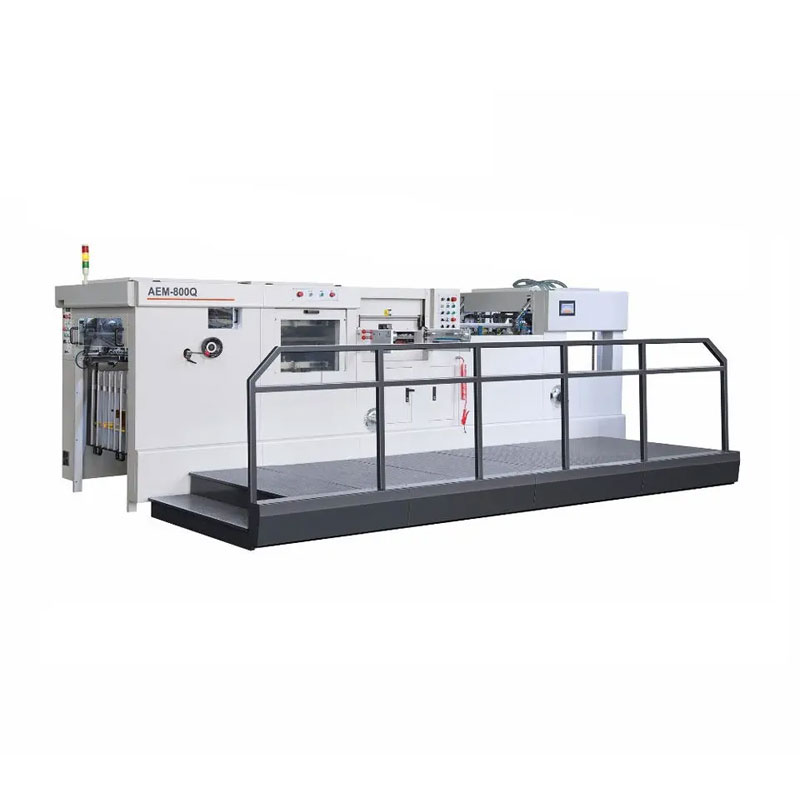

Based on the AEM-800 model, this Automatic die cutting and stripping machine has added a waste-clearing function, which can easily achieve one-time paper feeding, die-cutting, waste-clearing, and paper collection. This model can effectively and quickly achieve full and semi-waste clearing according to the paper and die-cutting conditions, as well as clearing various special-shaped wastes.
| Model: | AEM-800Q |
| Max paper size: | 800 x 620 mm |
| Min paper size: | 340 x280 mm |
| Max cutting size: | 770 x 600 mm |
| Die frame inner size: | 820 x 628 mm |
| Cutting plate size: | 826 x 628 mm |
| Min gripper edge size: | 7 mm |
| Cutting precision: | ≤±0.1 mm |
| Max cutting pressure: | 200 T |
| Max cutting speed: | 7000 S/H |
| Pre-stacking height: | 1150 mm |
| Delivery stack height: | 1000 mm |
| Application: | White board: 0.1～2 mm |
| Corrugated paper: ＜4 mm | |
| Main motor power: | 7.5 KW |
| Total power: | 12.75 KW |
| Dimension 【L(+ pre-stacking)x W(+ platform)x H】: | 5150(+1360) x 2000(+1300) x 1690 mm |
Automatic die cutting and stripping machine is mainly used for die-cutting, creasing and cold-pressing of cartons, cartons and trademarks in the printing and packaging industry. In particular, various high-end and fine printed products, such as cigarette boxes, wine boxes, gift boxes, small appliance boxes, cosmetic boxes, etc., can be die-cut, creasing and embossed on this machine to obtain three-dimensional, exquisite and beautiful printed products.
1.Complete design, accurate installation, high stability, high security, low noise.
2.Adopt worm, worm gear, crankshaft transmission, high cutting pressure, high durability.
3.High precision intermittent mechanism, high cutting precision, running steadily.
4.Adopt European technology feeder, suction adjustable, steadily, precise, good paper applicability.
5.Non-stop feeding, pre-stacking and delivery device can shorten the auxiliary time, improve the efficiency.
6.Automatic pressure adjust system, pressure digital display.
7.Human-friendly designed die frame and baseplate, makes installation, adjustment convenient.
8.Pneumatic die locking device, die frame fixed more steadily, accurately, time saving.
9.Front lay, side lay, feeding device fine tuning device, paper positioning more accurate.
10.Double, crooked, empty optoelectronic position control, ensure the paper in the right position, reduce waste.

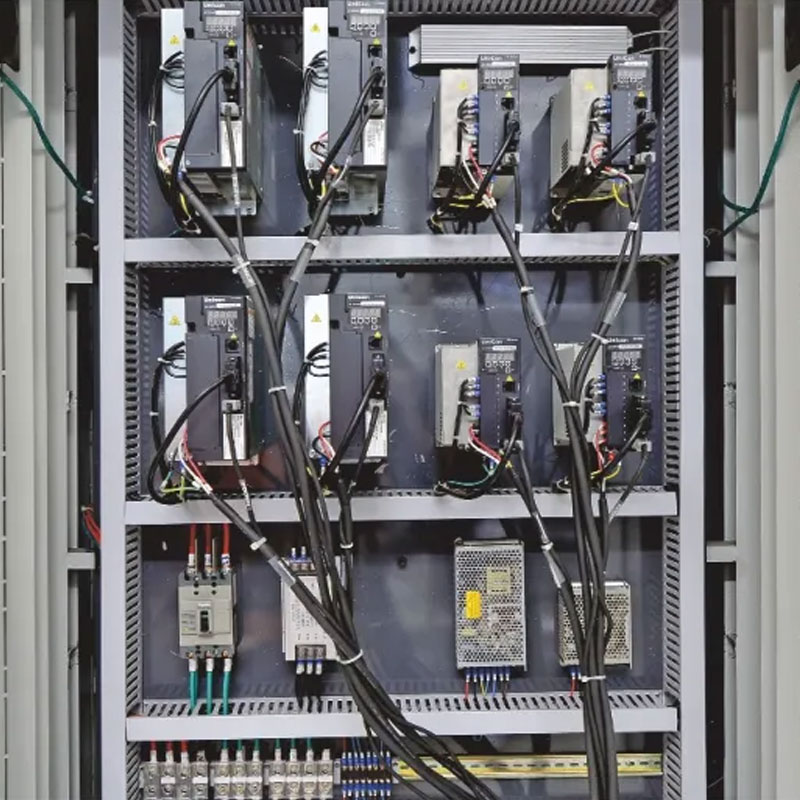

11.Electronic control module design, adopt imported electronic components, ensure the accuracy and reliability.
12.Touch screen man-machine interface, real-time monitor the running situation, makes machine adjustment, trouble shooting more convenient.
13.Cycling cooling oil supply system ensure the movement parts get adequately lubricated to ensure the durability.
14.Adopt fixed quantity at fixed timing oil supply system, ensure the movement parts get adequately lubricated to let better durability.

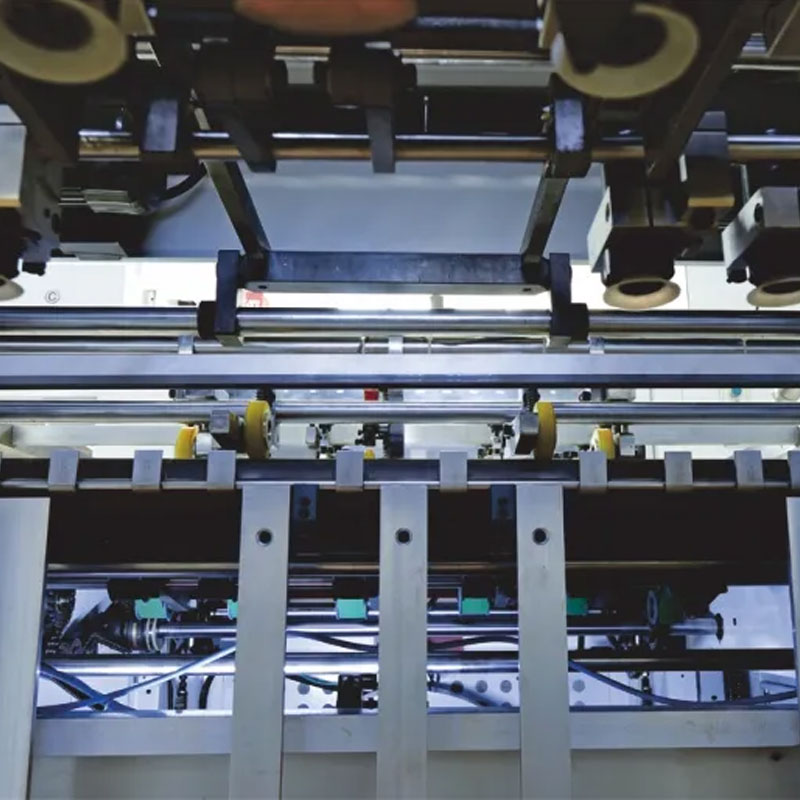

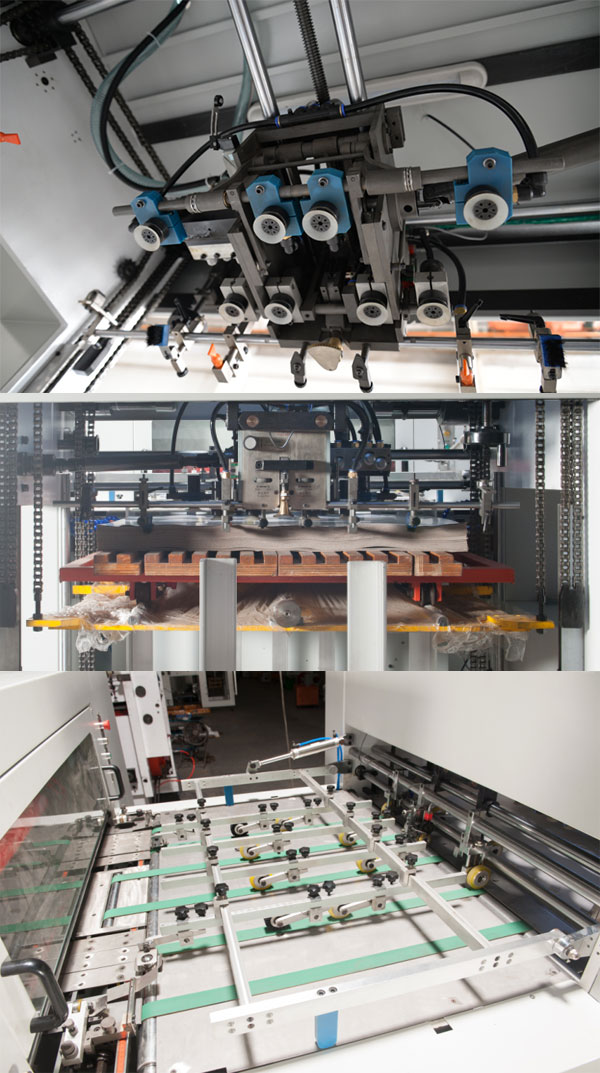

European technic precise feeder, fit both paperboard and corrugated paper.4 suction 4 send, can adjust angle and height of suction nozzle according to the paper distortion.
Double side lay (pull and push).
Feeding device fine tuning, non-stop adjust.
Electronic double detector.
Main, secondary feeding device no-stop switch.
Wear-resisting PU pressing wheel.
Dual purpose loader.
Feeding time fine tuning device.
Additional carriage rod 1 set, carriage

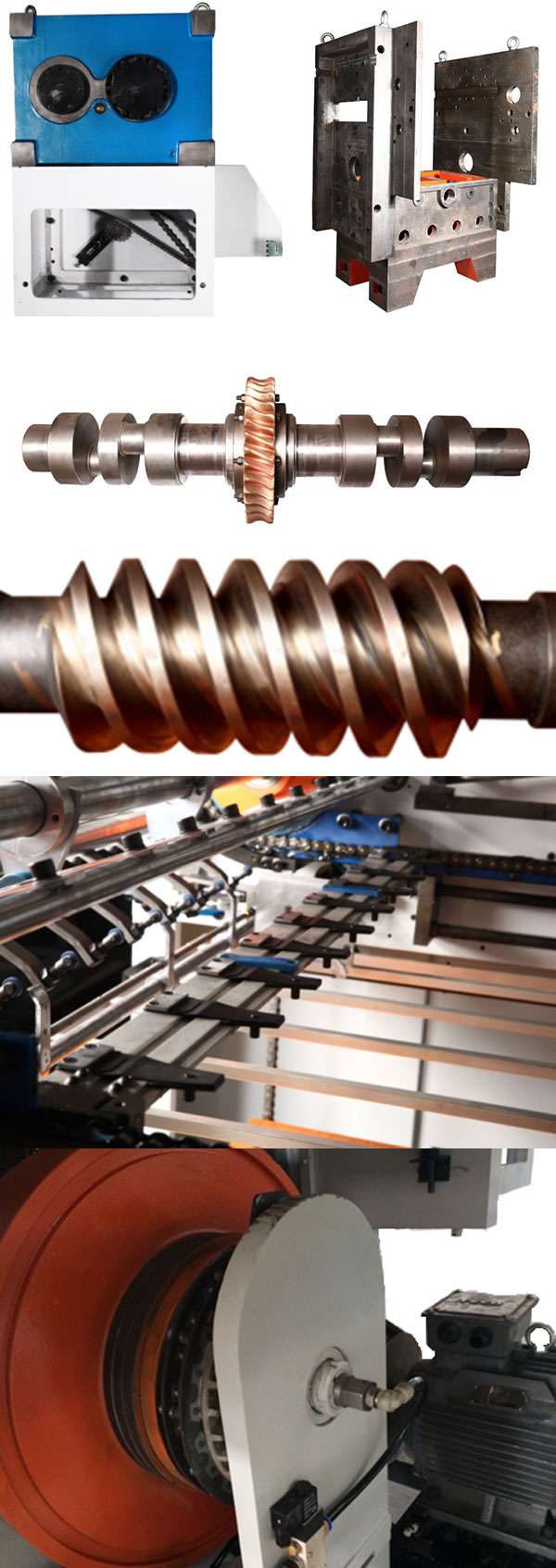

Pressure-bearing part is made of high ductile iron QT500, high strength, never deform.
Alloy crankshaft with special process treatment.
Wear resisting worm, worm gear.
Convenient die flipping device.
Cycling lubrication oil supply system with high pressure oil pump from Taiwan
High precision interval device.
Pneumatic brake clutch device from Italy
Japanese SMC rotary joint.
Import gripper bar chain.
Pneumatic die locking device.
High hardness, strength Ti-Al alloy gripper.
Precise pressure adjust device.
PLC and man-machine interface from Taiwan.
Additional gripper 1set,cutting die 1set,die chase 1 set.

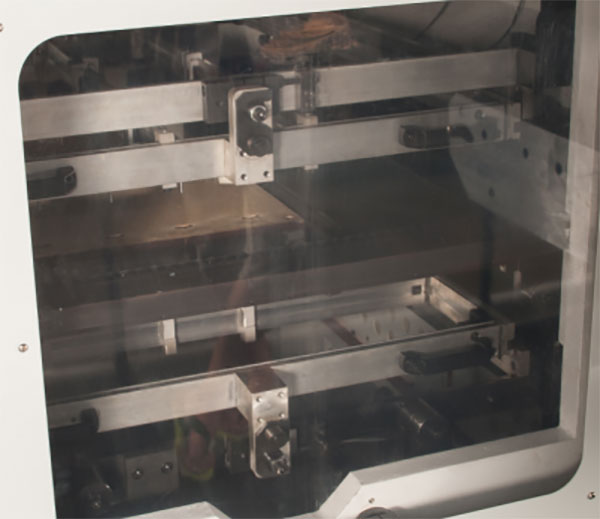

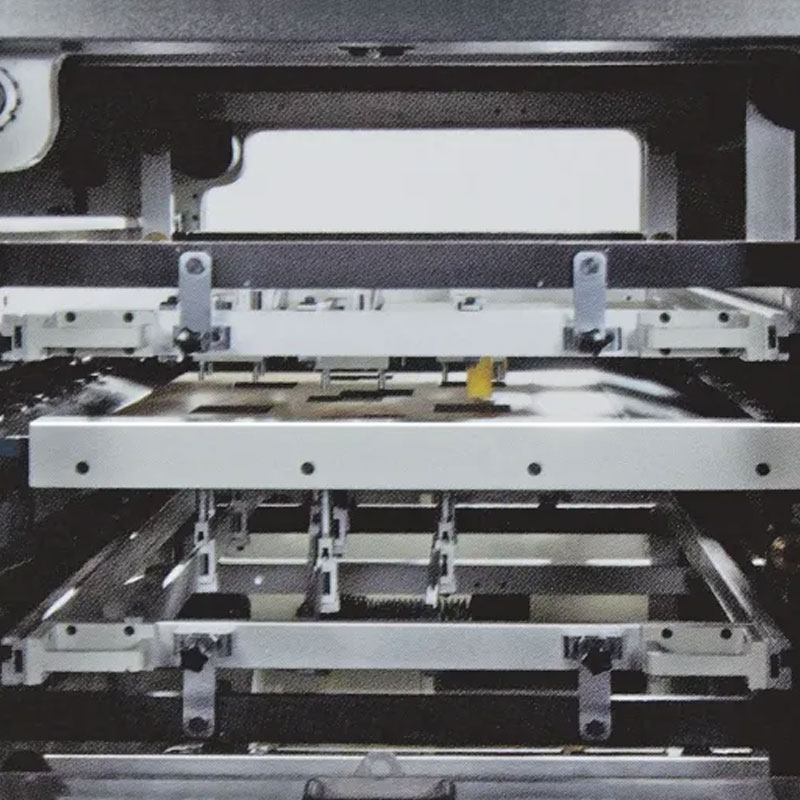

High strength Ti-Al waste stripping frame.
Light waste stripping needle.

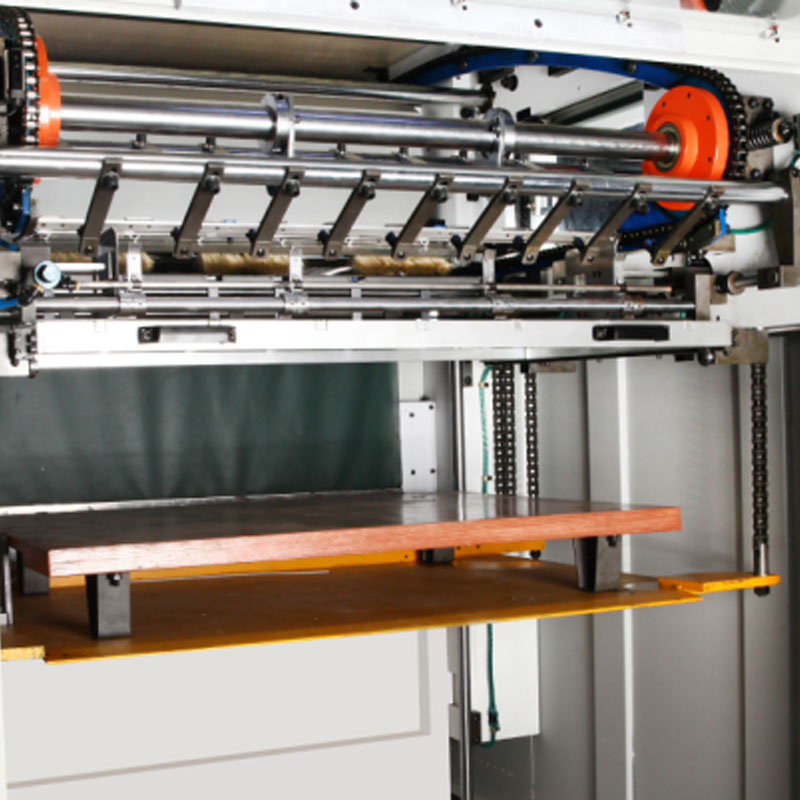

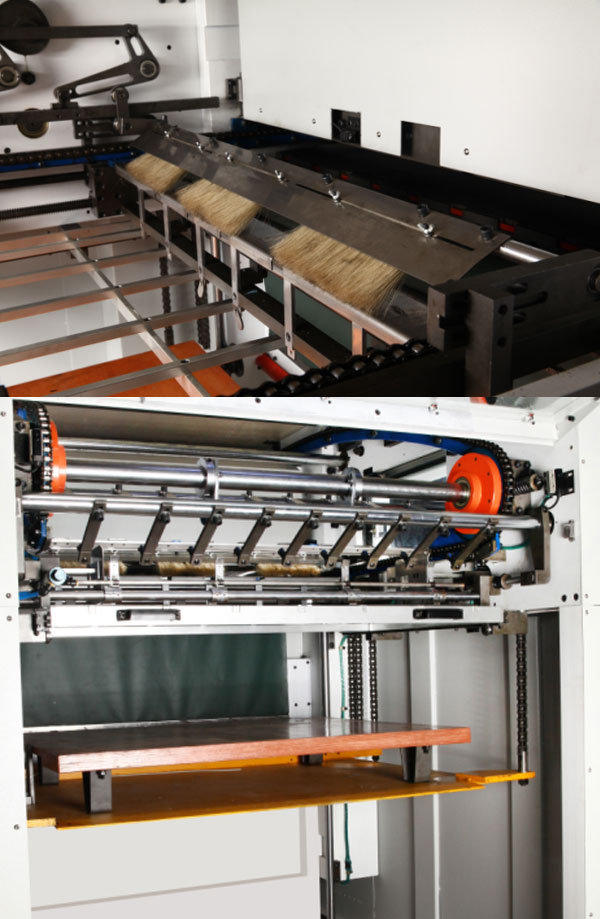

Automatic alligning device, 2 blowing devices ensure all the paper could be well collected whether thin or thick.
Delivery section with control panel, more human-friendly.
Optoelectronic sensor ensure better Delivery.
Automatic Delivery board control system.
Manual Delivery device
Main chain protection device
Rolling back preventing device
