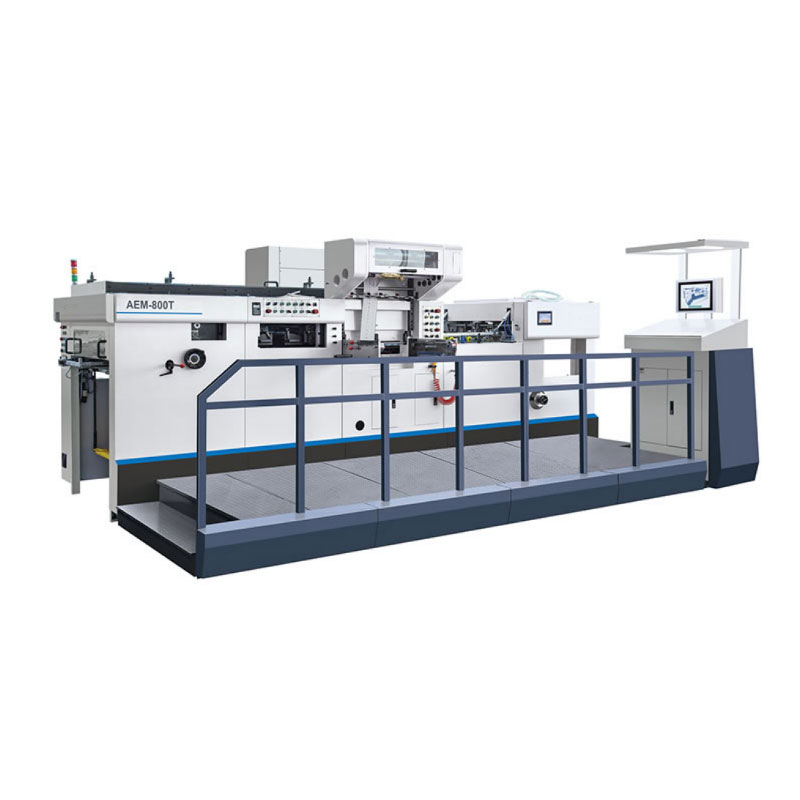

AEM-800T Automatic hot stamping and die cutting machine is used for hot stamping and die-cutting various papers, cardboards, corrugated boards, plastic boards (such as PVC, PP), with functions of foil hot stamping, holographic hot stamping, die-cutting, creasing and embossing. It adopts server motor to control hot stamping, feeding and collection. The temperature control system has 12 heating zones, individual temperature setting, constant temperature control.
| Model: | AEM-800T |
| Max paper size: | 820 x 620 mm |
| Min paper size: | 340 x280 mm |
| Max cutting size: | 770 x 600 mm |
| Die frame inner size: | 820 x 628 mm |
| Cutting plate size: | 826 x 628 mm |
| Max stamping size: | 780 x 600 |
| Min gripper edge size: | 7 mm |
| Cutting precision: | ≤±0.1 mm |
| Stamping precision: | ≤±0.125 mm |
| Max cutting pressure: | 200 T |
| Max cutting speed: | 7000 S/H |
| Max stamping speed: | 6500 S/H |
| Maximum foil roll diameter | φ250 mm |
| Horizontal foil roll width | 15-600 mm |
| Vertical foil roll width | 15-780 mm |
| Horizontal foil release axis | 2 pce |
| Vertical foil release axis | 2 pce |
| Number of heating temperature zones | 8 pce |
| Adjustable temperature range | 50～199℃ |
| Pre-stacking height: | 1150 mm |
| Delivery stack height: | 1000 mm |
| White board: | 0.1～2 mm |
| Corrugated paper: | ＜4 mm |
| Main motor power: | 11 KW |
| Heating temperature zone power: | 16 KW |
| Total power: | 43.5 KW |
| Machine weight: | 10 T |
| Dimension 【L(+ pre-stacking)x W(+ platform)x H】: | 5150(+1360) x 2000(+1300) x 1690 mm |
Automatic hot stamping and die cutting machine is a key equipment necessary for hot stamping, die-cutting, creasing and cold pressing of various red envelopes, paper boxes, trademarks, red envelopes, invitations and other paper packaging and decoration items.
1. Complete design, accurate installation, high stability, high safety, low noise.
2. Adopt worm, worm gear, crankshaft drive, high cutting pressure, durable.
3. High-precision intermittent mechanism, high cutting accuracy, stable operation.
4. Adopt European technology paper feeder, adjustable suction, stable, accurate, good paper applicability.
5. Non-stop feeding, pre-stacking, conveying device, shorten auxiliary time and improve efficiency.
6. Automatic pressure adjustment system, pressure digital display.
7. Humanized design of mold frame and base plate, easy to install and adjust.
8. Pneumatic clamping device, mold frame fixation is more stable, accurate and time-saving.
9. Front row, side row, paper feeding device fine-tuning device, paper positioning is more accurate,
10. Double, crooked, empty photoelectric position control to ensure that the paper is in the correct position and reduce waste.
11. Electronic control module design, using imported electronic components to ensure accuracy and reliability.
12. Touch screen human-machine interface, real-time monitoring of operation, making machine adjustment and troubleshooting more convenient.
13. Circulating cooling oil supply system ensures that the movement parts are fully lubricated and durable.
14. Adopt industrial tablet computer, touch screen input data, realize automatic programming, and greatly save aluminum foil.
15. The temperature control system has 12 heating zones, with separate temperature setting and constant temperature control.
16.Adopt imported server control system, accurate hot stamping, feeding and collecting of aluminum foil.

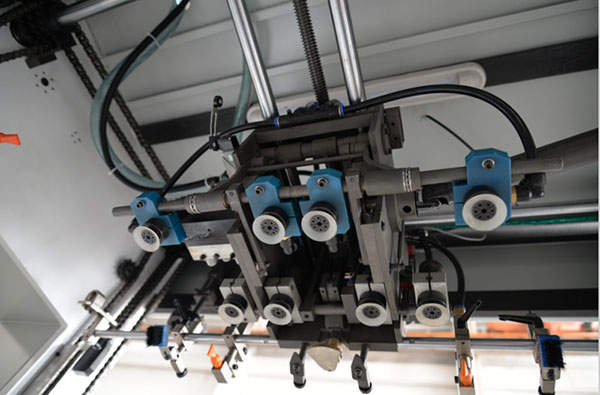

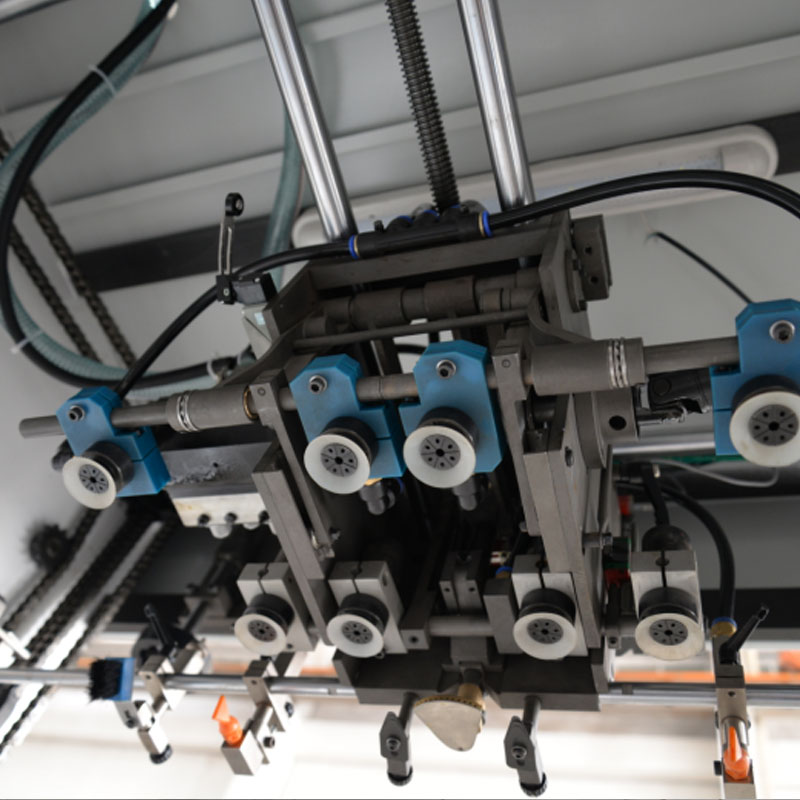

European craft precision feeder, suitable for cardboard and corrugated paper. 4 suction and 4 delivery, the angle and height of the suction nozzle can be adjusted according to the deformation of the paper
Electronic double detector.
Wear-resistant polyurethane feed wheel.
Feed timing fine-tuning device.

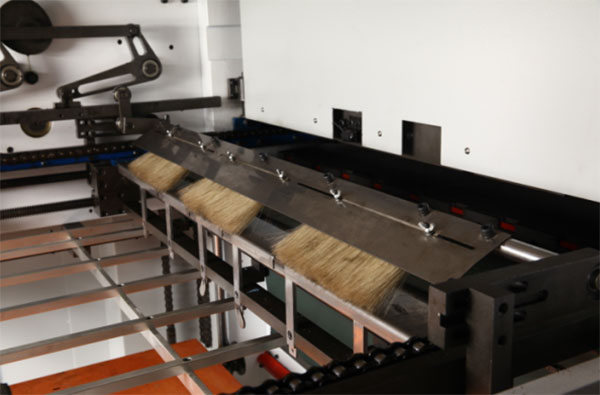

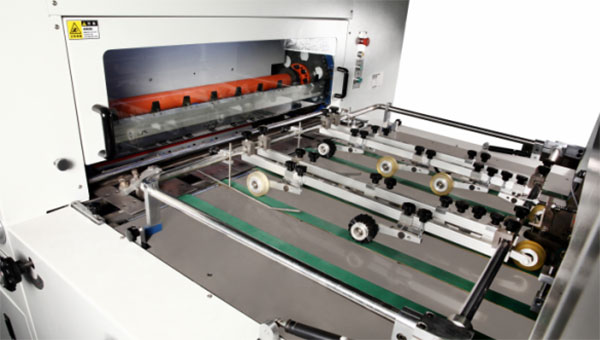

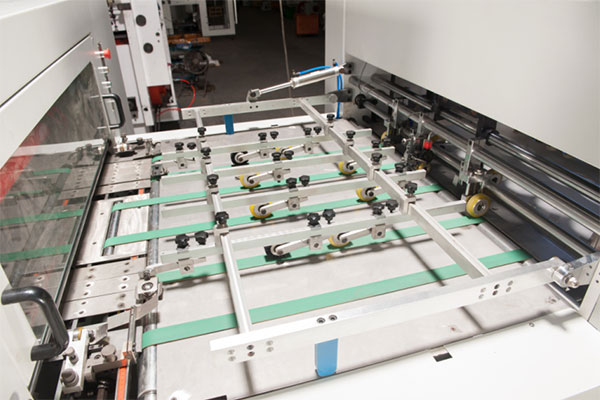

Adjustable rubber wheel and brush wheel ensure that the paper is fed into the correct position.
Front placement detector ensures that the paper is fed into the correct position.
Double-sided laying is adopted to meet the requirements of different printing registers.

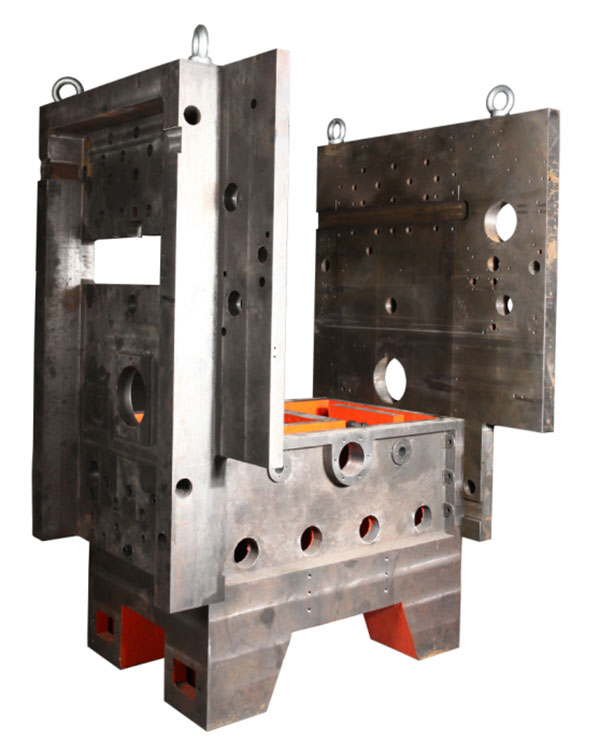

The pressure-bearing part is made of high-ductile iron QT500, which has high strength and will never deform.

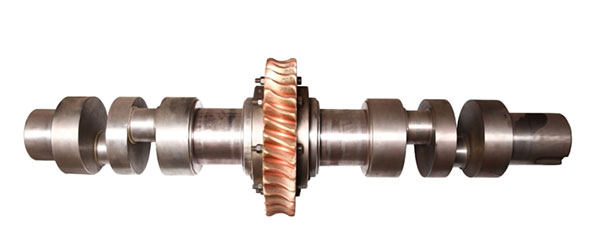

Alloy crankshaft treated with special process.

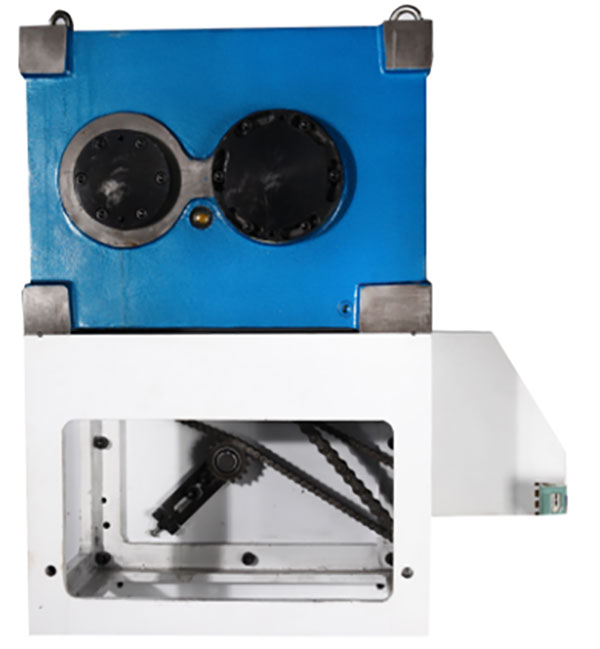

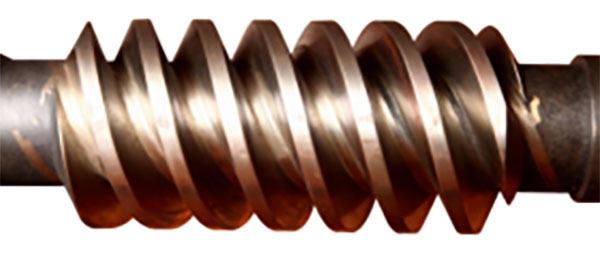

Wear-resistant worms and worm wheels
Convenient mold flipping device.
Taiwan high-pressure oil pump circulation lubrication oil supply system
High precision spacing mechanism.

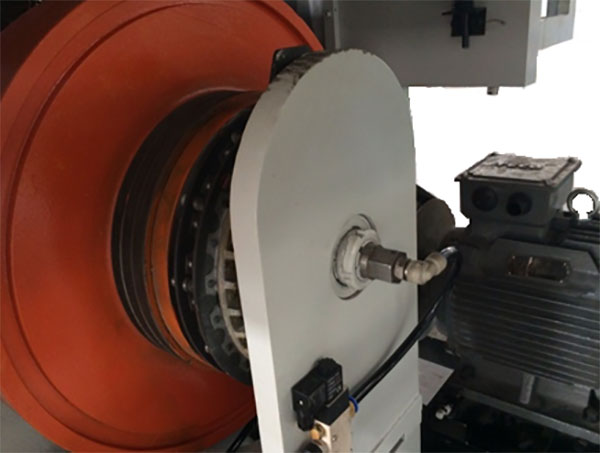

Pneumatic brake clutch unit from Italy
Japanese SMC rotary joint.

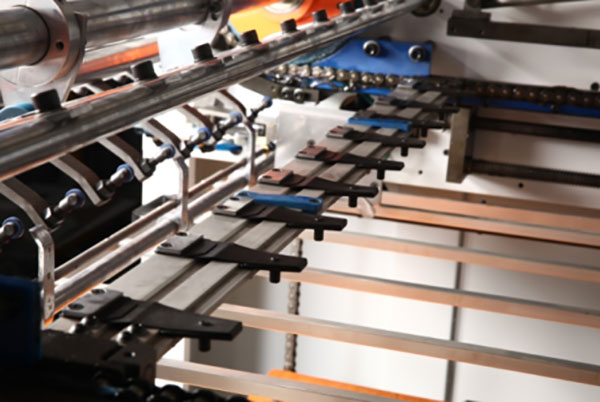

Imported gripper bar chain.
Pneumatic mold locking device.
High hardness and strength titanium aluminum alloy clamp.
Accurate pressure adjustment device.
PLC and human-machine interface from Taiwan.

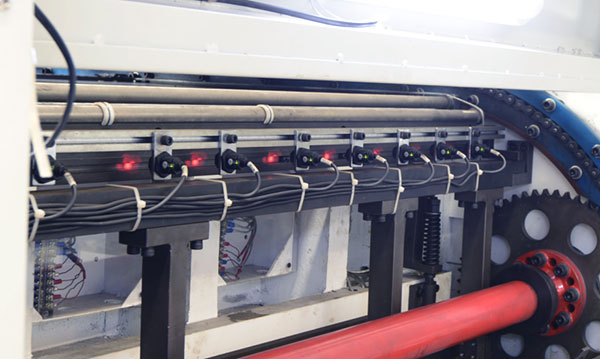

8 thermostatic temperature zones, which can be adjusted individually.

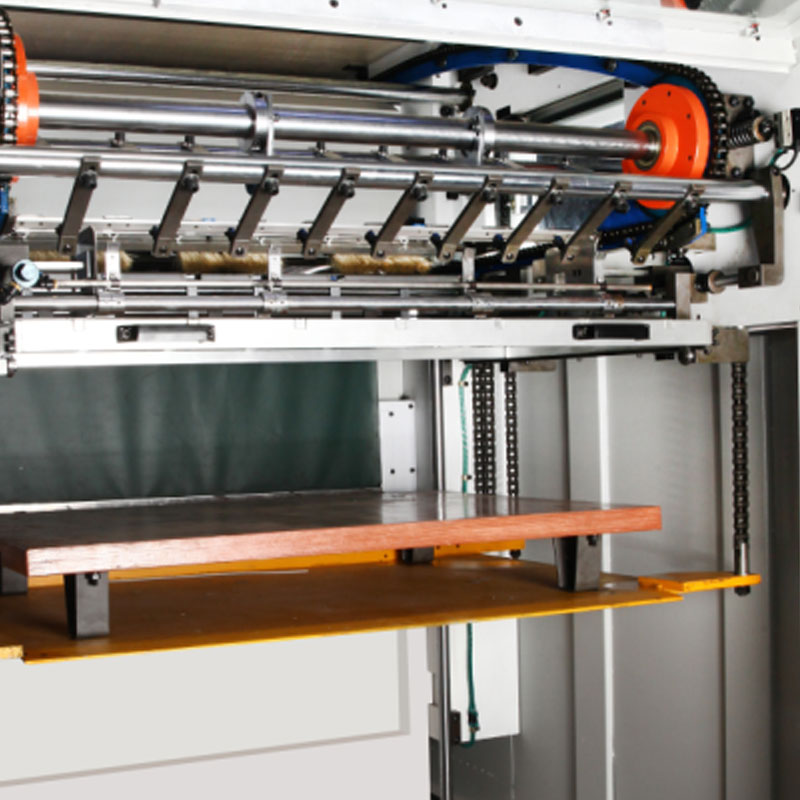

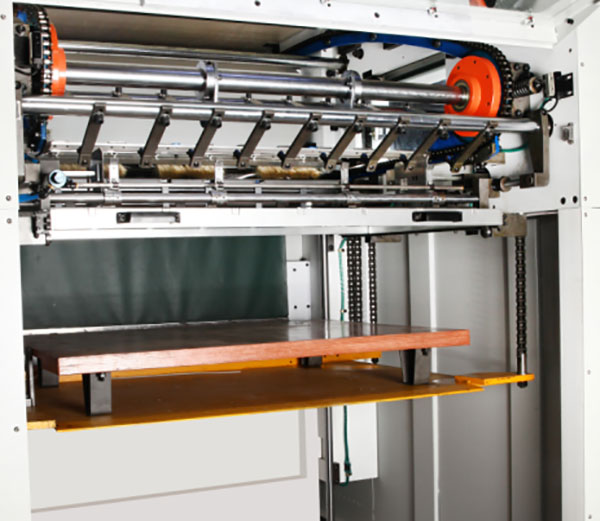

Automatic arrangement device, 2 air blowing devices ensure that all papers can be collected well, no matter thin or thick.
Delivery section with control panel, more user-friendly.
Photoelectric sensors ensure better delivery.
Automatic delivery board control system.
Manual conveying device
Main chain protection device
Anti-rollback device
Industrial tablet computer, screen touch input data, realize automatic programming optimization, save foil

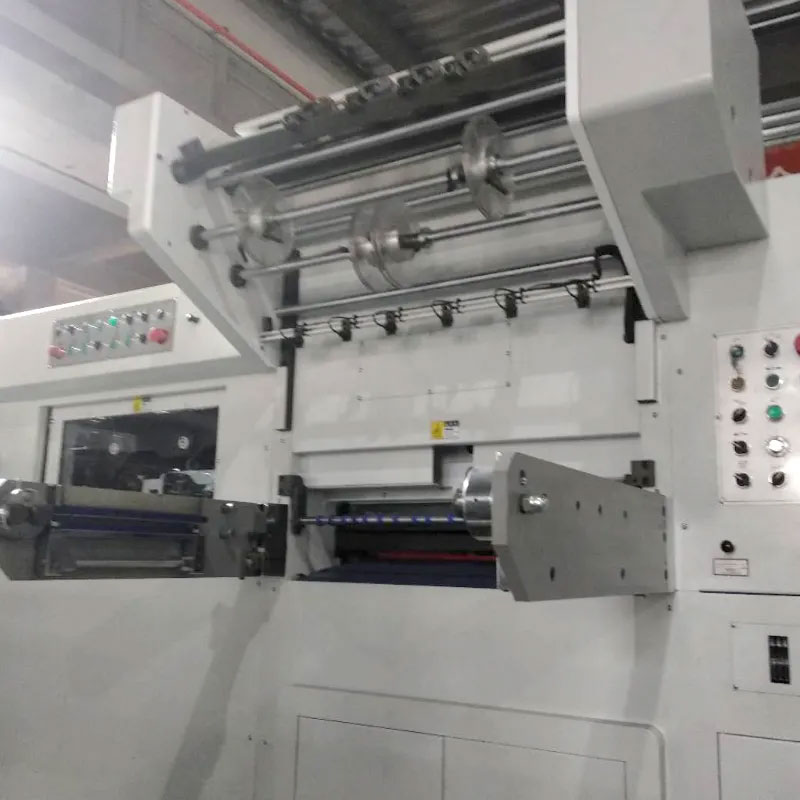

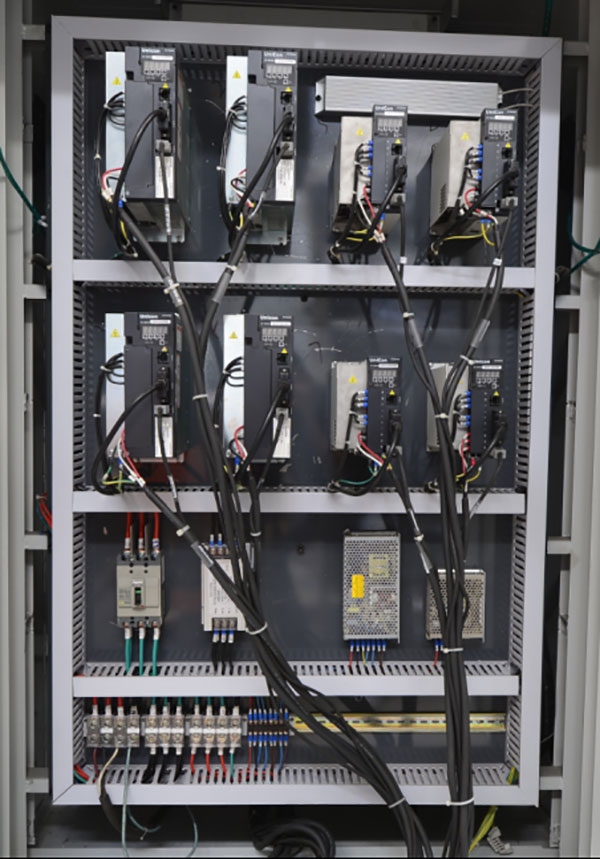

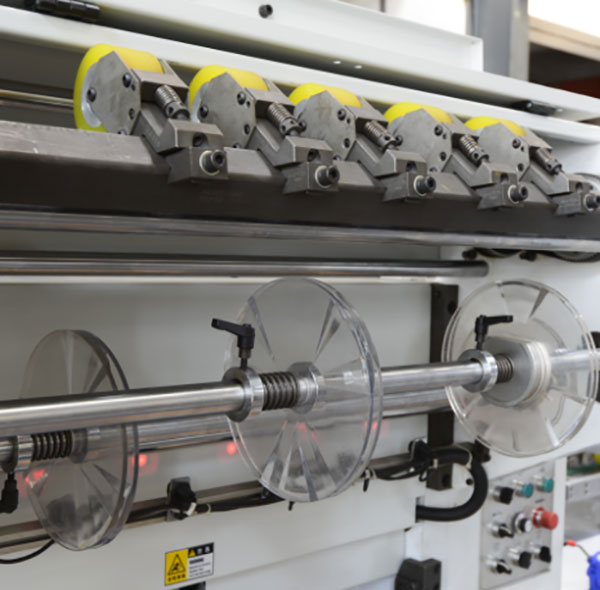

Imported servo motor and control system, precise foil feeding.
Individually set temperature for 8 heating zones, constant temperature control.

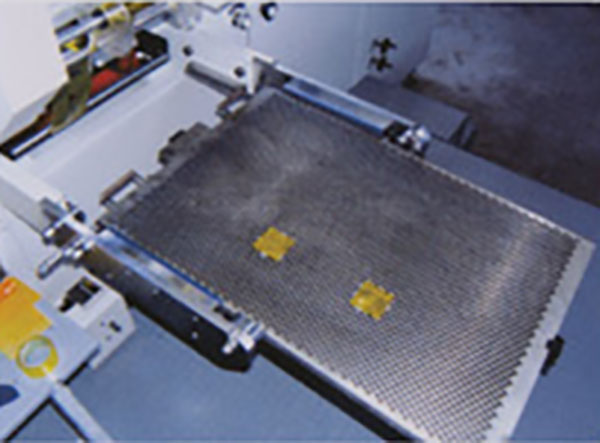

Special material honey comb, heating plate helps to position the hot stamping plate. Made of RTCr0.8 heat-resistant cast iron, no deformation when heated, high strength and high durability
