Automatic Die Cutting and Creasing Machine

Automatic die cutting and creasing machine is suitable for die cutting, embossing, creasing and other processes. It has fast die changing speed, paper feeding, paper pulling, paper collection, one-time positioning, all automatic positioning, and cooperates with pressure adjustment mechanism to complete cutting work. Paper feeding control and paper collection control are controlled by electricity. The machine is equipped with automatic lubrication system.

Parameter (Specification)

Feature And Application

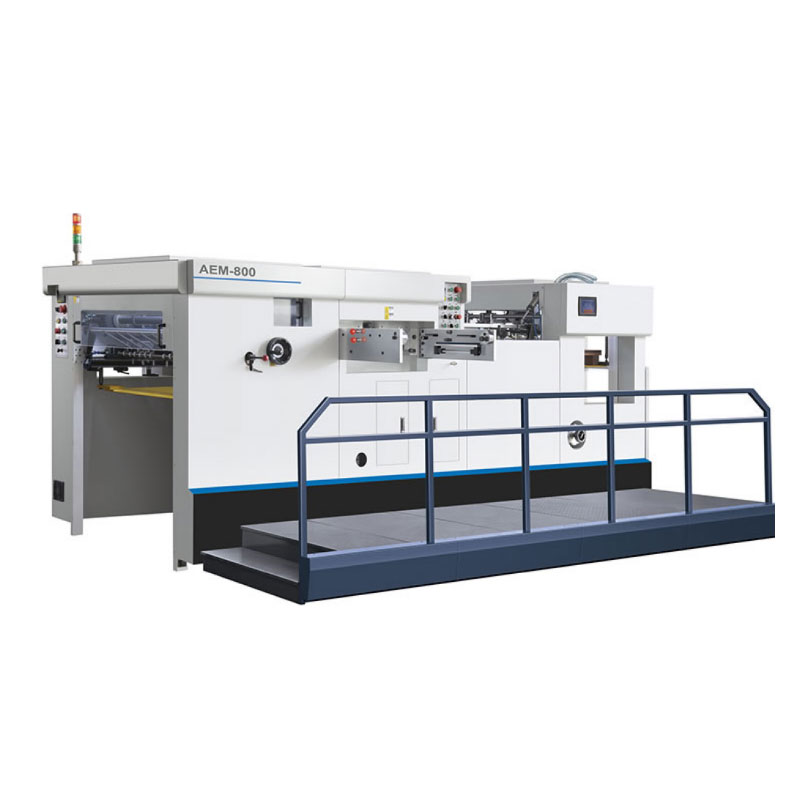

AEM-800 automatic die cutting and creasing machine is used to die-cut various papers, cardboards, corrugated boards, plastic boards (such as PVC, PP), with die-cutting, creasing and embossing functions.

1. The press machine is driven by Taiwan TECO main motor and equipped with Panasonic inverter; the operation of the whole machine is controlled by PLC centralized control system, which can automatically check the working status, test abnormal status and record the working status. According to European safety standards, we design rationally to perfectly combine operability and safety.
2. The advanced start-up alarm system will remind the operator to leave the unsafe area. Automatically detect the whole process, if there is a fault, no paper or paper jam, the pneumatic clutch will automatically separate and stop, thereby reducing the waste of paper and protecting employees and equipment.
3. The elaborate pre-stacking device and paper feeding and paper feeding uninterrupted device reduce the stacking time, improve the efficiency of the machine, and increase your income.
4. Selected electrical and pneumatic components from Europe, Japan, and Taiwan improve the stability of the machine and reduce the maintenance frequency.
5. The main machine and base are made of high-strength ductile iron QT500-7, which are precisely processed by the CNC center to ensure the long-term stable operation of the machine when subjected to a large pressure of 200T. The core of the plate press, such as the crankshaft, worm gear, etc., are all imported high-grade alloy steel, processed by quenching and high-temperature tempering, and have a long service life.
6. The core parts lubrication system is equipped with a circulating oil cooling system to reduce the scrap rate and extend the service life of the parts. It is also equipped with an oil pressure display device and an alarm device for insufficient oil and air pressure.
7. Provide long-term and complete technical training as well as one year of free maintenance to ensure that our customers can fully master the production technology of our equipment. Our machines are perfectly designed, accurately installed, highly stable, safe and low noise.

Details

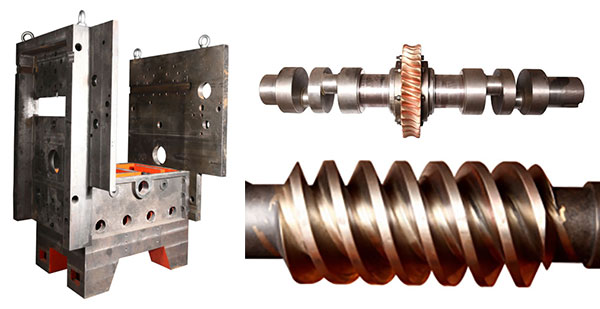

The pressure-bearing part is made of high ductile iron QT500, which has high strength and no deformation; the crankshaft and worm gear are wear-resistant.

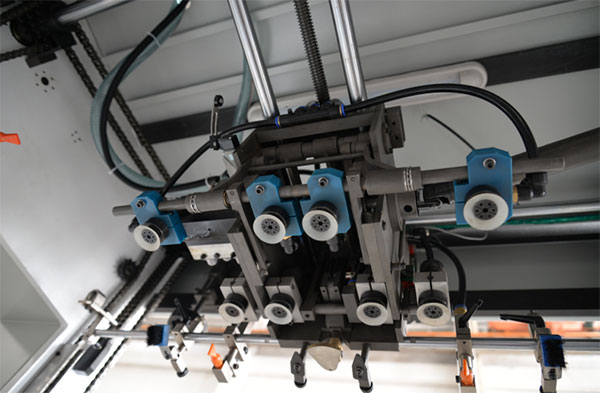

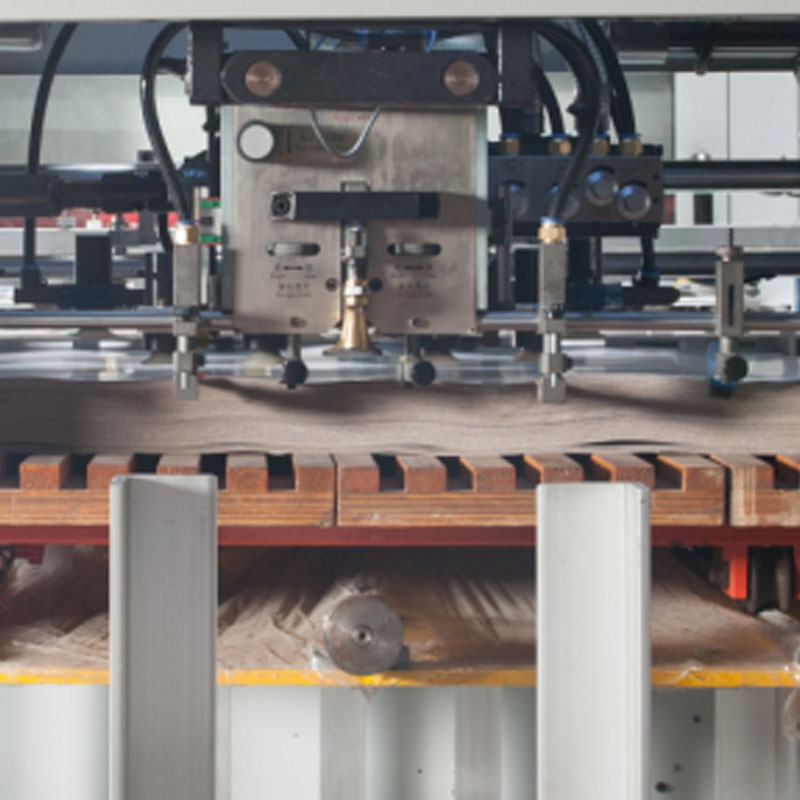

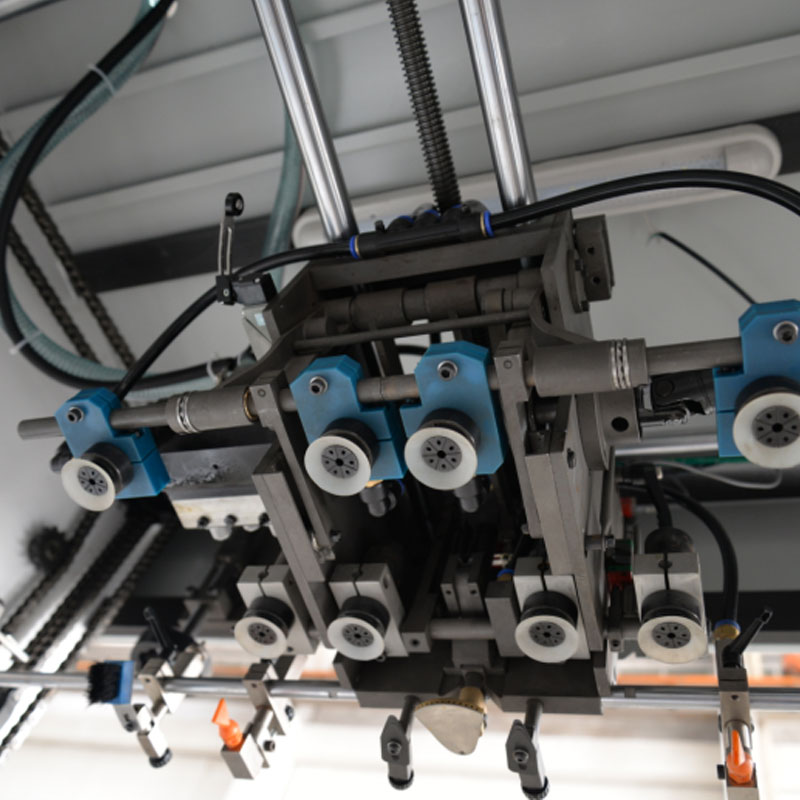

It can adjust the angle and height of the suction nozzle according to the deformation of the paper, and is suitable for cardboard and corrugated paper.

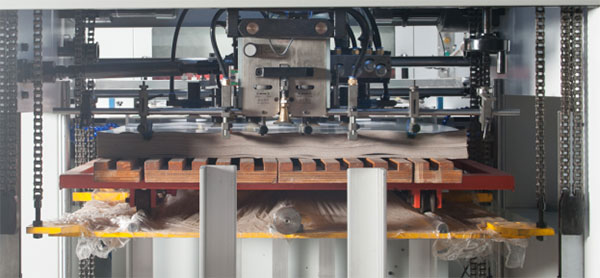

The humanized design of the mold frame and base plate as well as the convenient mold turning device make installation and adjustment easy.

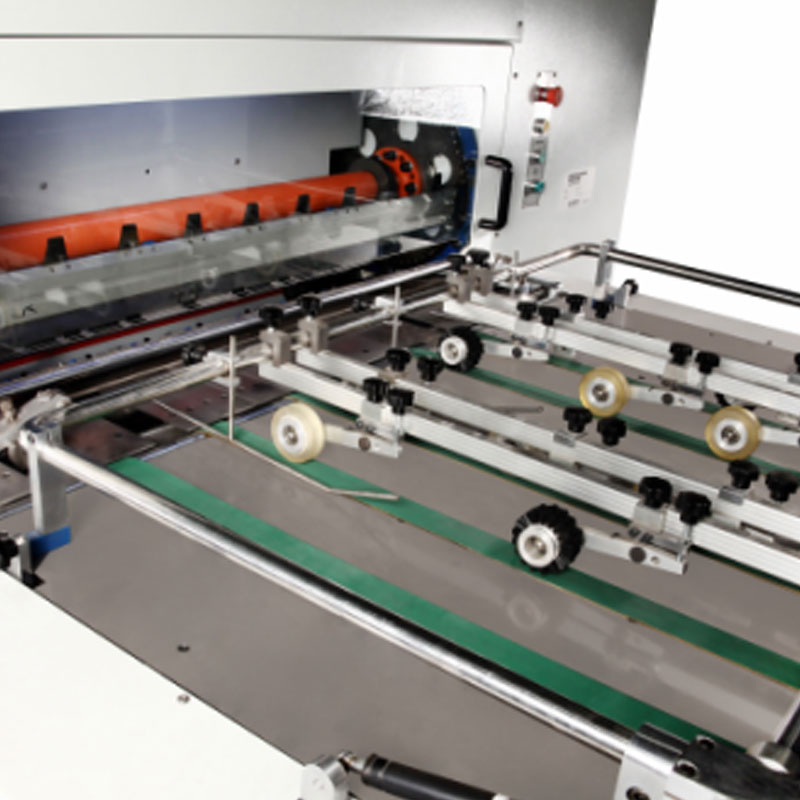

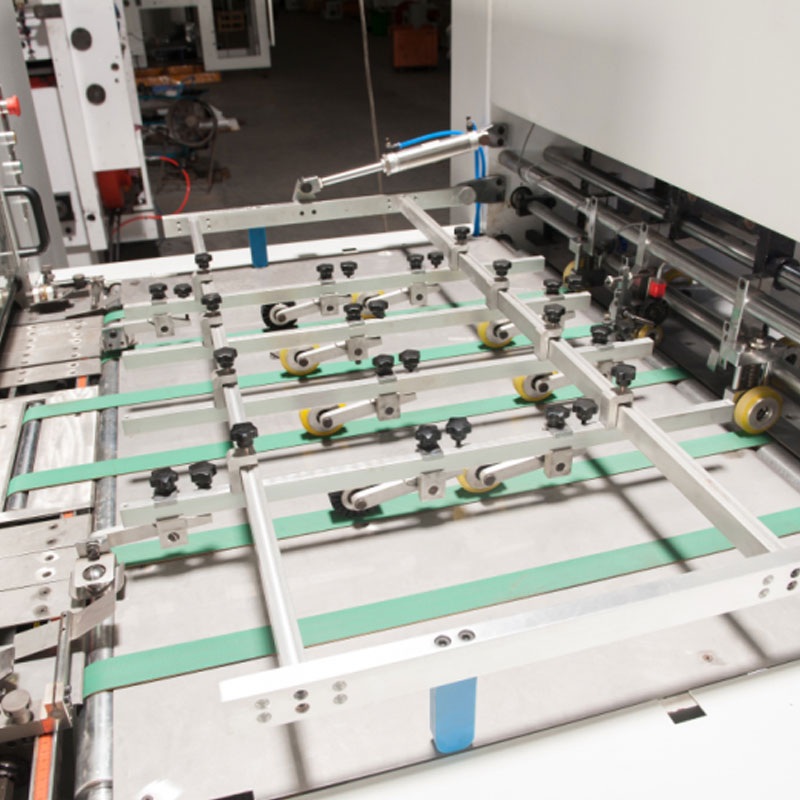

The press roller and the brush wheels can be integrated adjusted, improve the efficiency.

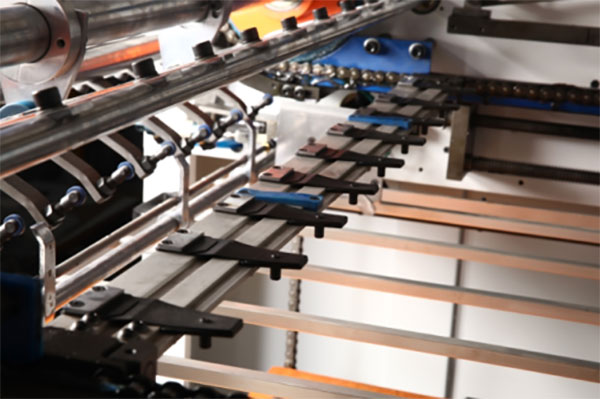

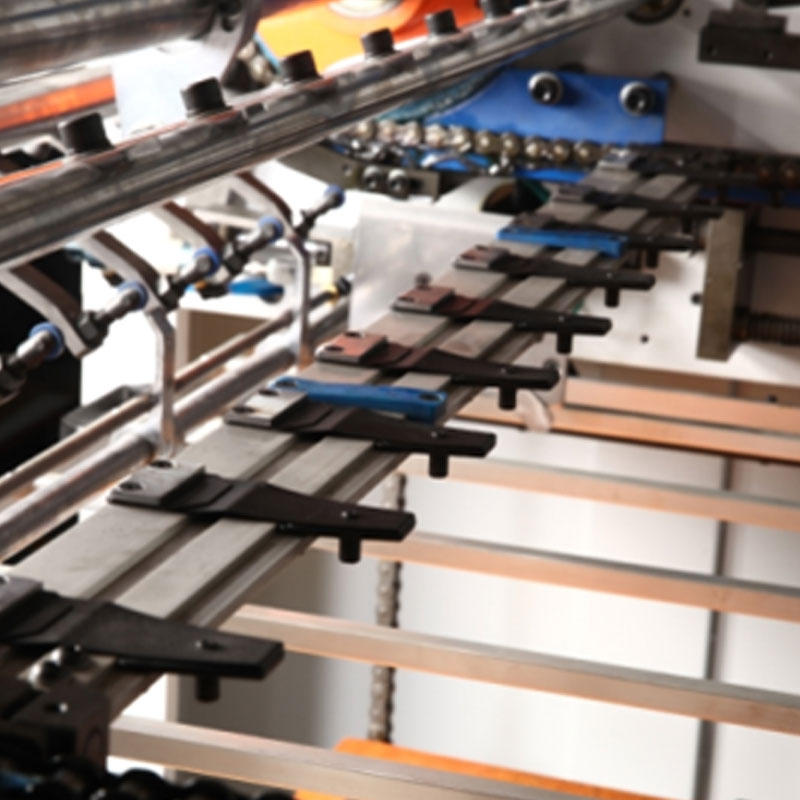

Imported gripper bar chain and high hardness and strength titanium aluminum alloy gripper.

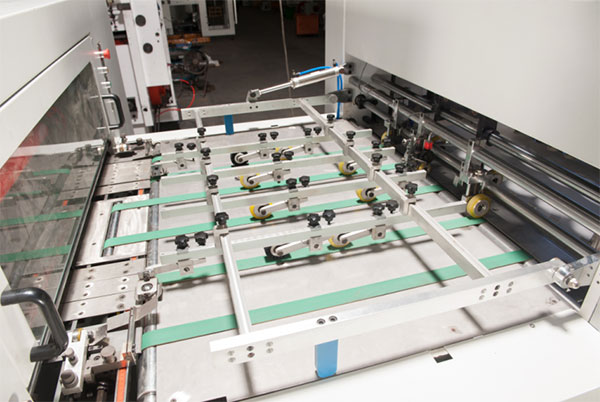

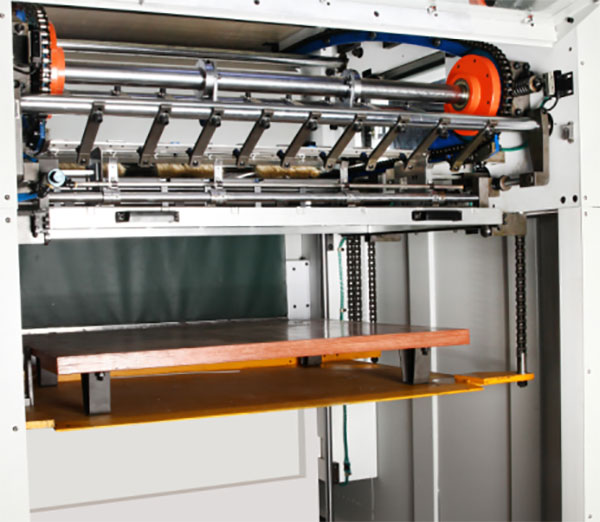

Automatic aligning device, double side blower device makes sure the thin and thick paper can be delivered neatly.
