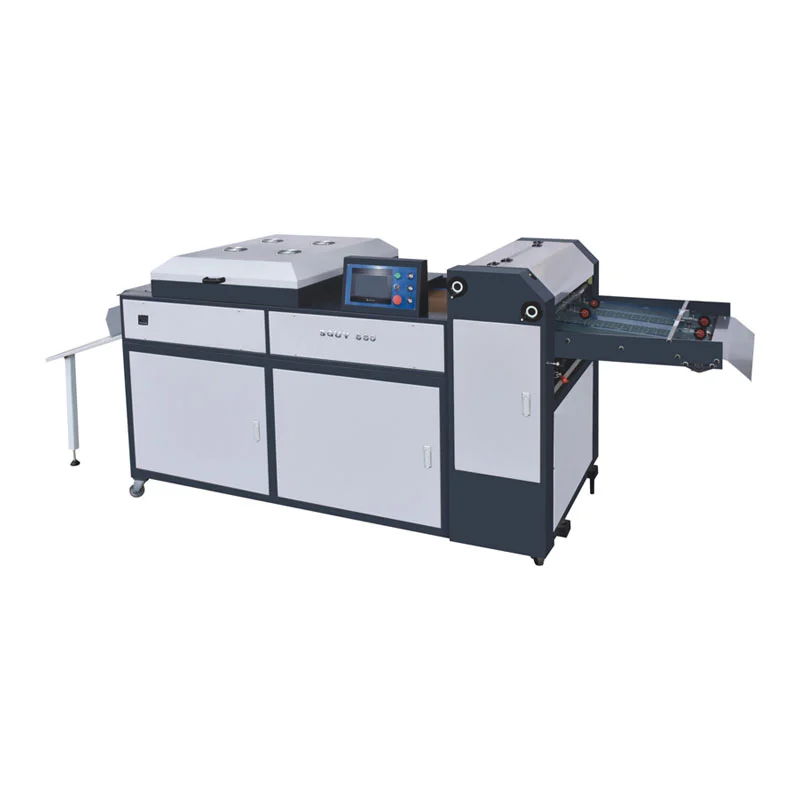

Manual Inline UV Coating Machine

Manual inline uv coating machine is designed for smooth and even layer of curing on the photos , more transpreant , scratchproof ,waterproof . replace the traditional techniques of cold laminating , reduce the cost and high productions .

Parameter

Feature

1.This UV Coating Machine is equipped with UV curing and IR drying device.
2.The photo coated can be dust proof,waterproof,scrach-resistance,UV-resistance.
3.Digital frequency converter speed control. And independent conveyor driven.
4.Larger diameter coating rollers makes the coating effect smoother & brighter.
5.Full coverage splash guards to protect from splashing.
6.Used vacuum airbed for maximum hold down the paper sheets on conveying.
7.UV liquid can be attached to the paper,can not fall off once solidified by UV lamp.
8.The coating is low and the thickness of UV can be changeable.
9.High velocity blower fan for cooling and exhaust.
10.Safety locker on all machine doors and covers.
11.Full coverage protection against UV radiation around the UV lamp chamber.
12.Lower temperature control on the UV lamp chamber surface.
13.Emergency stop switches at arms length throughout the machine.
14.Interlocks design prevents against misoperation.

Details

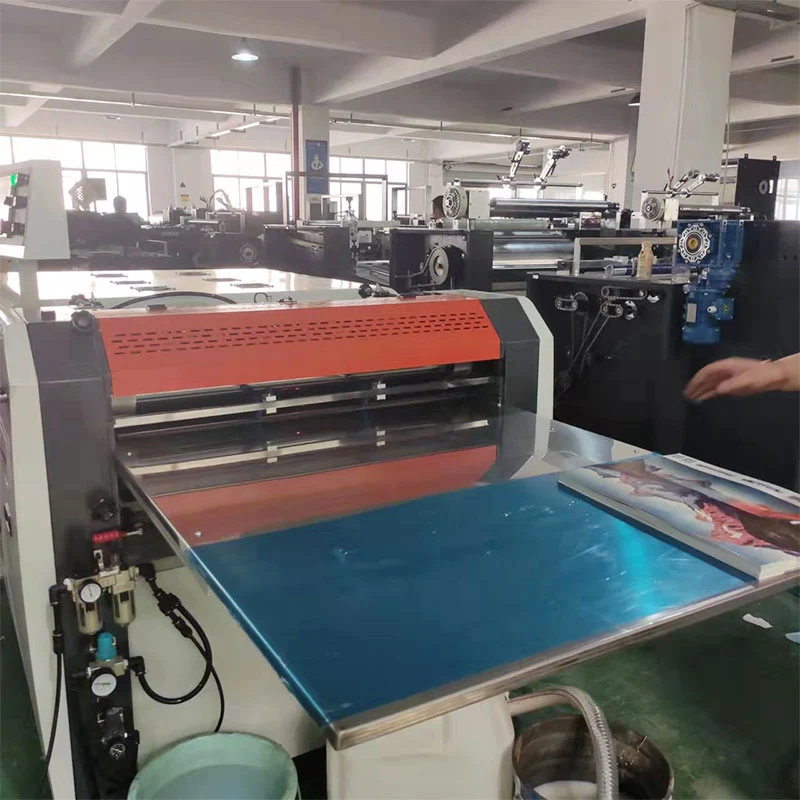

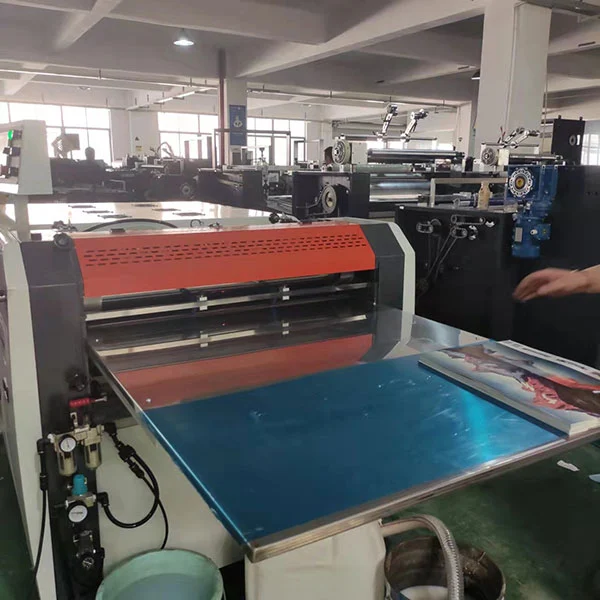

Manual feeding table

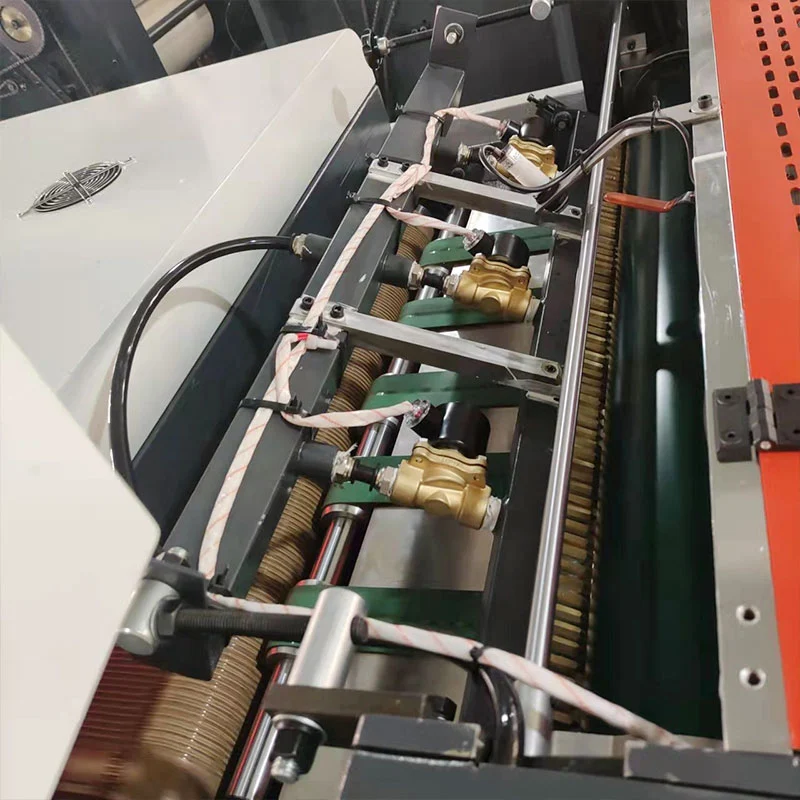

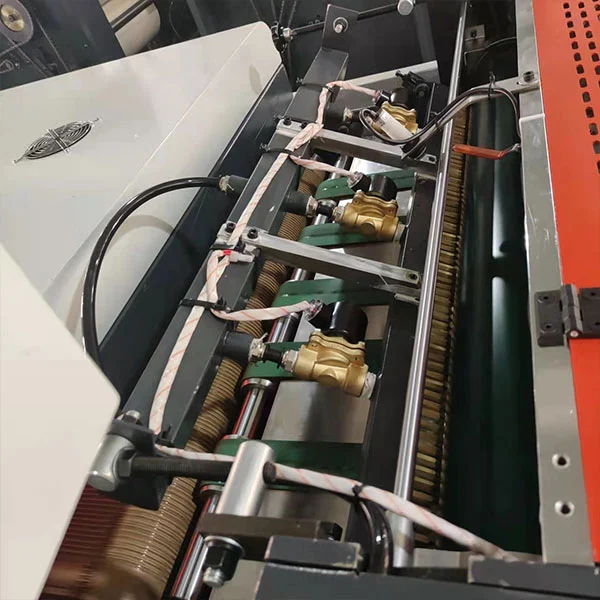

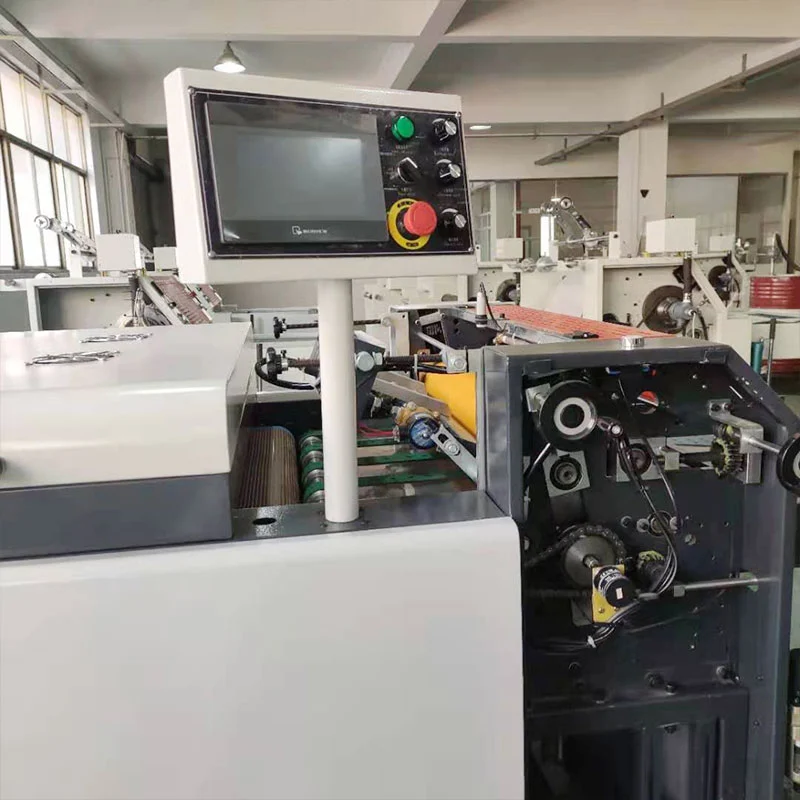

UV Coating unit

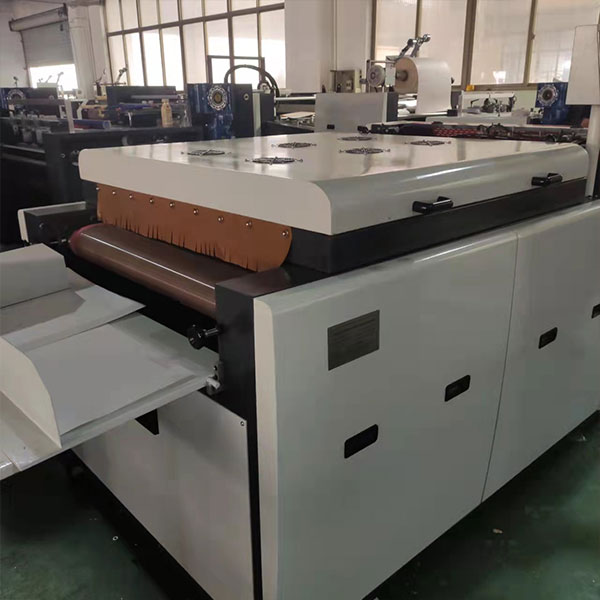

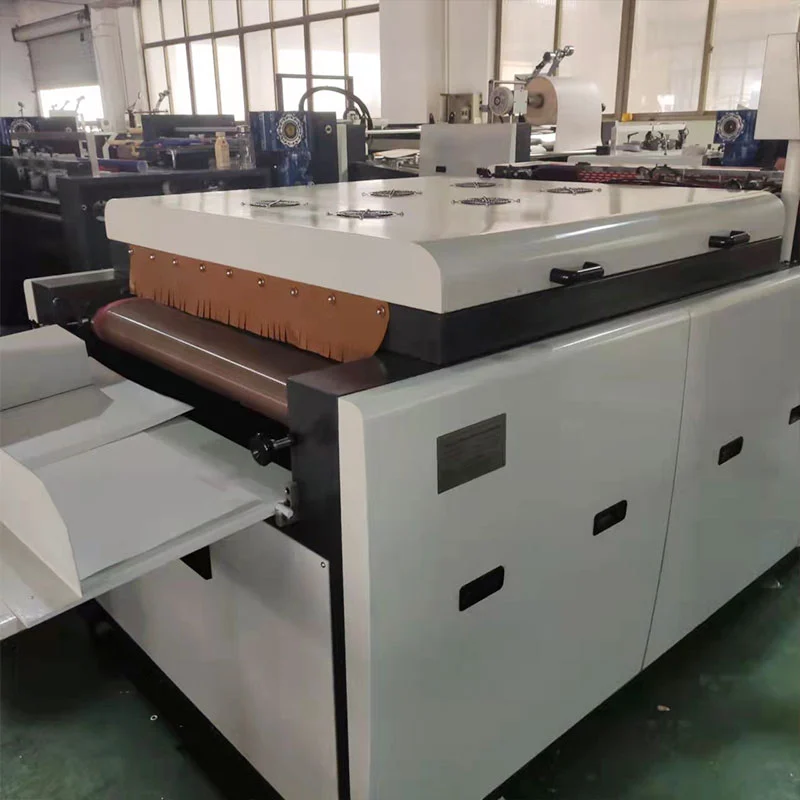

UV drying unit

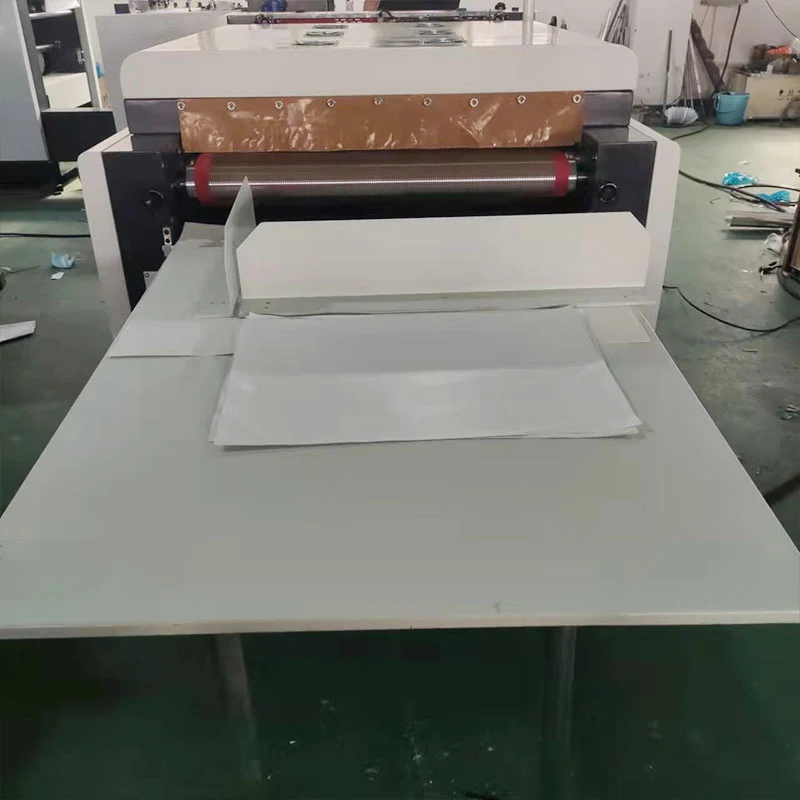

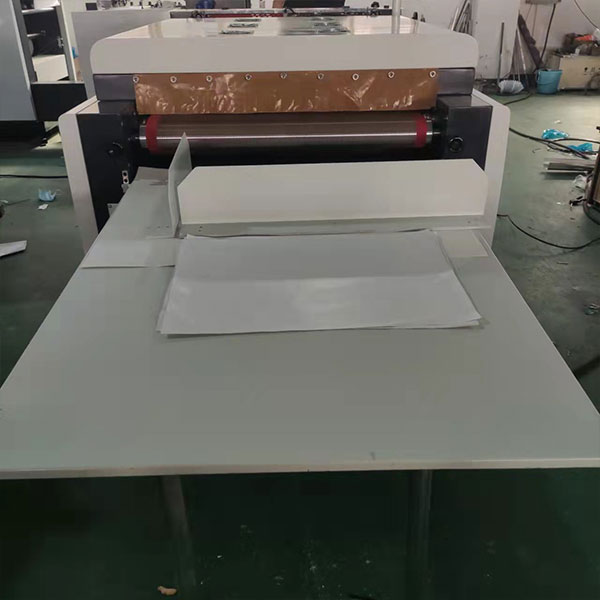

Simple receiving table

Main components
