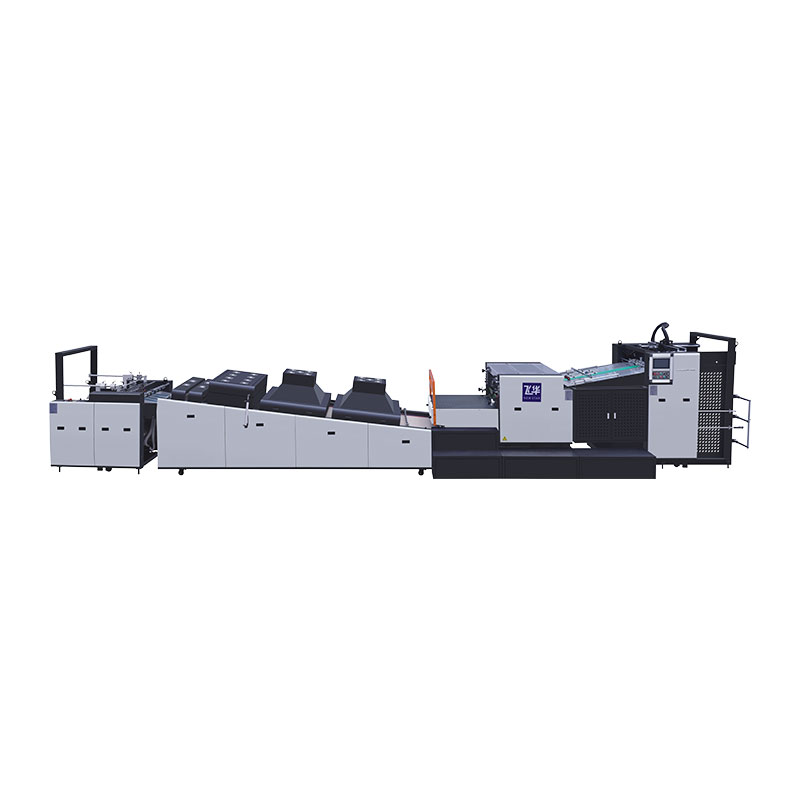

38 KW Fully Automatic UV Coating Machine
Product Introduction
NEW STAR, a trusted China supplier and factory of post-press equipment, launches the 38 KW Fully Automatic UV Coating Machine, integrating full automation technology and energy-saving design to provide efficient, stable coating solutions for global printing and packaging enterprises.
As a high-performance fully automatic coating equipment, the Fully Automatic UV Coating Machine realizes the whole process of automatic feeding, coating, curing and collecting without manual intervention. It effectively solves the problems of high labor intensity and inconsistent coating quality of semi-automatic equipment, and is suitable for mass production scenarios in various industries.
Product Features
The 38 KW Fully Automatic UV Coating Machine is equipped with advanced fully automatic control system and high-performance components, with the following core features:
-
38 KW energy-saving power configuration: Balances high efficiency and energy conservation, reducing production costs while ensuring stable operation.
-
Full-automatic integrated operation: From paper feeding to finished product collection, the whole process is automatic, eliminating manual operation and improving production efficiency.
-
PLC intelligent control system: Supports automatic parameter adjustment, fault alarm and one-key shutdown, easy to operate and maintain.
-
Enhanced stability structure: 55mm enlarged shaft head and synchronous belt drive ensure smooth operation without vibration, achieving uniform coating effect.
-

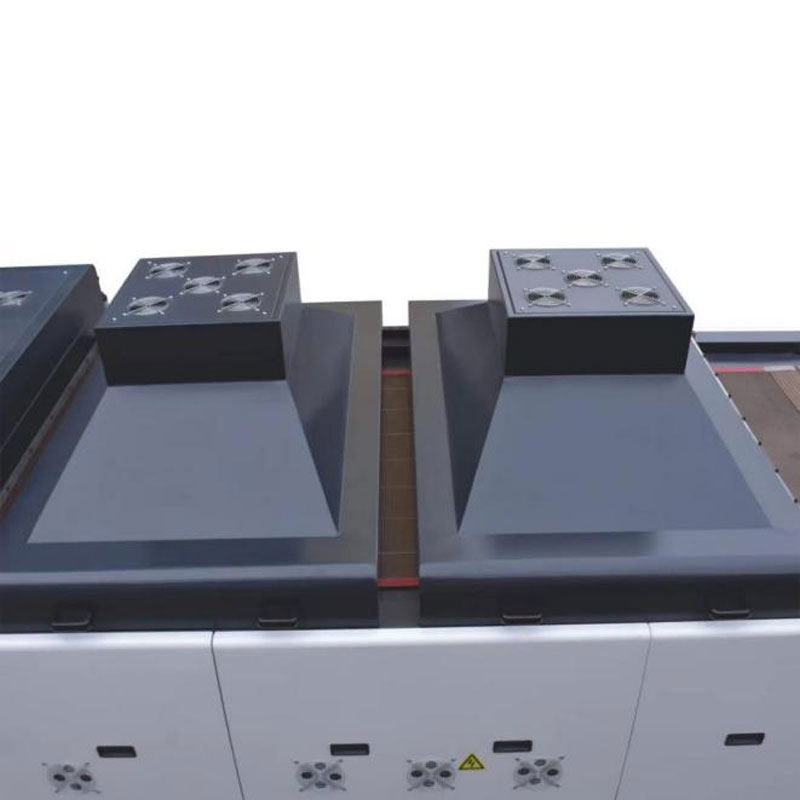

High-efficiency curing system: 18 infrared lamps and 3 UV mercury lamps, independently controlled, realizing rapid curing and avoiding product sticking.
-
Precise ink supply system: 80-120 mesh ceramic anilox roller ensures uniform ink output, suitable for various UV varnishes and water-based varnishes.
-
Intelligent paper alignment system: Photoelectric deviation correction ensures accurate positioning of materials, reducing defective products caused by misalignment.
Product Parameters
|
Parameter
|
Value
|
|
Model
|
FHSGJ-1050
|
|
Working Power
|
38 KW
|
|
Max Paper Size
|
730 × 1050 mm
|
|
Min Paper Size
|
310 × 410 mm
|
|
Max Speed
|
9000 sheets/hour
|
|
Paper Thickness
|
80–500 gsm
|
|
Position Tolerance
|
±0.2 mm
|
|
Machine Dimension
|
10630 × 2260 × 2100 mm
|
|
Machine Weight
|
9000 kg
|
Product Advantages
Compared with ordinary fully automatic UV coating machines, the 38 KW Fully Automatic UV Coating Machine of NEW STAR has obvious competitive advantages:
-
High-efficiency full automation: 9000 sheets/hour production capacity, whole-process automatic operation, greatly improving production efficiency and reducing labor costs.
-
Energy-saving and cost-effective: 38 KW power configuration, scientific energy-saving design, reducing unit product energy consumption and improving enterprise profitability.
-
Strong adaptability: Suitable for various materials with 80-500 gsm thickness, supporting both spot and full-area coating, meeting diverse production needs.
-
Stable and reliable quality: CE certified, strict full-process quality inspection, ensuring consistent coating effect and low defective product rate.
-
Easy maintenance: Modular design, quick connector connection for cables, convenient for daily maintenance and fault handling.
-
Space-saving design: Reasonable structure layout, adapting to different workshop spaces of enterprises.
Applications
This Fully Automatic UV Coating Machine is widely used in printing, packaging, advertising and other industries, suitable for:
-
Packaging industry: Coating for food, medicine, cosmetics, electronic product packaging boxes and labels.
-
Advertising industry: Coating for large-format posters, brochures, billboards and promotional materials.
-
Publishing industry: Coating for book covers, picture albums, textbooks and corporate brochures.
-
Gift industry: Coating for high-end gift boxes, greeting cards, paper bags and gift tags.
-
Industrial printing: Coating for product manuals, labels and other industrial printed materials.
Maintenance Guide
Proper maintenance can effectively extend the service life of the 38 KW Fully Automatic UV Coating Machine and ensure stable long-term operation:
-
Daily maintenance: Clean the coating roller, scraper and ink circuit after work to avoid ink solidification and blockage.
-
Lubrication maintenance: Add professional lubricating oil to transmission parts every 20 days to reduce wear and tear.
-
Curing system maintenance: Check UV lamps and infrared lamps regularly, replace aged lamps in time to ensure curing effect.
-
Electrical system inspection: Check electrical components and cables weekly to prevent short circuits and poor contact.
-
Regular calibration: Calibrate the paper feeding and positioning system every month to ensure coating accuracy.
Why Choose Us
-
Professional manufacturer: NEW STAR (Wenzhou Feihua Printing Machinery Co., Ltd.) has 14+ years of post-press equipment R&D and production experience.
-
Advanced technology: Adopts world-leading fully automatic control technology, with independent intellectual property rights and multiple patents.
-
Strict quality control: Produced in a 10,000+ square meter modern workshop, complying with ISO 9001 and CE certification standards.
-
Global service network: Products exported to 130+ countries and regions, providing timely after-sales support.
-
Customizable service: Support OEM/ODM customization according to enterprise production needs, providing tailor-made solutions.
-
Perfect after-sales: 12-month free warranty, on-site installation, debugging and technical training services.
FAQ
Q1: What is the maximum production speed of the 38 KW Fully Automatic UV Coating Machine?
A1: The maximum speed is 9000 sheets/hour, which is suitable for large-scale mass production.
Q2: Is this machine fully automatic? Do I need manual operation during production?
A2: It is fully automatic, realizing automatic feeding, coating, curing and collecting, no manual intervention is needed during normal operation.
Q3: What is the power of this machine? Is it energy-saving?
A3: The working power is 38 KW, with scientific energy-saving design, which is more energy-efficient than ordinary equipment of the same type.
Q4: Can it handle thick paper materials?
A4: Yes, it is compatible with 80-500 gsm paper, suitable for various thick and thin materials.
Q5: Does NEW STAR provide after-sales maintenance services for this machine?
A5: Yes, we provide 12-month free warranty and on-site maintenance services to solve your worries.
Q6: Can the machine be customized according to our workshop size and production needs?
A6: Yes, we support customization of parameters and configurations to match your specific production and workshop requirements.
