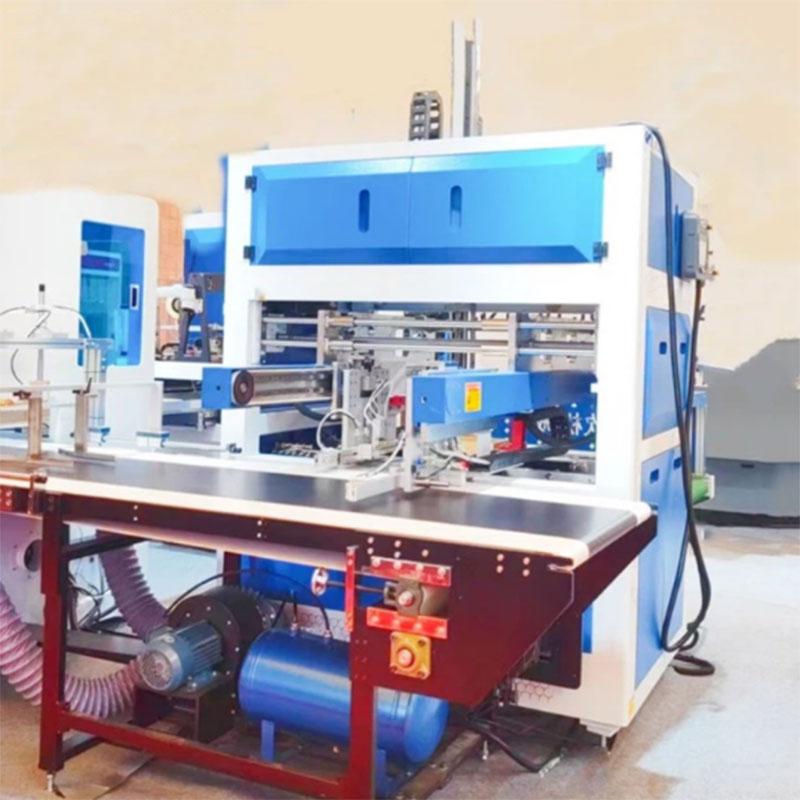

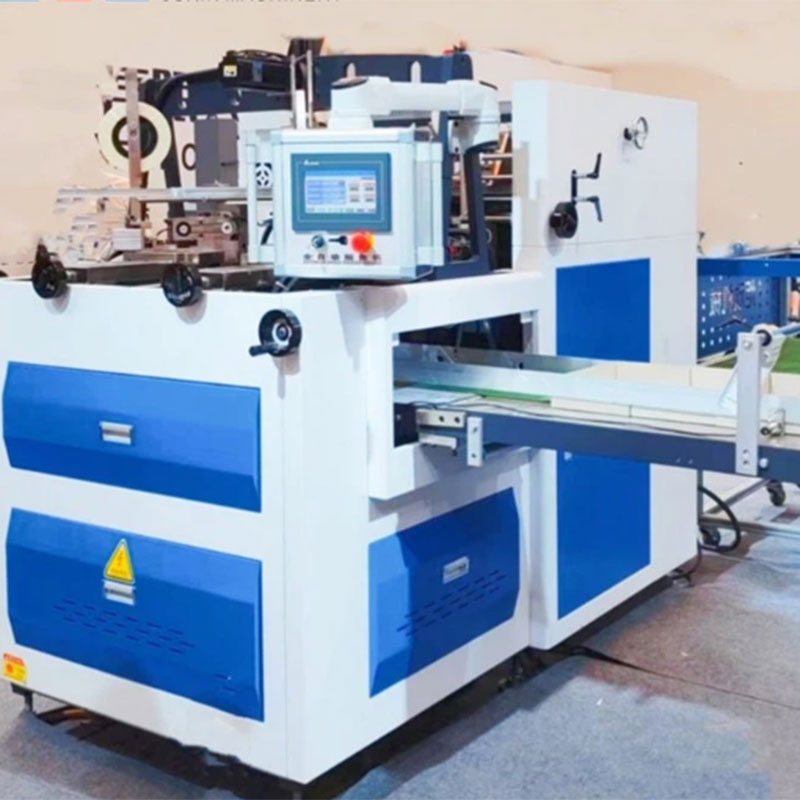

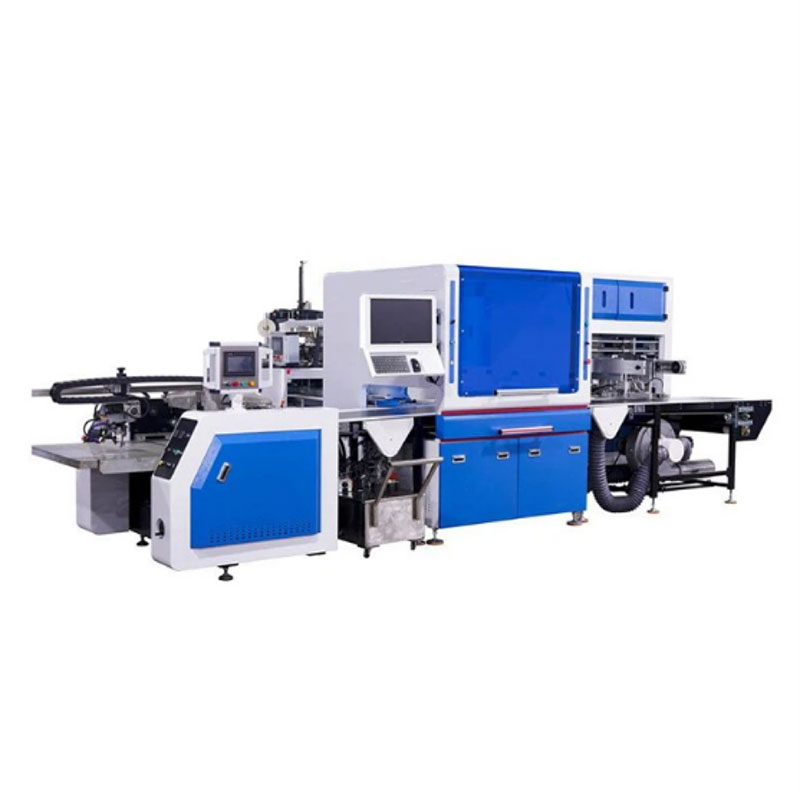

High speed full Automatic rigid box forming machine is a good equipment for making high-grade boxes because it is characterized by fine design, reliable performances and advanced technologies. It employs PLC, photoelectric detector system, hydraulic system, HMI to automatically finish feeding and gluing paper, conveying cardboard, forming and gluing four angles of cardboard, positioning and forming box in one time.
| Max box size | 500*400mm | 650*450mm |
| Min box size | 90*70mm | 90*70mm |
| Box molding height |
10-120mm (finally based on the unfolded size of tissue paper) |
|
| Speed | 18-28pcs/min | |
| Accurate positioning | ±0.05mm | |
| Glue barrel capacity | 20L | |
| Conveyor belt height | 900mm, Max height of paper stack: 280mm | |
| Conveyor belt height | 1100mm, Max height of paper stack: 580mm | |
| Air pressure | 0.6-0.8MPa | |
| Power supply | 380V/50HZ | |
| Total power | 14KW | |
| Weight | About 7000KG | |
Automatic rigid box forming machine is applicable to make high-grade boxes for shoes, shirts, jewelry, gifts, etc.
1. Feeder control by servo motor
2. Big diameter pneumatic vacuum control valves
3. The automatic lifting function for feeding stack
4. Free matching: can be operated independently,
and can be streamlined.
5. Adjustable pair of ears: right and left pairing,
seamless in the middle, small side to the ear can be.
6. The production capacity is controllable: the speed is adjusted according to the needs, and the production capacity depends on the product technology.
7. Fault alarm: fault buzzer alarm, fault screen display.
