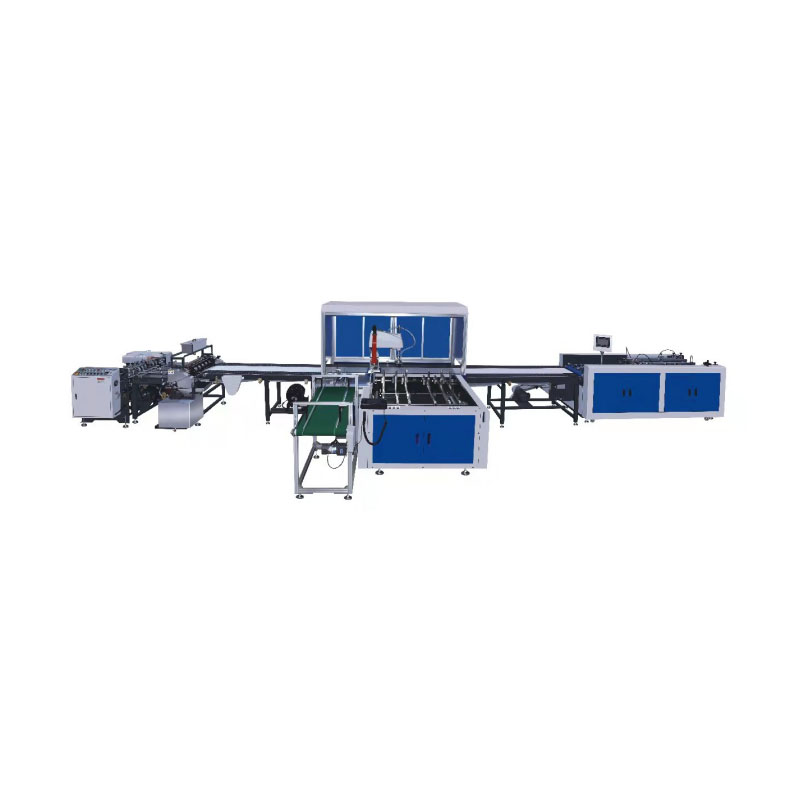

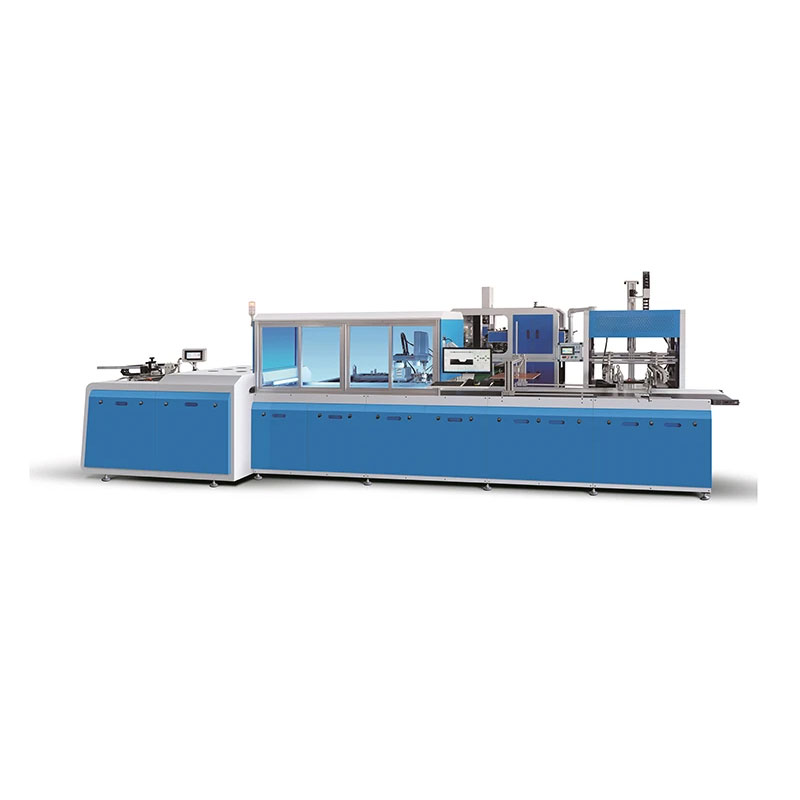

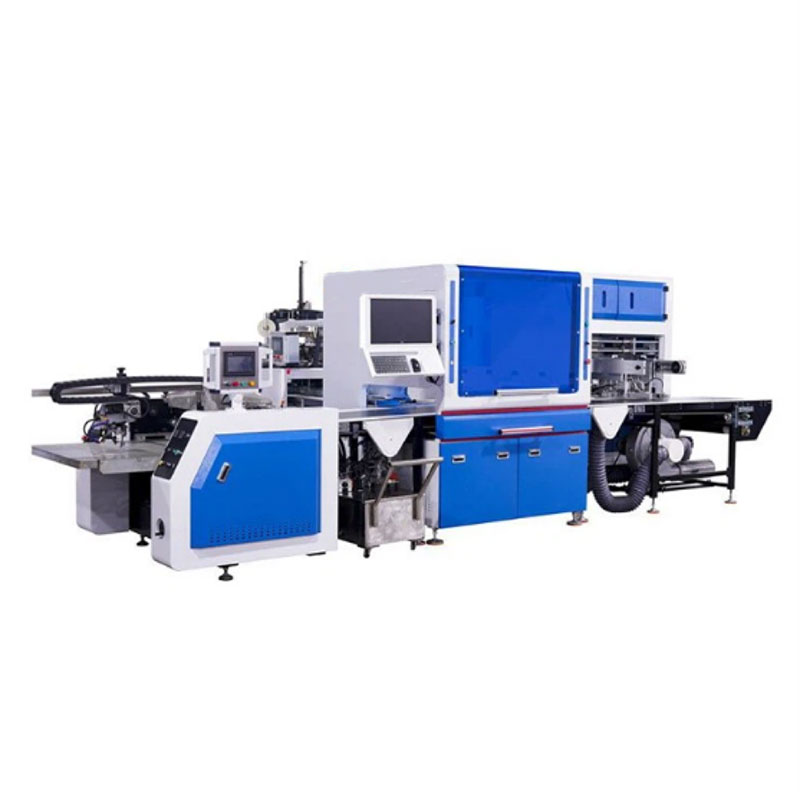

Automatic Rigid Box Machine

Automatic Rigid Box Machine is an intelligent upgrade of the existing production line gluing machine, realizing "machine replacing manual labor". While reducing production costs, the product qualification rate has also been steadily improved, ensuring product quality. High product compatibility: It can be installed on the general-purpose ordinary feeder production line gluing machine on the existing market. It has a very high cost-effectiveness and reduces equipment procurement costs for NEW STAR customers.

Specification

Highlights

Automatic Rigid Box Machine produced by NEW STAR has the characteristics of sophisticated design, reliable performance and advanced technology. It is a good equipment for making high-end gift boxes.

1.Adopt high-speed automatic paper feeding system, pneumatic control, simple and reasonable structure.
2.It adopts PLC control, featuring in simple operation. The troubles are displayed directly on the HM1, which helps the operator easily remove them.
3.New designed copper scraper cooperates with the rubber more compactly,effectively avoiding paper winding. And the copper scraper is more durable.

3. The newly designed copper scraper and rubber are more closely matched, effectively preventing paper winding, and the copper scraper is more durable.

4. The paper feeding positioning system adopts imported high-precision photoelectric control device to make the positioning of paper and cardboard more accurate.

Feature

1. The paper feeding system adopts cam servo system, which is high-precision, high-stability machine performance, overall motion servo and pneumatic system control, stable operation and long service life;

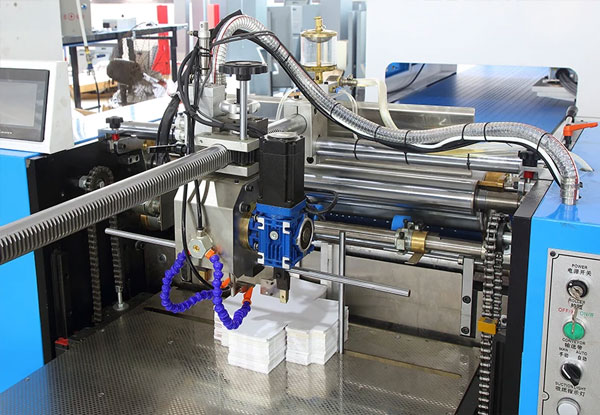

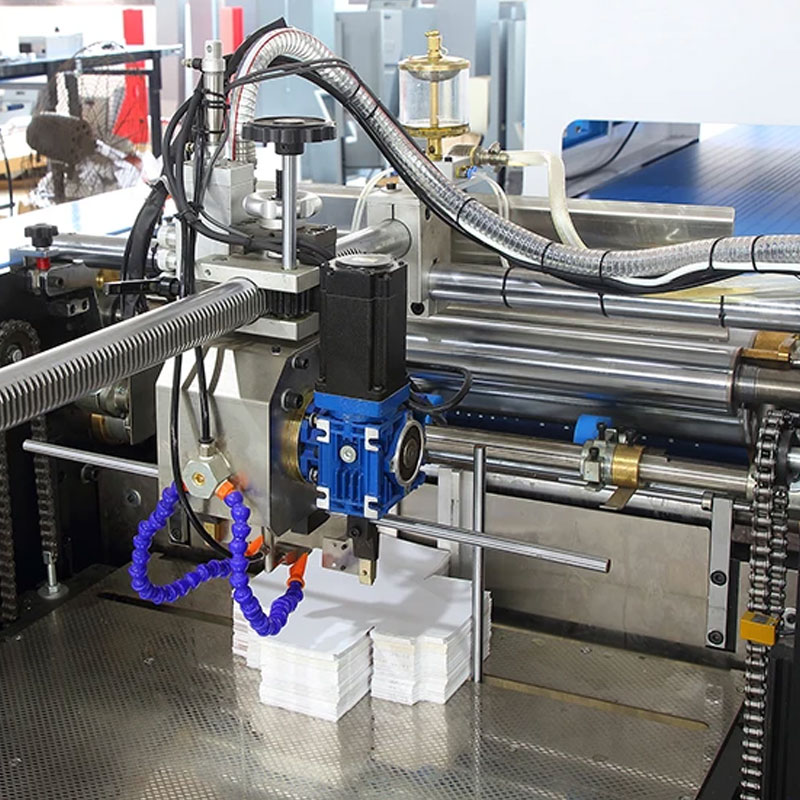

2. Automatic gluing system servo control, hot glue automatic heating, circulation, stirring;
3. The conveyor belt automatic conveying system driven by servo motor is equipped with photoelectric sensors on the conveyor belt, and a vacuum fan is installed under the conveyor belt to prevent the gluing paper and positioning paper from running off;

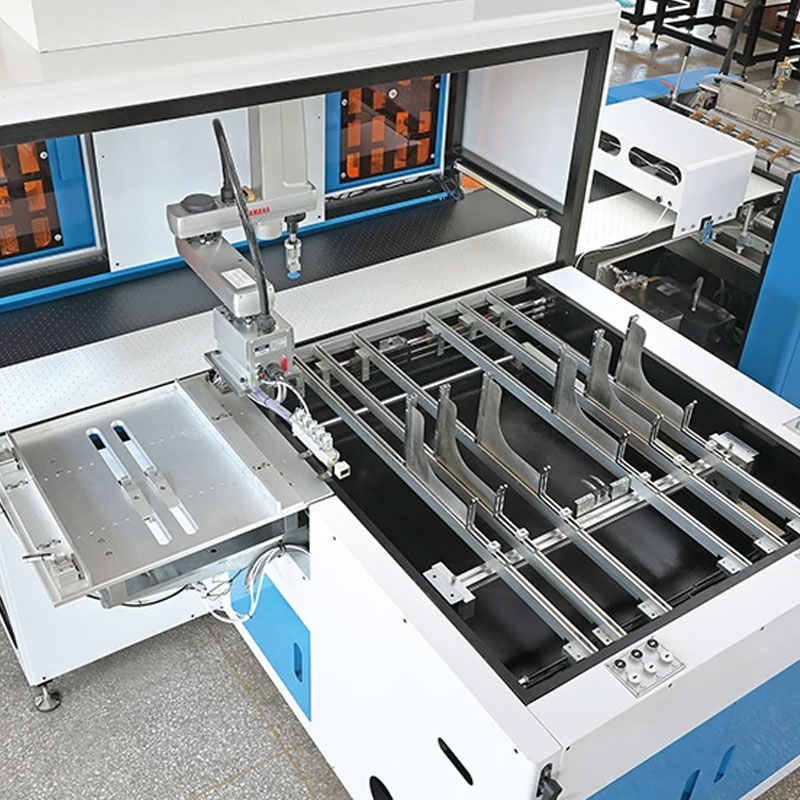

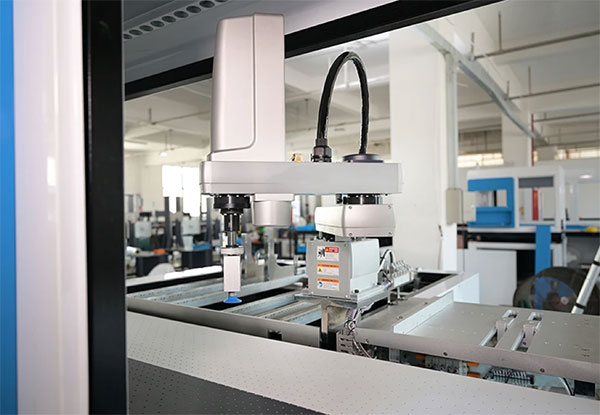

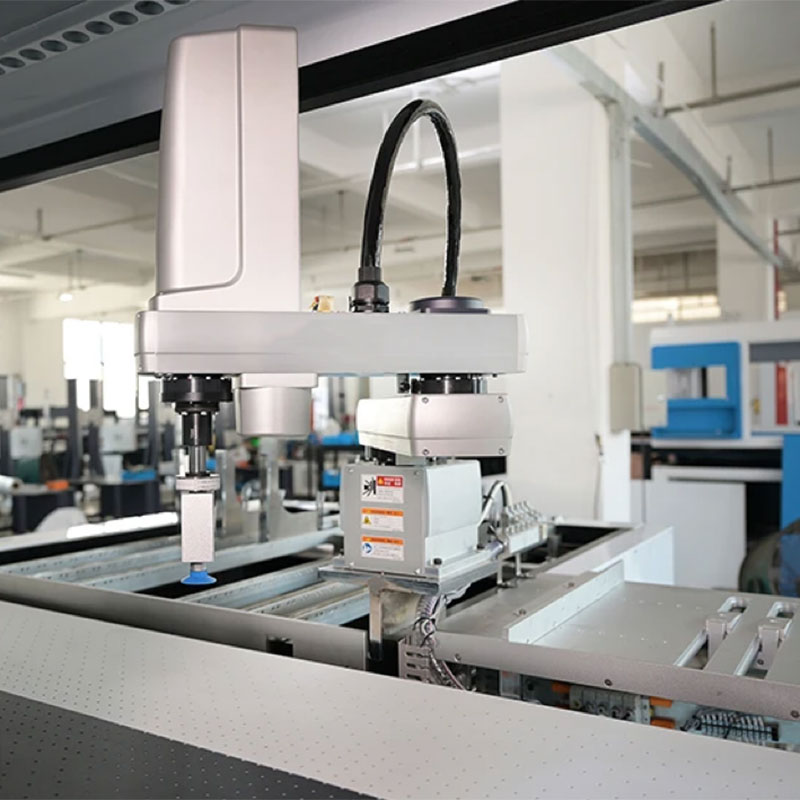

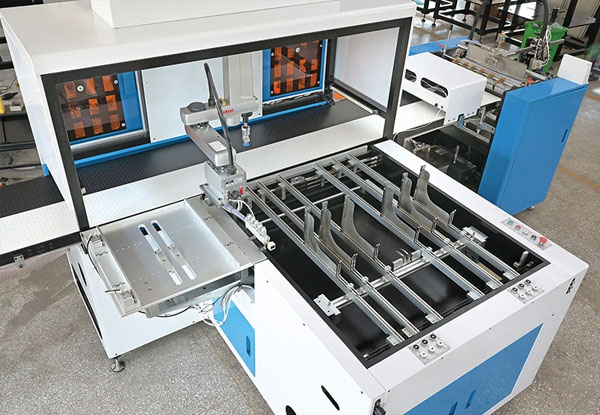

4. The CCD visual positioning system cooperates with the Yamaha manipulator to automatically position the box or leather shell, and supports remote online visual system, which can provide more timely after-sales service technical support;
German Balser 20 megapixel camera and Japanese Kowa industrial camera special lens, no need to adjust the camera position, easy to locate boxes of various sizes;
5. The visual positioning system is equipped with a double-station positioning system for the top and bottom lid and the leather shell. The screen can be switched with one key when the two products are replaced, which is more time-saving, labor-saving and convenient;
6. The configuration of internationally renowned brands ensures that the machine can achieve excellence from raw material transportation, precise positioning, and automatic grasping and molding;

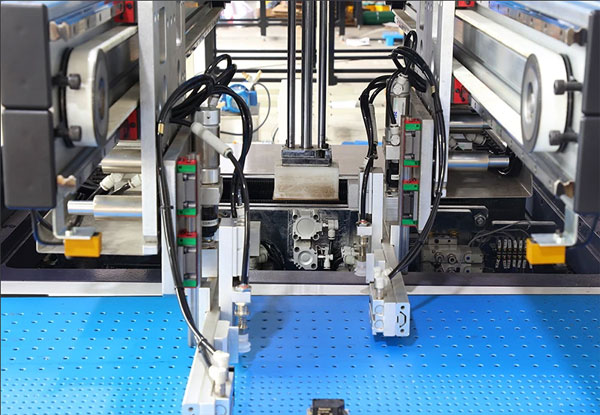

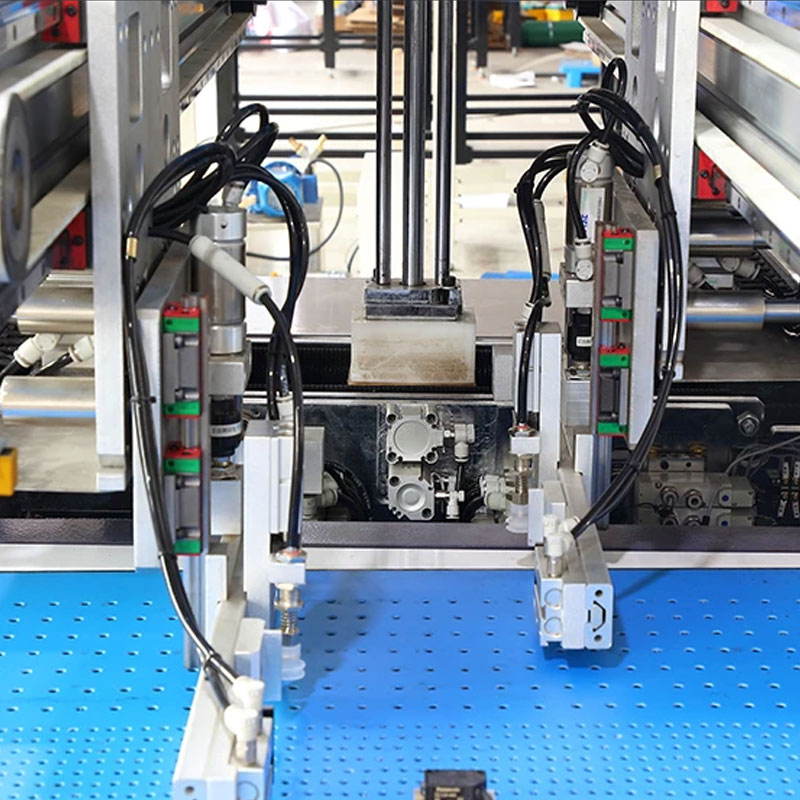

7. The automatic top and bottom lid molding machine adopts an automatic mold adjustment system, which is intelligent to operate and convenient for after-sales maintenance.
