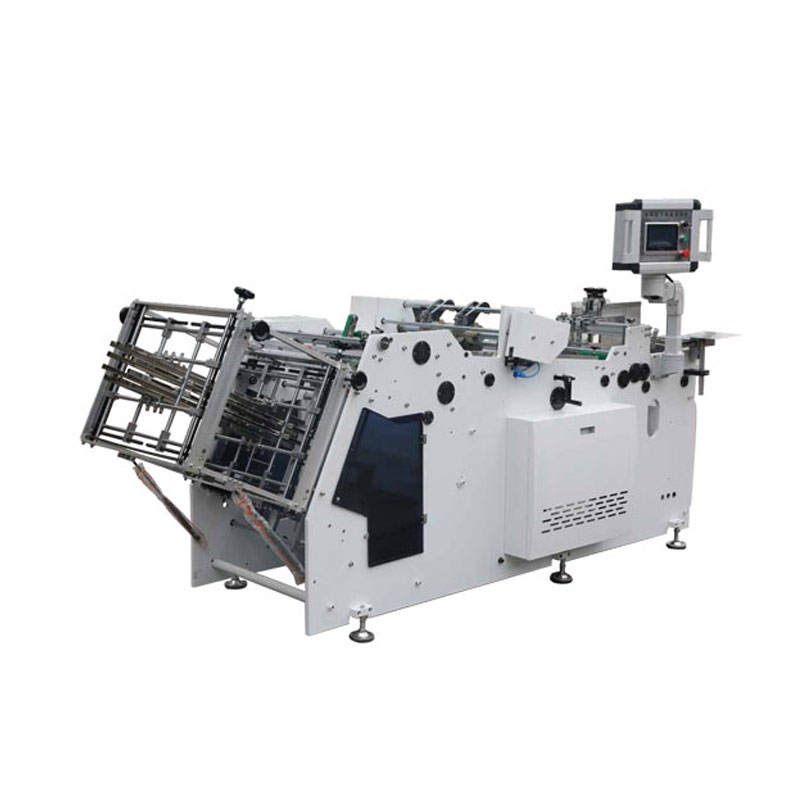

High Speed Servo Carton Erecting Machine

NEW STAR High speed servo carton erecting machine stands out for its excellent performance and wide range of applications. The machine can produce 80% of the paper box products on the market, providing great convenience for the food packaging industry. It has a solid structure, stable machine, low noise, high efficiency and relatively low maintenance cost. These advantages make it stand out among similar products.

Parameter

Feature And Application

High speed servo carton erecting machine is suitable for hamburger boxes, strip boxes, fried chicken boxes, children's lunch boxes, takeaway boxes and even triangular pizza boxes, all kinds of paper box products.

The machine is equipped with automatic paper feeding mechanism, automatic adjustment machine hook mechanism, automatic gluing mechanism, forming mechanism, finished product collection mechanism and counting mechanism, etc. The whole machine adopts servo motor to control the screen parameter adjustment, which is easier to operate.

Compared with the traditional mechanical rack structure, the High speed servo carton erecting machine is more stable and can significantly reduce labor costs. In addition, the machine can also be customized according to the box type to meet the diverse needs of customers.

1. Servo motor controls the forming die (pressing die) (advanced, more precise than mechanical cam control) 2. Uses a complete servo system (3 servos in the machine replace the cam system) 3. Easy to change the mold to make different products, the loading and adjustment time is very short. 4. PLC program controls the entire production line, which can make complex boxes. 5. Automatic collection, inventory and counting. 6. Humanized design of control buttons and panels, making user operation easier and safer. 7. After completing the adjustment, PLC can save the adjusted parameters, which can save time.

Details

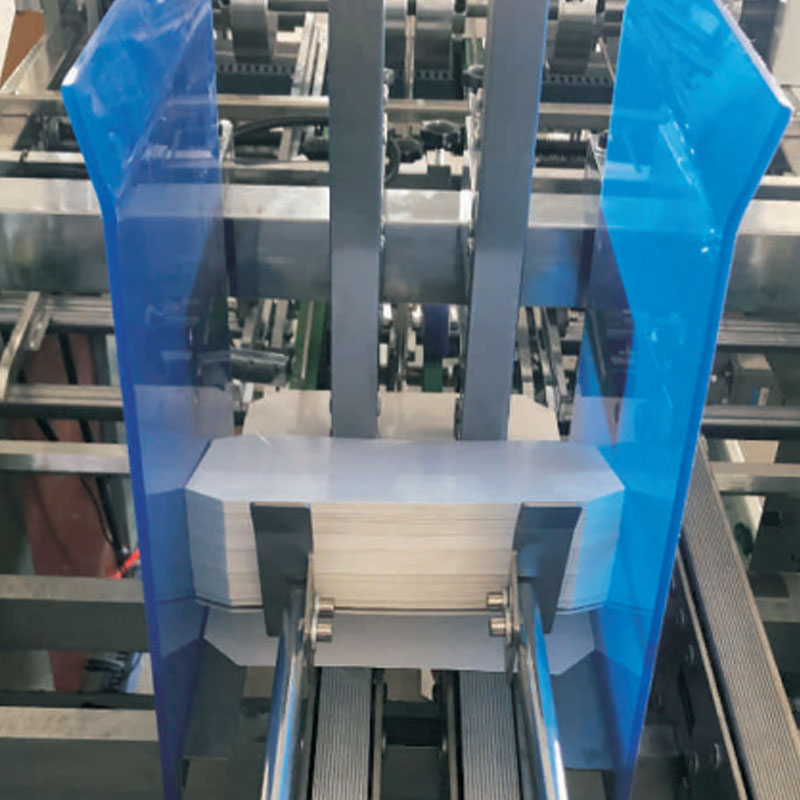

Paper feeder

The feed width can be easily adjusted using a screw.

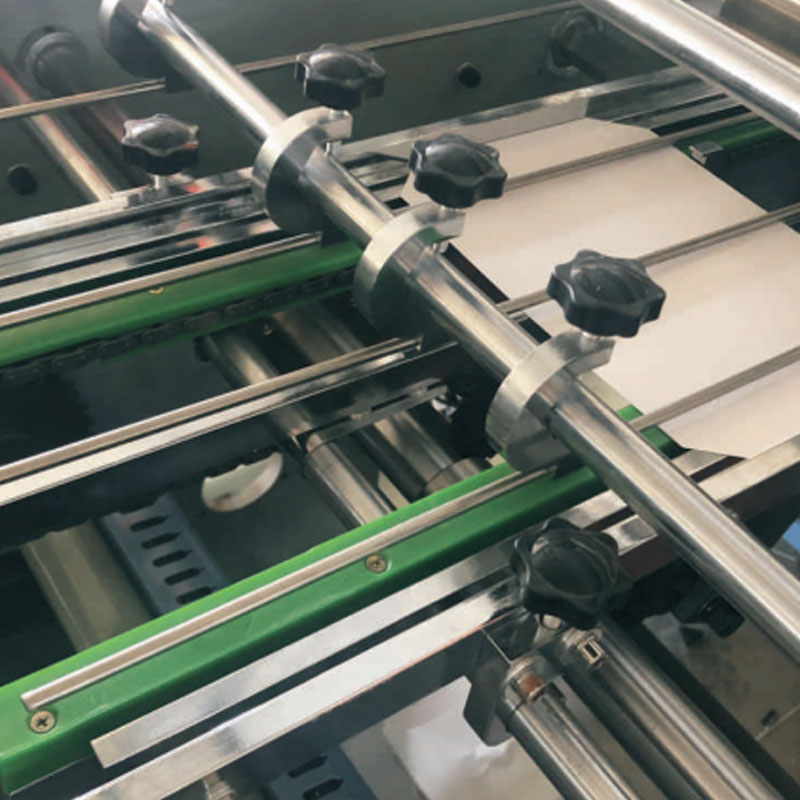

Gluing device

Standard cold water glue roller and any form of glue bonding method, the glue can be adjusted at will during production.

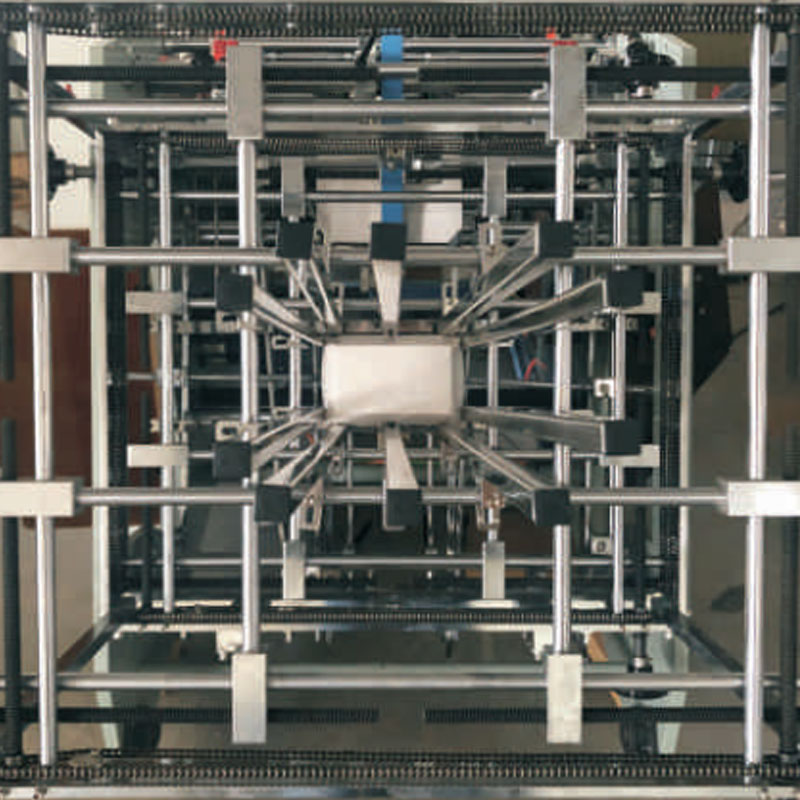

Forming unit

The mechanical link type structure formed by stamping, it has simple structure and working stability. The mold height is adjustable and can make various shapes, ideal for conical cartons, special flip-top hamburger boxes.

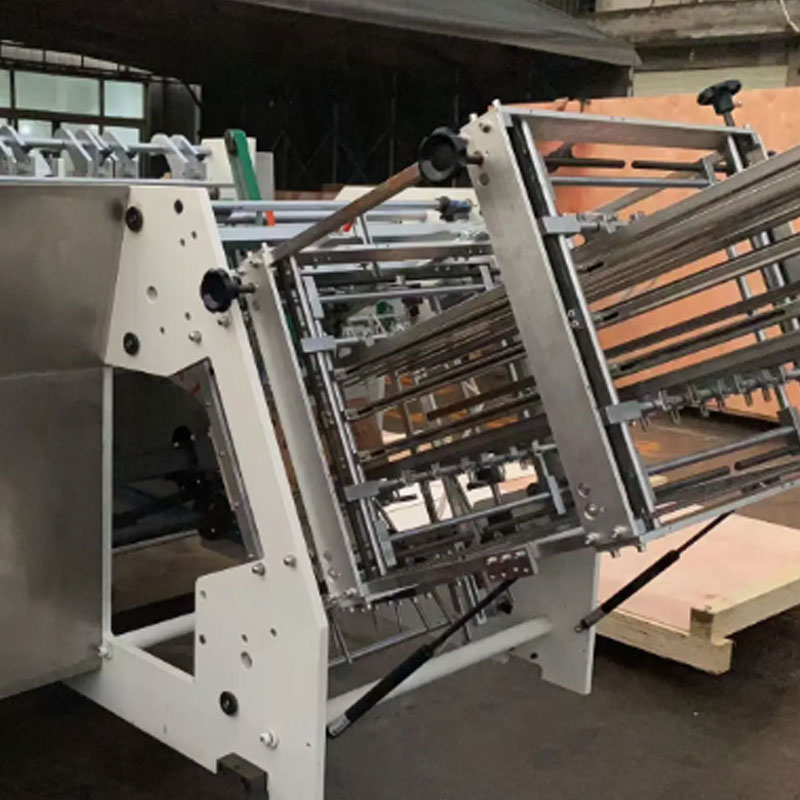

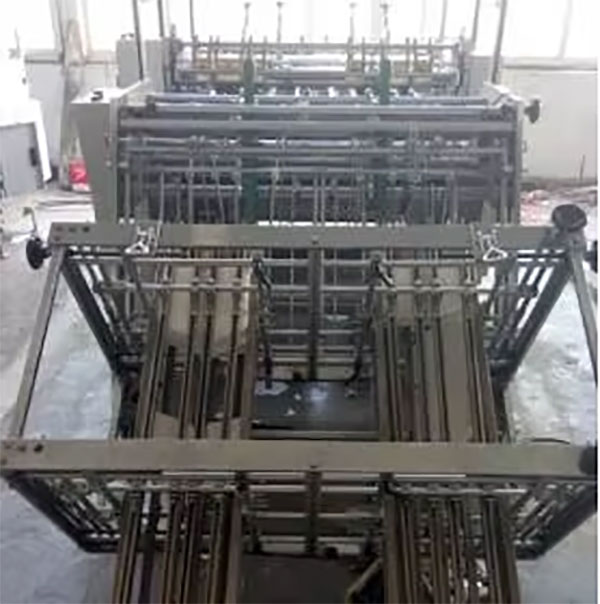

Finished product collector

The size of the molding box is adjusted by a hand wheel, which is simple and convenient, and can be opened when changing the mold The molding box has a large space, which is more convenient for changing the mold and adjusting the molding positioning hook.
