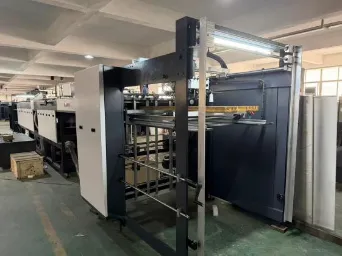

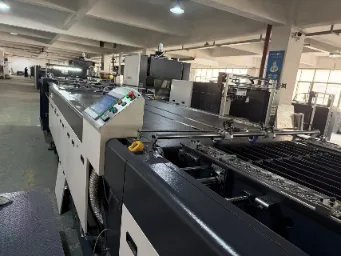

NEW STAR is a professional Automatic Inkjet Coding Machine manufacturer and supplier. The machine's operation process is as follows: Paper is automatically fed out sheet by sheet by the paper feeder, enters the correction and alignment system, then enters the inkjet printing platform, and after curing, is automatically and neatly stacked by the paper receiving machine. If a detection system is added after inkjet printing, waste paper can be removed after curing; problematic paper enters the waste removal station, while unproblematic paper enters the paper receiving machine for automatic stacking.
|
Model |
DMZ-G1100 |
|
Maximum Paper Size (mm) |
1100(W)×1100(L) |
|
Minimum Paper Size (mm) |
350(W)×320 (L) |
|
Paper Range (g/m²) |
80~450 |
|
Linear Speed (m/min) |
0-160 |
|
Paper Stack Height (mm |
1200 |
|
Voltage (V) |
380 |
|
Total Power (kW) |
15.9KW(LED lights not included) |
|
dimensions L*W*H)mm |
12534×3809×2245 |
|
Weight (T) |
7.2 |

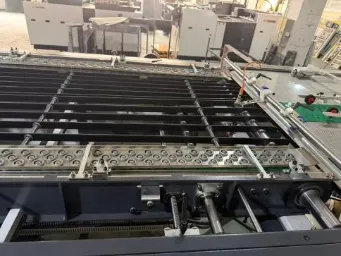

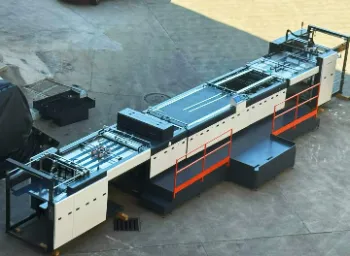

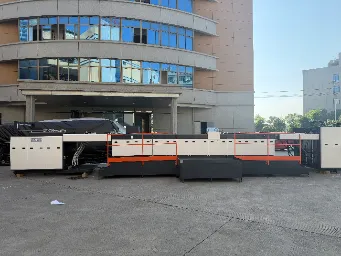

The high-speed DMZ-G1100 Automatic Inkjet Coding Machine is a solution model suitable for single-sheet printing and inspection of various printed materials such as pharmaceutical packaging, cigarette packaging, tickets, lottery tickets, admission tickets, food packaging, hang tags, and card making. It consists of an automatic paper feeder, a web guiding mechanism, an inkjet printing platform, an inspection (loading) section, a drying (curing) section, a waste rejection section, and an automatic paper collection section.
|
No. |
Name |
Section |
Drawing No. (Model No.) |
Specification |
Remark |
|
1 |
Tracking conveyor belt |
Web guiding section |
1100 type |
4100×80×1.5 |
|
|
2 |
Platform flat belt |
Platform section |
DMZ-1100-G.3.2-11 |
5855×1160×1.5 |
Punching |
|
3 |
Flat belt |
Curing section |
DMZ-1100-G.4.2-20 |
3370×480×2.0 |
Punching |
|
4 |
Long conveyor belt |
Bridge section |
DMZ-1100-G.6.2-15 |
2960×80×1.5 |
Punching |
|
5 |
Short conveyor belt |
Bridge section |
|
2310×80×1.5 |
|
|
6 |
Timing belt |
Paper feed roller |
|
5M-480-22 |
|
|
7 |
Timing belt |
Paper transfer to bridge |
|
8M-1232-25 |
|
|
8 |
Timing belt |
Paper feed motor |
|
8M-1440-22 |
|
|
9 |
Timing belt |
Feeder head |
|
8M-1472-22 |
|
|
10 |
Timing belt |
Platform section |
|
8M-1312-50 |
|
|
11 |
Motor timing belt |
Platform section |
|
8M-1064-25 |
|
|
12 |
Fused-joint timing belt |
Smooth roller drive |
|
8M-600-25 |
|
|
13 |
Timing belt |
Delivery bridge |
|
8M-1352-25 |
|
|
14 |
Rubber ring for suction nozzle |
Paper feeder |
|
|
|
Welcome to contact us and get to know more about the Automatic Inkjet Coding Machine! Request a quote!
