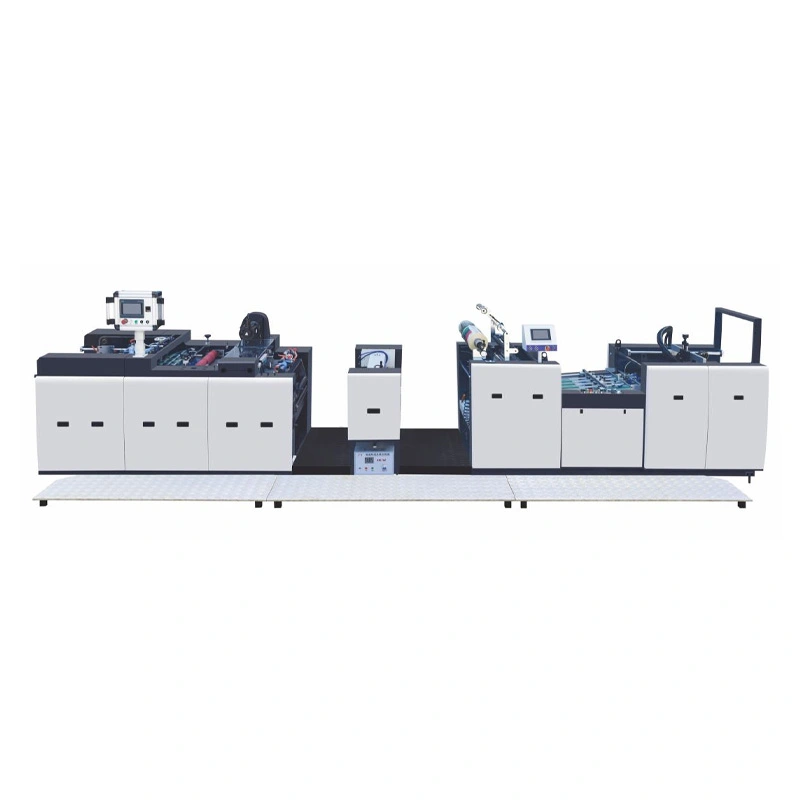

Fully Automatic Laminating Machine with Hot Knife and Corona Type

As a manufacturer, NEW STAR provides high-quality YFMA-590/760 Fully Automatic Laminating Machine with Hot Knife and Corona Type. Building on the standard configuration, this model adds hot-knife cutting and corona treatment capabilities. Corona treatment resolves issues such as poor adhesion, peeling, and delamination when laminating films like PP, PE, and PET. Hot-knife cutting is the preferred method for separating laminated materials such as BOPP pre-coated film, PET film, PVC, aluminized film, and metallic film, as well as for thick films and heavy-gauge cardstock.

Machine Specifications

Description of Standard Machine Configuration

	Paper Feeding System 1: Features a maintenance-free, high-speed (12,000 sheets/hour) offset-style feeder. 2: Touchscreen control interface. 3: Precision side-lay registration system. 4: Bridge section utilizes synchronous belt drive and vacuum suction paper transport to ensure sheets do not skew. 5: Upper and lower limit protection for the feed table; manual lifting/lowering. 6: Automatic sheet overlapping mechanism (tolerance: ±2mm). 7: Automatic stop function upon paper absence to prevent adhesive from sticking to rollers or film breakage.
	Main Lamination System 1：The machine utilizes high-precision synchronous belts and selected imported chains for its drive system; 2：320mm composite heating roller, paired with an electromagnetic variable-power heating system; 3：300mm imported silicone pressure roller, featuring excellent heat and pressure resistance as well as non-stick properties; 4：electromagneticheating 5：film straigt roller 6：temperature meteroutside 7：automaticpressure 8：paper lacking and breaking system
	Slitting System 1：back perforating system 2：anti-curve system 3：pneumatic perforating cutting system 4：slot for the separating roller 5：Uses a centralized control system for the entire machine to achieve precise pneumatic snap-off. 6：Magnetic powder clutch control.
	Fully automatic sheet delivery 1: Handles both thin and thick corrugated sheets with stable operation 2: Air pressure control ensures smooth sheet discharge and transport 3: Automatic delivery table lowering with limit-switch stop 4: Sheet counter 5: Pneumatic sheet alignment ensures neat stacking

Optional Features Available

1.UV Curing:

Our Fully Automatic Laminating Machine with Hot Knife and Corona Type ensures strong lamination adhesion; specifically solves the issue of film lifting at creases, score lines, or embossed areas on large solid-color backgrounds.

2.Double-sided:

Simultaneous lamination of both top and bottom sides; highly efficient with no waste.

3.Dual-pressure:

Delivers a solid, compact finish without whitening; ensures a more secure bond.

4.Embossing:

Various embossing patterns enhance the decorative aesthetic of the surface.

5.Chain Knife:

Slitting for high-toughness films (such as PET and aluminum foil) and "tail-less" film cutting.

6.Hot Knife:

High-speed slitting and "tail-less" cutting for high-toughness films (such as PET and aluminum foil).

7.Inkjet Coding:

Integrated in-line inkjet coding.

8.Transfer:

De-plasticization, special transfer processes, and peel-and-rewind capabilities.

9.Corona：

Increase the surface tension of plastic films to resolve issues—such as poor adhesion, peeling, and delamination—encountered when laminating inert films like PP, PE, and PET with adhesives or pre-coated films.

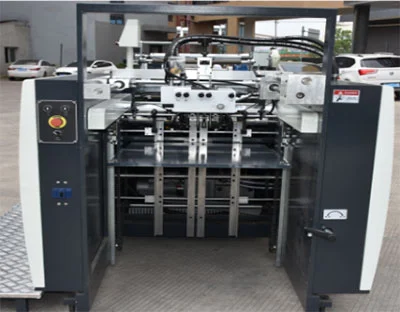

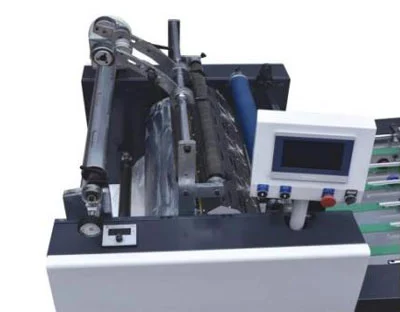

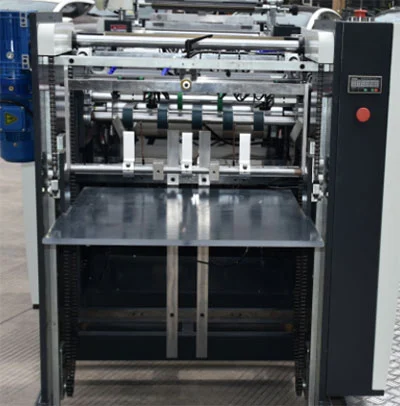

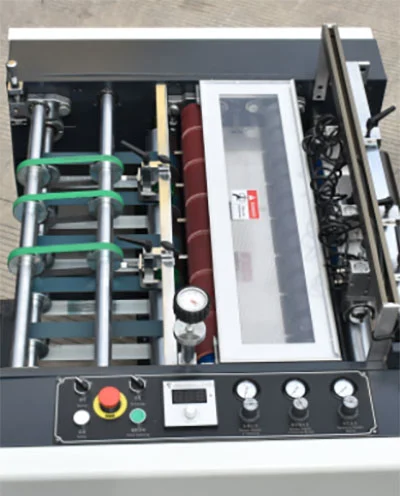

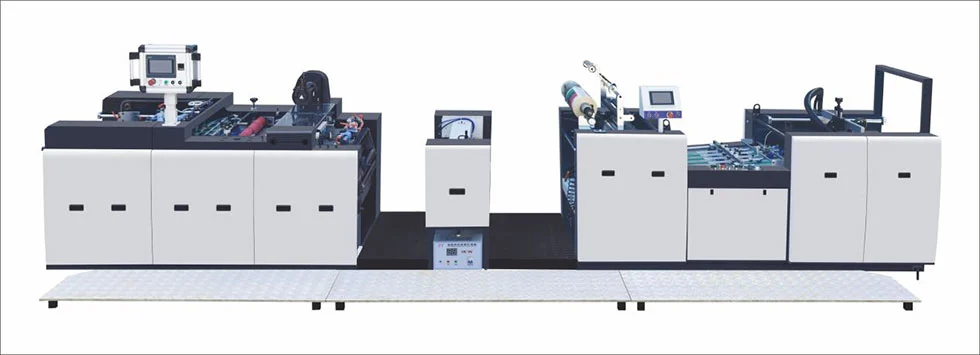

Machine Picture

Configuration List

Why Choose Our Factory

Full lifecycle service:

Pre-sales custom solution design & sample support; in-production progress tracking, quality inspection and test materials; after-sales technical guidance, optional on-site commissioning & training, plus 12-month free warranty.

Independent R&D & certification:

More than 20 invention and utility model patents, full independent intellectual property rights. Products pass CE certification to meet international standards.

Precision manufacturing equipment:

Equipped with CNC machining centers, CNC lathes, wire cutters and other professional machines to produce stable laminating and glazing machine components.

Global verified reputation:

NEW STAR brand exported to 130 countries and regions. Widely recognized in Middle East, Southeast Asia, Americas and Eastern Europe printing markets.

FAQ

1.What is the production lead time for YFMA series laminating machine?

A: 30 days

2.What is the MOQ of this Fully Automatic Laminating Machine with Hot Knife and Corona Type?

A: 1 unit

3.How can we purchase spare parts after buying the machine?

A: Please determine the quantity of accessories needed and send the details to us; we will pack them and ship them together with the machine.

4.What is the delivery lead time for spare parts?

A: If customized parts are required, we will provide an estimated timeframe; for items currently in stock at the warehouse, shipment can generally be arranged within 1–2 days.

5.What are the advantages of hot knife cutting compared with ordinary mechanical slitting?

A: Hot knives are primarily used to slit relatively hard films—such as PET and metallized films—that cannot be effectively cut by standard slitting knives.

6.What kind of packaging do you use for this laminating machine when shipping?

A: We will pack them in wooden crates.

7.What trade terms are available, such as EXW, FOB, CIF?

A: FOB, CIF, or EXW terms are all acceptable.

8. What payment methods are available?

A: T/T.L/C

9.What after-sales support will you provide if the machine has problems during operation?

A: Engineers can provide solutions via online communication, or you can invite them to resolve the issue on-site.

10.Can you provide samples?

A: We will send samples of lamination materials (BOPP film).

11.Has this product obtained any certificates or certifications?

A: CE Certification
