Paper Tube Making Machine

Paper Tube Making Machine is suitable for processing paper tubes for various purposes, including composite packaging cans, small packaging roll cores and paper tubes for office supplies. It integrates gluing, rolling and cutting in one machine to efficiently manufacture spiral paper tubes.

Function description:

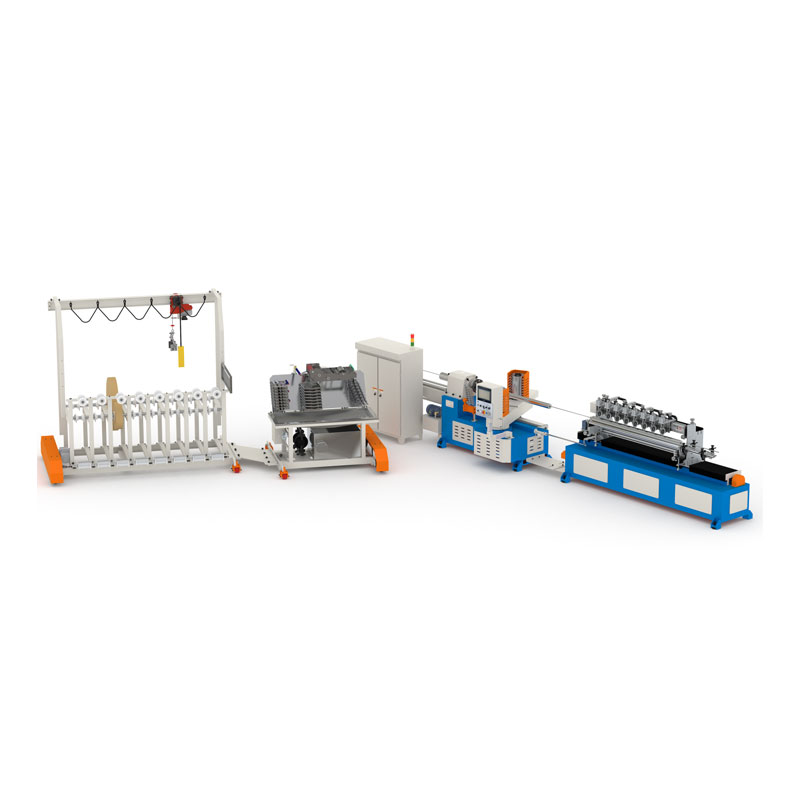

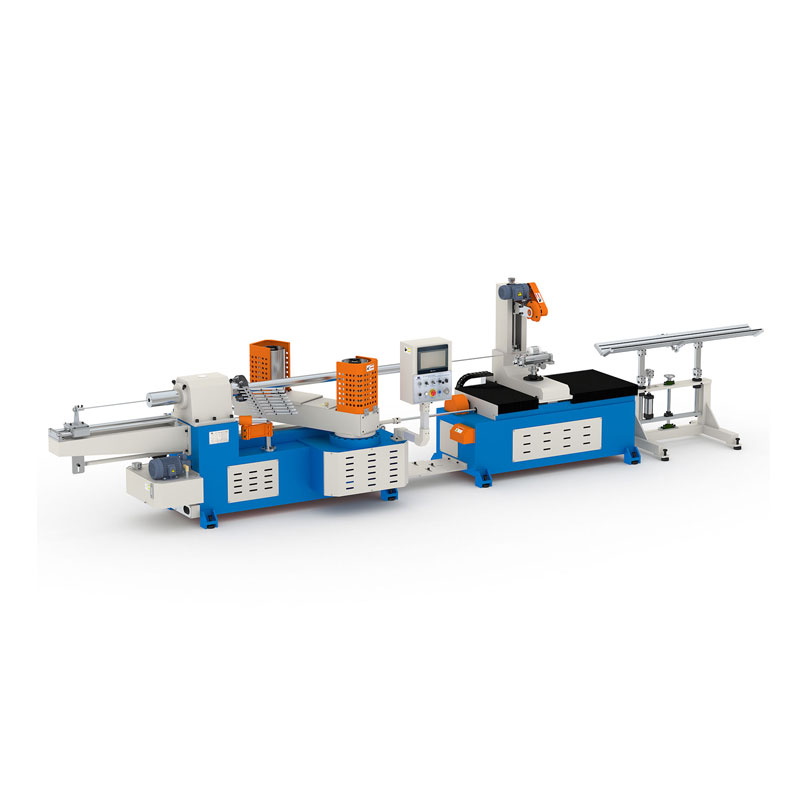

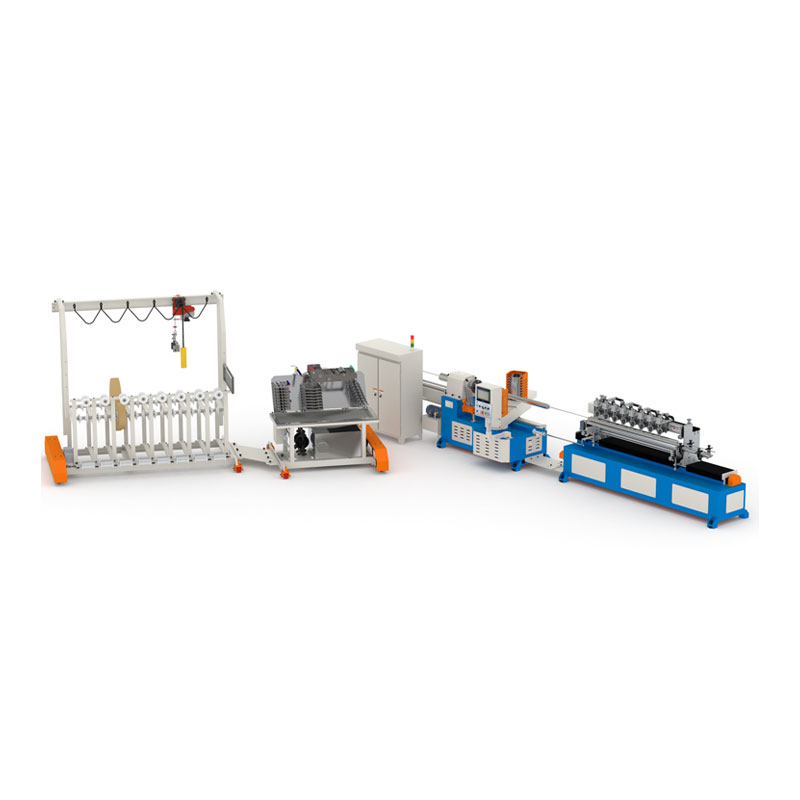

PTE2-120 Paper Tube Making Machine, The overall design pursues compact structure, stable operation, simplicity and efficiency, and is easy to operate and maintain.
The standard production of 3-inch paper tubes (inner diameter 76.2mm) with a thickness of less than 10mm, the maximum production paper tube inner diameter is 200mm.
Production use reference: paper tubes for chemical fiber, various packaging composite cans, various small industrial paper core tubes.
The production of spiral paper tubes is completed from gluing, winding, to cutting as required.

Specification

Product features

1. The frame structure is made of high-strength steel, CNC cutting and welding, ensuring strong rigidity, small deformation and smoother operation of the whole machine.

2. The main drive adopts hardened gear surface full oil bath gear reduction, which has the advantages of silent operation, low heat and strong drive

3. The main motor adopts vector high torque inverter speed regulation. Achieve precise speed control

4. Equipped with hydraulic belt tensioning device, belt tension sensor, belt angle sensor, which can automatically correct the belt state and improve the running balance.

5. Equipped with CNC synchronous shearing system, the shearing table is driven by precision ball screw and high-performance servo motor.

6. Equipped with pulse fixed length control, and with feedforward compensation function, to ensure the precise consistency of paper tube length at different speeds

7. Adopting dual PLC control system, IO output control and function operation are controlled separately to optimize the reaction speed and length consistency of cutting system

8. Equipped with a new operation panel, large-size color touch screen human-machine interface operation. 9. Equipped with multi-function bottom paper supply device, paper break automatic stop function

10. Integrated paper belt conveying system, all adjustments are uniformly controlled by electric actuators.

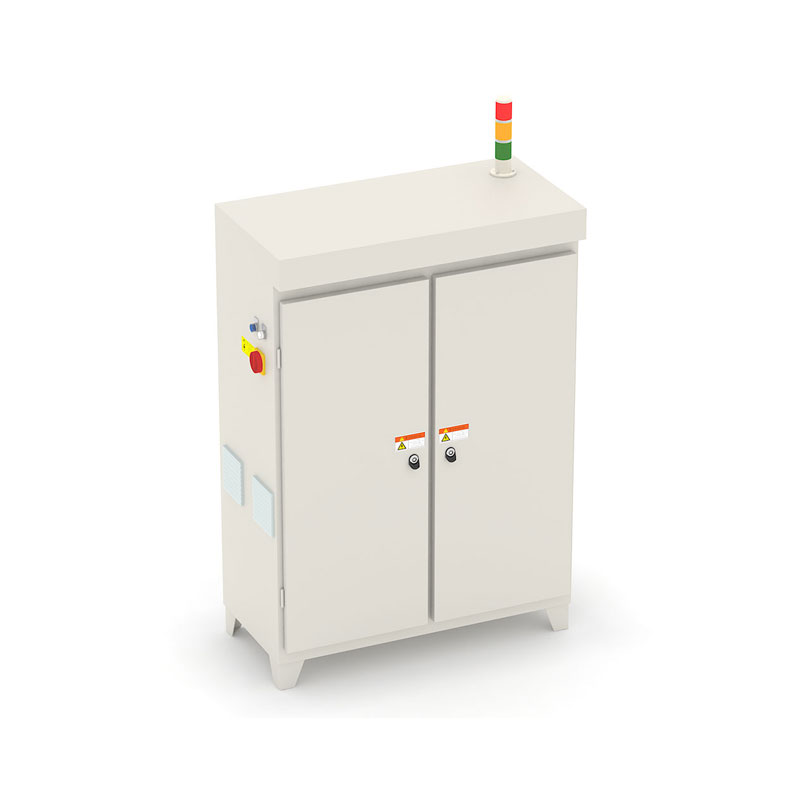

11. Modular electrical design, reasonable structure, more efficient and convenient maintenance.

12. Support industrial network expansion, can realize equipment linkage control and remote maintenance, compatible with MODBUS TCP.
