Multi Cutter Paper Tube Making Machine

Multi Cutter Paper Tube making machine is widely used in the manufacture of composite paper cans, small coil cores and office paper tubes. They can achieve simultaneous completion of gluing, spiral rolling and cutting processes, with continuous, efficient and stable processes.

Function

The "E" series multi-blade machine provides users with high-performance paper tube production solutions with its simple and elegant design style, compact and reasonable structural layout and good equipment stability.

Normally for making paper tube 3”(ID76.2MM), Max wall thickness under 3MM, biggest tube ID can up to 120MM.

Mainly used for making small size and short tube, can cut into many sections at a time

Machine specification

Features

1. The multi-knife cutting system can directly cut the paper tube according to the set length without the need for subsequent secondary cutting, saving processes and improving efficiency

2. The main machine adopts a thickened steel structure and undergoes secondary precision cutting and welding to ensure that the equipment runs more stably and durable.

3. The main drive adopts a gear reducer with low noise, low heat, high speed and high torque.

4. The main motor adopts intelligent vector frequency conversion control to achieve sensitive speed regulation and high load adaptability.

5. Equipped with a hydraulic device to adjust the belt tension, and equipped with a belt tension sensor and a belt angle sensor to achieve stable transportation.

6. Equipped with a synchronous cutting system, the cutting table is driven by a high-precision ball screw and a high-performance servo motor.

7. Equipped with pulse length fixed control, with front-end feedback compensation function.

8. Adopting a dual PLC control system, IO output control and function operation are independently controlled to improve cutting response speed and higher cutting accuracy.

9. Adopting a new control panel and a large-size color host touch interface.

10. Multi-functional bottom paper conveying structure, paper break stop.

11. The integrated paper roll holder, glue holder, and paper feeding components are all electrically controlled.

12. The modular design simplifies circuit connection, making daily maintenance and replacement more efficient.

13. Equipped with mold auxiliary installation device.

14. Optional network module can be connected to multiple devices and assembly lines to achieve remote monitoring and maintenance, supporting MODBUS TCP protocol.

15. Supports configuration of heat sealing unit and color mark sensor to meet diverse process requirements.

Machine details

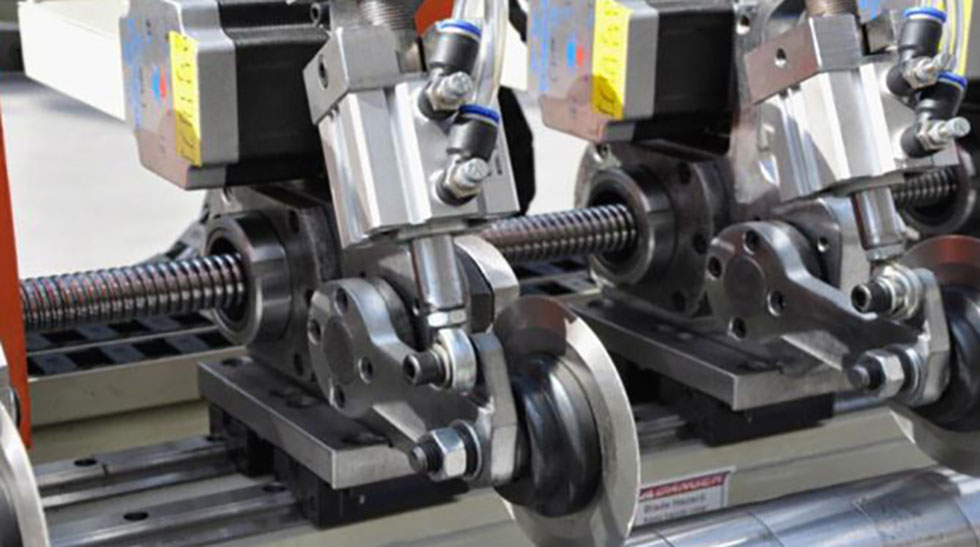

Multi-cutter device, optional automatic knife adjustment configuration

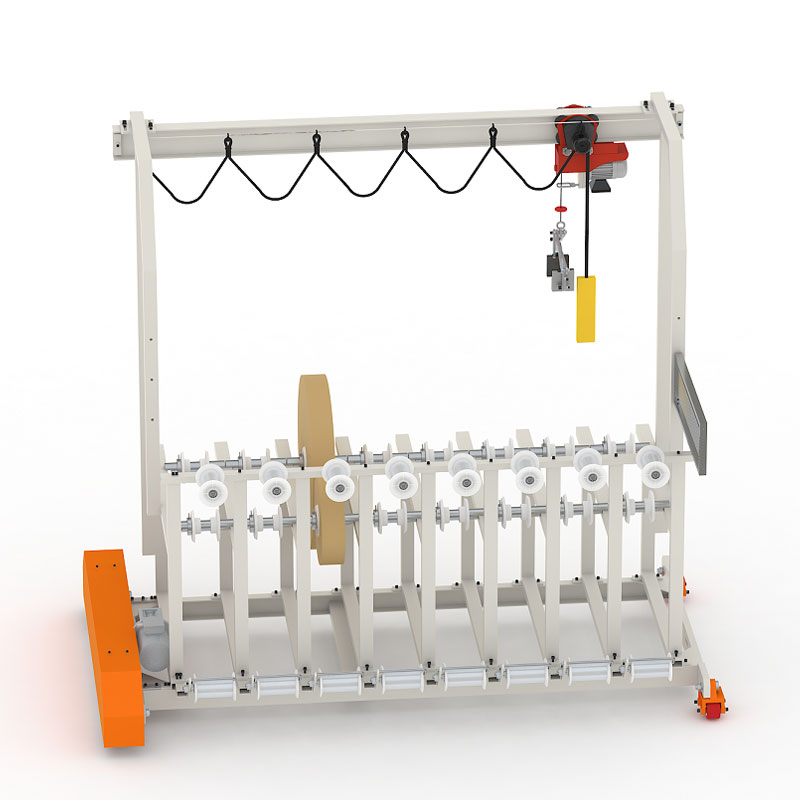

Paper tube conveying device, transports the cut paper tube to the next process

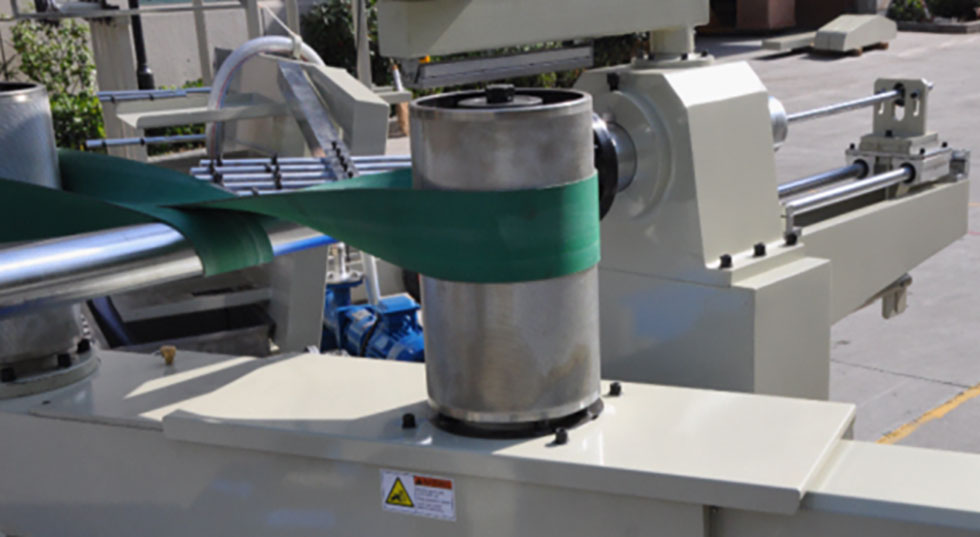

Hydraulic belt hub, self-adjustable belt tension
