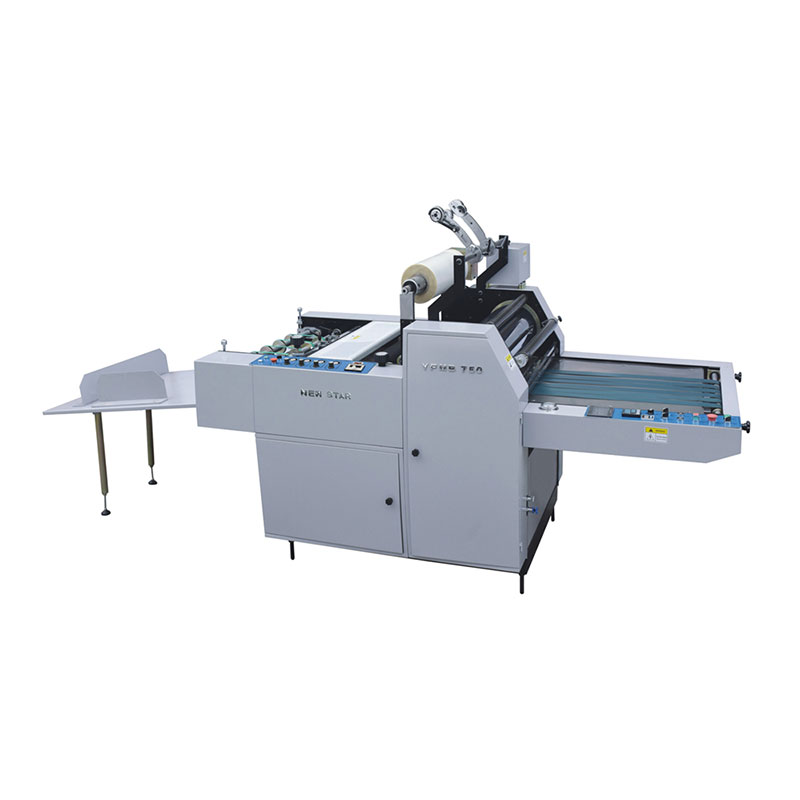

One-Piece Semi-Auto Laminating Machine

NEW STAR semi-automatic pre-coating laminating machine features a simple, sleek design. Its main components are all from internationally renowned brands. Centrally controlled by a programmable controller, the machine can be operated by a single operator. The NEW STAR semi-automatic pre-coating laminating machine occupies a small footprint and offers high productivity, making it ideal for small-batch production, saving time and effort.

Parameter

Highlights

1.SCHNEIDER frequency converter equipped for infinite speed variation ensures speed adjustment much more convenient and efficient, and make the machine run stably and quietly.
2.Enlarged size of chromed heating roller is mounted with built-in oil heating system which provides balanced laminating temperature and owns excellent temperature persistence.
3.SCHNEIDER PLC system realizes automatic paper separation, breakdown alert for self-protection etc. functions.

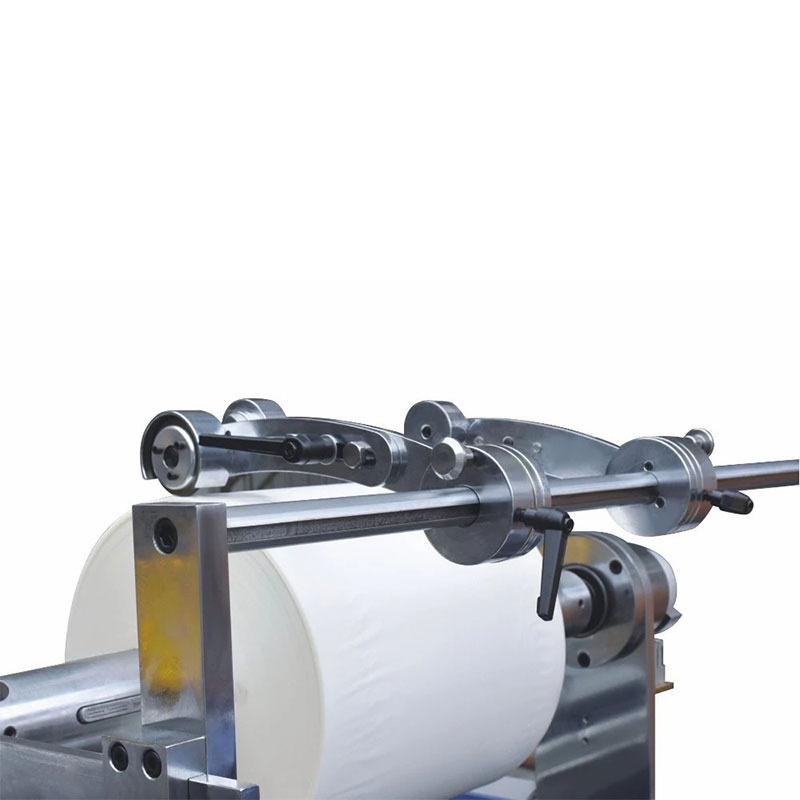

4.Pneumatic film unwinding system positions film roll more accurately, and makes the loading and unloading of film roll and film unwinding tension much more convenient.
5.Double sets of serrated perforating wheels provide different choices for different specifications of sheets and film.
6.Perfected traction adjusting system makes traction adjustment more convenient and efficient.
7.Corrugating delivery system and vibrating receiving system ensure paper collection more regular and convenient.

Configuration

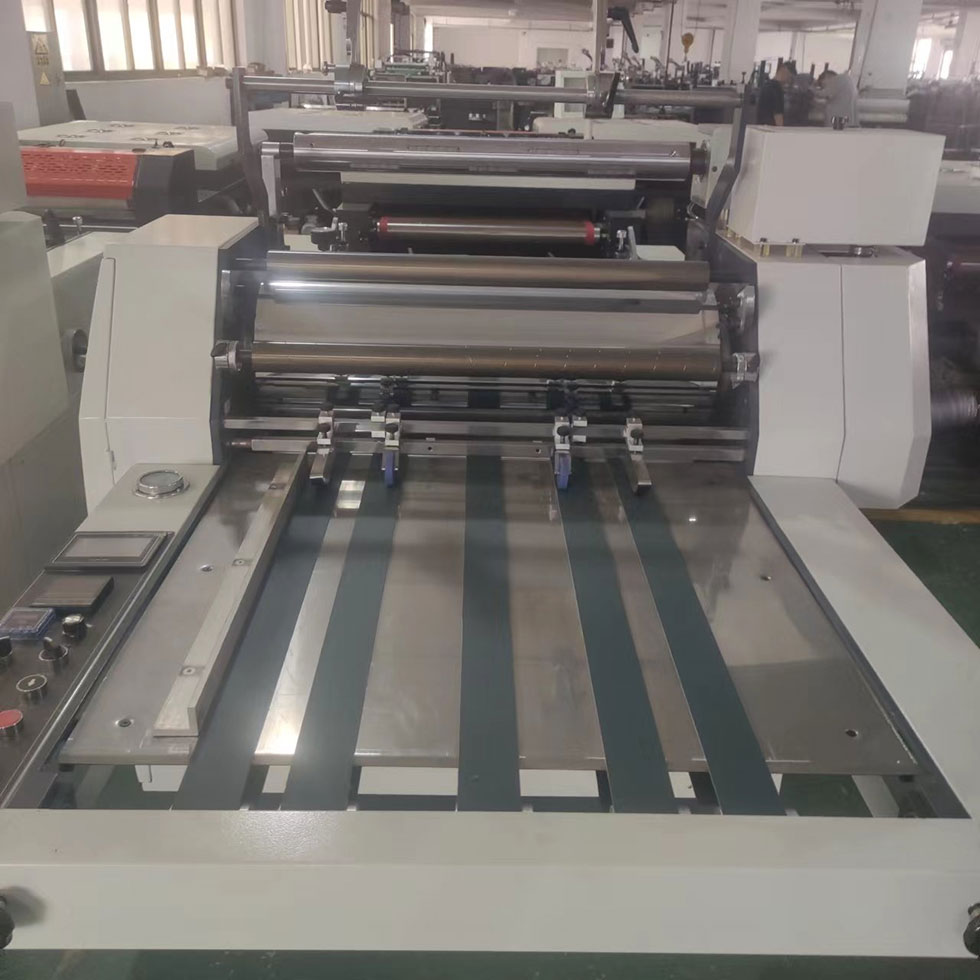

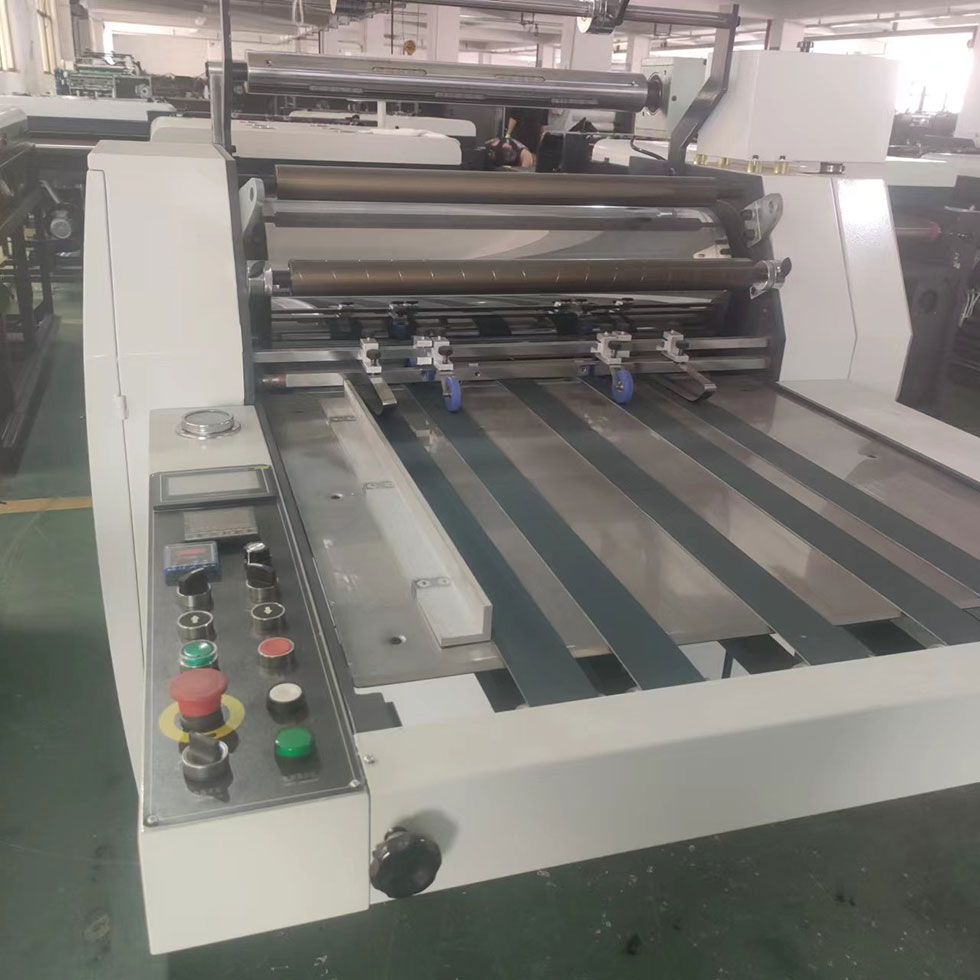

Paper feeding by manual

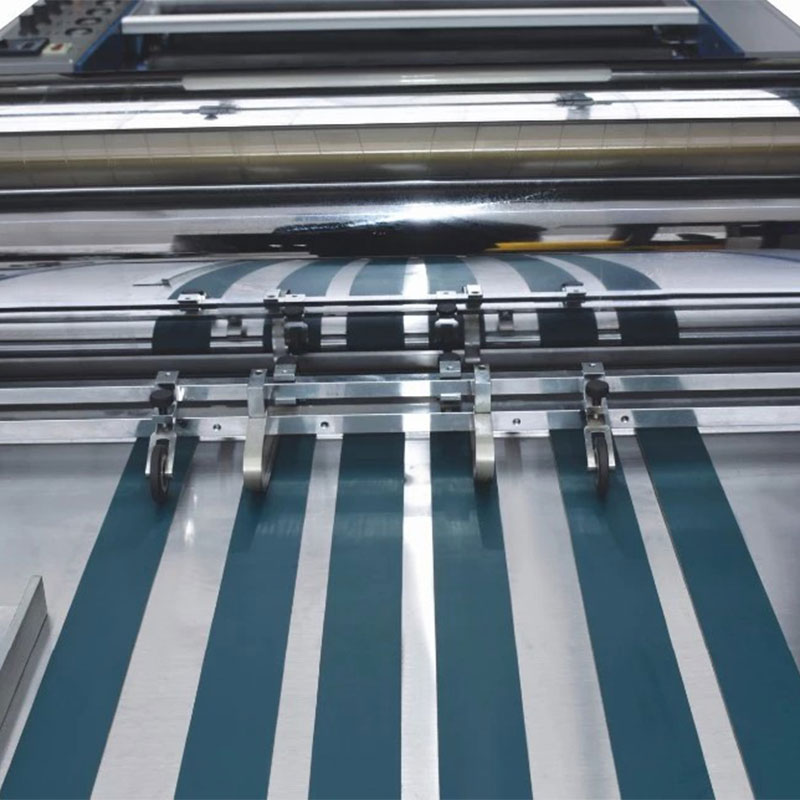

Working with side lay, the belt feeding the paper into heating roller.

Front lay work with servo motor for automatic overlap, improve the accuracy of the overlap.
Setting paper length in touch screen, easier to operating

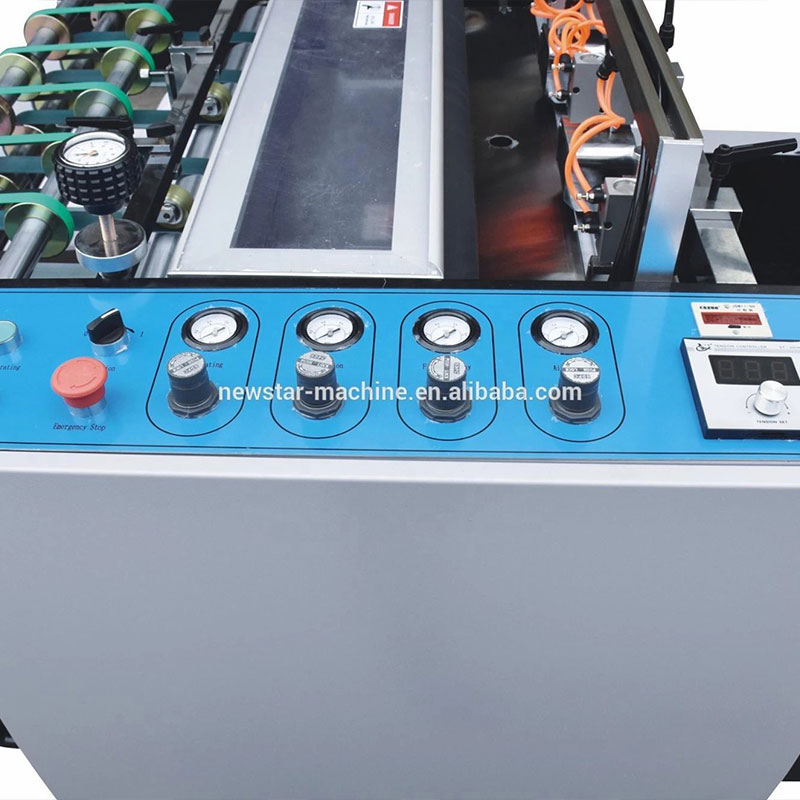

Automatic pressure adjust, instead of manual. Working with oil pressure gauge and value, save time and more accurate to control working pressure.

Equipped with sensor, Machine stop if no paper pass, to avoid the glue stick on the rubber roller.

Rubber guide cylinder, It can effectively improve the wrinkling of the thermal film and improve the quality of job.

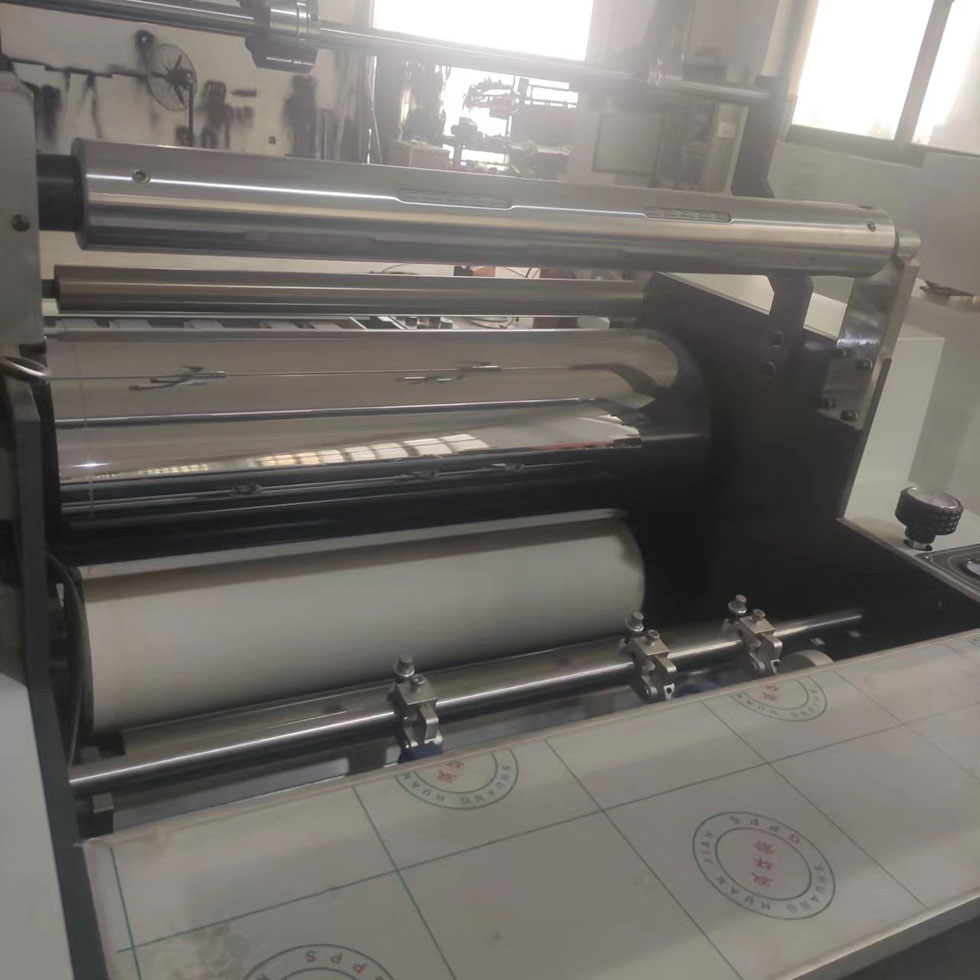

Oil heating roller, diameter is 320mm.

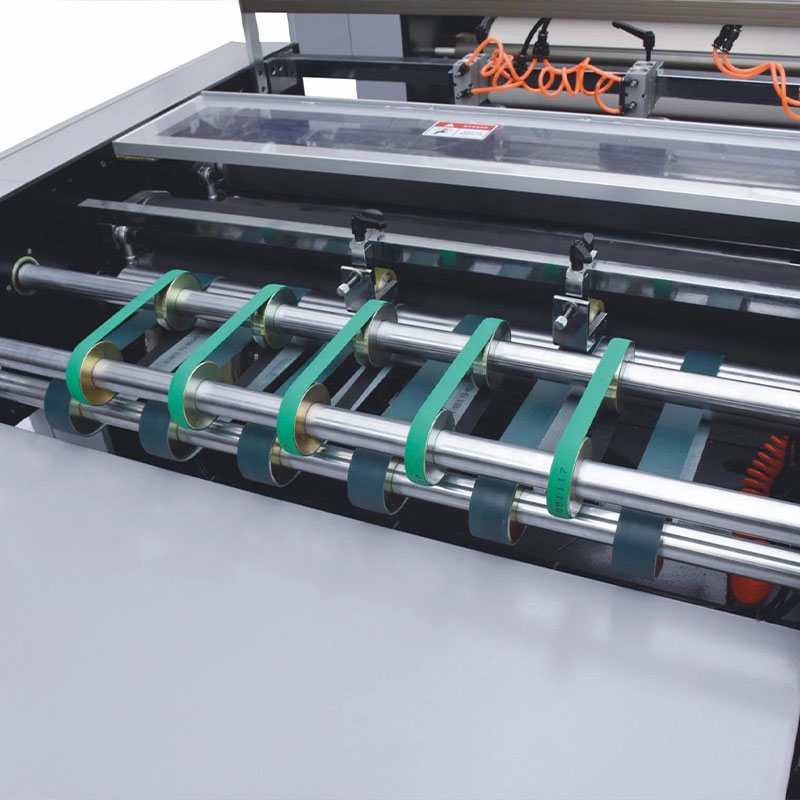

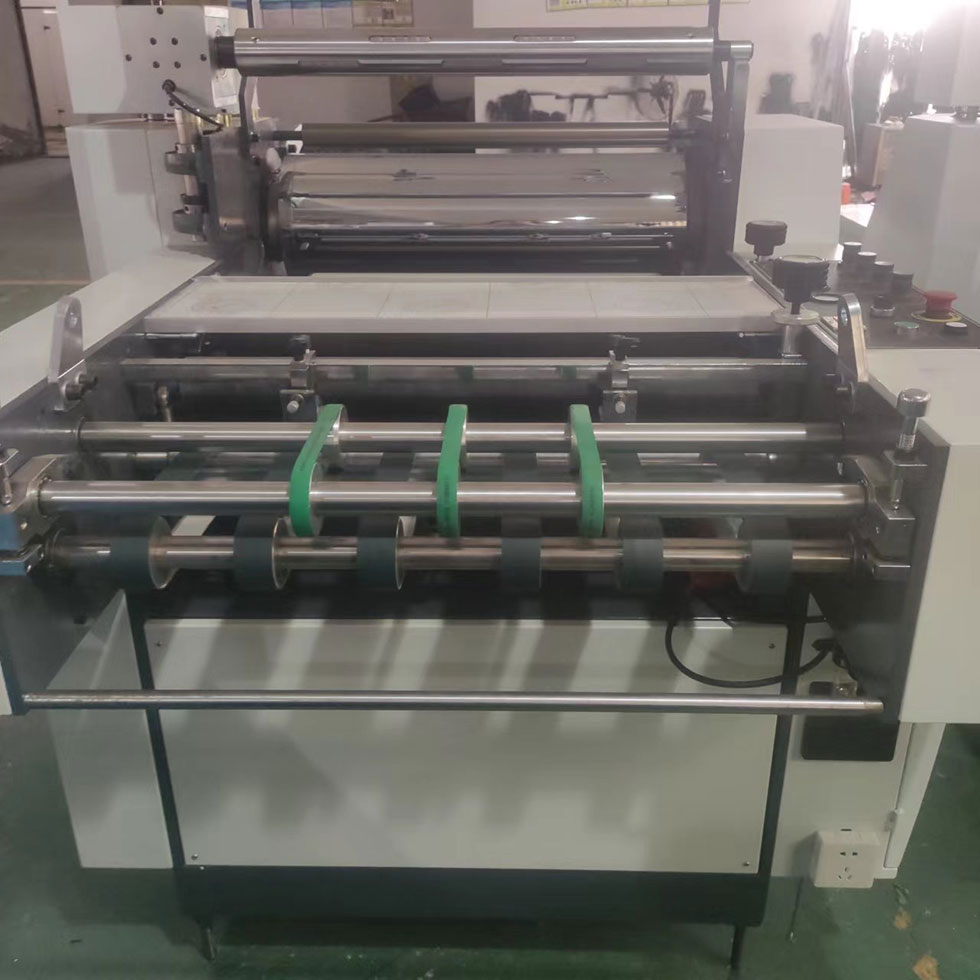

Double belt delivery unit, fast and automatic to save labor

World famous brand electrical parts from Omron, Schneider and so on.

Main components
