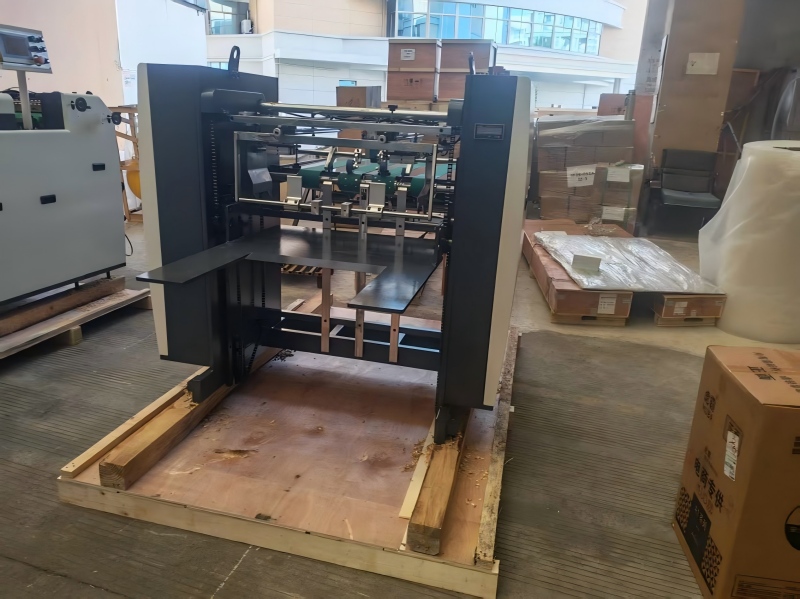

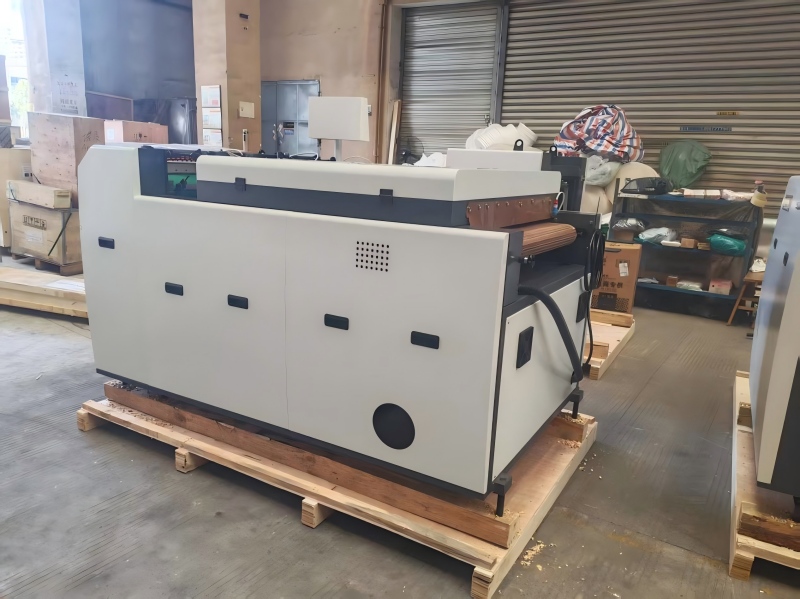

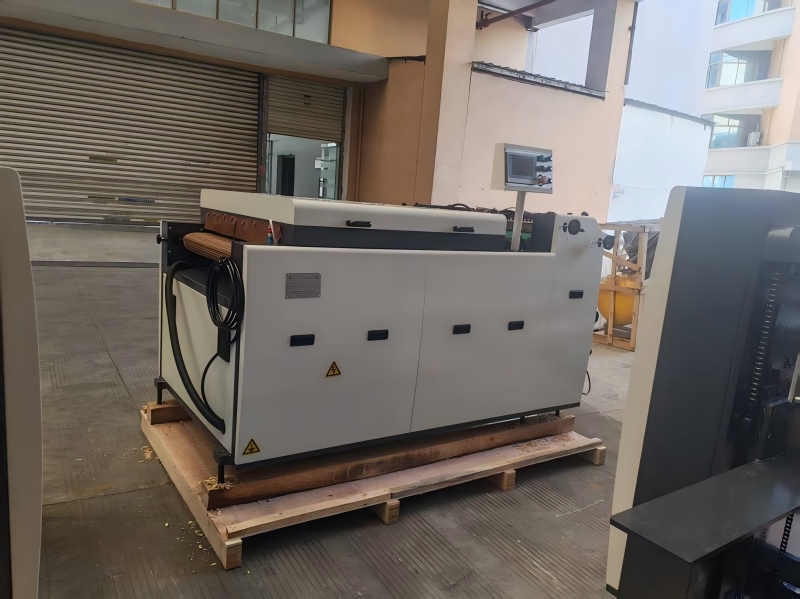

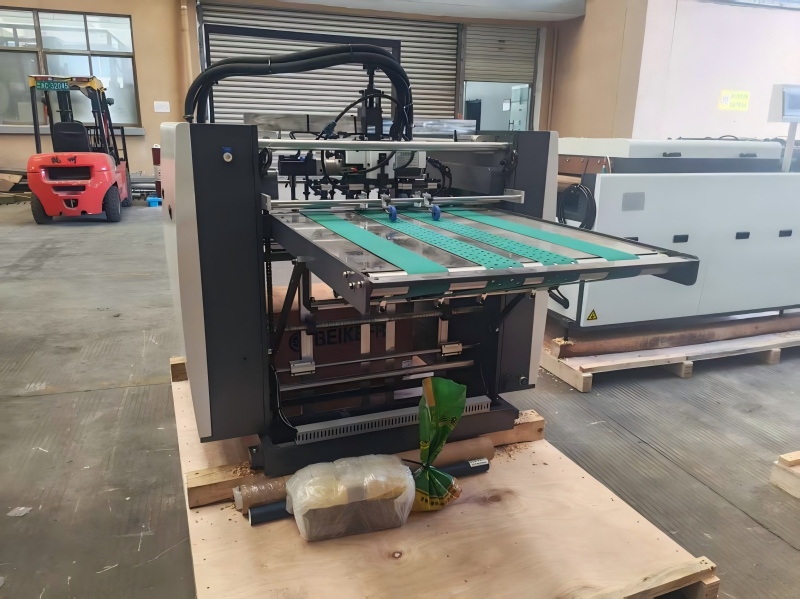

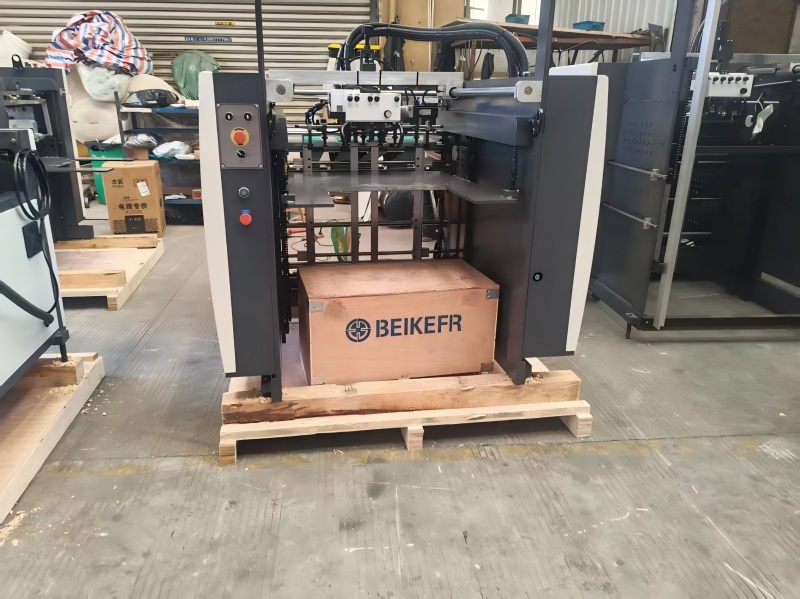

We are packaging the SGUV-760A Automatic UV Coating Machine. This machine has a small footprint and is easier to operate. Welcome to inquire.
The Automatic UV Coating Machine adopts a three-roll coating method (glue roller diameter 120mm, metering roller diameter 90mm, pressure roller diameter 120mm), ensuring the coating surface is uniform, delicate and free of orange peel. Equipped with a variable frequency speed regulating main motor, which maintains high stability during operation and effectively reduces defective product rates. The standard configuration includes 1 UV lamp and 6 IR lamps, with the oven equipped with temperature probes and constant temperature control, realizing precise temperature regulation, ensuring consistent glazing effect and saving electricity.
Equipped with a large-size touch screen control system and one-key start function, making operation simple and convenient, reducing the learning cost of operators. The independent auto stacker with pneumatic paper pat and medium-sized automatic paper feeder ensure high stability of feeding and stacking, improving the overall production efficiency. The transition section is equipped with a suction device to prevent paper skewing, and the conveyor belt uses a Teflon mesh belt with a lower suction system, ensuring smooth paper feeding and avoiding production interruptions.
It is an energy-saving glazing equipment with small floor area, suitable for small-sized and large-batch production, and has higher flexibility than large-scale glazing equipment. Adopts a diaphragm pump to reduce the workload of oil change, saving maintenance time and labor costs. The unique bottom roller automatic cleaning system matched with a double oil pan device can effectively clean the lower roller and prevent wear caused by oil drying during shutdown, extending the service life of the equipment.
Suitable for coating printed materials such as advertisements, books, and labels with UV and water-based varnishes. It can meet the high-quality UV glazing treatment needs of small-sized and large-batch paper products, and is applicable to multiple industries, helping to expand the scope of business applications. After glazing, it can enhance the moisture resistance, aesthetics and wear resistance of the printed materials, improving the added value of the products.
| Model | SGUV-660A | SGUV-760A |
| Max. Sheet Size | 620x760mm | 740x890mm |
| Min. Sheet Size | 270x270mm | 270x270mm |
| Paper Weight | 80~500g/m2 | 80~500g/m2 |
| Working Speed | 0~40m/min | 0~40m/min |
| Working Power | 13.5Kw | 13.5Kw |
| UV Lamp | 1pcsx6.5Kw | 1pcsx6.5Kw |
| IR Lamp | 6pcsx1.2Kw | 6pcsx1.2Kw |
| Machine Weight | 1500kg | 2800kg |
| Machine Dimension | 6000x1450x1600mm | 6000x1400x1600mm |
This Automatic UV Coating Machine is an innovative model developed by our company by drawing on the advanced technologies of HP Indigo and DMC coating machines. We have rich experience in R&D and customization of coating equipment, ensuring that the product integrates mature and advanced technologies, and the performance is reliable and superior.
The product is specially customized and developed based on the actual needs of domestic and foreign markets, closely matching the production requirements of global采购商. Whether it is the selection of equipment configuration or the design of functional modules, it fully considers the practical application scenarios of different regions and industries, ensuring high applicability.
As our company's latest cost-effective model, the equipment balances excellent performance and reasonable pricing. It can help you reduce production costs (reduce defective products, save electricity and maintenance costs) while improving product quality and production efficiency, bringing higher investment returns.
NEW STAR provides professional consulting services for any product-related questions. With a complete after-sales service system, we can timely solve the problems encountered by you in the process of use, ensuring the smooth progress of your production and reducing the risk of production stoppages caused by equipment failures.
